Rolling Mills

Rolling Mills

A Rolling Mill or Reduction Mill has a common construction independent of the specific type of rolling being performed:

• Backup rolls - are intended to provide rigid support required by the working rolls to prevent bending under the rolling load
• Rolling balance system - to ensure that the upper work and back up rolls are maintain in proper position relative to lower rolls
• Roll changing devices - use of an overhead crane and a unit designed to attach to the neck of the roll to be removed from or inserted into the mill
• Mill protection devices - to ensure that forces applied to the backup roll chocks are not of such a magnitude to fracture the roll necks or damage the mill housing
• Roll cooling and lubrication systems
• Pinions - gears to divide power between the two spindles, rotating them at the same speed but in different directions
• Gearing - to establish desired rolling speed
• Drive motors - rolling narrow foil product to thousands of horsepower
• Electrical controls - constant and variable voltages applied to the motors
• Uncoilers and recoilers - to unroll and roll up coils of metal

Slabs are the feed material for hot strip mills or plate mills and blooms are rolled to billets in a billet mill or large sections in a structural mill. The output from a strip mill is coiled and, subsequently, used as the feed for a cold rolling mill or used directly by fabricators.
10" 2-HI Breakdown Reversing /4-HI Finishing Cold Rolling Mill

BHS TORIN

10" 2-HI Breakdown Reversing /4-HI Finishing Cold Rolling Mill

10" 4-HI Waterbury Farrel Temper Pass Mill

WATERBURY FARREL

10" 4-HI Waterbury Farrel Temper Pass Mill

11" (300mm) x .157" (4mm) 10,000# 4HI Rolling Mill

Not Specified

11" (300mm) x .157" (4mm) 10,000# 4HI Rolling Mill

12" 4 HI Reversing Rolling Mill with AGC System

Not Specified

12" 4 HI Reversing Rolling Mill with AGC System

14"  x .215" Bliss /United 4-HI Non- Reversing Rolling Mill

BLISS

14" x .215" Bliss /United 4-HI Non- Reversing Rolling Mill

15.5" (393mm) x 4mm United/ I2S 4-HI Reversing Cold Rolling Mill

UNITED

15.5" (393mm) x 4mm United/ I2S 4-HI Reversing Cold Rolling Mill

16.5" Bliss 4-HI Non Reversing Mill

BLISS

16.5" Bliss 4-HI Non Reversing Mill

16" (420mm) Mino 4-HI Reversing Cold Rolling Mill

MINO

16" (420mm) Mino 4-HI Reversing Cold Rolling Mill

17" (435mm) 4 HI Copper Reversing Mill

Not Specified

17" (435mm) 4 HI Copper Reversing Mill

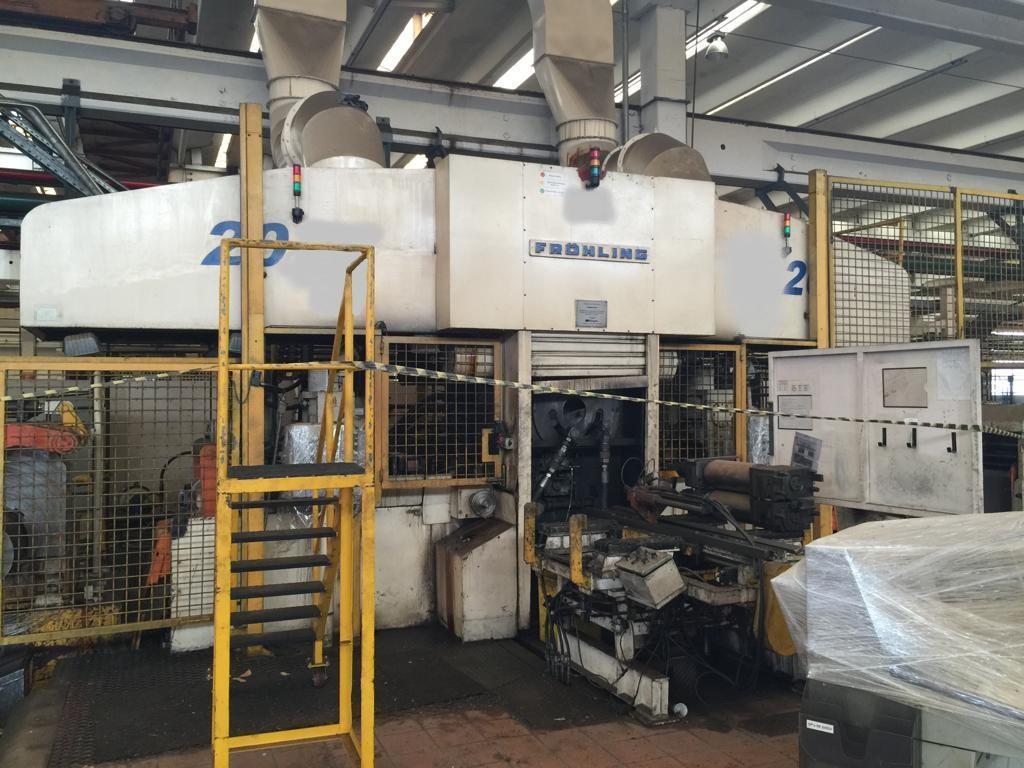

18" (457mm)  x .250" (6mm)  4-HI Frohling Reversing Cold Rolling Mill

FROHLING

18" (457mm) x .250" (6mm) 4-HI Frohling Reversing Cold Rolling Mill

2-HI/4-HI Fenn Rolling Mill

FENN

2-HI/4-HI Fenn Rolling Mill

20" (500mm) 4-HI Mino Reversing Cold Rolling Mill

MINO

20" (500mm) 4-HI Mino Reversing Cold Rolling Mill

20HI Sendzimir/ I2S Reversing Cold Rolling Mill

SENDZIMIR

20HI Sendzimir/ I2S Reversing Cold Rolling Mill
