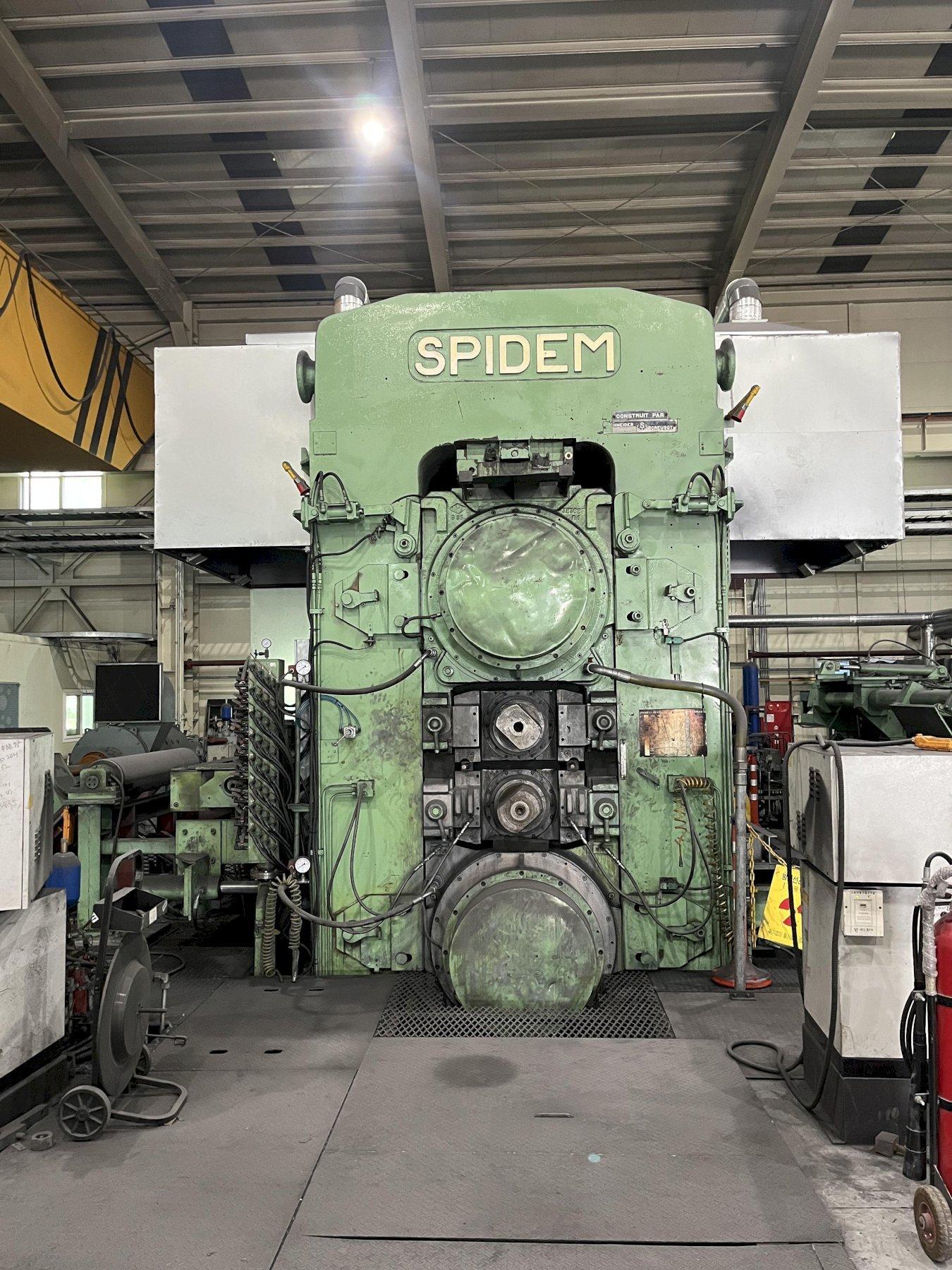

1700mm 4HI SPIDEM Non-Reversing Aluminium Breakdown Rolling Mill (NEW AGC 2013)

Brand
SPIDEM

Model
Not Specified

Stock #
604978

Condition
Used

Year

Equipped With

Manufacturer: Spidem, France
Refurbished with NEW Mechanical and Hydraulic Systems
New ABB Electricals in 2013
New AGC and Automation  by Spidem in 2013

Technical Specifications:
Width : 1700mm
Entry Thickness: 11mm  (.433")
Exit Min Thickness: 0.2mm (.007")

Line Speed
450 mpm max (1476 fpm)
320 mpm with edge trimming (1050 fpm)
Max Mill Force: 1500 tons


Uncoiler Data:
Coil ID 610mm
Coil OD 1600mm
294kw  Motor Drive

Mill Data:
Work Roll Face: 1830mm
Work Rolls Diameter: 500mm.... Lifespan to 465mm Diameter
Work Roll Count = 3 sets / 6 rolls, Chocks = 1 set / 4 chocks

Back Up Rolls Diameter: 1200mm.... Lifespan to: 1100mm Diameter
Backup Roll Count = 1 set / 2 rolls, Chocks = 1 set, 4 chocks
Sizes: Between Stands: 2300mm
Between support bed centers: 2850mm
Main Motor ASEA (2pcs)
1100kw continuous
*(2) 2130kw
400V  400/1200rpm

Recoiler Data:
Coil ID 610mm
Coil OD 1600mm
(2) 294kw  Motor Drive


Complete with Hydraulics, Electrics, Controls

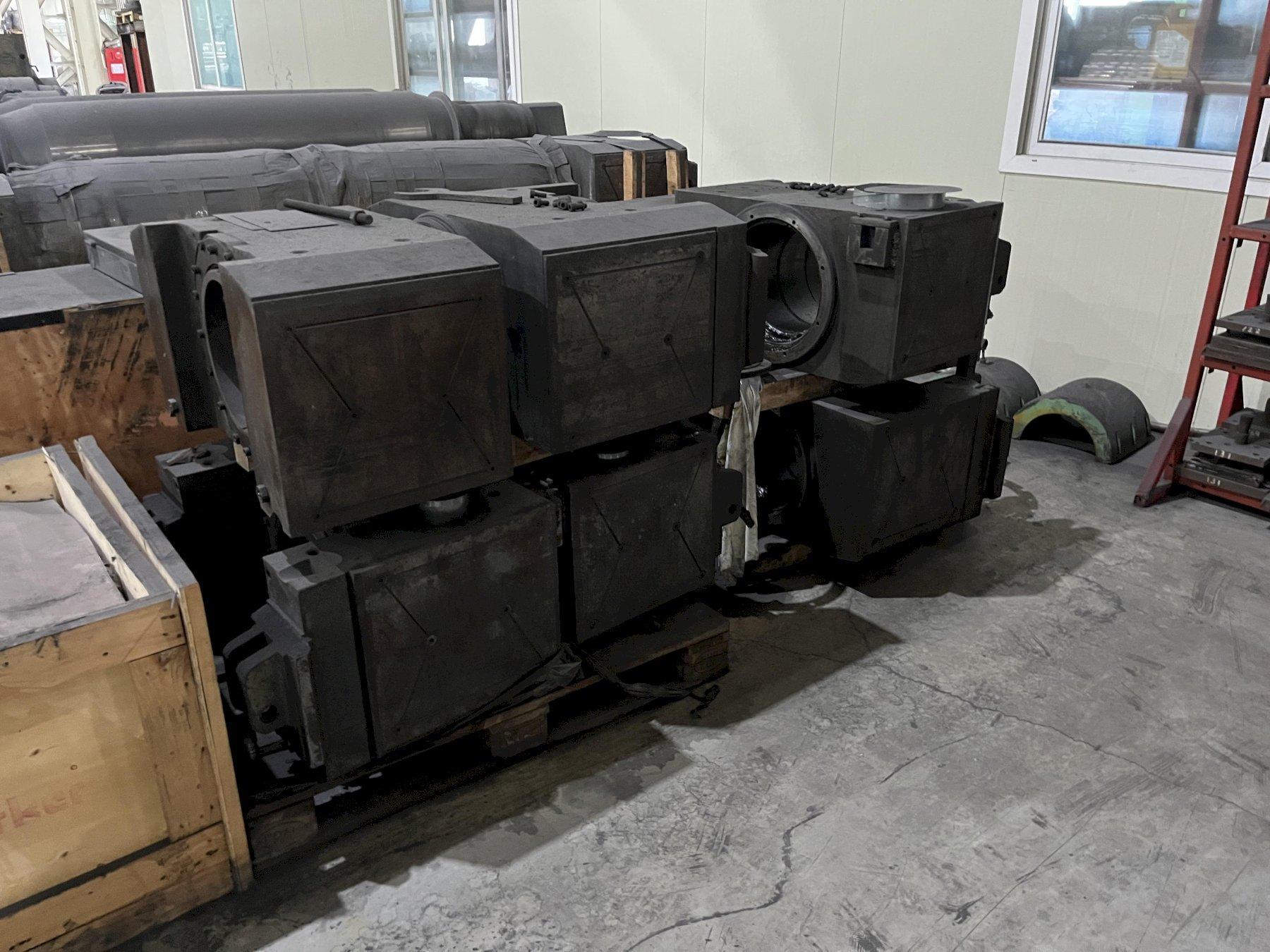

Spare Chocks and other Items

Installed and Running

Not Included:
Filtration System + Coolant System + Coolant Tanks
