General Specification:
Strip thickness: Min. finished thickness 0.2mm / Max. entry thickness 6.0mm
Strip width: 800–1300mm
Coil diameter: Mandrel Φ610mm (with sleeve Φ830mm) – Φ2200mm
Max. coil weight: 25t (including sleeve/interleaving paper)
Tension: 300kN (at 800m/min) – 500kN (at 480m/min)
Max. rolling speed: 800m/min
Max. rolling force: 9000kN
Main drive motor: 4000kW
Uncoiler/recoiler motors: 4000kW
Cooling system: Oil cooling type; strip cooling spray 9000L/min; bearing cooling 3000 L/min
Filtration capacity: 15800 L/min
Oil mist system: 130000 m³/h
With following components:
- Coil Storage Saddles
- Coil Transfer Car

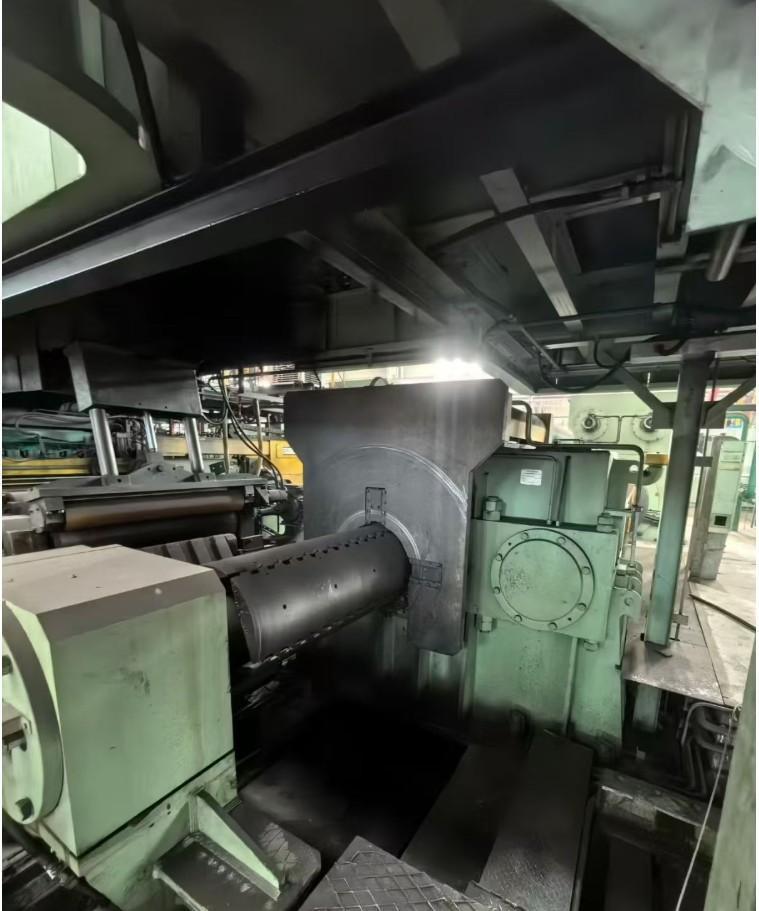

- Recoilers (Coilers)
- Mill Platforms and Ancillary Equipment
- Mill Housing
- Mill Roll System
- Mill Flatness Control System
- Strip Cooling and Lubrication
- Roll Changing Device
- Tail Coil and Sleeve Handling Equipment
- Belt Wrapper (Belt Wrapping Device)
- Single-Head and Double-Head Interleaving Paper Winders
- Symmetrical Equipment Arrangement
- Mill Fire Protection System
