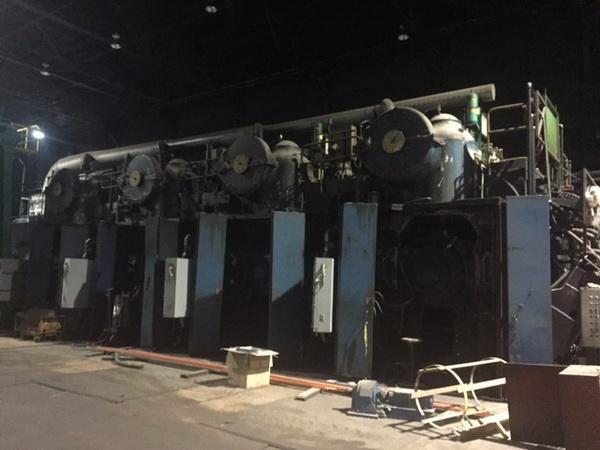

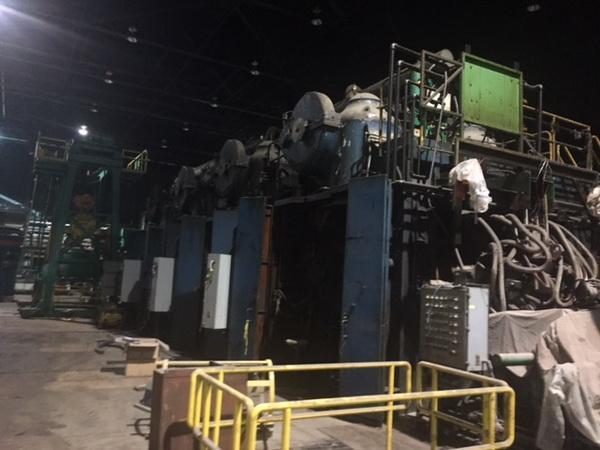

60” 4 stand Tandem Cold Rolling Mill

Brand
Not Specified

Model
Not Specified

Stock #
604184

Condition
Used

Year

Equipped With

Size Mill: 60”
Size Rolls
Back-Up Roll:  53” x 60”
Work Roll: 22” x 60”

Roll Bearing
Back-Up Roll:  Tapered Morgoil Type
Work Roll: Tapered Roller Type

Drives
#1 Stand (1) 3500 HP Motor
#2-3-4 STDS (2) 2500 HP Motor
Total Mill HP 18,500

Speed (Maximum): 3300 FPM @ 700 Volts
Theoretical Reduction Capability: 30% Stand

Speed (Average): 2100 FPM
Average Reductions: 65-70% Total
Stand Average: #1 – 30%
                            #2 – 25%
                            #3 – 20%
                            #4 – 10%
Coil Size (Maximum)
Incoming: 24”  ID 72” OD 60,000#
Produced: 24” ID 72” OD 60,000#

Gauge Range
.024” - .140” Finish Band
.080” - .200”

Width Range: 26’ – 52” Wide

Rolling Solution
Systems: Recirculating Type
Capacities: 8000 Gallons Stands #1 – 2 – 3  @2000 GPM

Line Equipment
Coil  Prep-Tail Straightener and Uncoiling Coil Box – Max.
OD 73”
Entry Guides
4 – Stands Wiper Boxes
#1 Stand AccuRay Gauge
#1 – 2 – 3 – 4 Stand Screwdowns
One Exit AccuRay Gauge
Tension Reel and Belt Wrapper
Strip Car and Hoist

New Mill Motor Drives and Gauging System Done by Voest Alpine in 2000.
