Levelers

Levelers

Steel Coil Levelers fall into four categories:

Leveling is the process of straightening through a number of offset rolls, usually from 13 to 23, with a smaller diameter. Typically these machines are backed up with rolls behind the work rolls to minimize deflection.

Corrective Leveling is configured like a basic steel coil leveler. However the backups are fully adjustable to create bend in the rolls. A corrective leveler can reduce shape defects across the strip and remove the entire coil set. These levelers are 17 to 23 work rolls and have adjustable backups. Some may have a 5HI or 6HI configuration for surface-critical material such as painted or stainless steel.

Tension Leveling is the ultimate in corrective leveling. The material is run through an entry and exit set of bridle rolls – with the corrective leveler located between them. The strip is under great tension with a slight elongation above the yield point of the material and is simultaneously leveled. The material is shape corrected and relieved of most internal stresses. This process usually involves a dedicated line.

No matter how simple or complex your leveling needs, a Galaxie sales engineer is able to match the best machine to meet your coil leveling goals. We carry Herr Voss, Paxson, Mesta, Bronx, and Stamco, to name a few.

See also Flatteners

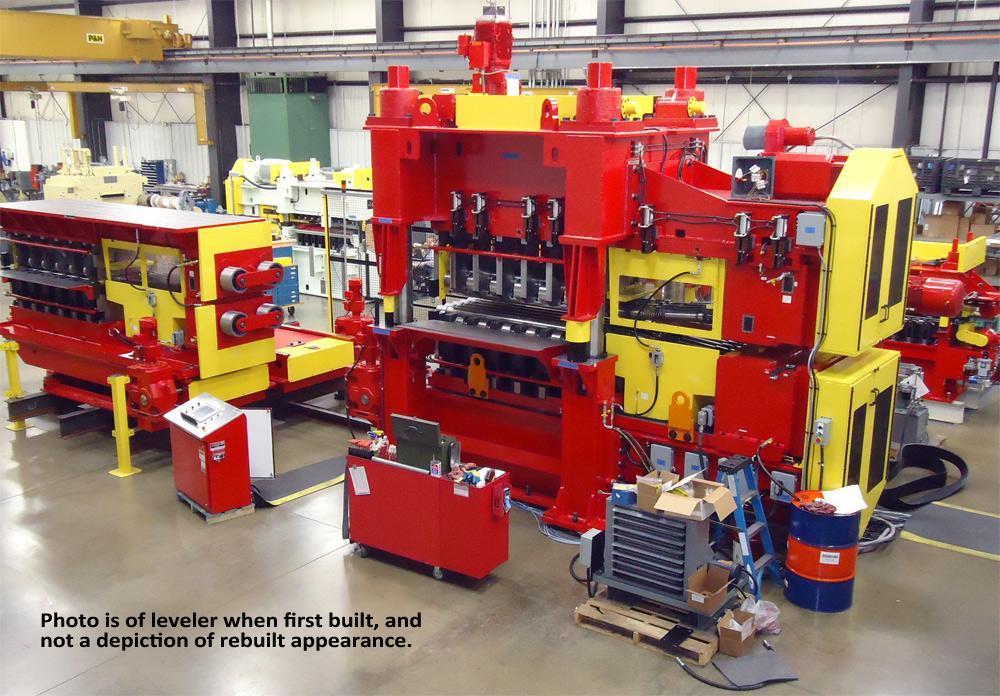

156" (40000mm) x 4" (100mm) Wagner Backed Up Plate Leveler

WAGNER

156" (40000mm) x 4" (100mm) Wagner Backed Up Plate Leveler

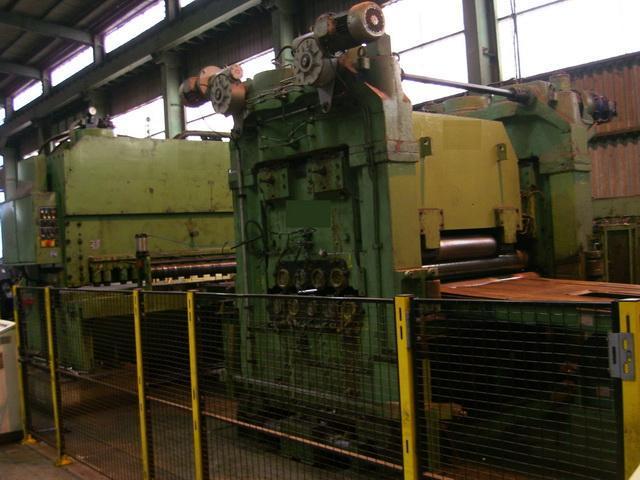

126" x 1" UBR Leveler

UBR

126" x 1" UBR Leveler

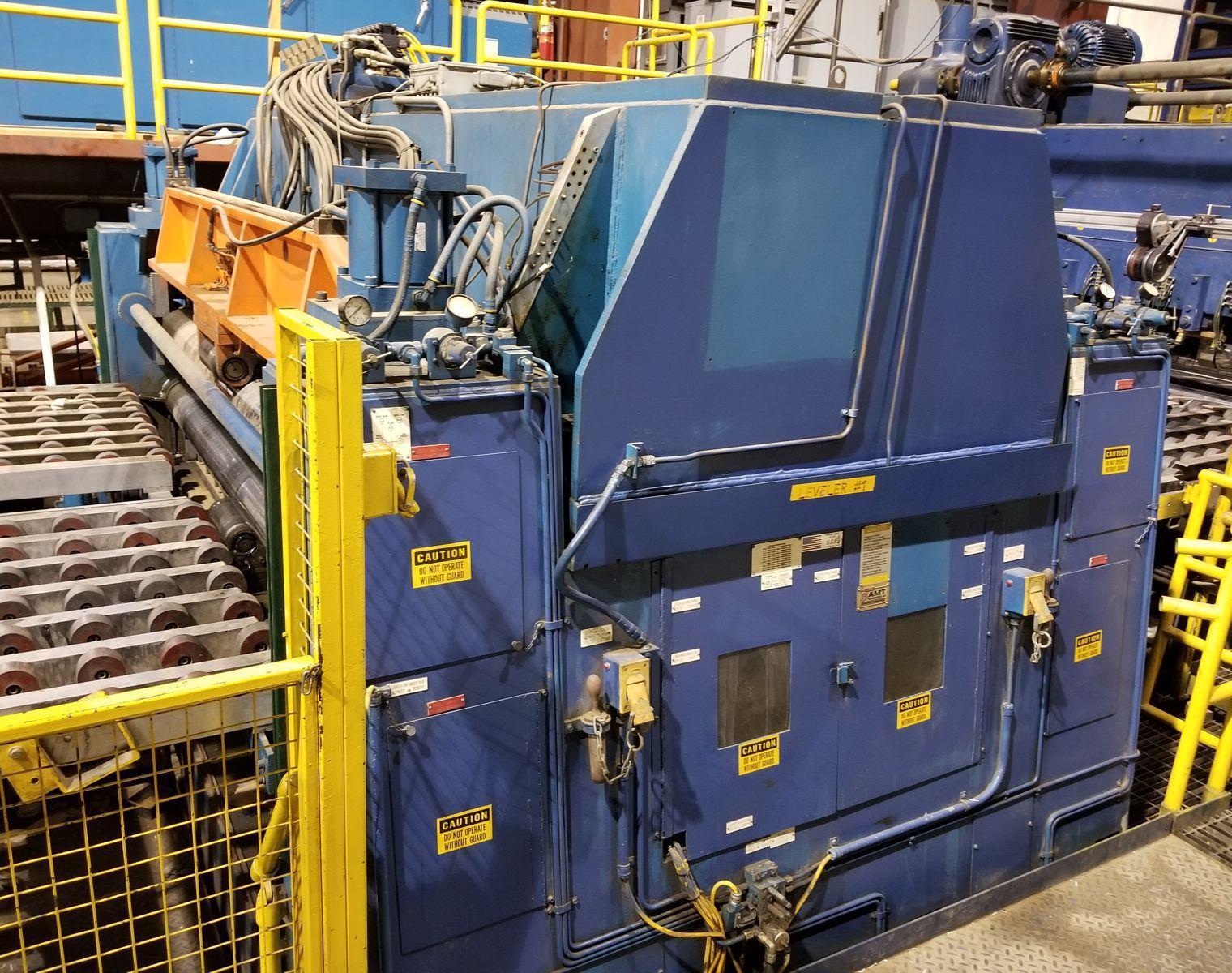

98" (2500mm) x .63" (16mm) Ghota - Erfurt Leveler

GHOTA-ERFURT

98" (2500mm) x .63" (16mm) Ghota - Erfurt Leveler

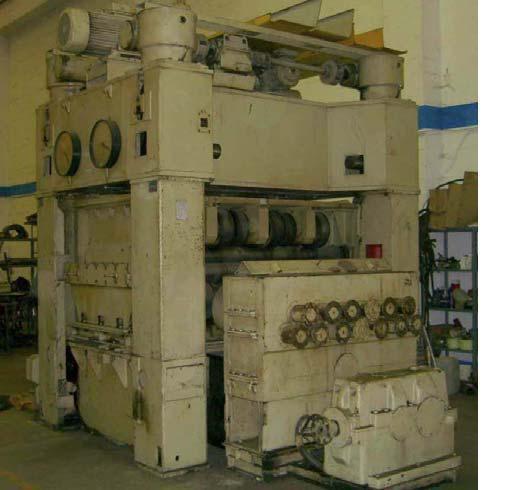

98" (2500mm) x .945" (24mm) Ghota - Erfurt Leveler

GHOTA-ERFURT

98" (2500mm) x .945" (24mm) Ghota - Erfurt Leveler

96" x .250" Automatic Feed 4-HI Corrective Leveler

AUTOMATIC FEED

96" x .250" Automatic Feed 4-HI Corrective Leveler

84" x 3.75" 4-HI Spotti Precision Leveler (Year 2009)

SPOTTI

84" x 3.75" 4-HI Spotti Precision Leveler (Year 2009)

2100mm x 2mm Schnutz 6HI Cassette Leveler with2 Cassettes

SCHNUTZ

2100mm x 2mm Schnutz 6HI Cassette Leveler with2 Cassettes

80" x .709" (2000mm x 18mm) WMW Heavy Leveler

WMW

80" x .709" (2000mm x 18mm) WMW Heavy Leveler

80" x .394" (2000mm x 10mm) Plemco Leveler

PLEMCO

80" x .394" (2000mm x 10mm) Plemco Leveler

80" x .315" (2050mm x 8mm) Bonak 6-HI Leveler

BONAK

80" x .315" (2050mm x 8mm) Bonak 6-HI Leveler

80" (2000mm) x .787" (20mm) Demag Leveler

DEMAG

80" (2000mm) x .787" (20mm) Demag Leveler

74" x .500" Monarch-Stamco 4 HI Leveler

MONARCH

74" x .500" Monarch-Stamco 4 HI Leveler

72" x .075" Alcos 6-HI Leveler

ALCOS

72" x .075" Alcos 6-HI Leveler

72" x .135" 6-HI Stamco Cassette Leveler

STAMCO

72" x .135" 6-HI Stamco Cassette Leveler
