1600mm Width
Built in 2001
Stopped running in 2018
Revamped in 2012
Production Capacity: Approx. 2,000,000 TPY
Steel Grades Production Capabilities:
High Carbon Steel: 45、S50C、40Mn、65Mn、40Cr
Acid and Weather Resistant Steel: SPA-H、09CrCuSb、Q315NS、Q355GNHA
Automotive Structural Steel: S355MC、S420MC、S500MC、SAPH370、SAPH440
Structural Steel, Alloy Steel: SS400、A36、S235JR、SAE1022、Q345B
Electrical Steel: TGW800-TGW1300
Cold Rolled Material: SPHC、SPHD、SPHE、DD11、DD12、S320X、SAE1006B、SAE1008B
Input Billet Size:
Thickness width length
70-85mm 850-1730mm 27meter (85mm thickness)
max. 100mm 33meter (70mm thickness)
min. 10meter
Output Size:
(1.0-12.7)mm thickness × (850-1600)mm width
coil ID: 762mm
coil OD: 1200-2025mm
coil weight: max. 30 ton
Line Process:
Scrap Charging
HM Charging
150 ton×3 BOF with Bottom Stirring
Tapping
Ladle Heating
RH Refining
Secondary Refining
150 ton× 3 LF Refining
2 Sets of Ultra-Thin Slab Casters
2 Sets Tunnel Reheating Furance
2 Roughing Mills

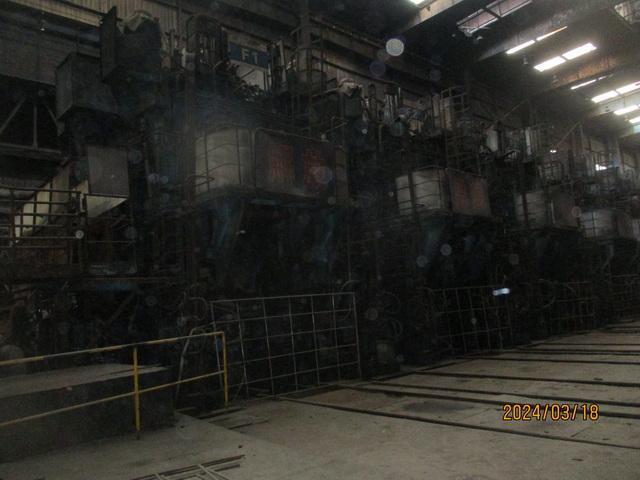

5 Finish Mills
Flying Shear
Down Recoiler
