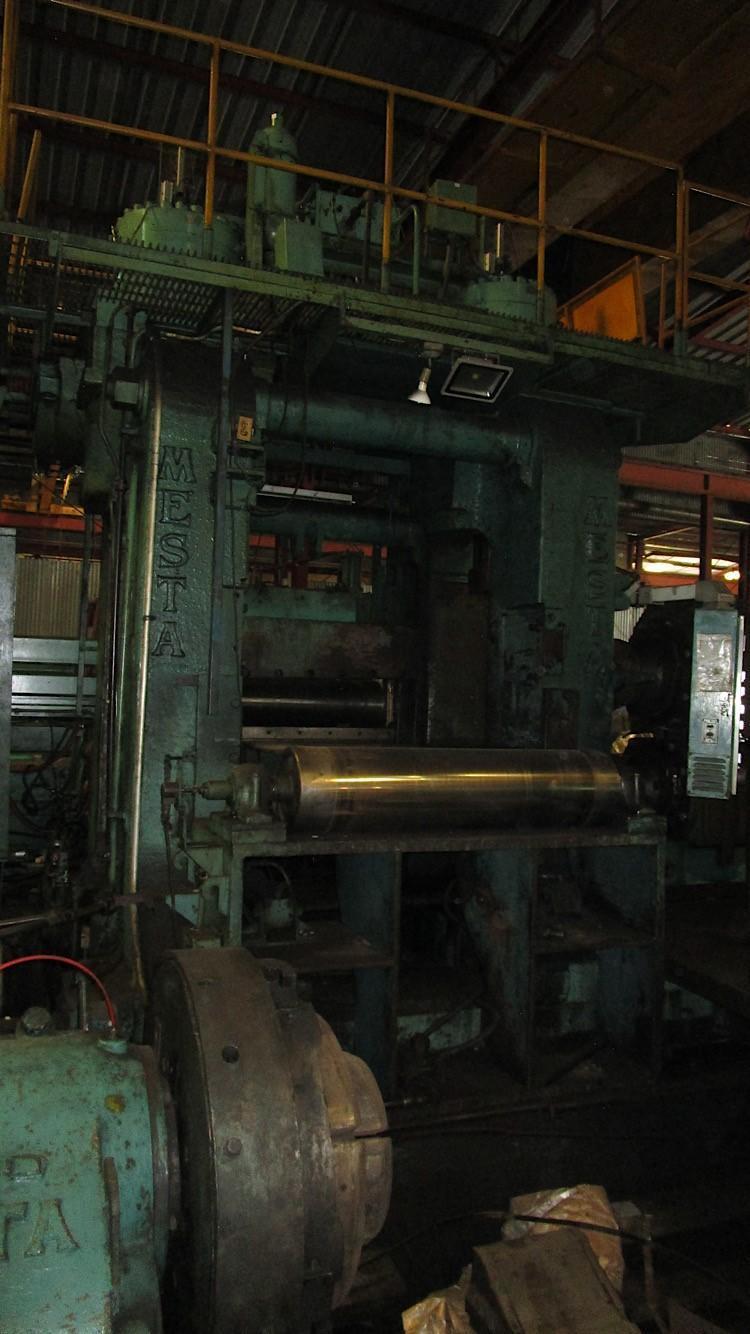

Mill Manufacturer – MESTA
Modernized in 1998 by I2S
Typical Products – Carbon Steel
2 mm to .15 mm up to 1422 mm wid
.080 to .006” thickness up to 56” wide

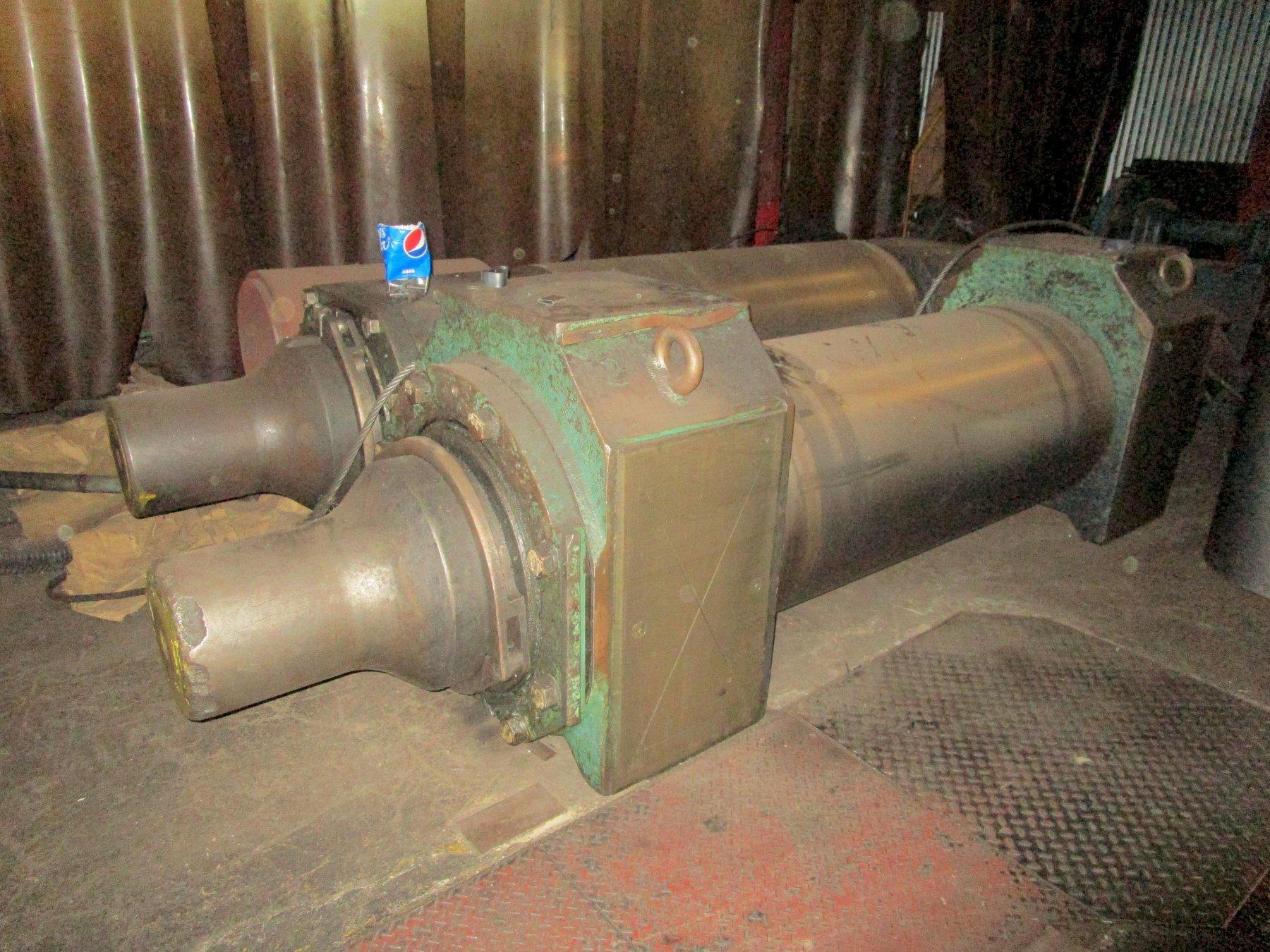

Roll Size: 762 mm (30”)
Max 30” Min 28”
Roll Face: 1575 mm (62”)
Coil ID: 570/600 mm (22.5/24”)
Coil OD Max: 1676 mm (66”)
Coil Weight: 20 tons
Mill Direction – Left to Right
Mill Speed – 660 mpm / 2160 fpm
Mill Pinion Stand Ratio: 1:1
Entry Chain Conveyor
Coil Stop
Coil Lift
Double Stub Mandrel Uncoilers

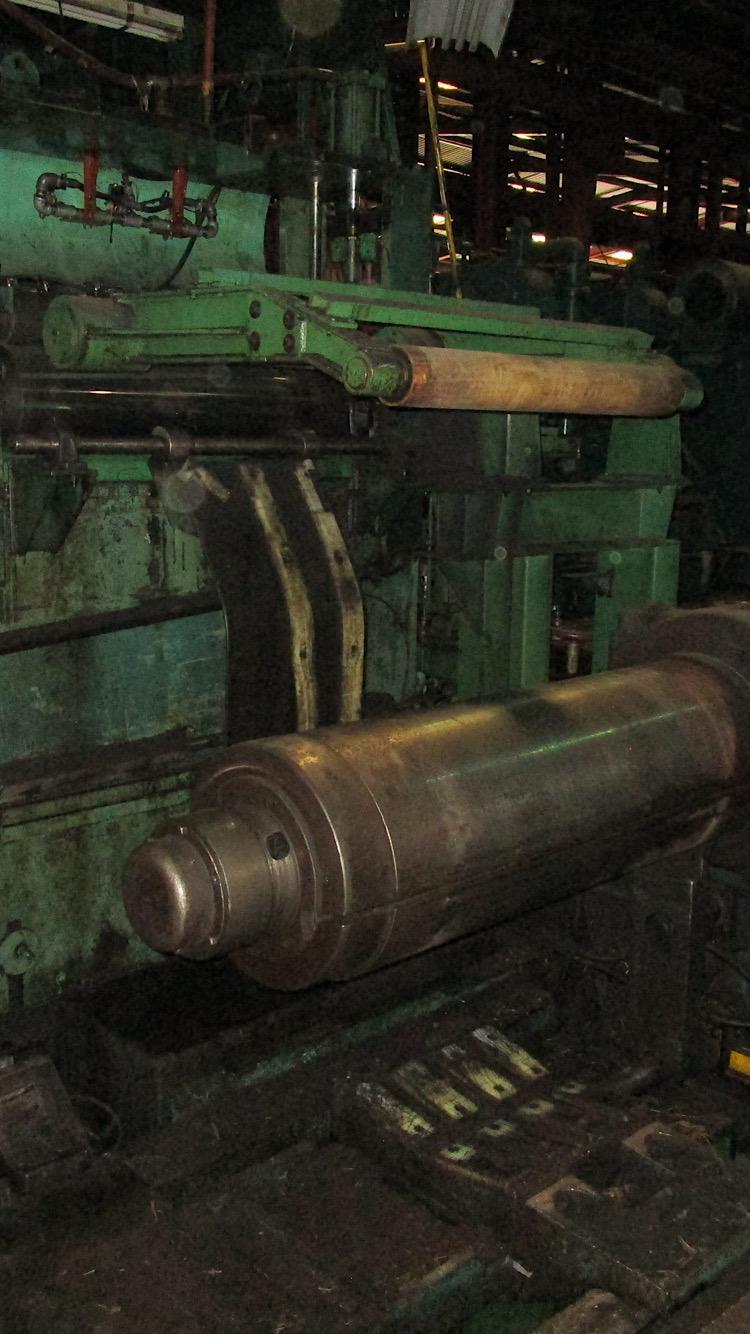

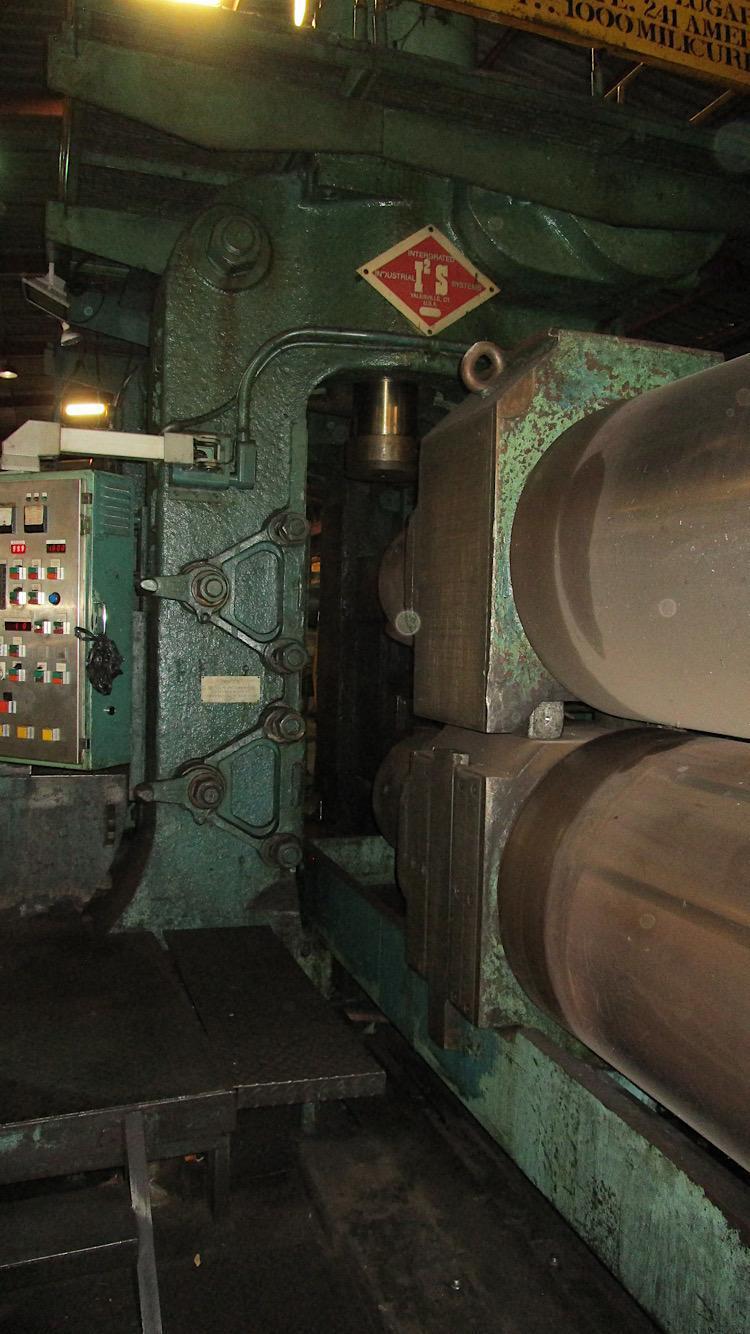

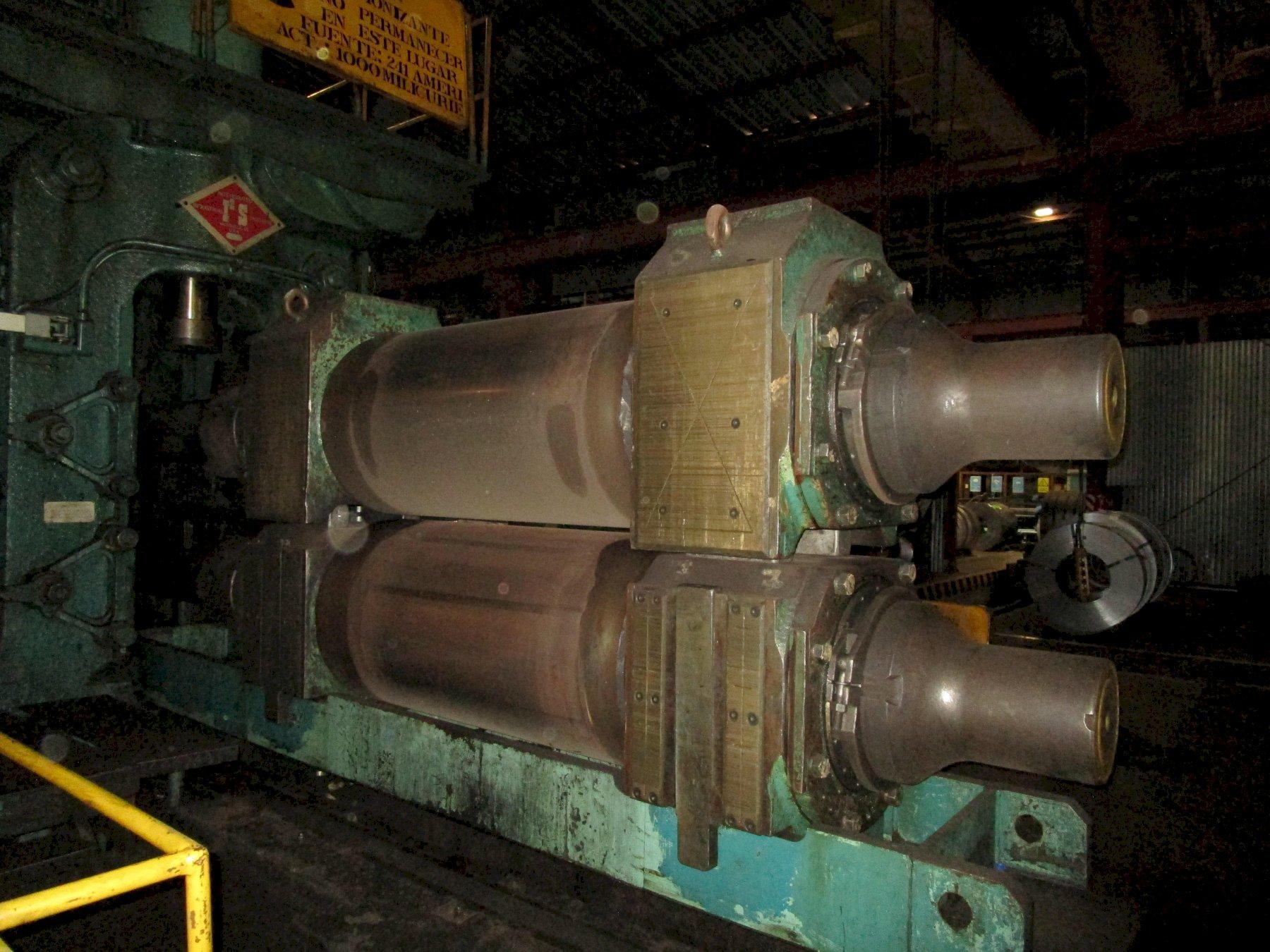

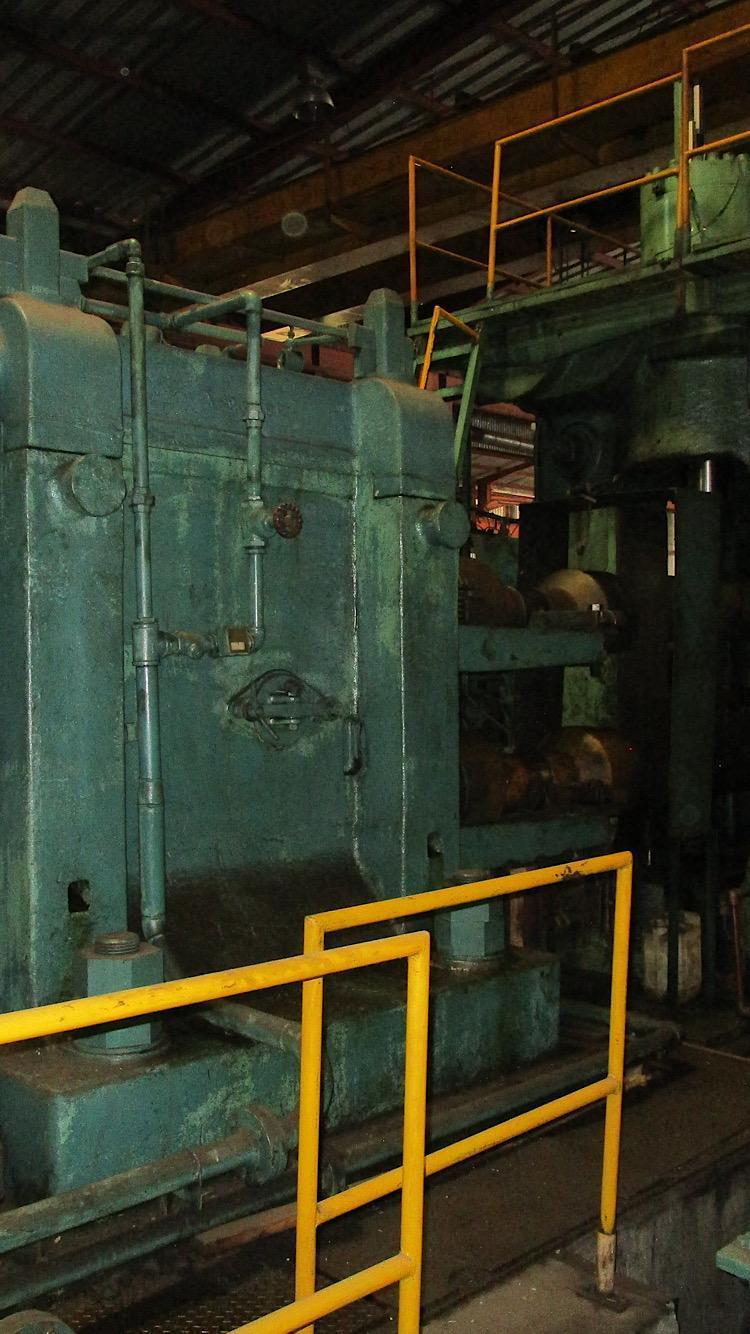

Mesta 2HI Mill Roller Bearings
Roll Change Sled
Recoiler with 800 HP DC Motor
I2S Thickness Gauge
Exit Coil Ramp
Mill Power – 600 kw / 800 hp 200/400 rpm 600 VDC 1080A

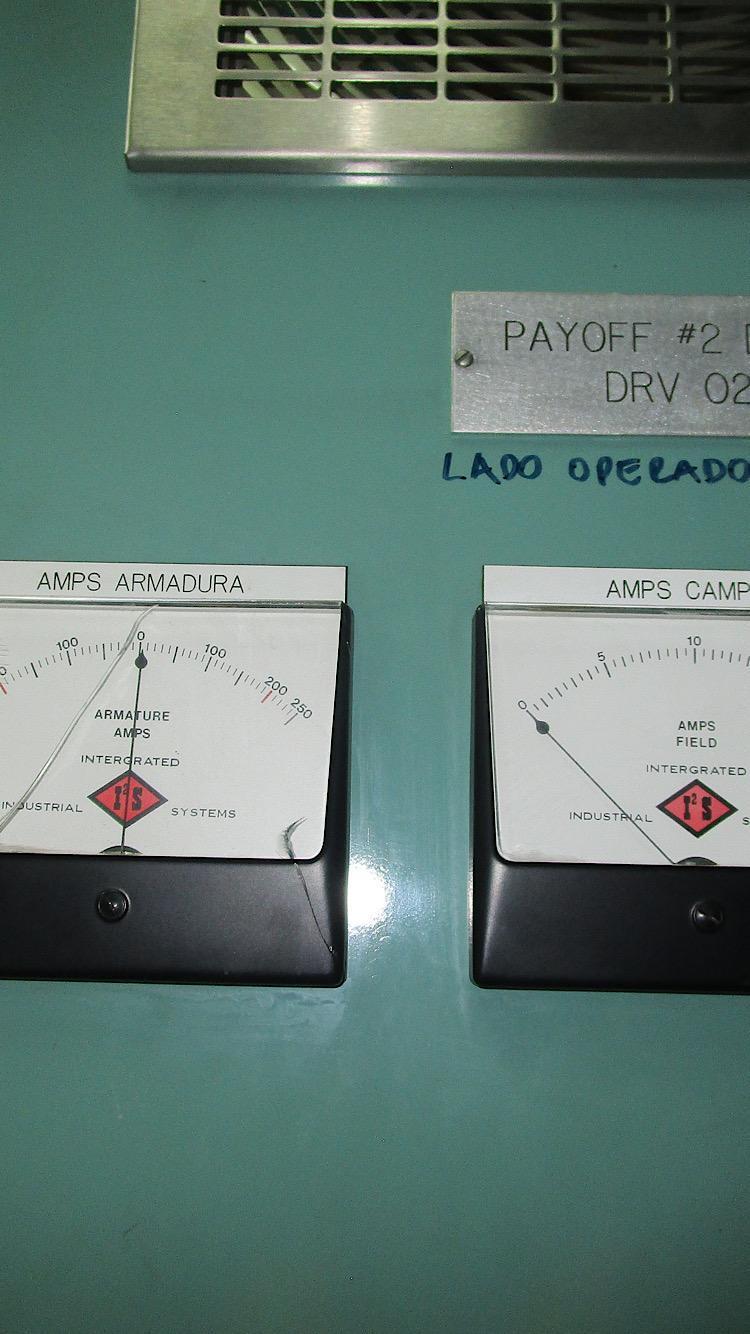

Double Stub Payoff Mandrels
Motors – 100 kw each 200 kw total (134 hp – 260 hp total
500 VDC 200 A 125/475 rpm Gear Ratio 1:1
Winder Motor – 450 kw / 600 hp 600 VDC 125/350 rpm 1090 A Gearbox 1:1
Hydraulic Screw Down Conversion done in 1998
By Direct Acting Cylinders & Moog Servos Digital Position Controlled
Payoff Max Tension: 1650 kg / 3300 pounds
Rewinder Max Tension: 4500 kg / 10,000 pounds

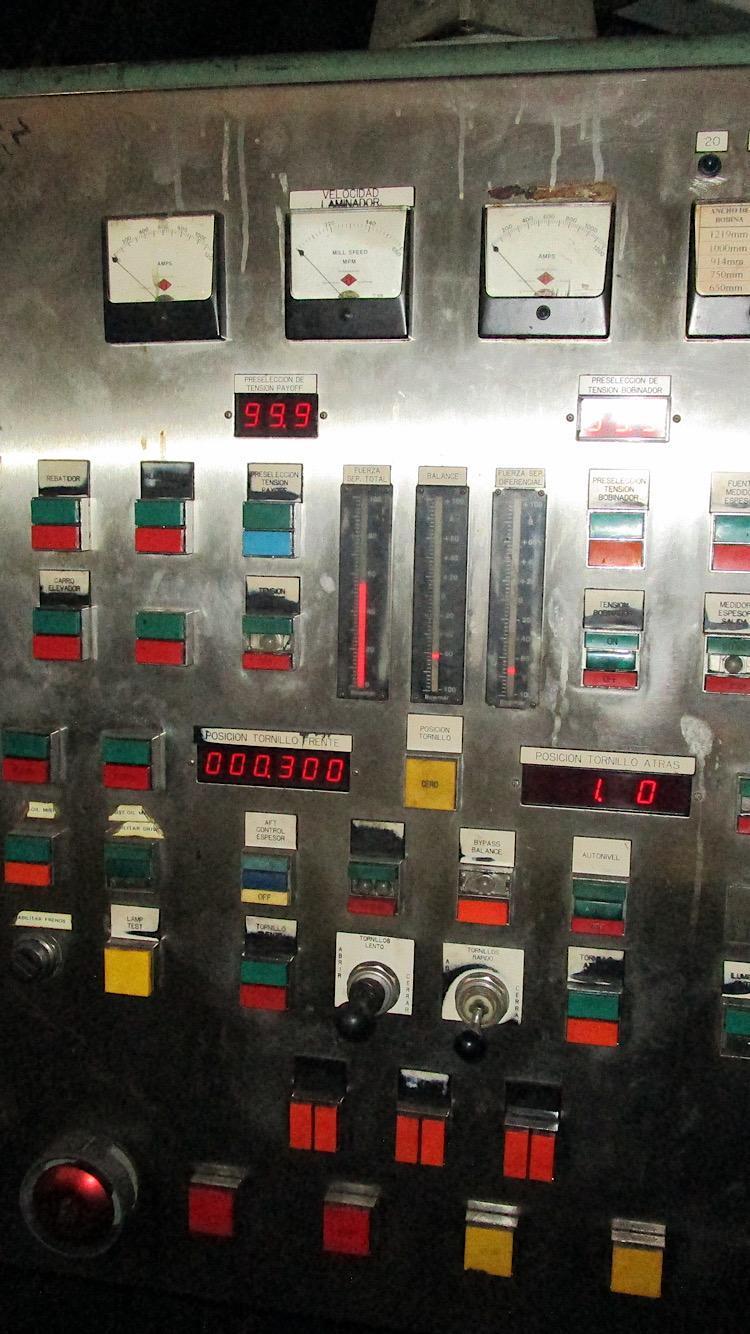

Electrics
Digital Eurotherm/SSD Drives
GE 9070 PLC

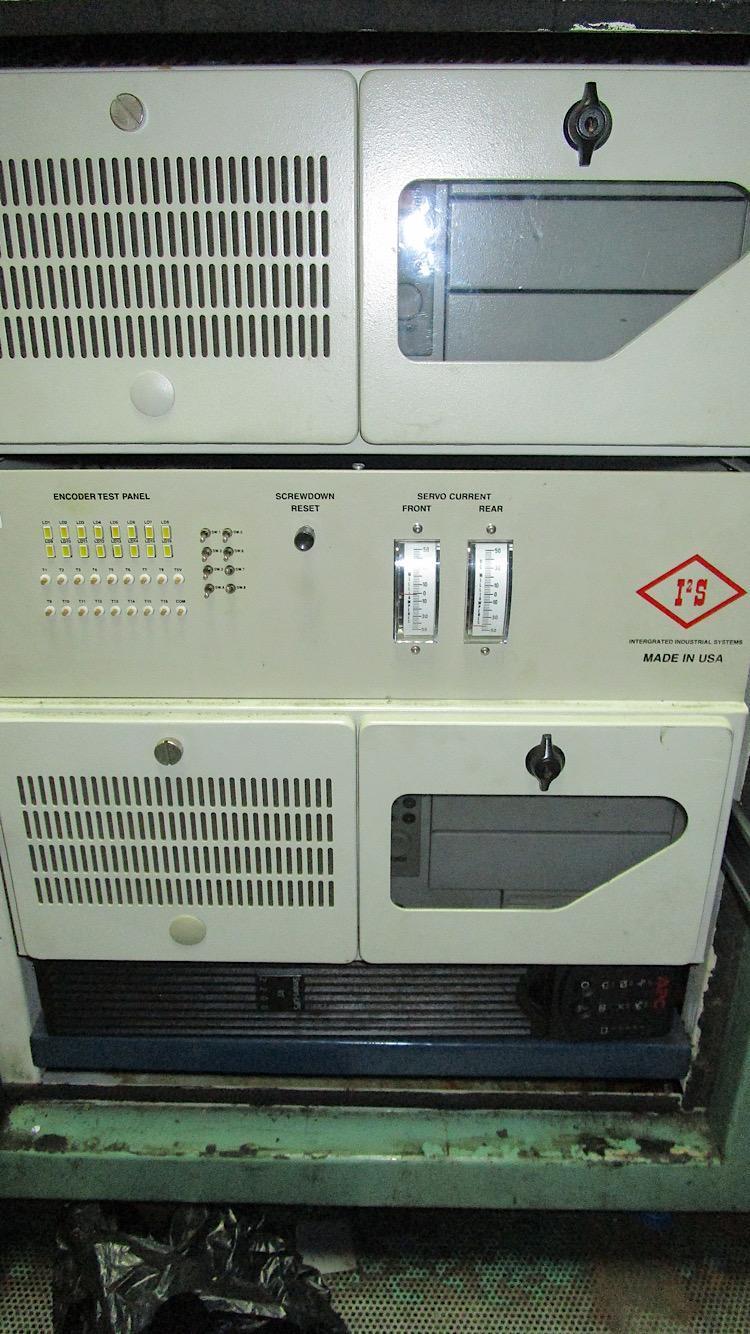

I2S Hydraulic Screwdown System
I2S Gamma Thickness Gauge on Exit Side
