1270mm Sendzimir Cold Reversing Mill Model ZR22-50 (Rebuilt by Tenova / I2S)

Brand
HITACHI

Model
ZR22-50

Stock #
604965

Condition
Used

Year

Width 50 inches

Equipped With

1270mm HITACHI Sendzimir Stainless Cold 20-Hi Rolling Mill
 Model ZR22-50

Complete. Electrical Upgrade in 2012 Tenova
AGC Added in 2012 Tenova
I2S Gauges added in 2012
Mill & Winder Motors Rebuilt in 2012


 20-Hi Rolling Mill:
       Entry Thickness:  0.3mm - 5.5mm (.012" - .216")
       Output Thickness:  0.1mn - 4.0mm (.003" - .157")
       Width:  600mm - 1270mm (23.6" - 50")

 Capacity:  T/R:  22,500 - 250kg at 240M/Min (787 FPM)
            PO/R: 3900kg at 193M/Min (633 FPM)

 Main Motor:

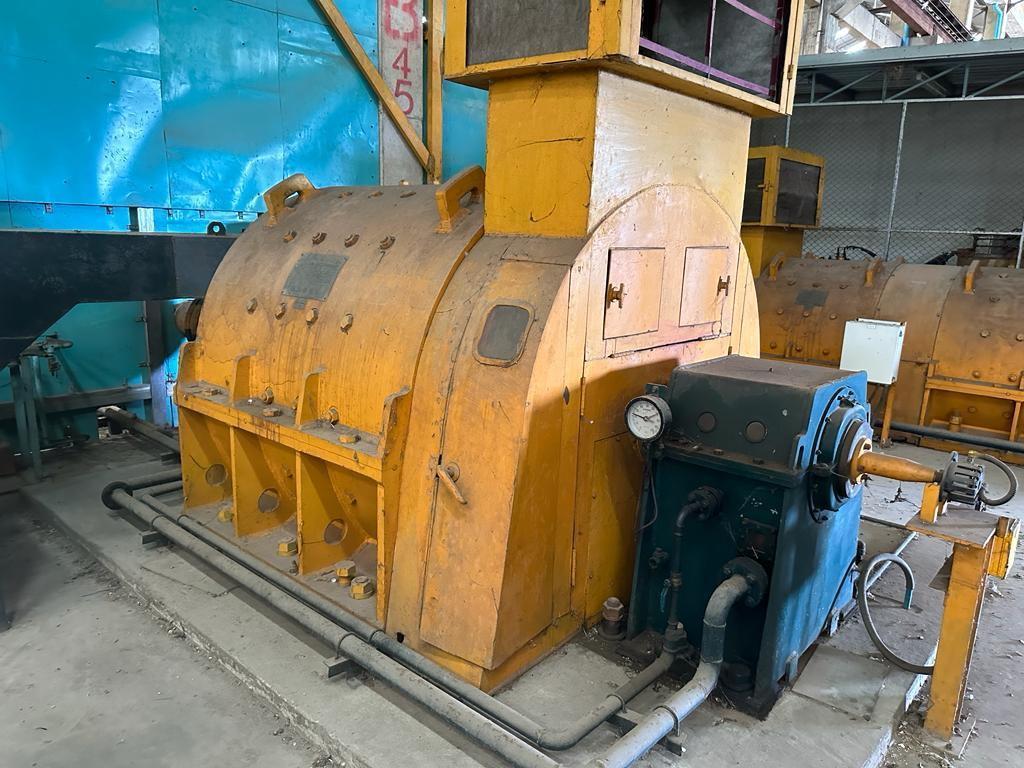

       Mill Motor:  DC 1400 HP, 178/358 RPM
       T/R:  DC 1200 HP, 150/450 RPM
       PO/R: DC170 HP, 300/900 RPM

 Speed:  0 - 120 M/Min (393 FPM), 240 M/Min (787 FPM)

 Coil:
       Inner Diameter:  508mm (20")
       Outer Diameter:  1400mm (55")
       Max. Coil Weight:  10 Ton

 EQUIPPED WITH:
Coil Lift Power Rotation
Mandrel Uncoiler
Paper Winder
Peeler Hold Down Roll
Sliding Base
DC Drag Generator Brake
Hydraulic Expansion
Roll Roll Leveler
Tension Pad
Traversing Paper Winder

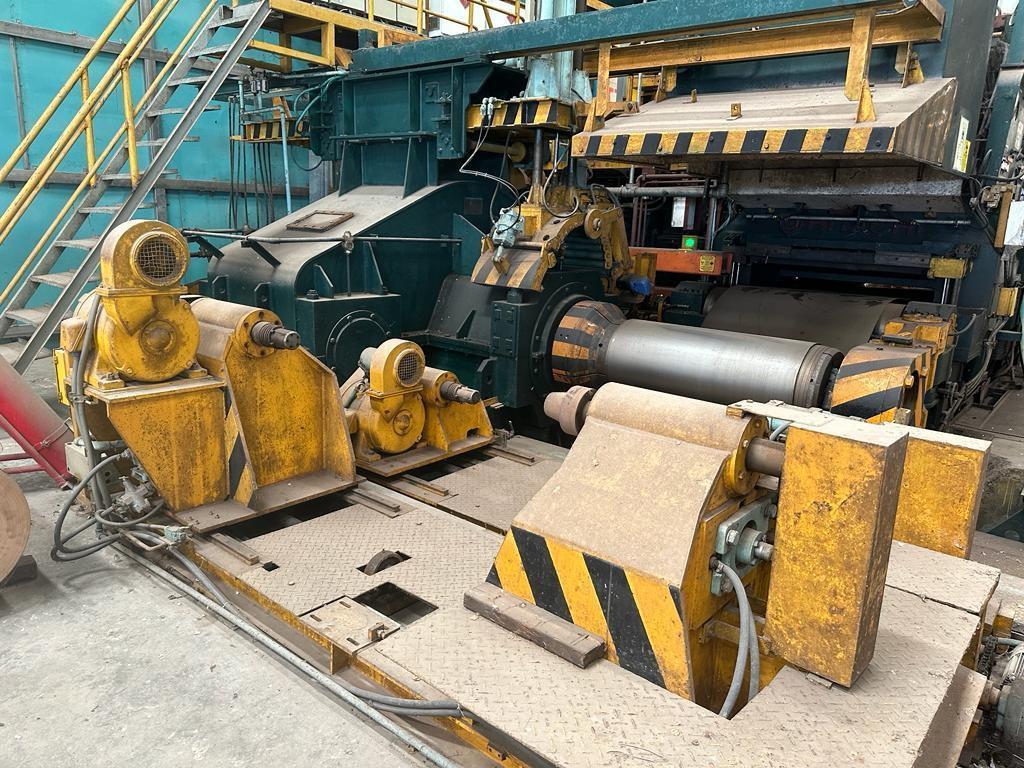

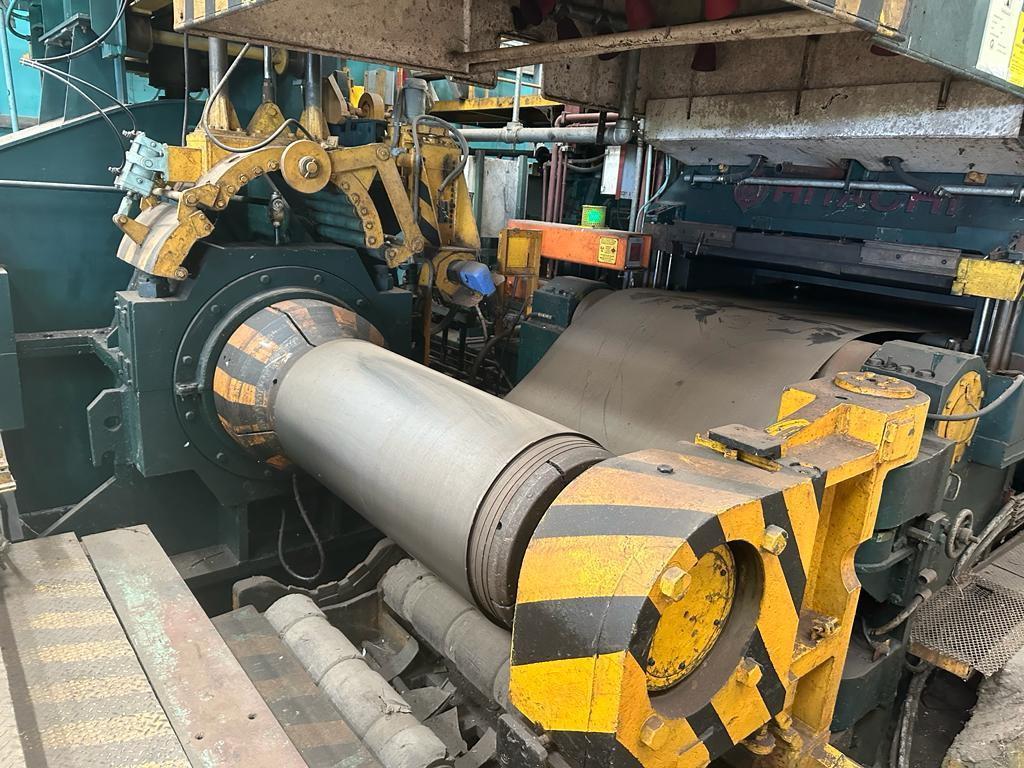

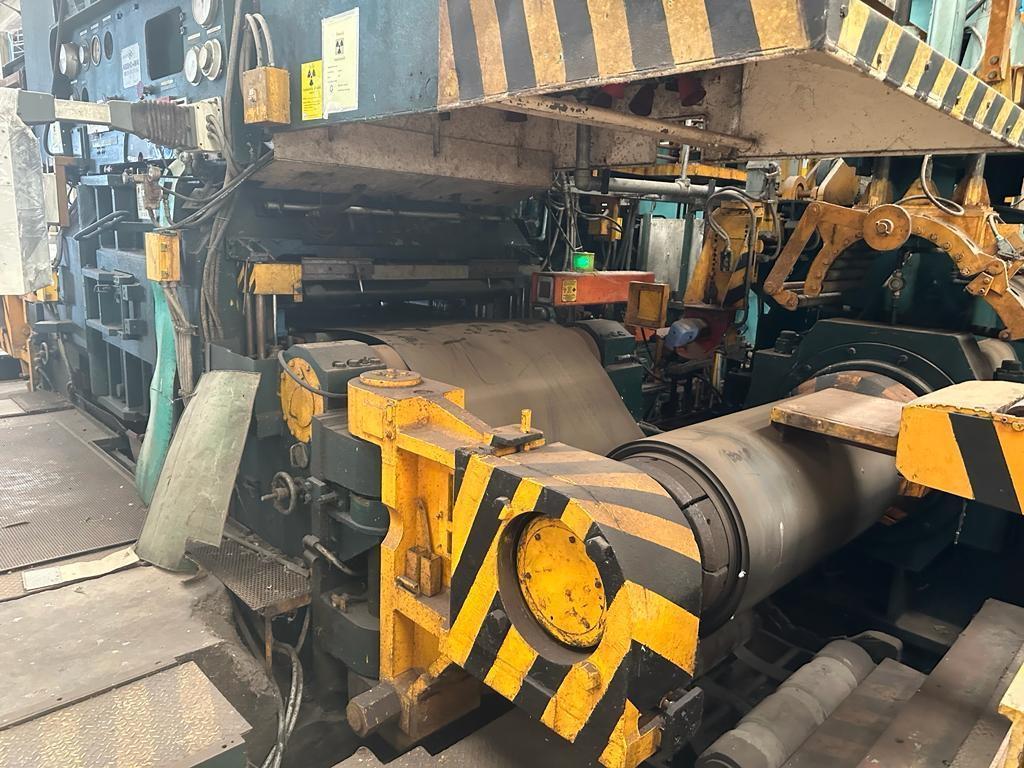

2 Tension Reels
Collapse-able Drums
Out Board Bearing Supports
2 Coil Cars
2 Tension Meters
Belt Wrappers
2 Crop Shears
2.  I2S Gamma Gauges

ZR22-50 20 HIGH Sendzimir Rolling Mill
AFC Entry Exit Rubber Roller  Wipers
Backing Assemblies
2nd Intermediate Roll Drive
2nd Intermediate Roll Idle
1st Intermediate
Work Roll
ACG new in 2013 by Tenova

ABB DCS 800 Digital Drives
50 / 60 Hertz
SPR Digital Heater Controls
Siemens NFGA Motor Controls
Siemens NUGA Relays
APC Digital Controller
Touch Screen Operator Stations
PLC CPU315
Metasol Digital Trip Relay
APC Computer Controller

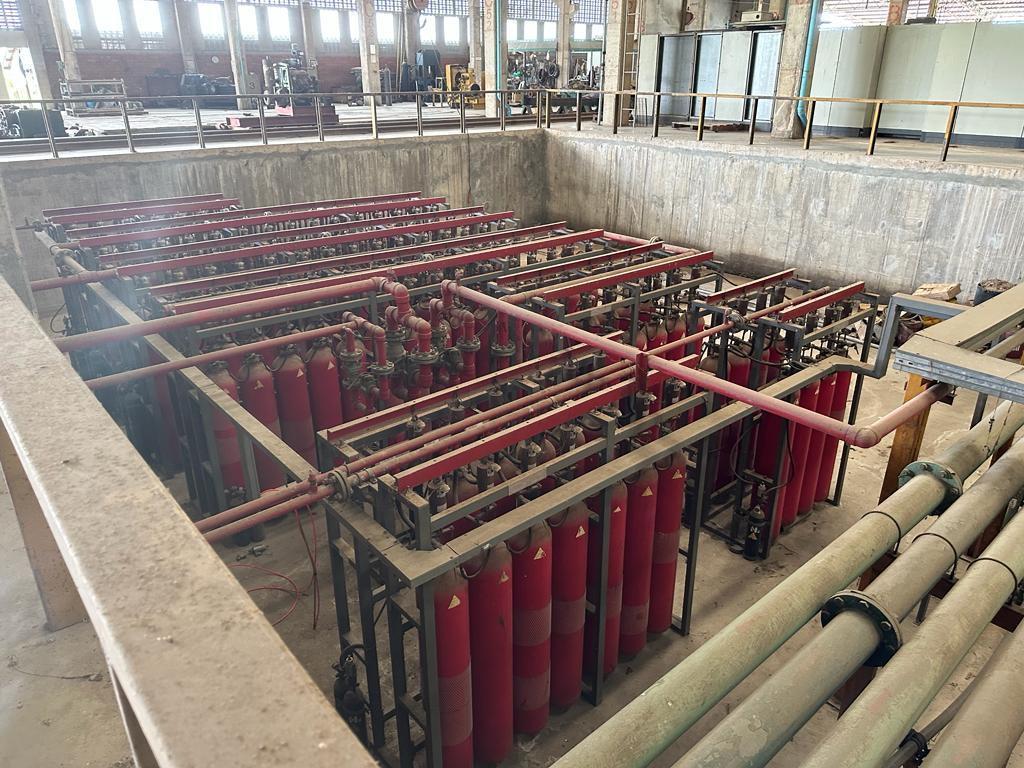

Fire Prevention System

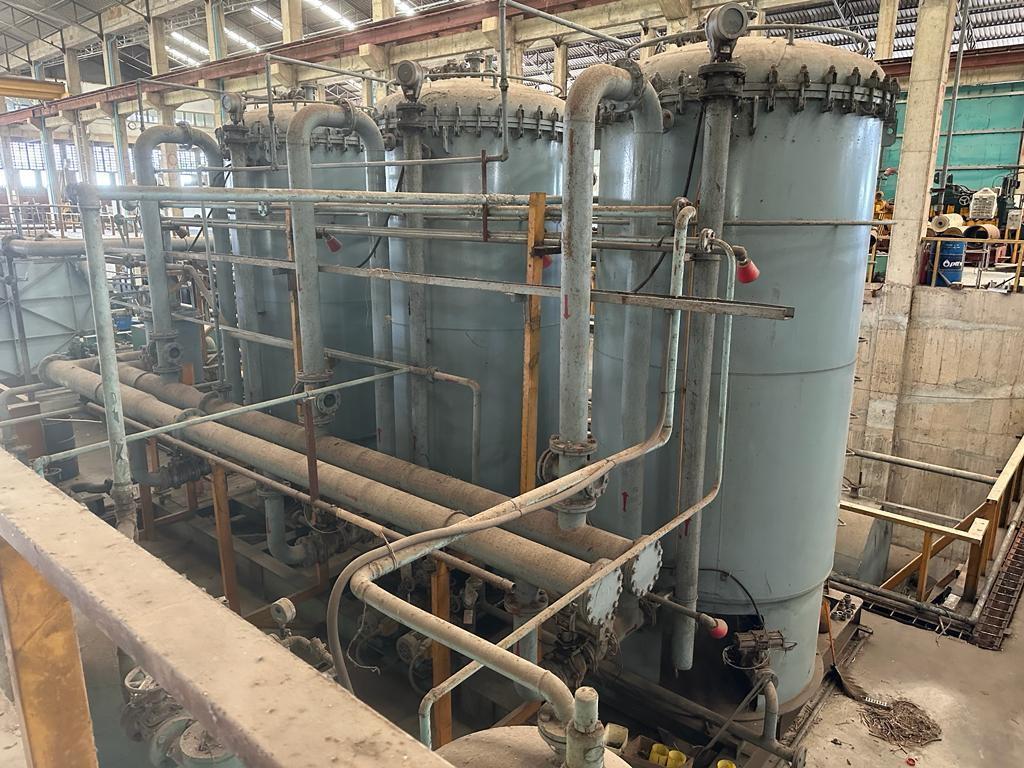

AMC Rolling Oil & Filtration System
3 Filter Tanks
Refine Filter System
PAC Systems PLC RX31

Spare Backing Assemblies
Spare Work Rolls
Spare Intermediate Rolls.
