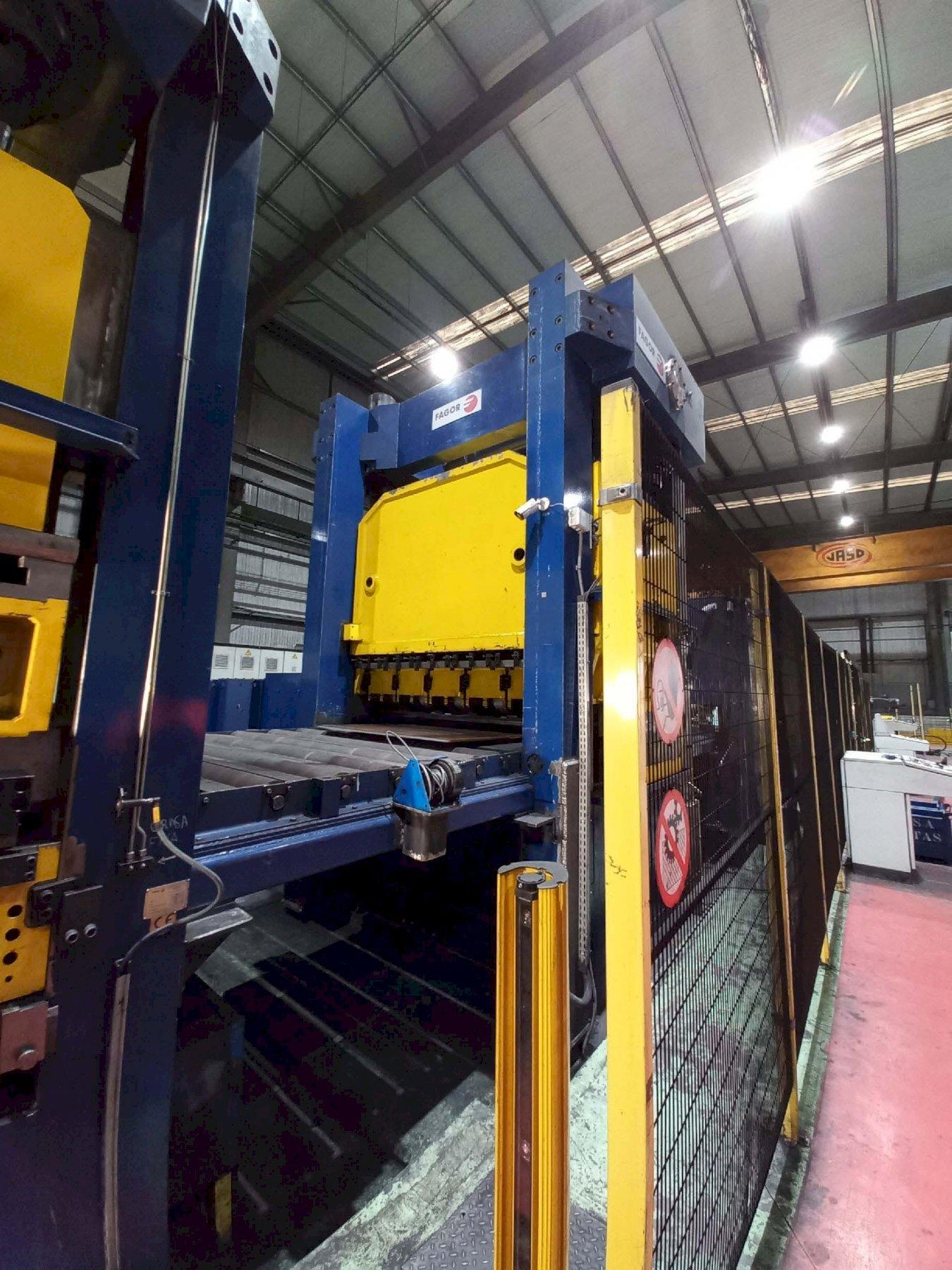

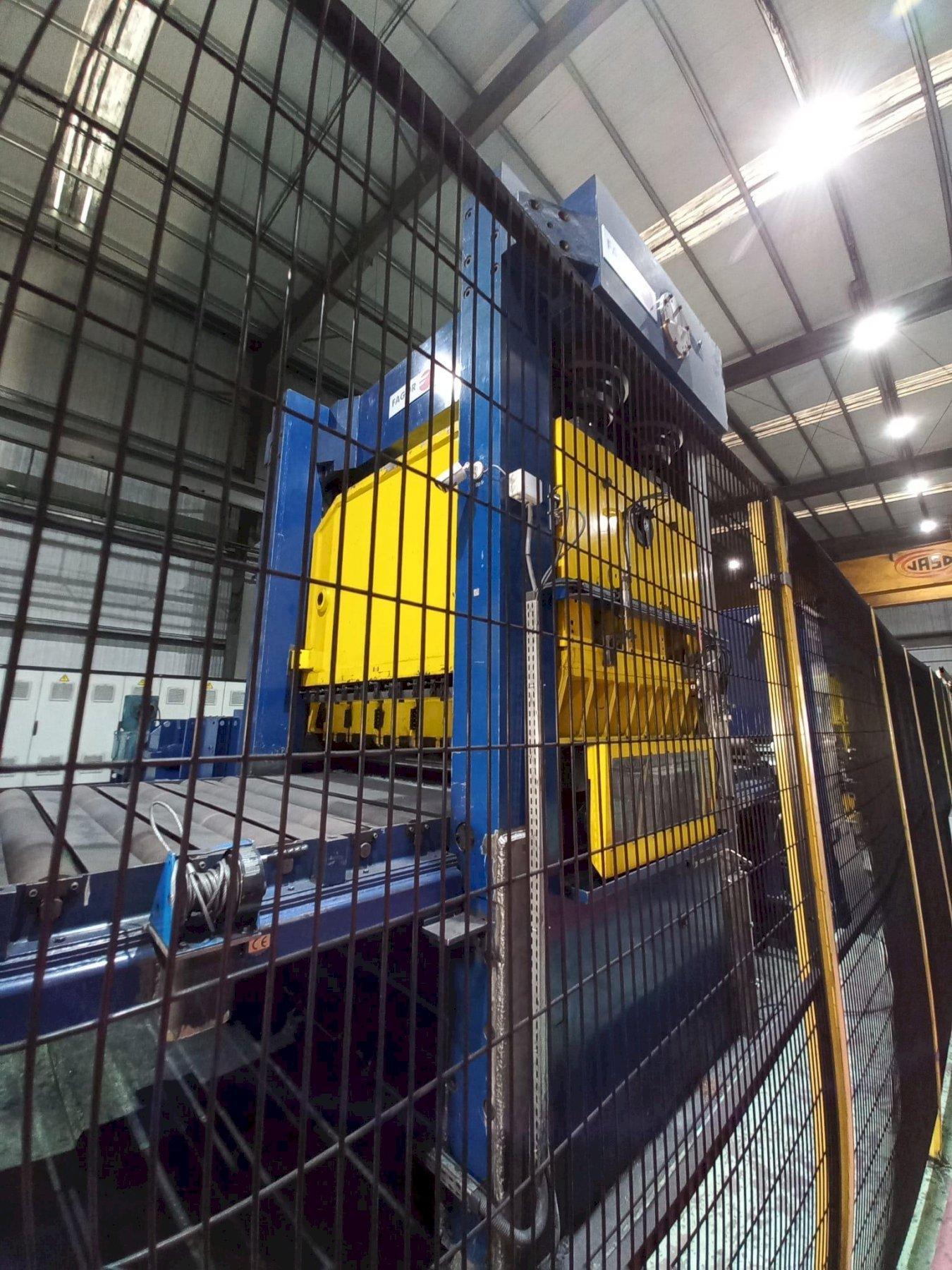

Manufacturer: Fagor Arrasate
Year: 2009
Material Specifications:
Shear Strength: 600 N/mm2
Yield Strength: 420 N/mm2
Thickness Range: 2.8 (.110") to 20mm (.780")
Width: 800mm (31.4") to 2050mm (80.7")

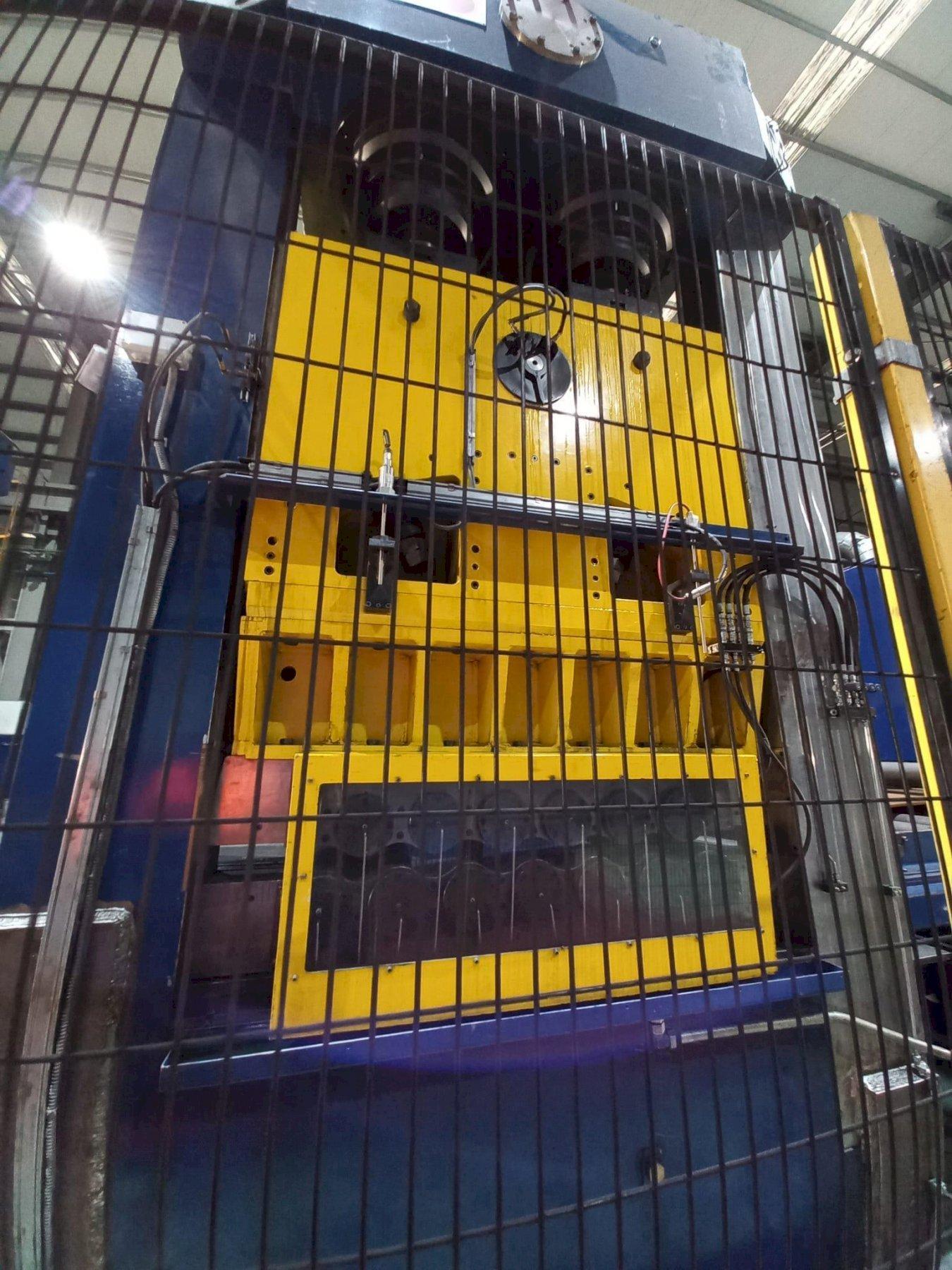

Number of Work Rolls: 13
Work Roll Diameter: 180mm (7")
Back Up Roll Diameter: 300mm (11.8")
Work Roll Face: 2200mm (86")
5 Flights of Back Ups
Motorized Back Up adjustment
Motorized Tilt and Open/Close
Entry and Exit Strip Thickness Control System

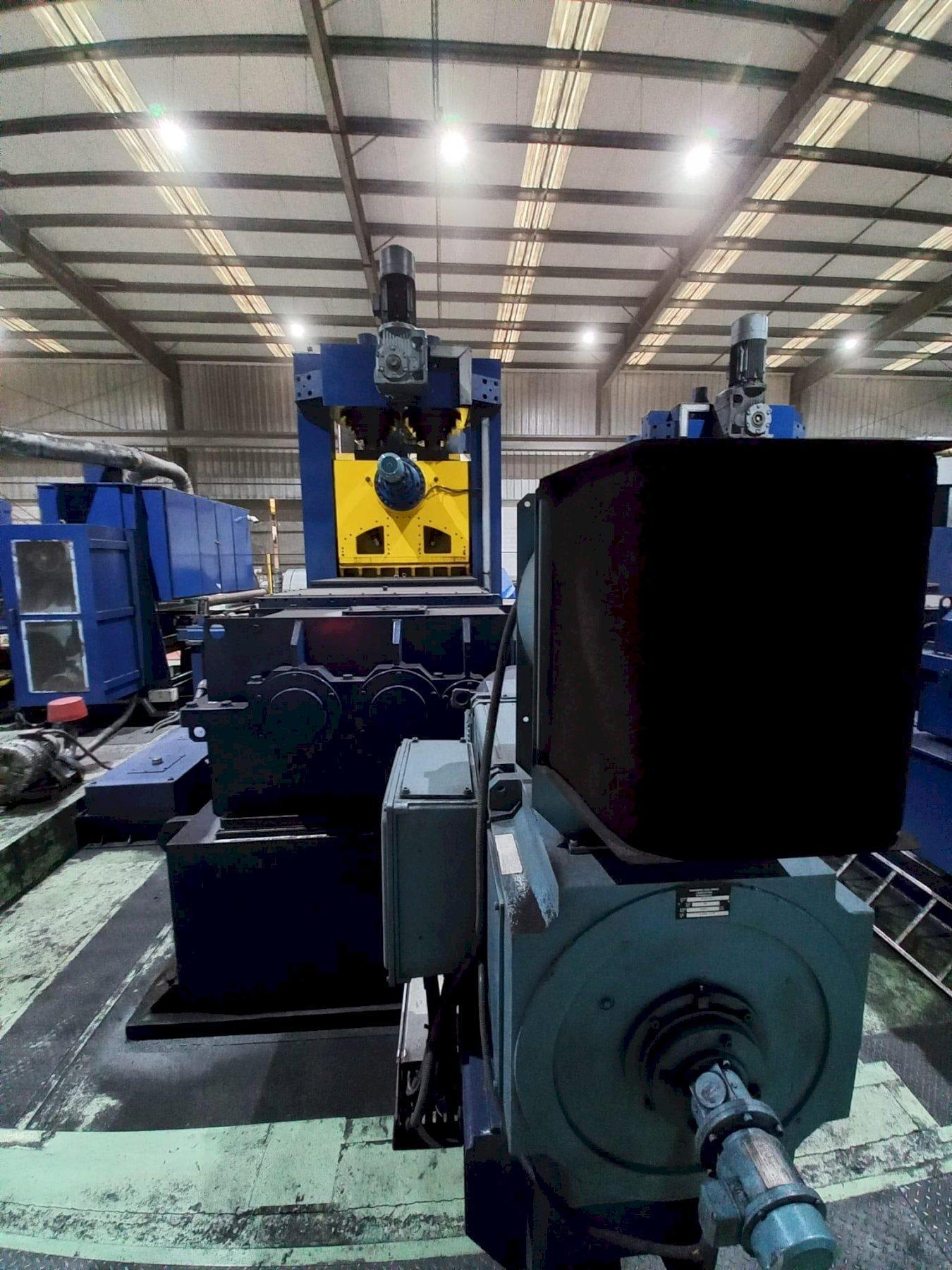

Main Motor Drive: 331KW
Spare Universal Shafts
Spare Set of Work Rolls
Spare 75 Back Up Rolls
Overall Dimensions:
2600mm (102”) length
9,300mm (366”) Width
5,500mm (216”) height
Total Weight: 140 Ton
