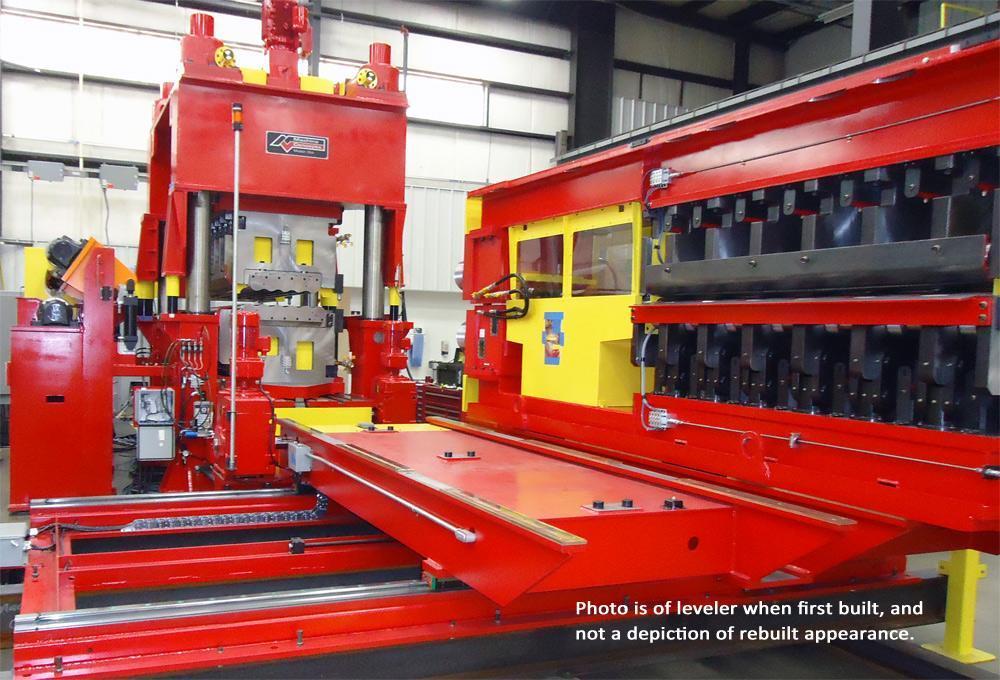

Machine Concepts Cassette Leveler
Model: G3DC-S1200-W72-D5.00 / D3.00
THIS LEVELER HAS BEEN COMPLETELY REBUILT AND IS IN NEW CONDITION
Thickness Range: .060" - .500"
Max Yield: 75,000 PSI
Seperating Force: 1,200,000 LBS
Line Speed: 300 FPM
Max Yield: 75,000 PSI @ 1/2" & 80,000 PSI @.250"
Main Drive: 600 HP
2 Cassettes: 3" Dia Work Roll and 5" Dia Work Roll
11 Roll 5" Dia Heavy Cassette
6 Flights Top & Bottom Back-Ups
15 Roll 3" Dia Light Cassette
6 Flights Top & Bottom Backups
Entry Pinch Rolls
Separating Load: 1,200,000#
Roll Bending
4 x 150 Ton Corner Screw Jacks
2 x 300 HP AC Motors
Hydraulic Back-Up Adjustments
Auto Self Lubrication
Auto Self Calibration after Roll Grind / Replacement
Auto Set Up based on Material Parameters
Allen Bradley Panel View 1000 Digital Readouts
Rockwell Automation Digital Controls
Power Flex 755 Digital Drives
Completely Rebuilt in NEW Condition
