| Width | 75 inches |
| Thickness | .375 inches |
| Work Roll Diameter | 4 inches |
| Number of Work Rolls | 17 |

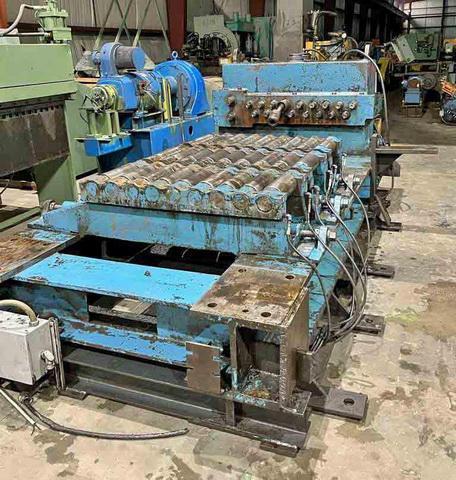

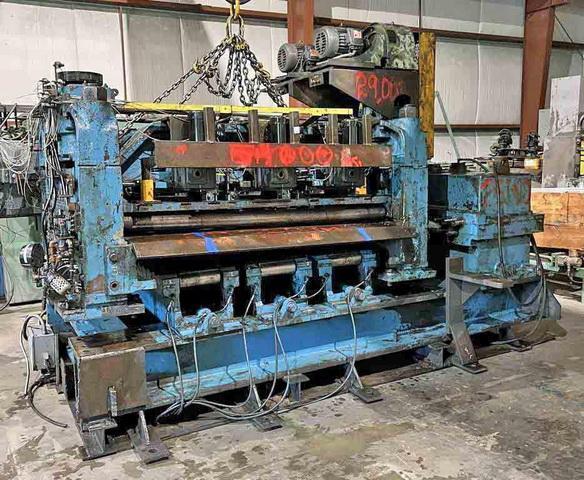

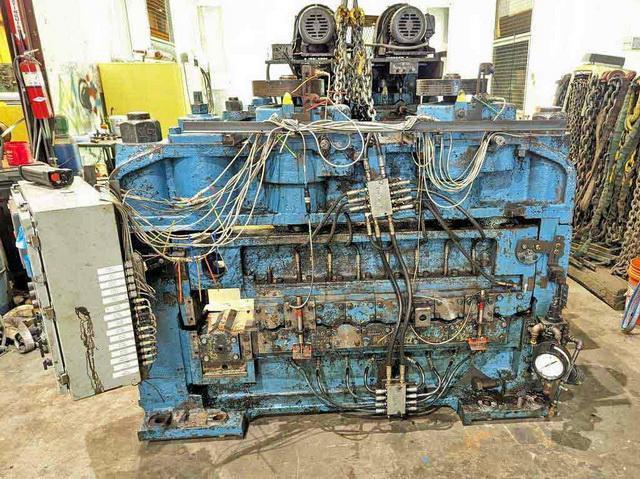

-Type: 80/4.0-17-3
-Thickness: 0.105" - 0.375" Mild Steel (approx.)
-Width: 75"
-17 Work Rolls, 9 over 8
(1) Top Roll Missing
-4.0" Dia. x 80" Face Work Rolls
-(3) Flights of Backups
Top Flight Motorized
(3) - 1 HP, 1725 RPM, 230/460 V adjustment motors
-Top Bank of Backups Motorized for Tilt adjustment
(2) - 5 HP, 1750 RPM, 230/460 V motors
-Operators Control Panel
-Main Gearbox
-150 HP Main DC Drive Motor, 1150/2000 RPM, 500 V, W/Blower
Less Solid State Control
-Foote-Jones In-Line Reducer with 11.53:1 ratio
-Missing some of the universal drive shafts
-Spare Parts Included
-Line Speed: 100 to 182 FPM
-Overall Size:
Leveler: - 156" L x 114" W x 108" High; 54,000 lbs.
DC Motor/Reducer - 105" L x 36" W x 70" High; 5,000 lbs.
