| Width | 78 inches |
| Thickness | .135 inches |
| Work Roll Diameter | 2.25 inches |
| Number of Work Rolls | 17 |

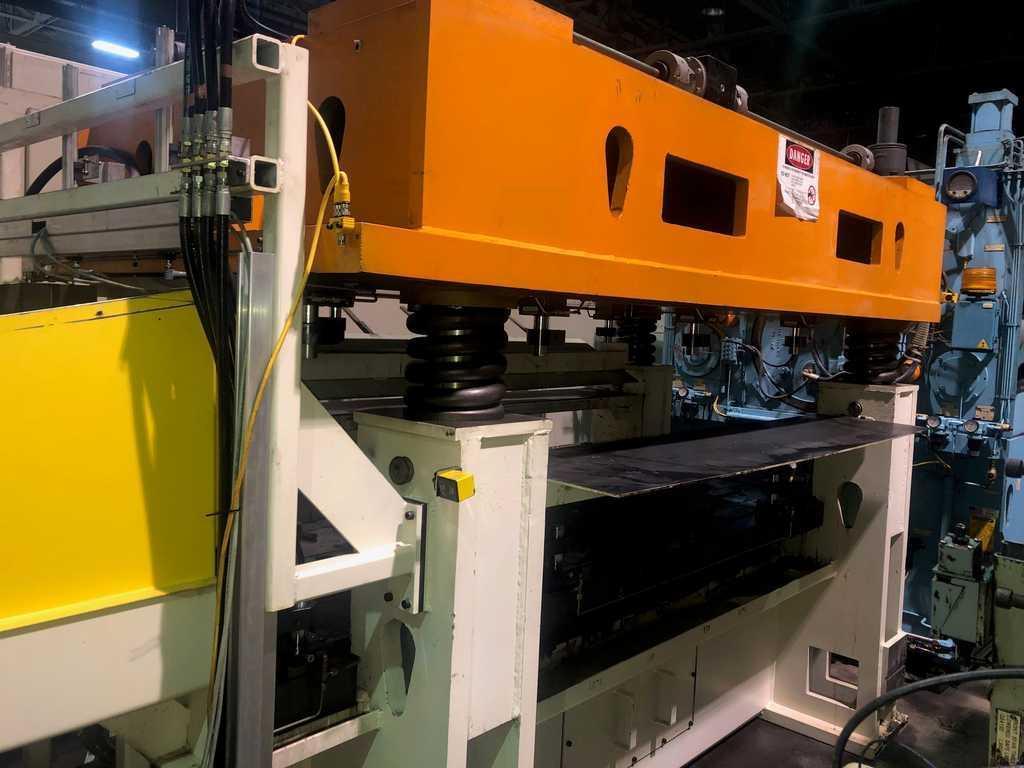

-Work Rolls: 2.25" Diameter x 82.625" Roll Face
-Thickness: 0.019" - 0.135"
-17 Work Rolls
-Spiral Groove Intermediate Backups
-7 Total Flights of Cam Type Backups - Up and Down
-Motorized Wedge Design adjustment of the 5 Center Flights of Backups
-Interchangeable Cassette Design (One Cassette included)
-No motor is included. Unit originally had a 110kw (147.5 HP), 1500 RPM,
280MD Frame, Motor.
-Brad Foote Gearbox: 147.35 HP, 1500 RPM, 2.84:1 Ratio
-15 Ton Joyce Ball Screw Jacks (Strength Capability may be able to be
increased with increased Jack Tonnage)
-Mode of Operation: Right to Left
-Pass Height: 54"
-Distance from Entry to Exit less Exit Pinch Rolls: 59"
-Valves, Graco Lube System & IOs are attached to the Leveler Frame.
-We did not receive a PLC, HMI (Operators Controls)
-Mild & HS Steels
-There is one damaged work roll (AFCO replacement cost $2,262.00).

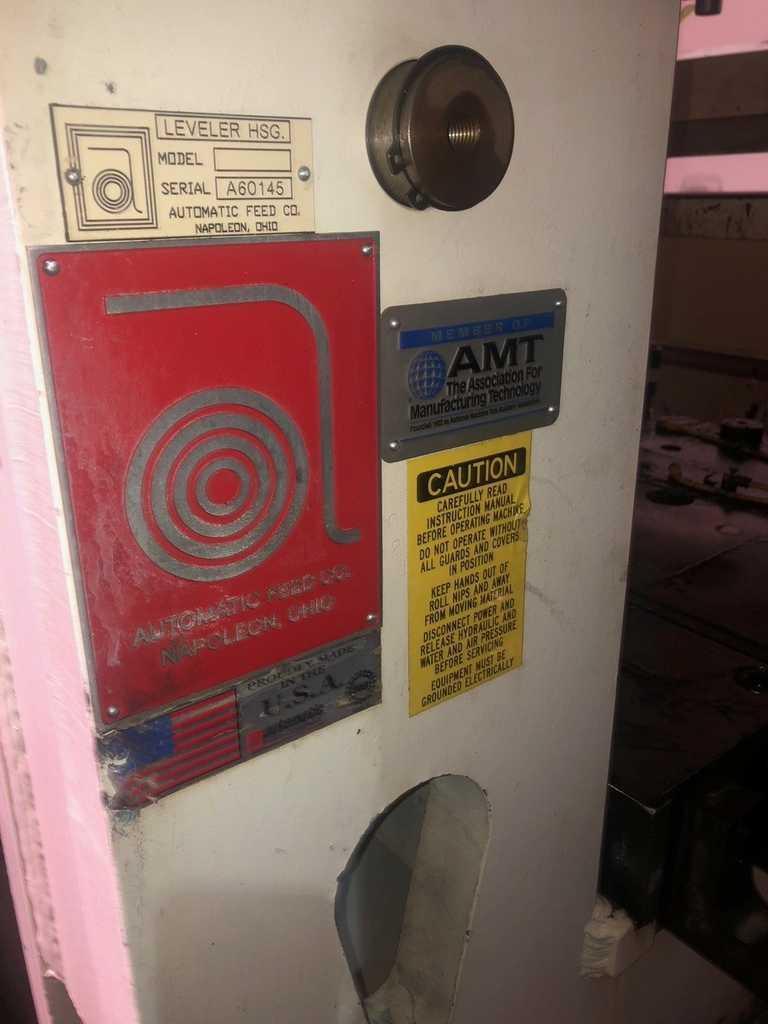

This roll has been purchased through Automatic Feed Co. and is included in the sale.
