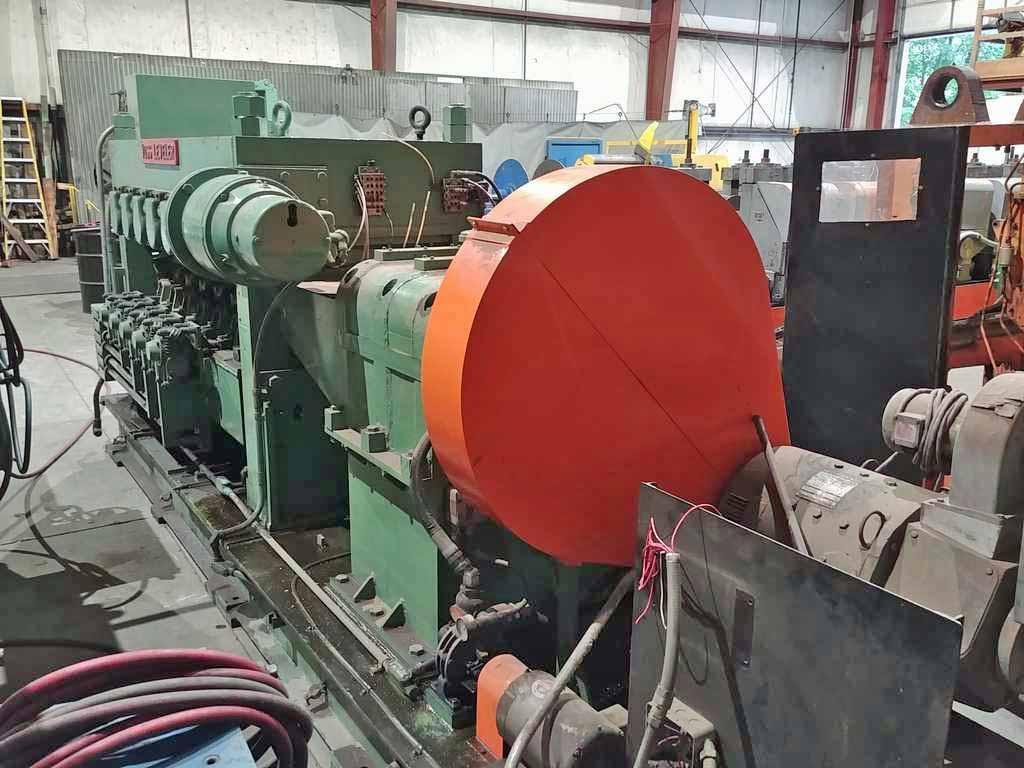

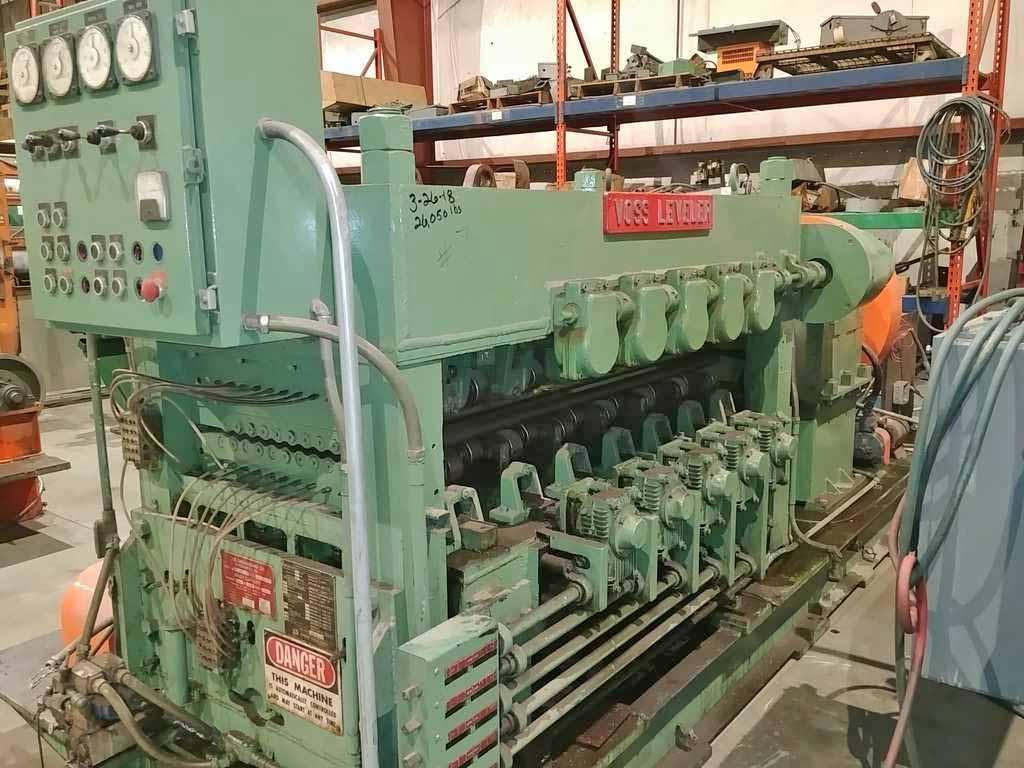

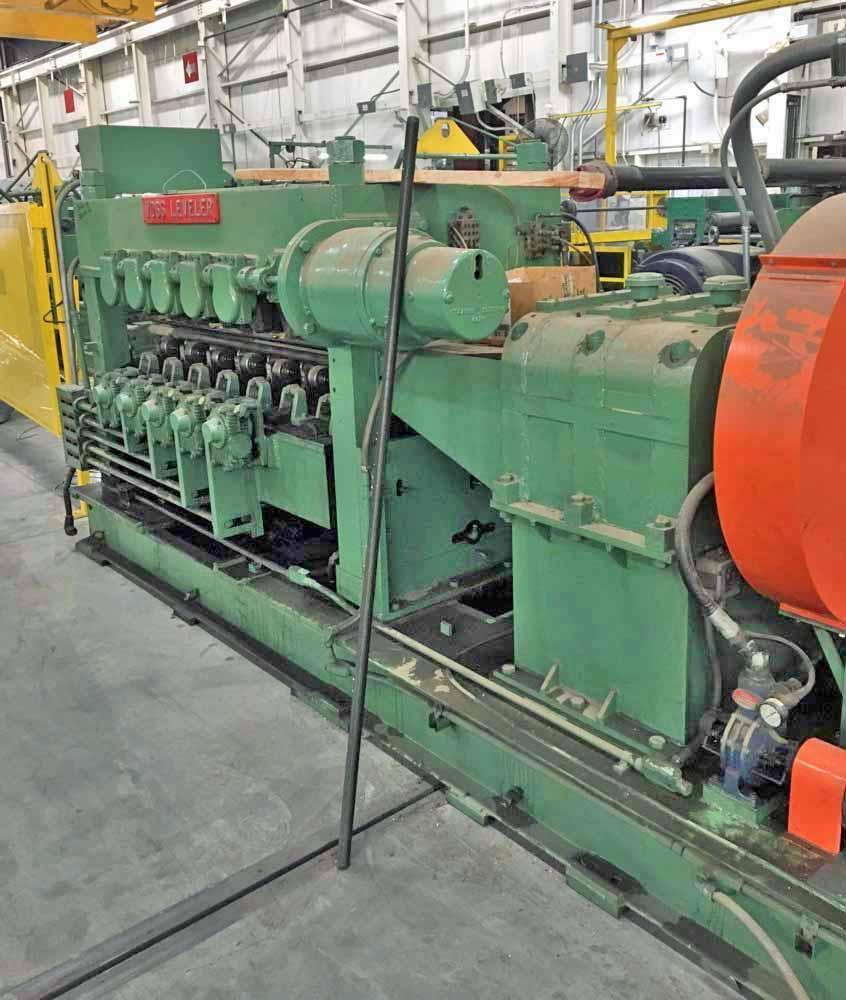

62" x .108" Voss Precision Leveler

Brand
Voss

Model
72/1.687-19/7

Type
Levelers

Stock #
605113

Condition
Used

Year

Request a Quote

Have one to sell?

SPECIFICATIONS
FILES & ATTACHMENTS

Width	62 inches
Thickness	.108 inches
Work Roll Diameter	1.687 inches
Number of Work Rolls	19

Equipped With

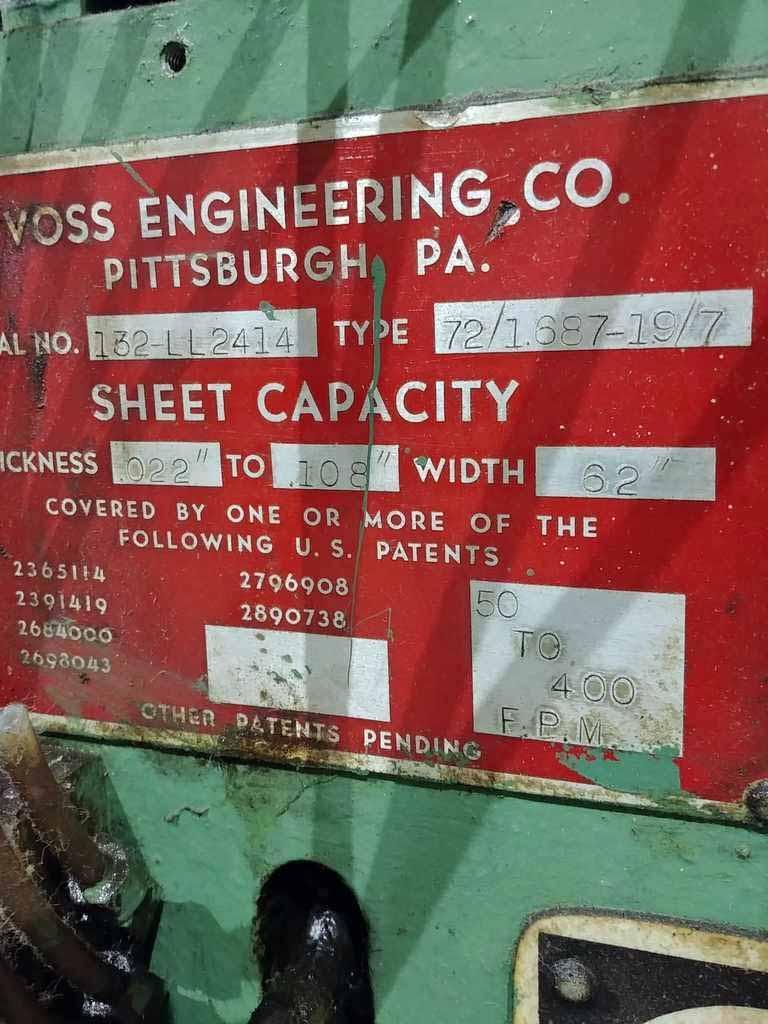

Model Number: 72/1.687 - 19/7

Diameter of Rolls: 1.687"

Roll Face Width: 72"

Thickness Capacity: 0.022" - 0.108" (Mild Steel)

Width Capacity: 62"

Line Speed: 50 - 400 FPM

Passline: 42"

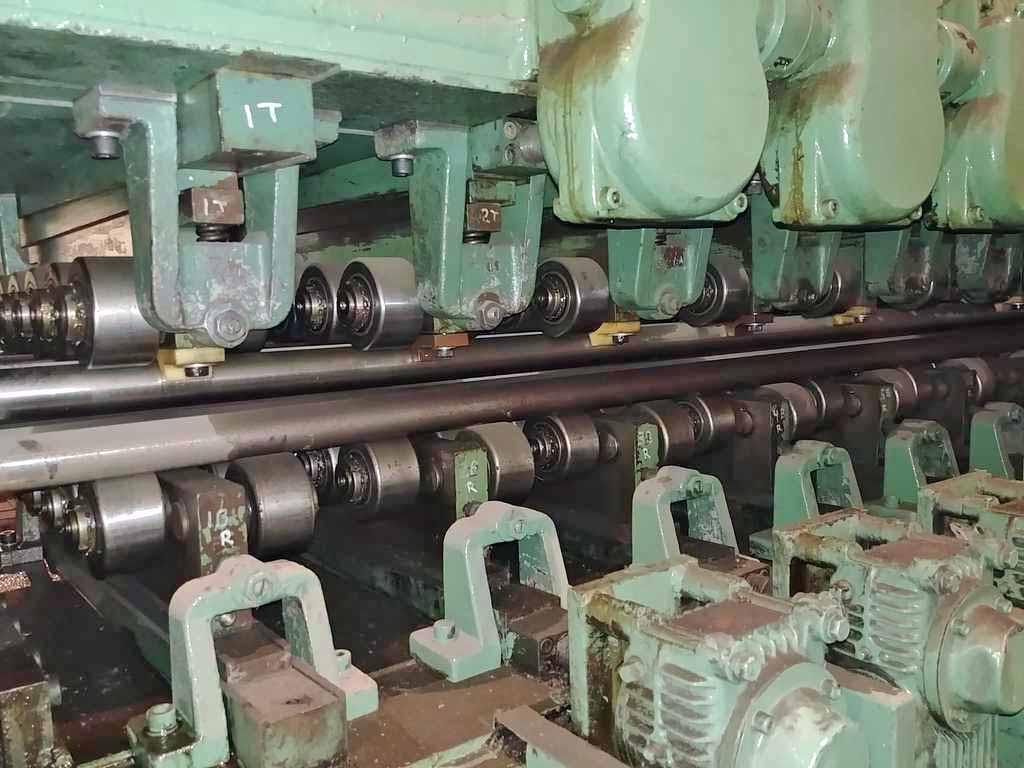

19 Work Rolls - 9 over 10 Configuration

7 Flights of Backup Rolls - 5 Flights

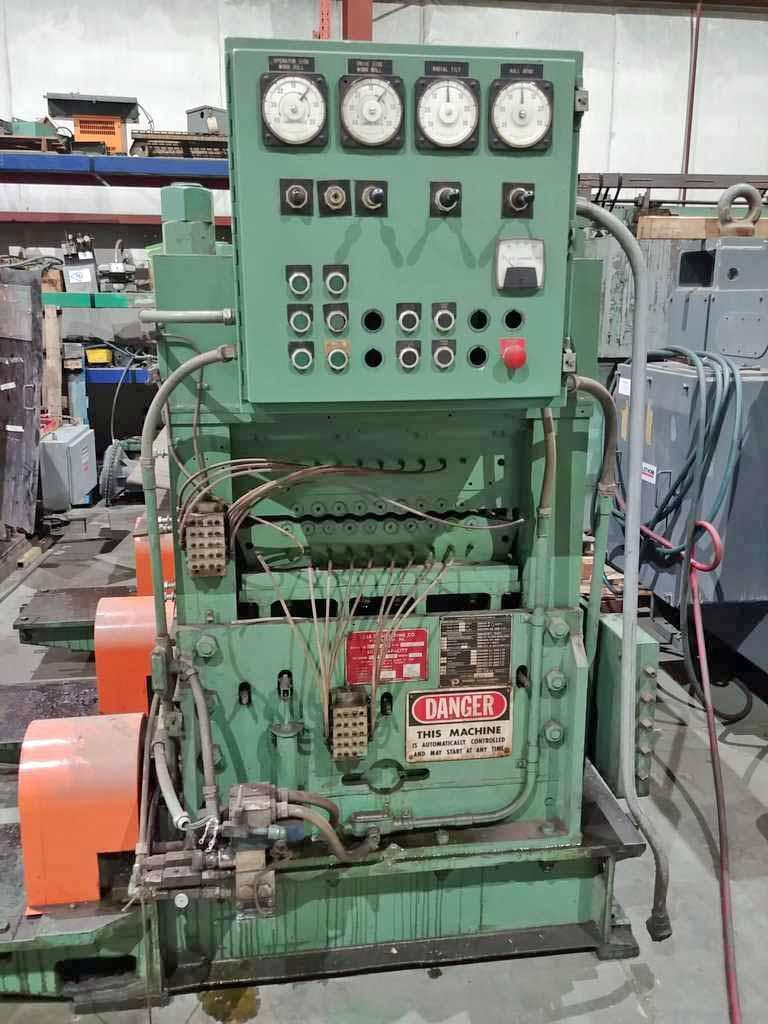

Manual Adjustment

Powered Entry Pinch Rolls

Radial Tilt & Roll Bend Adjustment

(3) 5 HP AC Geared Drive Motors

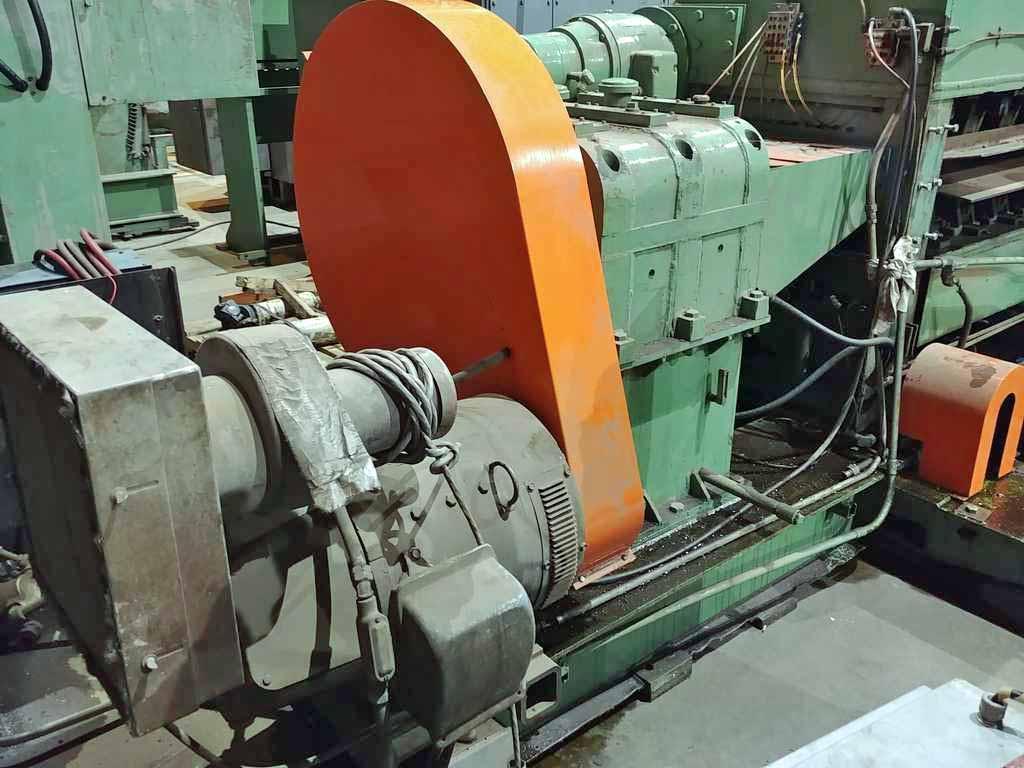

Main Drive: Unico 80 HP DC Motor with Gearbox

Line Direction: Left to Right

No Files or Attachments
