Equipped With
Material: Hot Rolled Steel
Maximum Yield Strength: 310 N/mm2 (45,000 PSI)
Maximum Shear Strength: 390 N/mm2 (56,000 PSI)
Coil Size:
Maximum Weight: 30 tonnes (66,000 lbs)
Maximum Outside Diameter: 2000mm (79")
Minimum Inside Diameter: 508mm (20")
Maximum Inside Diameter: 760mm (30")
Material Thickness:

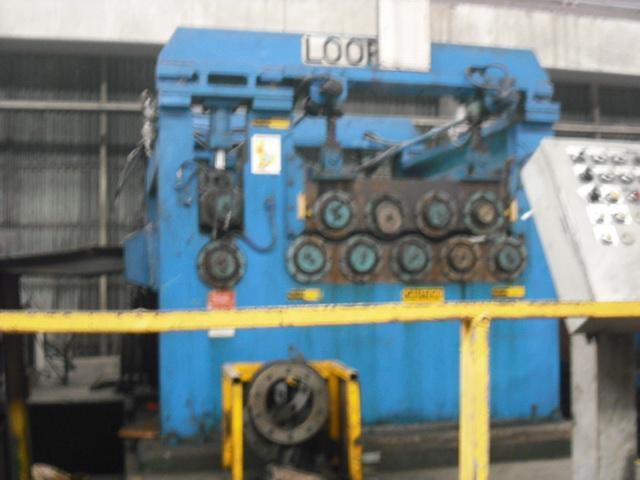

Precision Levelling: 1.25mm to 5mm (.050" to .196")
Flattening: 3.00 to 13mm (.118" to .500")
Material Width:
Minimum: 700mm (27.5")
Maximum: 1850mm (73")
Coils narrower than 760mm (30") wide must have less than 760mm (30") I.D.
Blank Tolerance:
Length: + or - 1.5mm (.060")
Speed:
Heavy Gauge-36 MPM (120FPM) maximum feed speed
Light Gauge-100 MPM (328FPM) maximum feed speed
Cut Length:
Minimum: 800mm (31.5")
Maximum: 6100 (20') in gauges below 5mm, 12000mm (40') in gauges above 5mm
Stack Size:
Maximum Weight: 10 tonnes (22,040 lbs.)
Maximum Height: 610mm (24")
Direction of Line: Left to Right

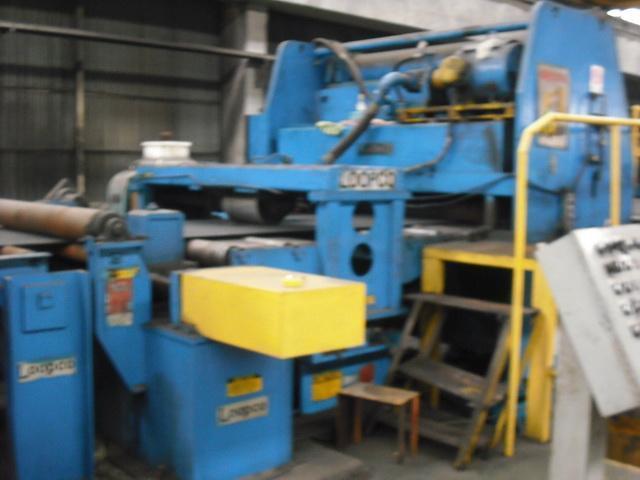

Complete Line with the Following Components:
Coil Car

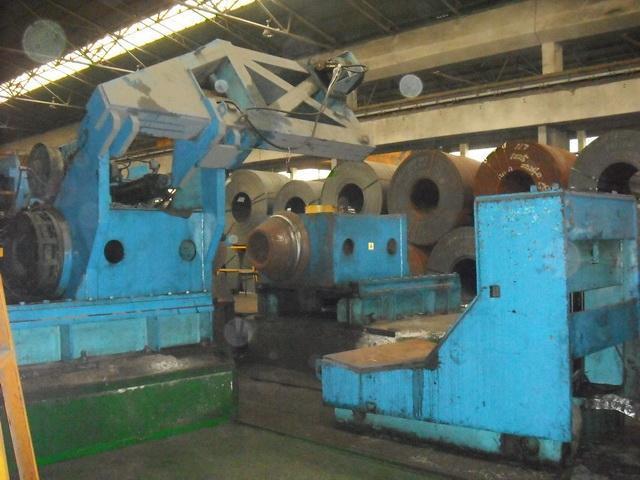

Double Cone Uncoiler
Driven Holddown Roll
Peeler and Feedup Table
Squaring Guides
Entry Pinch Rolls
Side Trimmer
Two Scrap Winders
Strip Support Conveyor
Retracting Hydraulic Shear, Entry Side Guides, Measuring and Tailout Pinch Rolls
Elevating Stacker Conveyor
Runout Conveyor
Line Hydraulic System
Line Electrics
