60" x .125" x 40,000# Rowe / Herr Voss Cut-To-Length Line with 6 HI Leveler

Brand
ROWE

Model
Not Specified

Stock #
605235

Condition
Used

Year

Coil Weight 40000 pounds
Width 60 inches
Thickness .125 inches
ID 20 inches
Max OD 72 inches

Equipped With

Thickness Range:  .030" - .125" Stainless @ 40K Yield
                                  .030" - .125" Cold Rolled @ 40K Yield
                                  .030" - .125" Aluminum @ 40K Yield
Coil Width Range:  24" - 60"
Min and Max Sheet Length:  36" - 230"

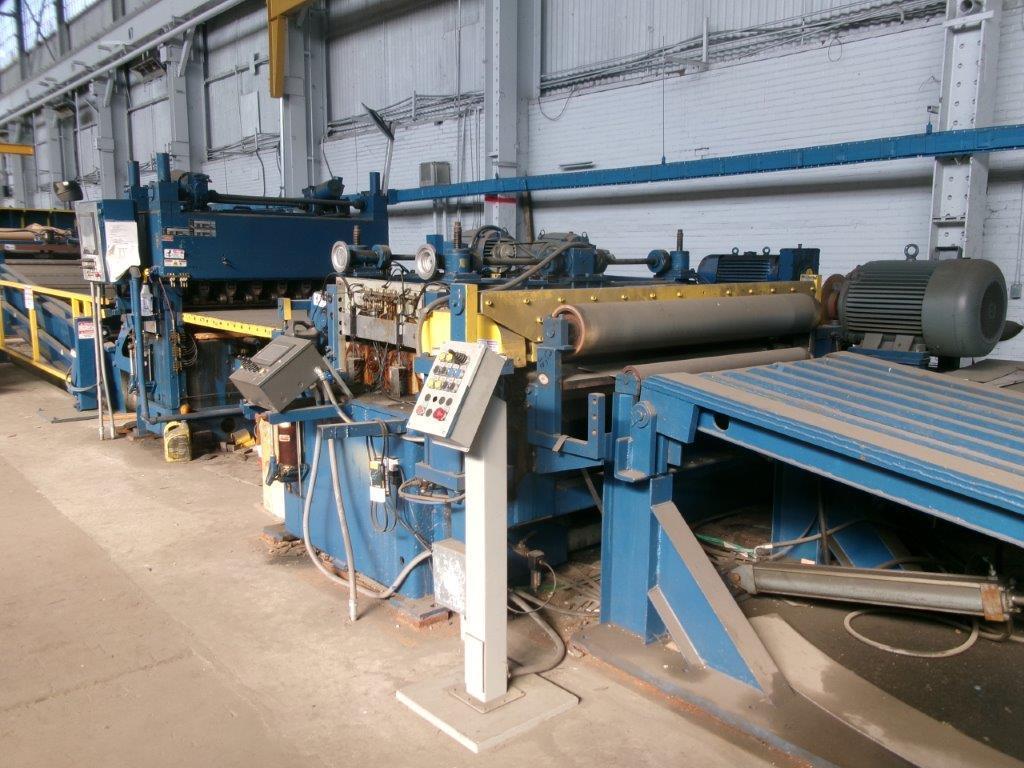

Complete Line with:

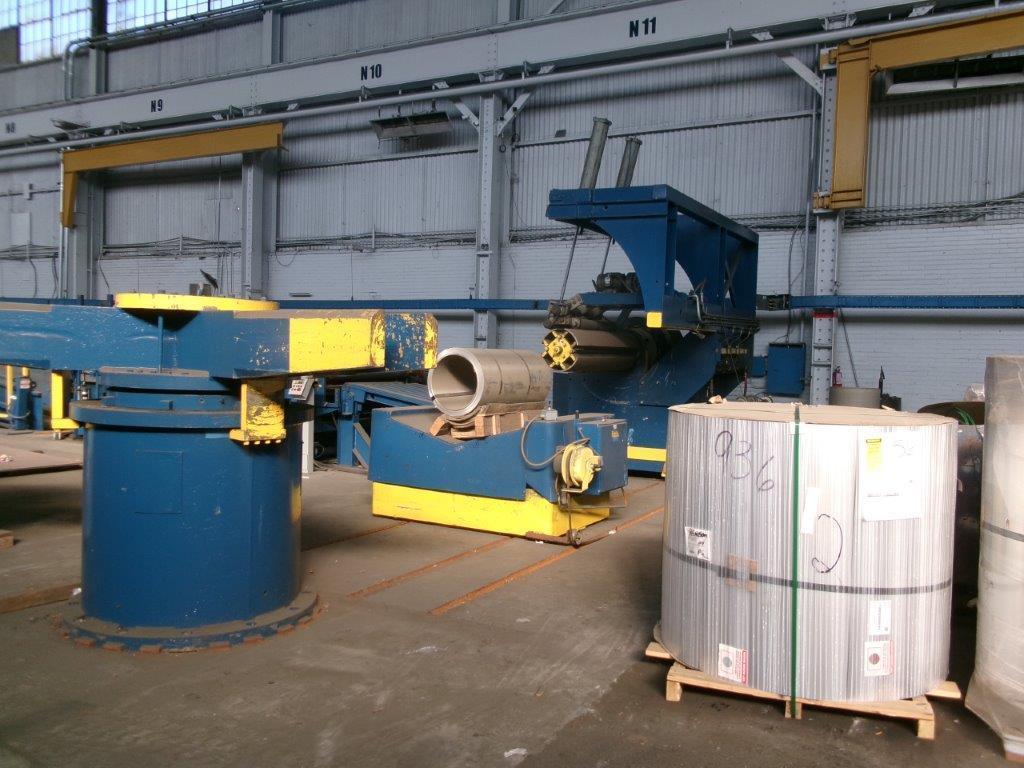

3 Arm Turnstile
Floor Standing Coil Car
Mandrel Uncoiler with Hold Down Roll
Paper Winder
Peeler Table
Pinch Rolls
5 Roll Flattener with Entry & Exit Pinch Rolls

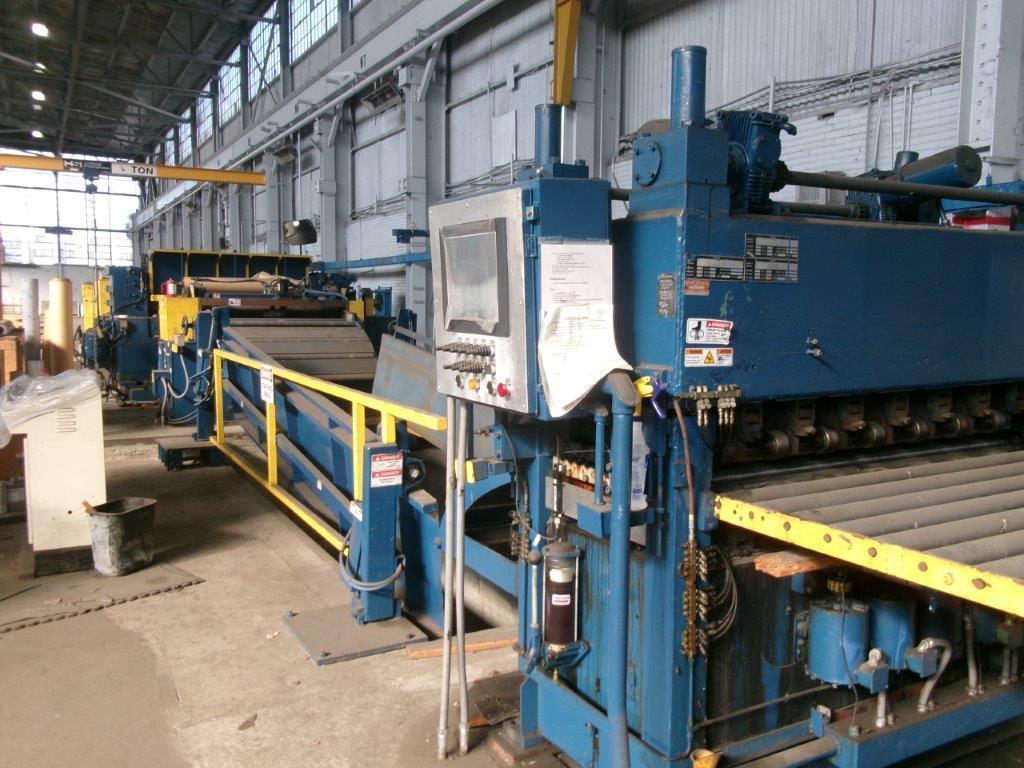

Herr Voss 6HI Leveler
1.75" Diameter Work Rolls
75 HP Motor
Digital Back-Up Roll Positioning
7 Flights Top & Bottom Back-Ups
Bottom 5 have Individual Motorized Adjustments
0 - 160 FPM Leveler Speed

Looping Pit Cross Over Table
Entry & Exit Cascade Rolls
Precision Roll Feed
Paper Winder
PVC Applicator

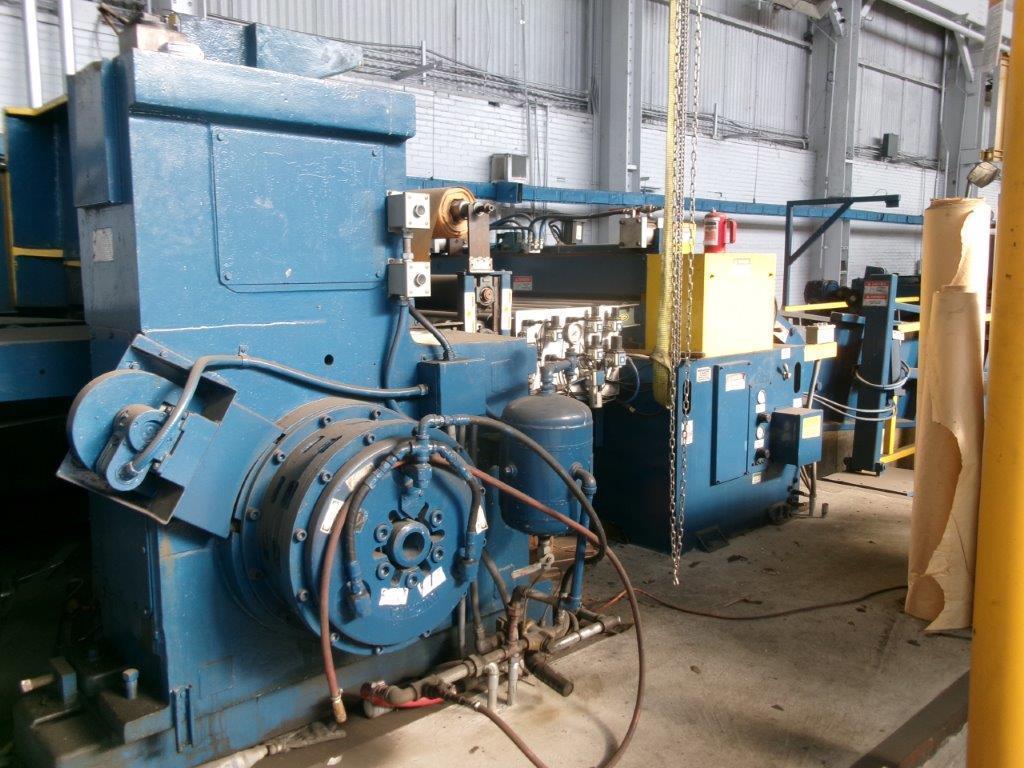

Wysong High Speed Shear
Air Clutch & Brake

Run Out Gauging Table

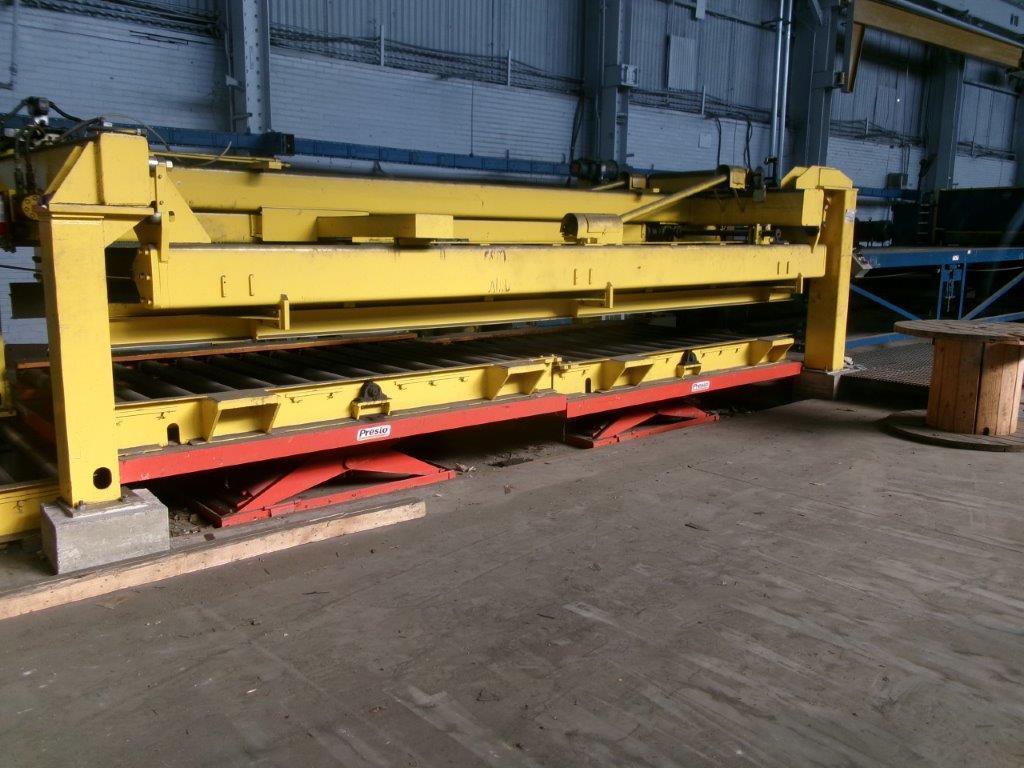

Drop Stacker
Motorized End Stop
Motorized Width Adjustment
Side Squaring
2 Motorized Lift Table
End Discharge
Motorized Exit Conveyor

Complete Line Presently Installed In On Site in the Factory
