Material: Stainless Steel
Material Thickness: .3 - max. 8.0 mm.
Coil width: min.500 – max. 2000 mm.
-Start-stop operating system
-Max. speed: 25 mpm
-Length tolerance +/- 1 mm.
-Sheet length and number of sheets set using a digital system.
Complete line with the Following Components:

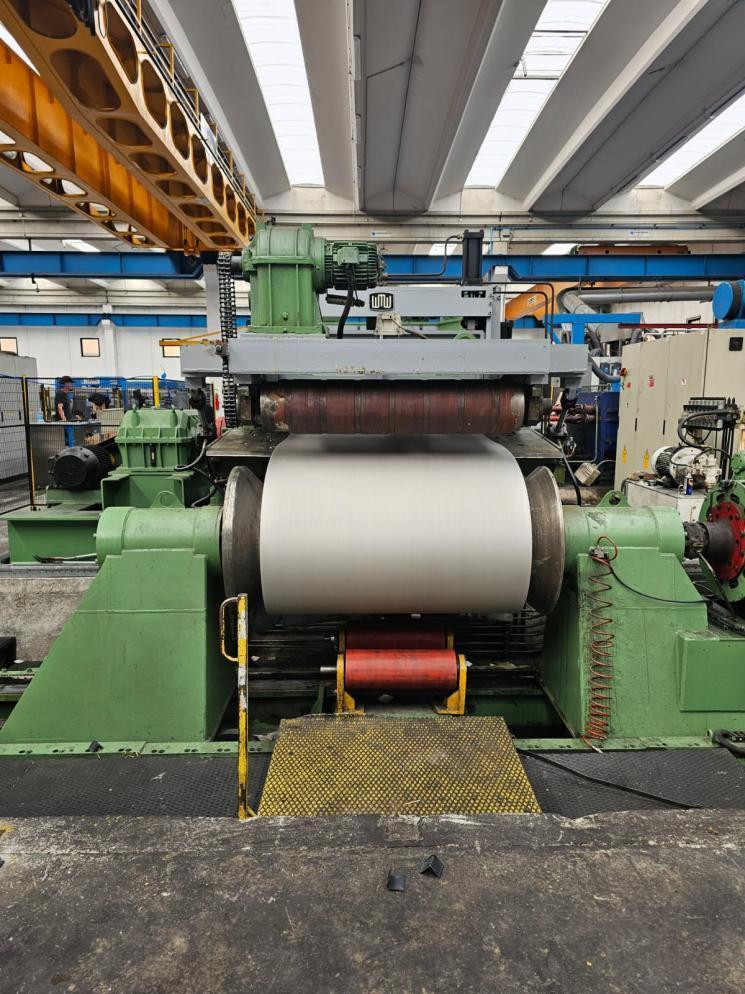

- DOUBLE CONE UNWINDER WITH LOADING CRADLE
- Maximum capacity 30 tons.
- Max. coil width 2000 mm.
- Min. coil width with internal diameter 500 500 mm.
- Max. coil width with internal diameter 500 600 mm.
- Max. coil diameter 1500 mm.
- Braking system by means of 2 hydraulic cylinders
- Coil lifting with motorized feed rollers
COIL INTRODUCTION GROUP -Spiral blade with extension and translation by means of hydraulic cylinders-Pinch roll for introduction upper idle rollers-Lower roller motorized-Rollers coated with hard rubber-Pressure rollers motorized rubber rolls-Pressure rollers motorized
CONNECTING TABLES
- Idler rollers
- Rollers manually adjustable for belt centering on the center line.

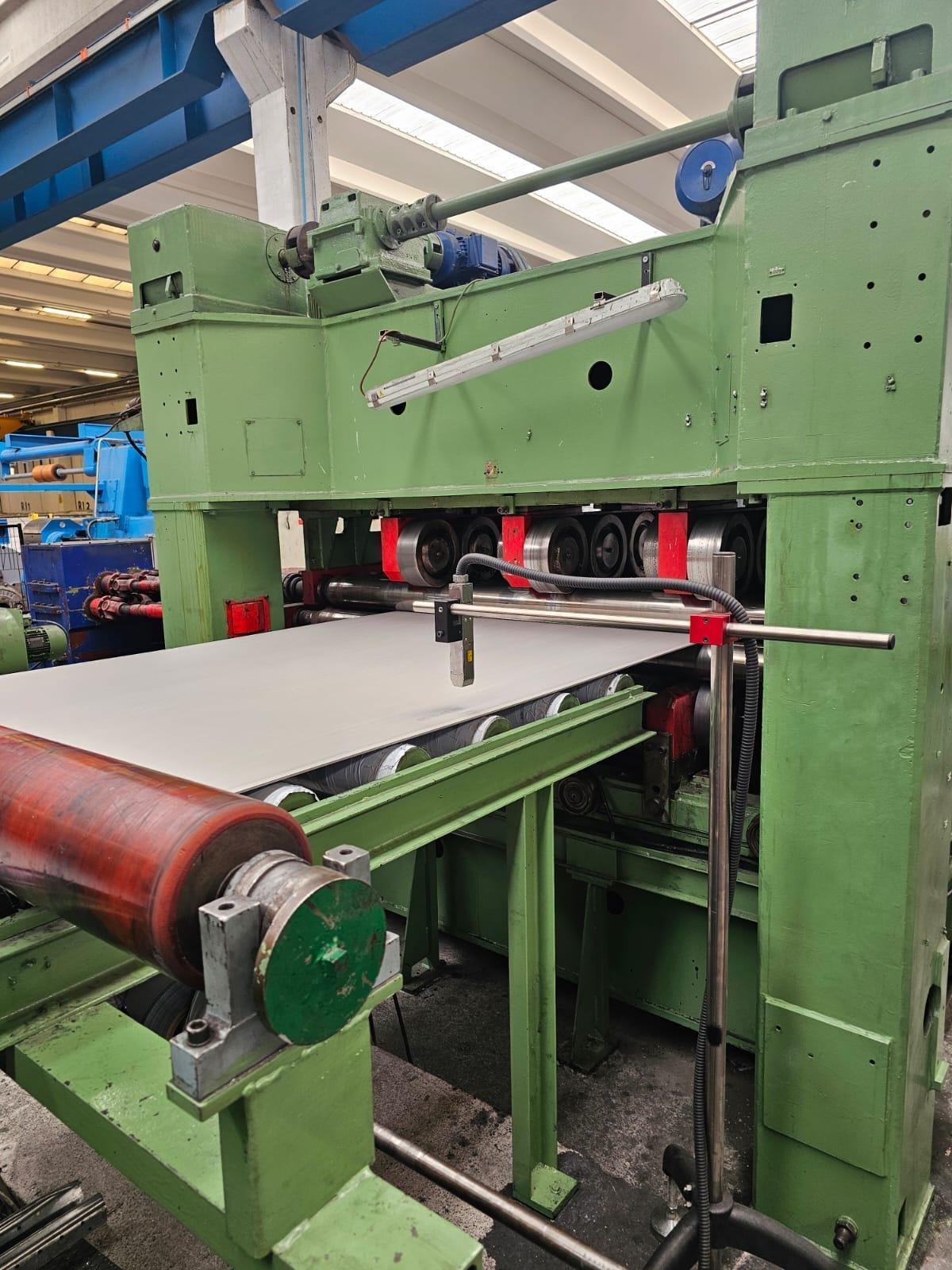

4-HI LEVELLING MACHINE
- Roller table width 2250 mm.
- Number of rollers 13 levelling rollers, diameter 140 mm.
- Set of counter rollers diameter 360 mm.

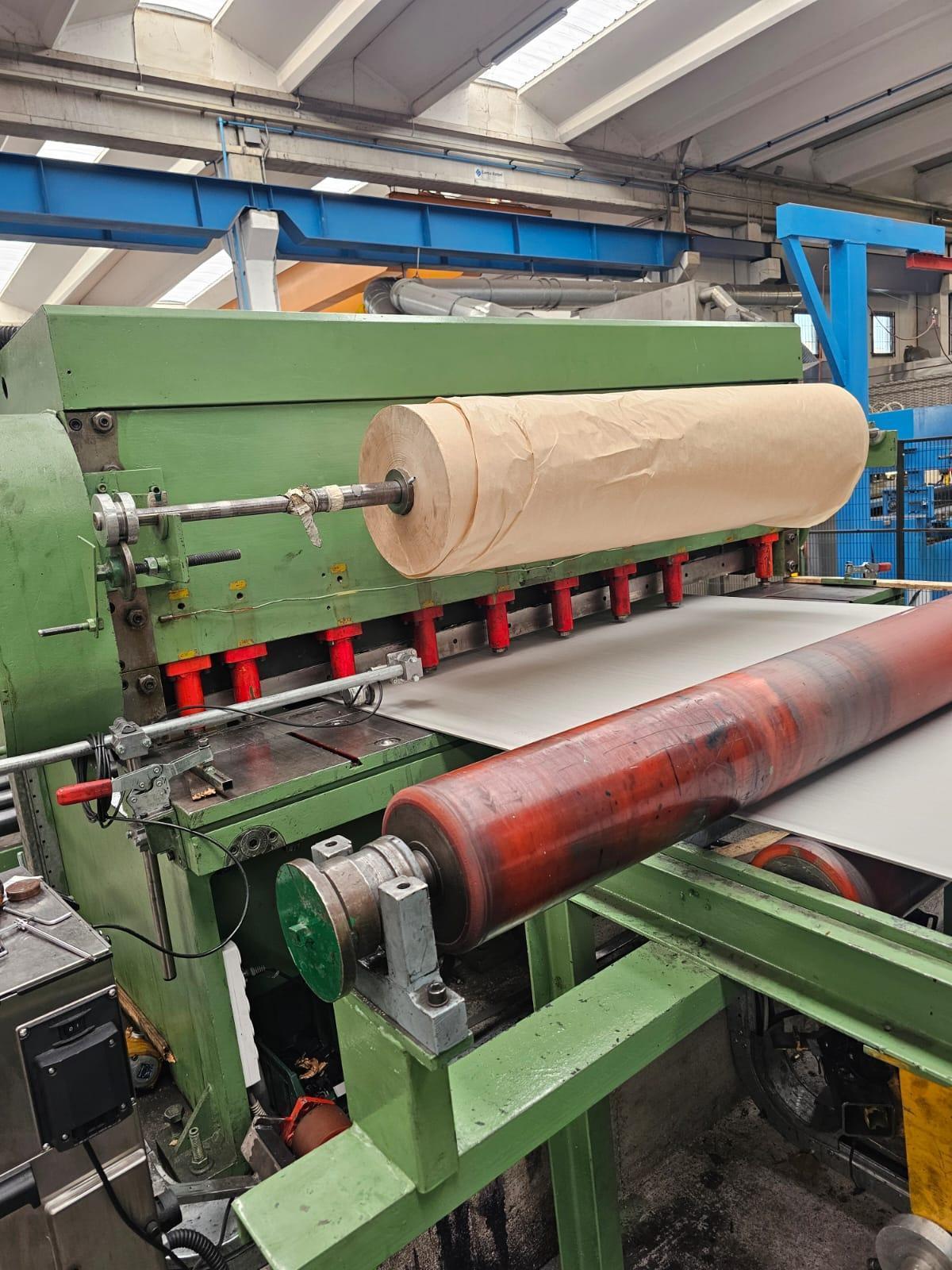

PROTECTIVE PAPER APPLICATION DEVICE

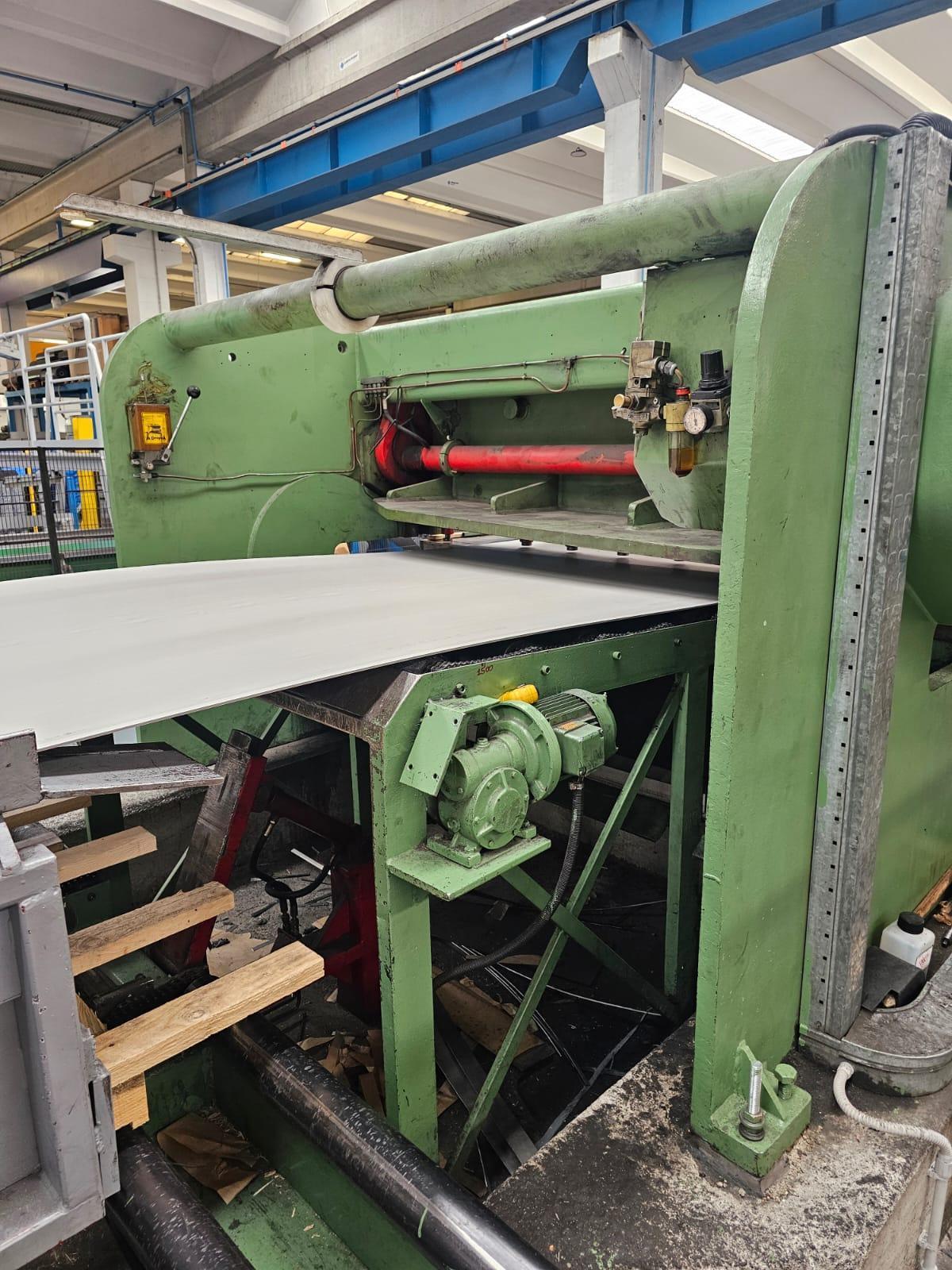

GUILLOTINE SHEAR START-STOP CUTTING SYSTEM
- Blade width: 2,150 mm.
CONVEYOR
- Consisting of a motorized conveyor with adjustable speed
- The sheets are conveyed from the guillotine shear to the stacker

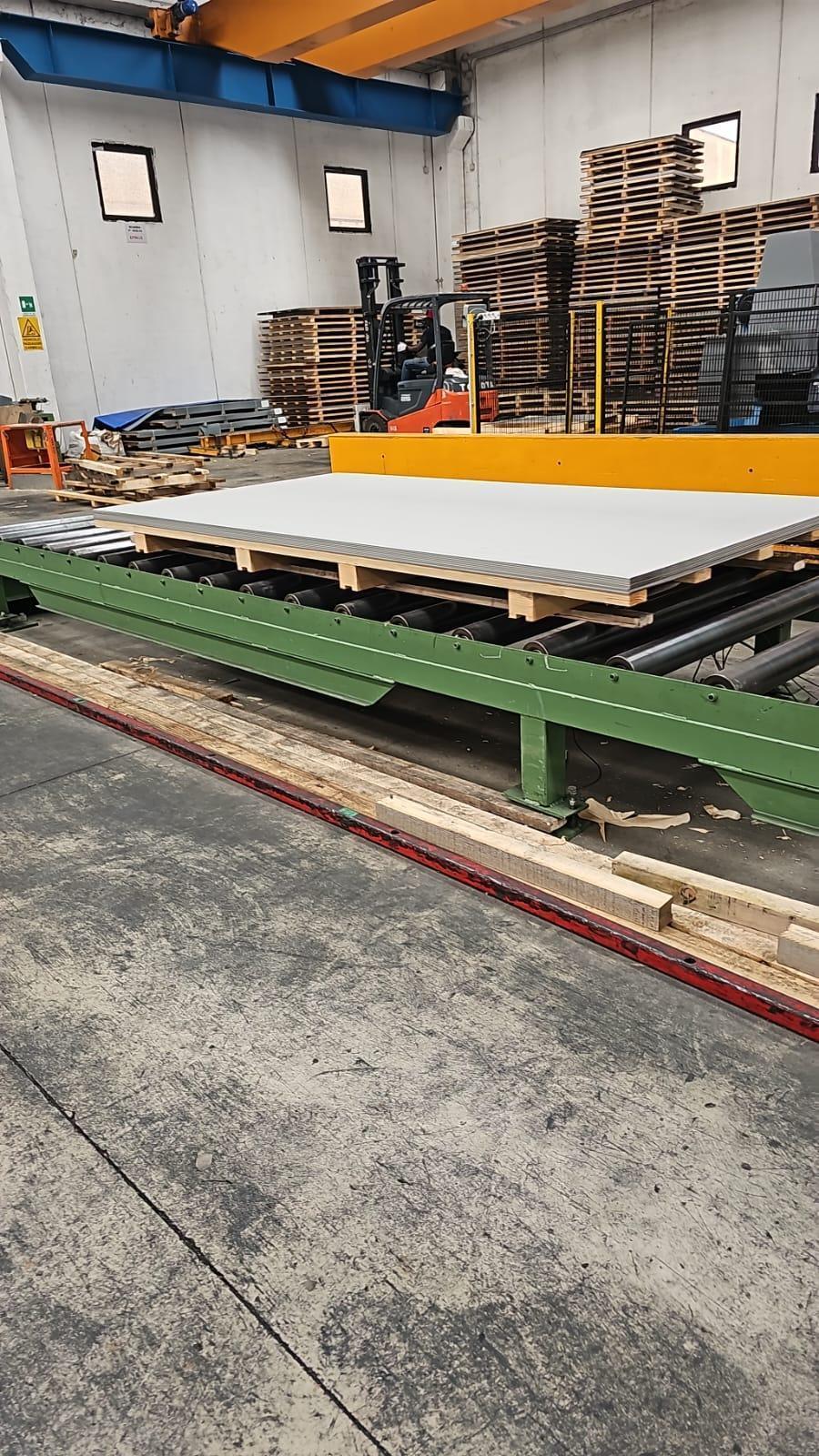

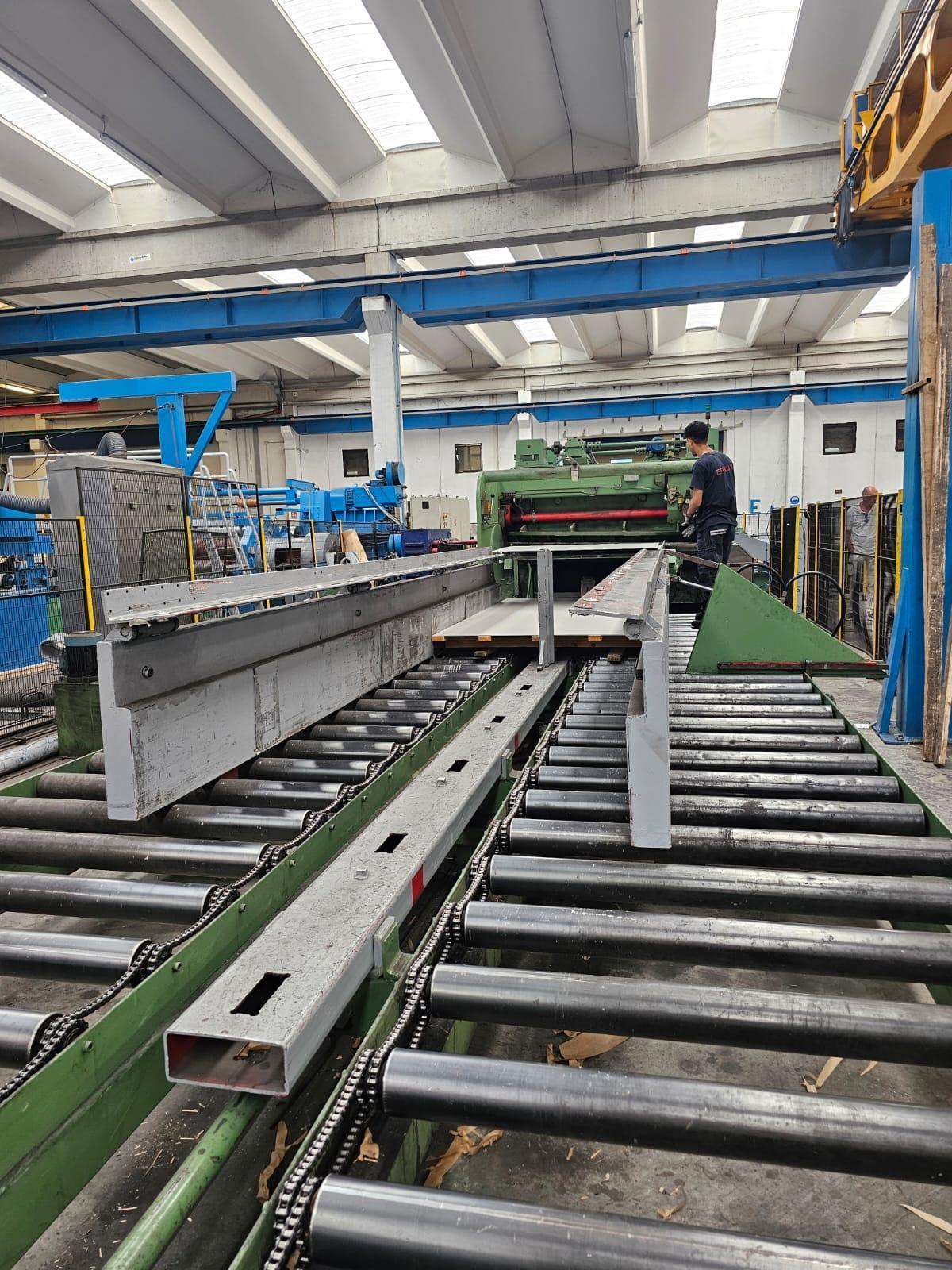

STACKER
- Motorized roller conveyor
- Side compactor with adjustment, synchronization and symmetry
- Front stop
- Minimum sheet width 500 mm
- Maximum sheet width 2000 mm
- Maximum sheet length 10,000 mm
