Manufacturer: Herr-Voss
Yield Strength: 50,000 PSI
Width Capacity: 12” – 60”
Thickness: .020 - .135”
ID Range: 19.5” – 24”
OD Range: 24” – 84”
Length Capacity: 2- 20’
Max Prime (40’ Max – Special Handling)
Weight Capacity: 40,000 Lbs.
Pack Height: 24”
Max Including Skids (Prime Piler) 12”
Max Including Skid (Reject Piler)
Line Speed: 200 FPM
Jog Speed: 50 FPM
Line Direction: Left to Right

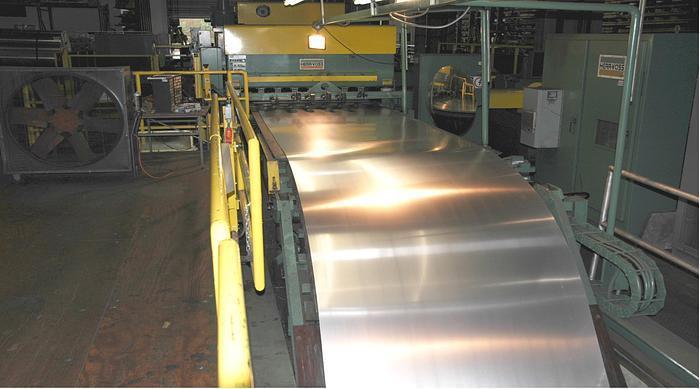

Complete Line with the Following Components:
Entry 4 Arm Turnstile
Floor Type Coil Car
Uncoiler w/ Hold Down Roll
Peeler Table
Pinch Rolls
Herr Voss 6-HI Precision Keystone Leveler -72/1.750-19-7 6HI
Conveyor Looping Pit w/ Roller Quandrants
Side Guide Unit Roll Feeder w/ Measuring
Paper Winder w/ Feeder
Herr Voss High Speed Shear
Shear Run-Out Conveyor
Air Float Stacker
Discharge Conveyor
Complete with Hydraulics, Electrics, Controls
In Storage
