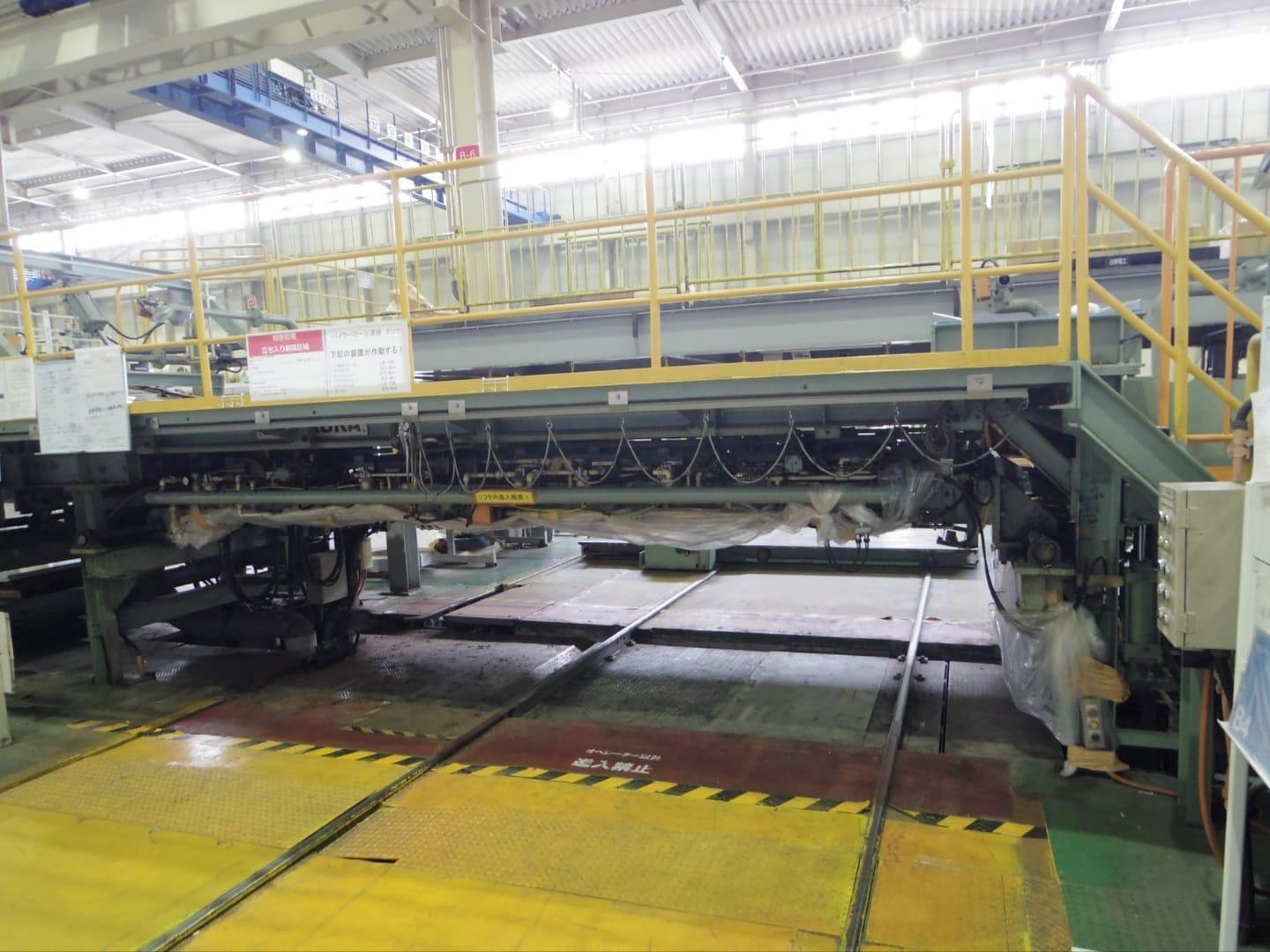

60" (1650mm) x .125" (3mm) x 20,000# Sumikura Aluminum Cut-to-Length Line - Rotary Shear & 6HI Cassette Leveler

Brand
Not Specified

Model
Not Specified

Stock #
604881

Condition
Used

Year
1992

Coil Weight 20000 pounds
Width 65 inches
Thickness .125 inches
ID 20 inches
Max OD 78 inches

Equipped With

General Specifications:
Coil Width Range: 20"- 60" (500-1670mm)
Thickness Range: .040"-.125" (1mm-3mm)
Coil ID: 20" and 24" (508mm and 610mm with rubber sleeve)
Coil OD Range: 31"-78" (800mm-2000mm)
Max Coil Weight: 20,000#
Line Speed: 164ft/min (50m/min (60m/min after shearing))
Max Stacker Weight: 4000#
Stack Length Ranges:
Stacker 1: 20"-157" (500mm-4000mm)
Stacker 2: 20"-236" (500mm-6000mm)
Line Direction: Right to Left

Complete with the Following Components:
Coil Holder
Coil Car
Uncoiler with Hold Down Roll
Peeler Table
Pinch Rolls
Entry Crop Shear
Edge Trimmer
Scrap Winders
6HI Cassette Leveler
Pinch Rolls
Vinyl Unwinder
Paper Unwider
Roll Feeder
Measuring Roll Unit
Rotary Shear
Run Out Conveyor
Stacker (Two Sections of Stacker)
Lift Tables
Stacker is Side Discharge

Hydraulics and Electrics

Complete Electrical Overhaul of the Line Done in 2018
