500 Ton Clearing Blanking Line with Automatic Feed Line and Atlas Stacker

Brand
CLEARING

Model
S4-500-186-108

Stock #
605269C

Condition
Used

Year

Tonnage 500 tons

Equipped With

General Specifications:

Coil Width Range: 16”-72”

Max Coil Weight: 75,000#

Coil ID: 20”-24”

Thickness Range: .024”-.110”

Blank Length Range: 7”-120”

Max Stack Weight: 20,000#

Max Stack Height with Pallet: 18”



Complete with the Following Components:

Coil Holder

Pit Type Coil Car

Dual Mandrel Uncoiler

Peeler with Hold Down Roll

Pinch Rolls

Entry Crop Shear with Scrap Conveyor

6HI Leveler

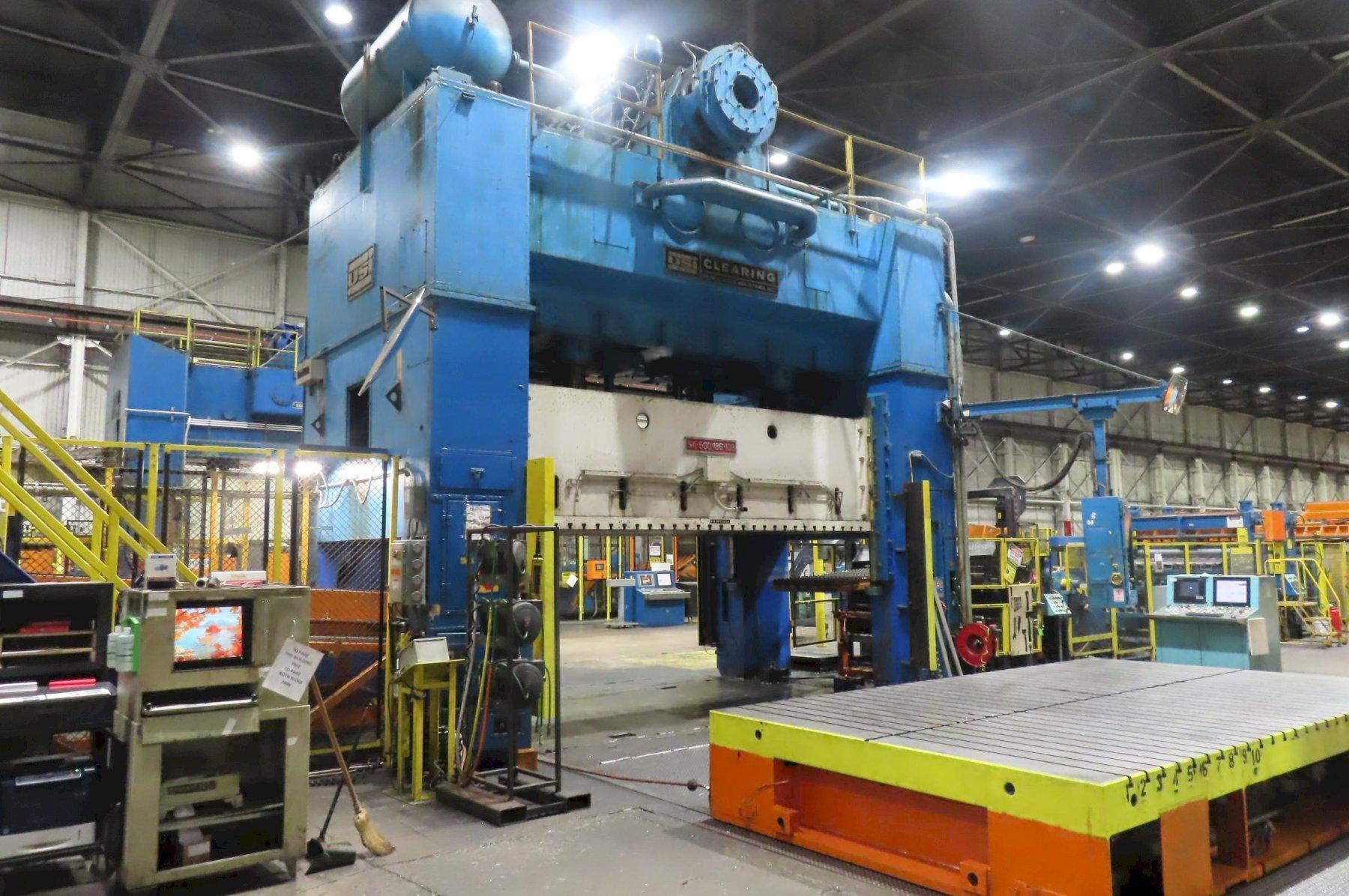

Feeder 500 Ton Clearing Press

Model: S4-500-186-108

Stroke: 12”

SPM: 10-50

One Rolling Bolster

Shut Height: 48’’

Adjustment: 20’’

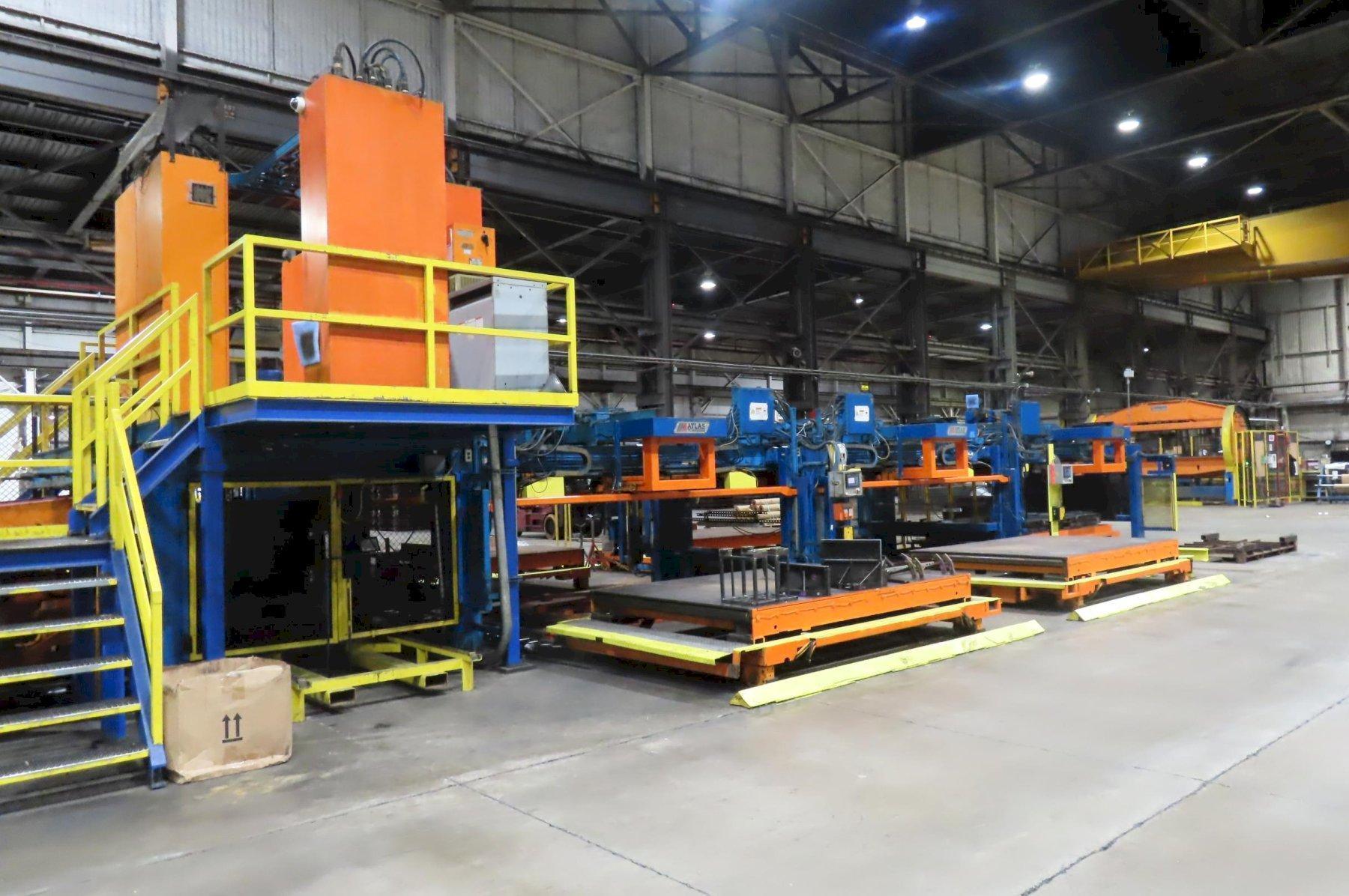

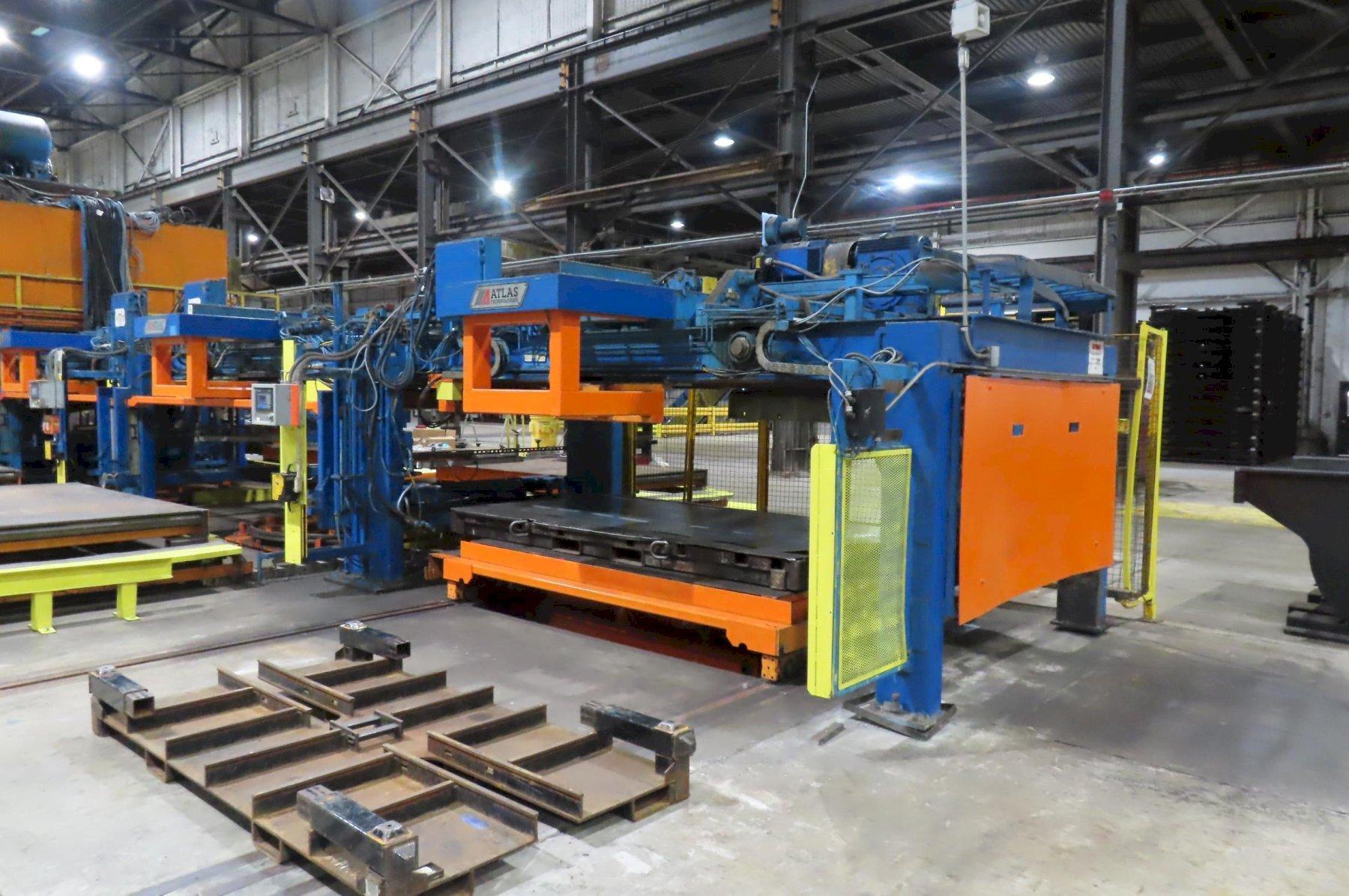

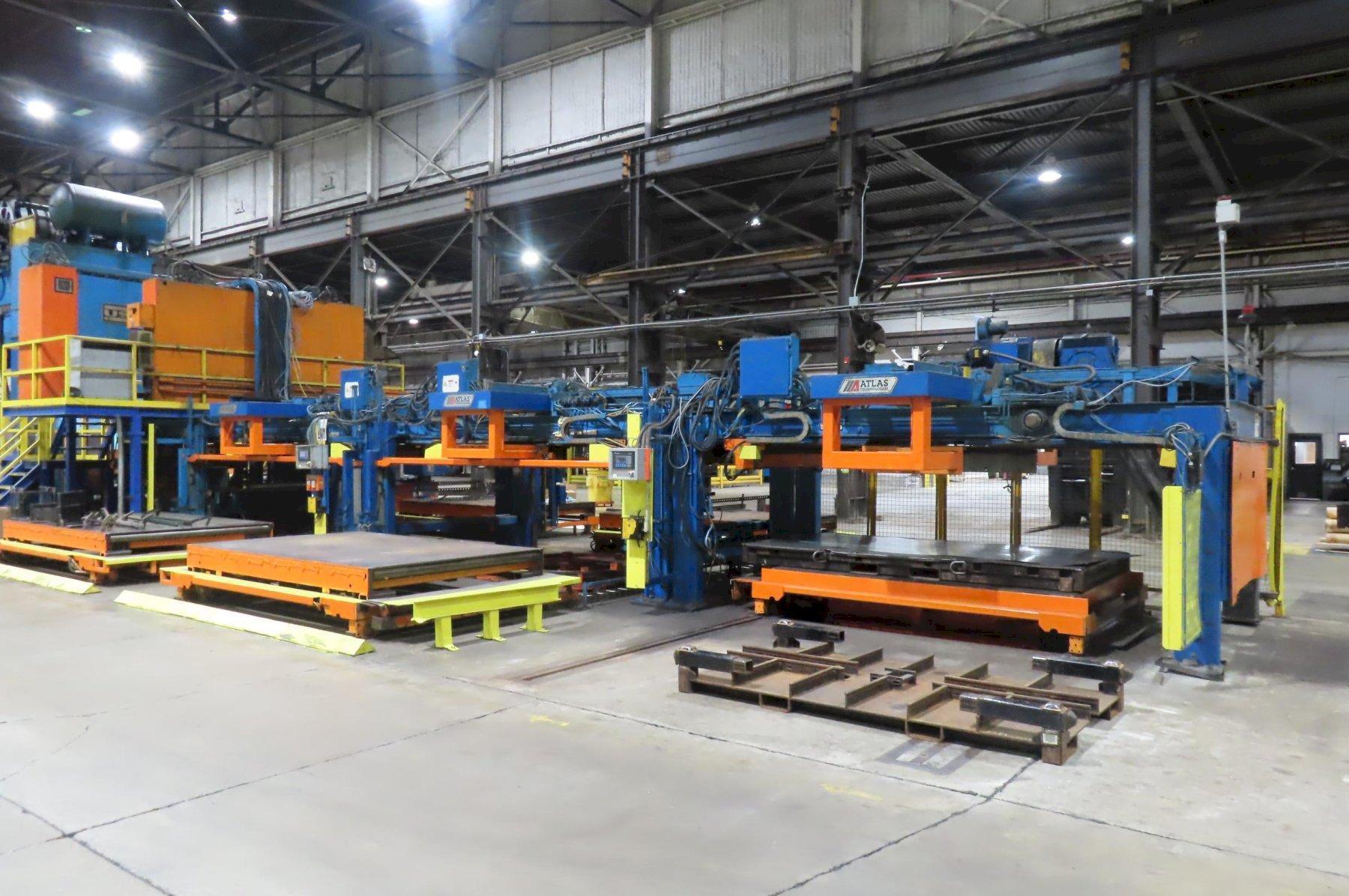

Atlas Magnetic Stacker

Drives on Feed Line upgraded in 2013
