Equipped With
PRESS:
CAPACITY: 400 TON
STROKE: 10"
SHUT-HEIGHT: 53"
ADJUSTMENT: 13.8"
STROKES PER MINUTE: 15-60 VARIABLE
BED SIZE: 157"(L-R) X 98"(F-B)
RAM SIZE: 157"(L-R) X 98"(F-B)
WINDOW OPENING: 94"
Moving Bolster
Feed System:

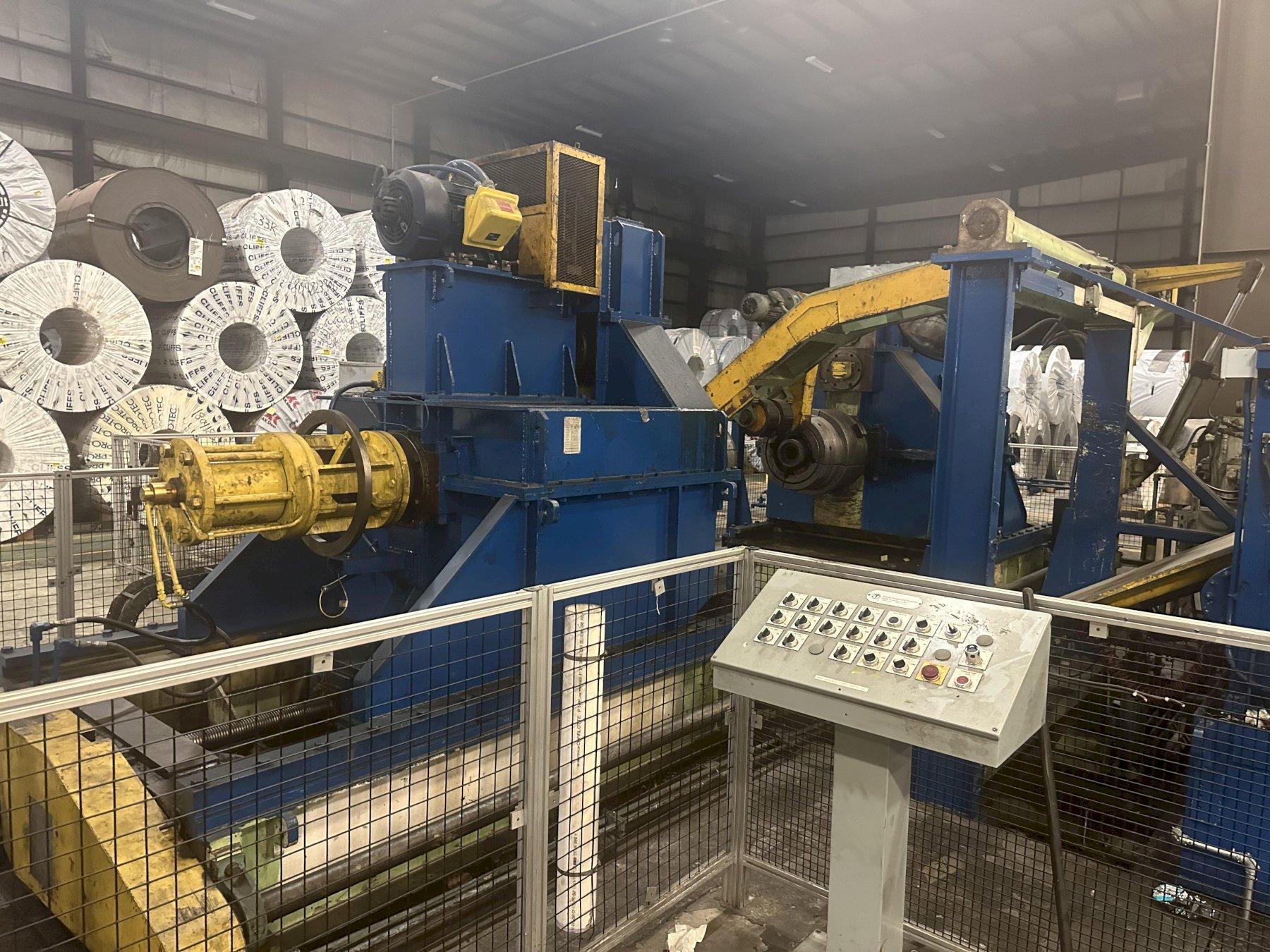

Pit Coil Car
Double stub uncoiler
Capacity: 70,000 LBS
Hydraulic expansion
Expansion Range: 20" - 24"
COIL O.D. Capacity: 86"
Hold down roll
Sliding base on each head

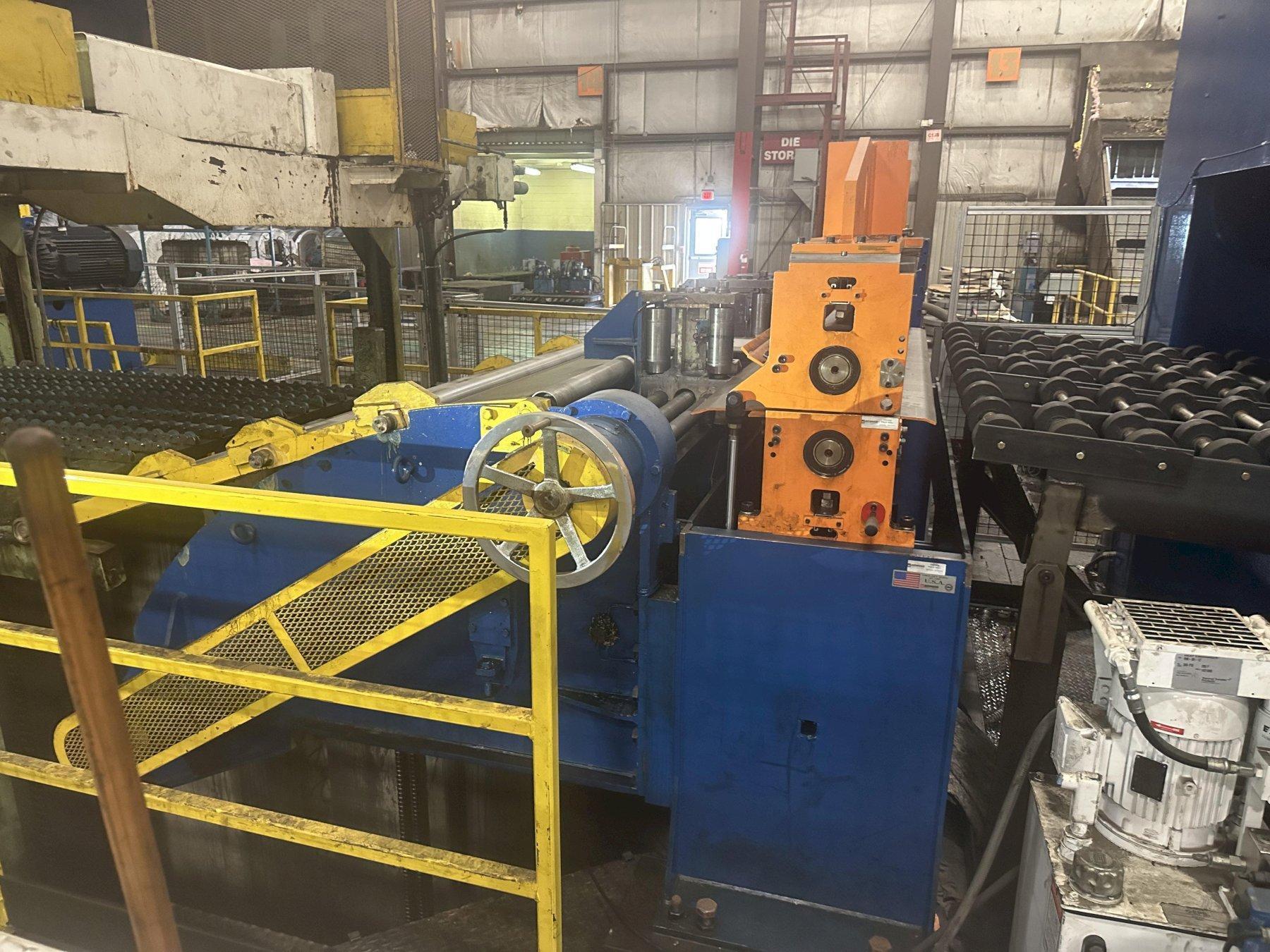

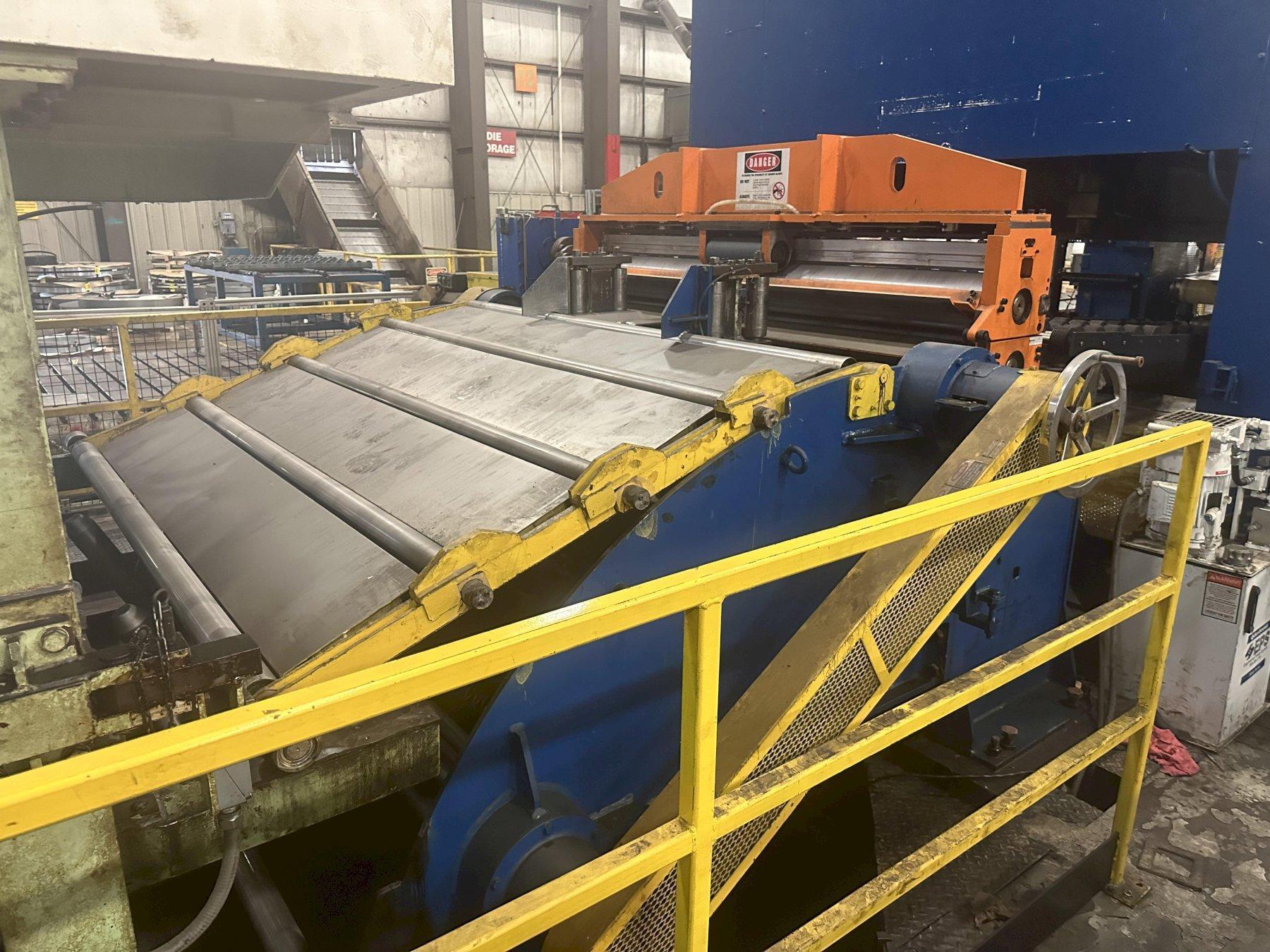

Peeler/Pinch Roll Unit
Crop shear
Hydraulic downcut type
Looping Pit
Roll Feed Unit:
Feeding length: 2" MIN TO 120" MAX
Line speed: APPROX 80 IN/MIN

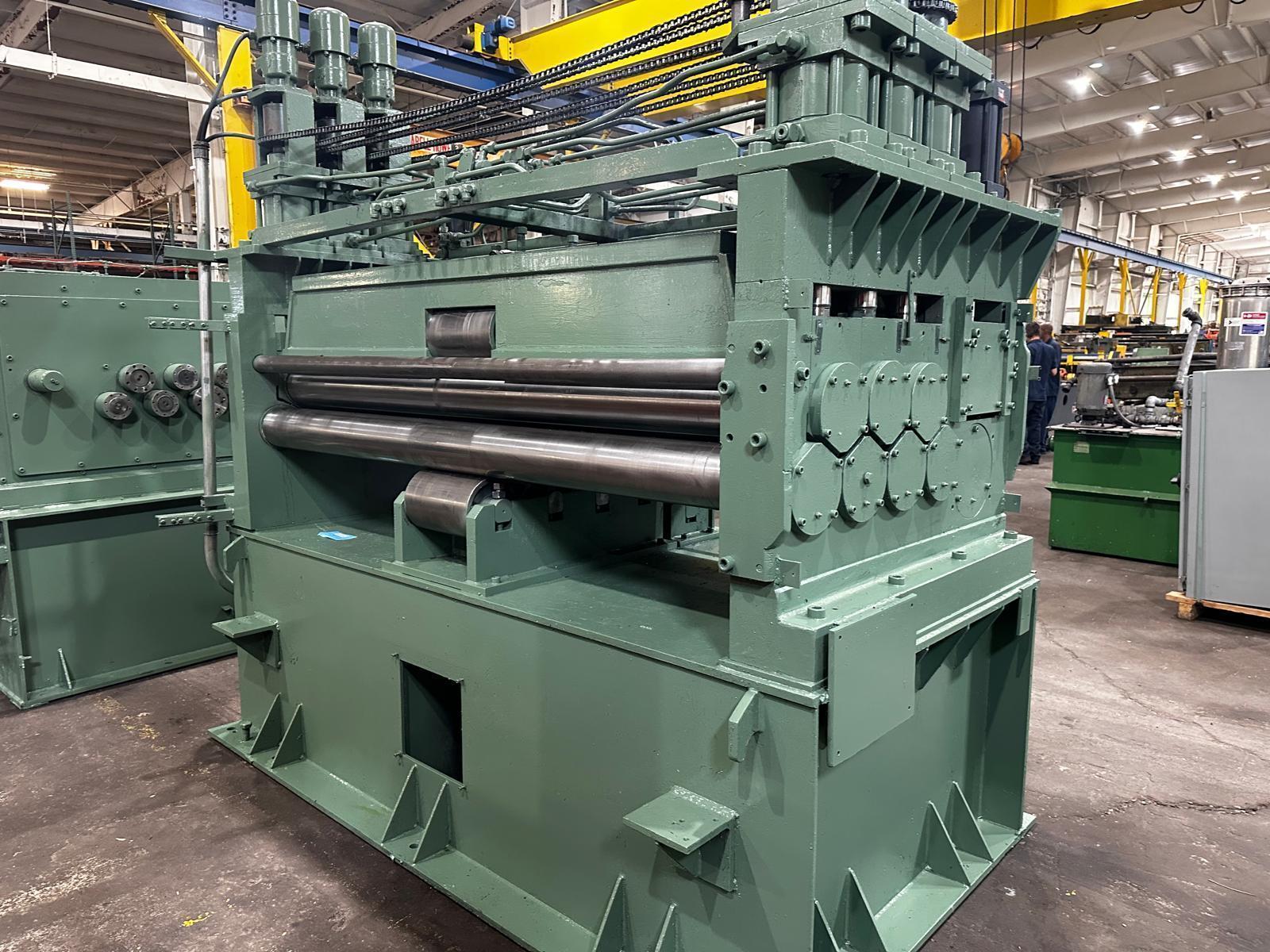

72" x 5/16" Julius Flattener
Number of work rolls: 7
Capacity: 2080mm x 8mm @ 500N/mm2
7 Roll Design
3 over 4 Work Rolls
6" Diameter Work Rolls
83" Roll Face
Individual Roll Adjustment
10" Diameter Entry Pinch Rolls
Top & Bottom Center Back-Up Rolls
Motorized Roll Adjustment
125 HP DC Drive

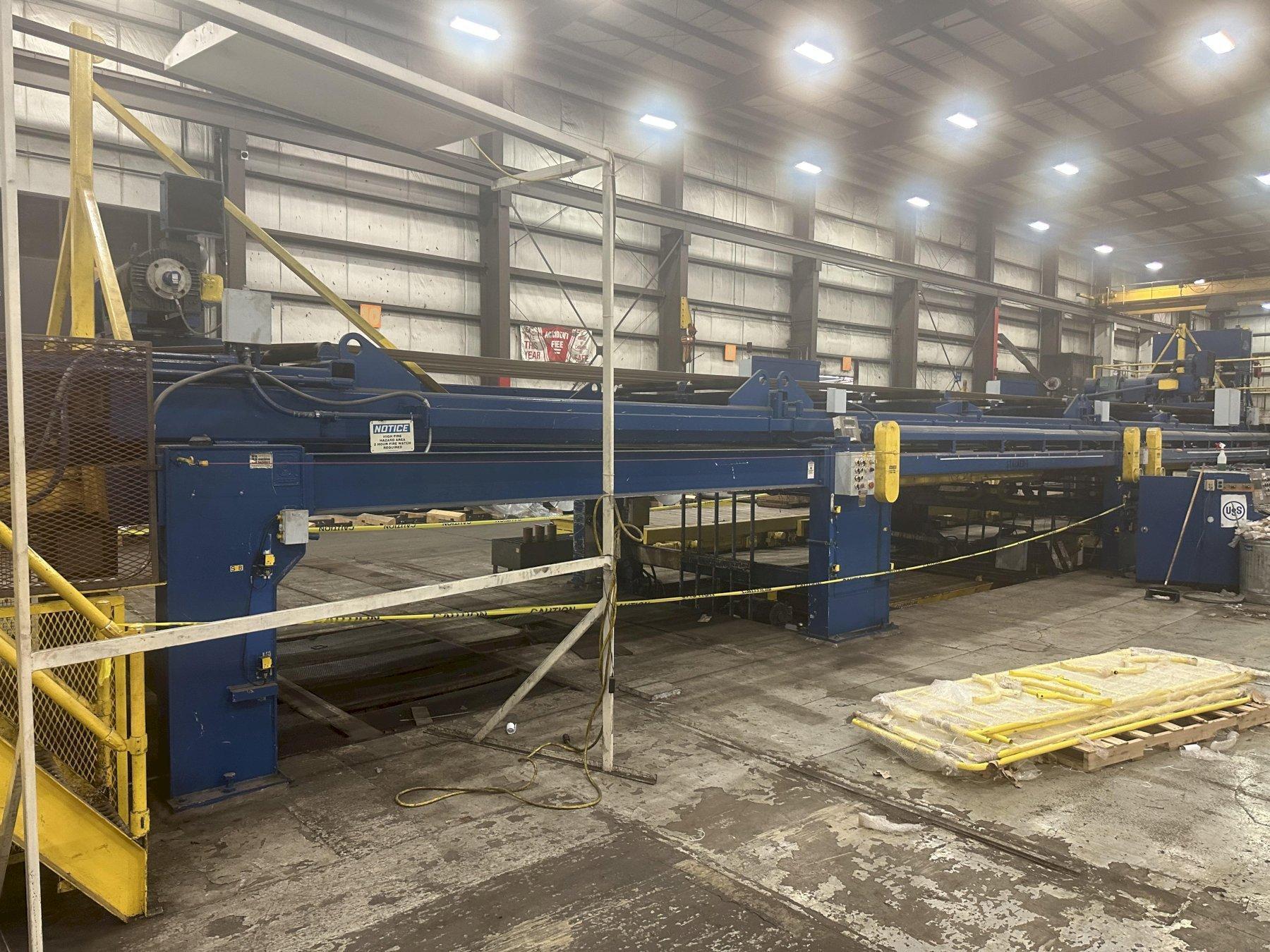

Automatic Feed Co. Stackers:
Magnetic Bridge Conveyor
# of Stacking Stations: 2
Blank Stacker Station 1:
Width of Blanks: 16" MIN TO 72" MAX
Length of Blanks: 8" MIN TO 126" MAX
Blank Stacker Station 2:
Width of Blanks: 16" MIN TO 72" MAX
Length of Blanks: 8" MIN TO 157" MAX
Max Blank Stack Weight: 15,000 LBS
Reject Stacker
Runout Conveyor
LINE EQUIPPED WITH UPGRADED TOLEDO INTEGRATED TECHNOLOGIES CONTROL IN 2015
NOTE*
FEED LINE, PRESS, AND STACKER UNITS HAVE INDEPENDENT CONTROLS.
