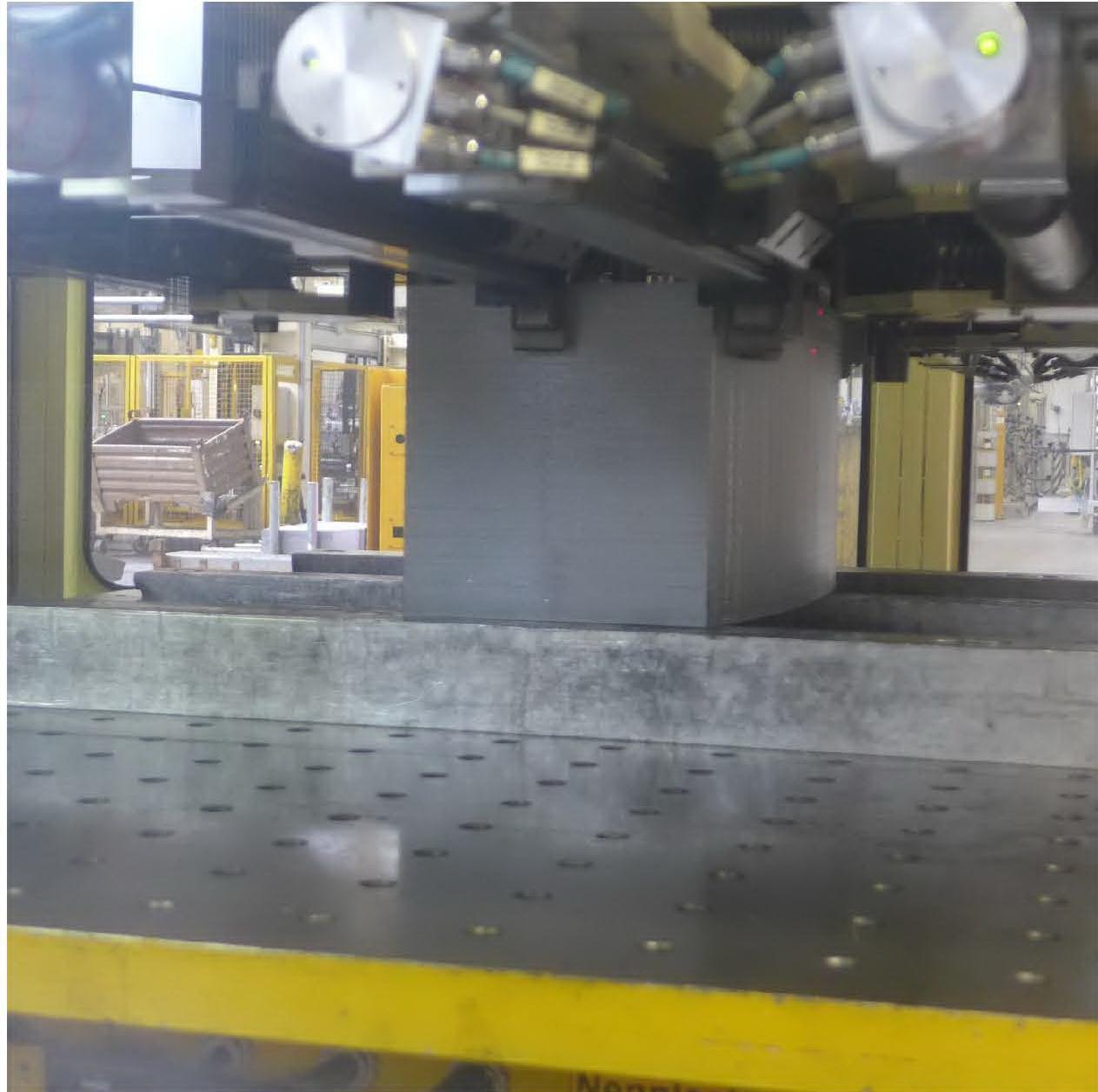

Press Table
clamping surface (left-right) 2800 mm
clamping surface (front-back) 2800 mm
height above floor level 375 mm
Ram
ram force 800 to
clamping surface (left-right) 2800 mm
clamping surface (front-back) 2800 mm
stroke 350 mm
number of strokes max 50 /min
ram (mechan. press)
ram adjustment 350 mm
Tool Assembly Dimensions
shut height (stroke down, adjustment up) 1100 mm
distance between columns (H-frame) 3100 mm
free passage between side columns (width) 2560 mm
free passage between side columns (height) 1500 mm
Decoiler
design single coil
sheet width max 2000 mm
sheet width (min) 400 mm
max. weight of coil 30 to
max. diameter of coil 2000 mm
min. internal diameter of coil 610 mm

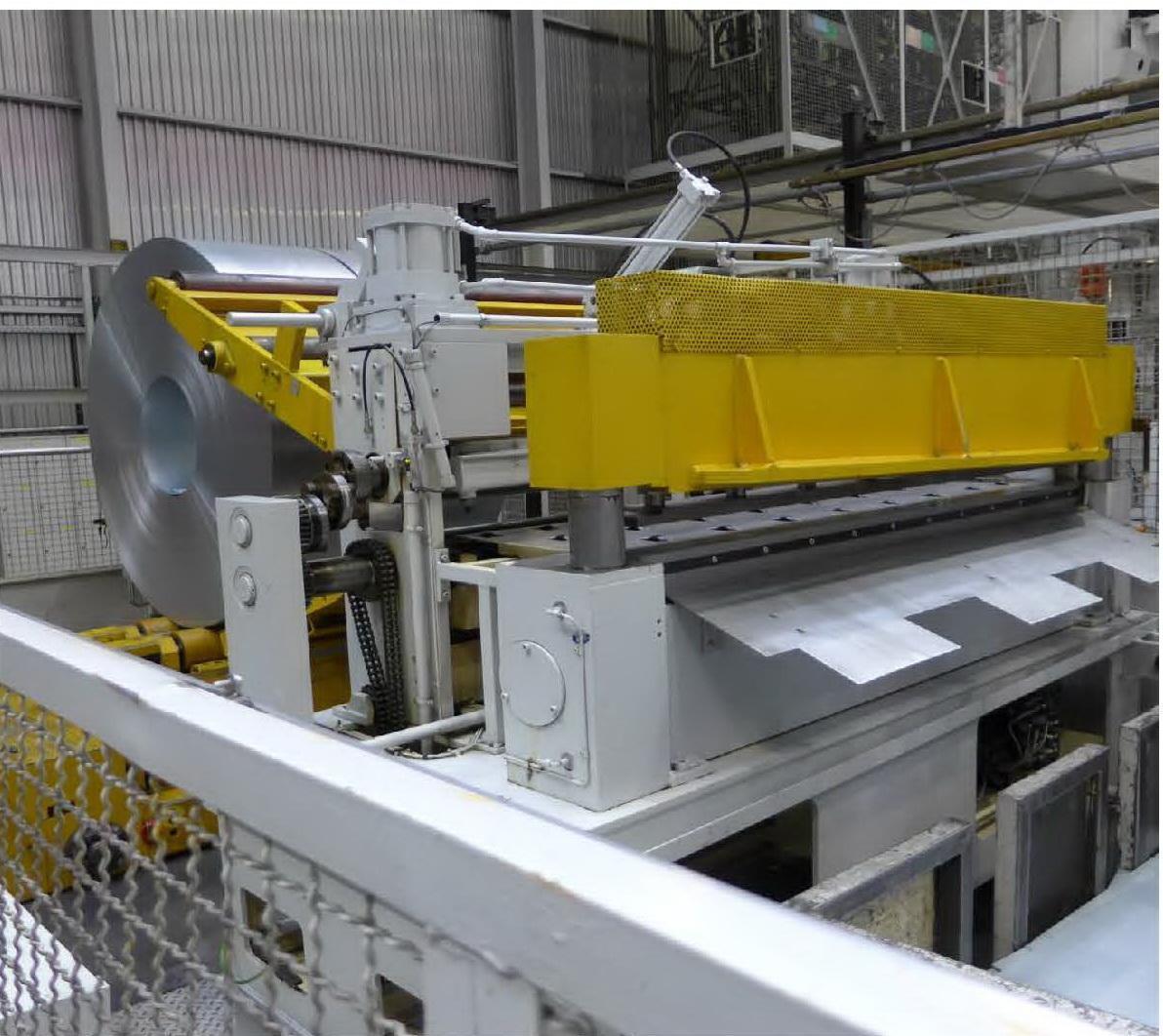

leveler unit
sheet width max 2000 mm
sheet width (min) 400 mm
sheet thickness max 2 mm
sheet thickness (min) 0,6 mm
number of leveler rolls 13
diameter of leveler rolls 50 mm

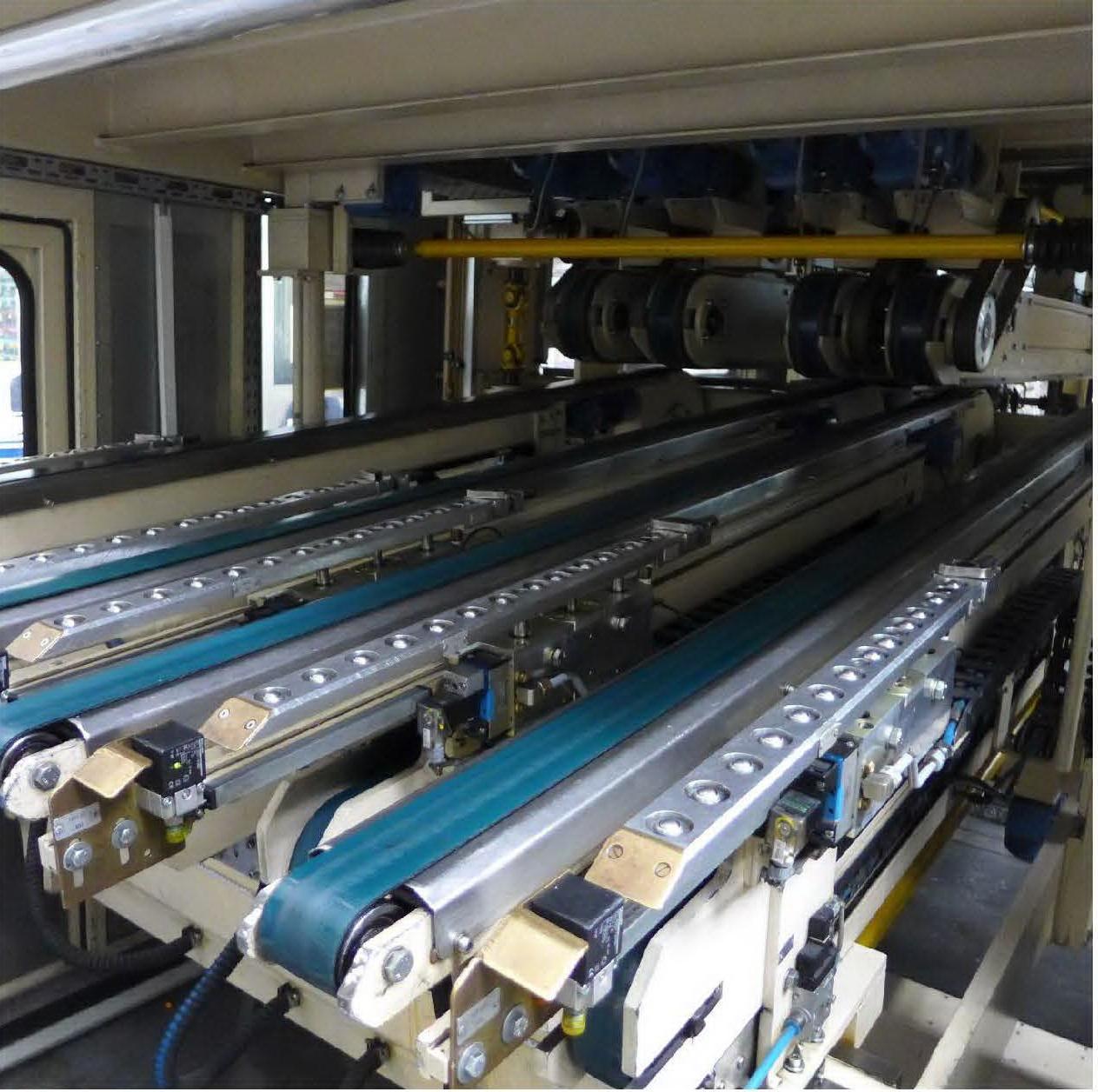

Feeders
feeder: type roll feeder
sheet width max 2000 mm
sheet thickness max 2 mm
feeding step max. 4000 mm
