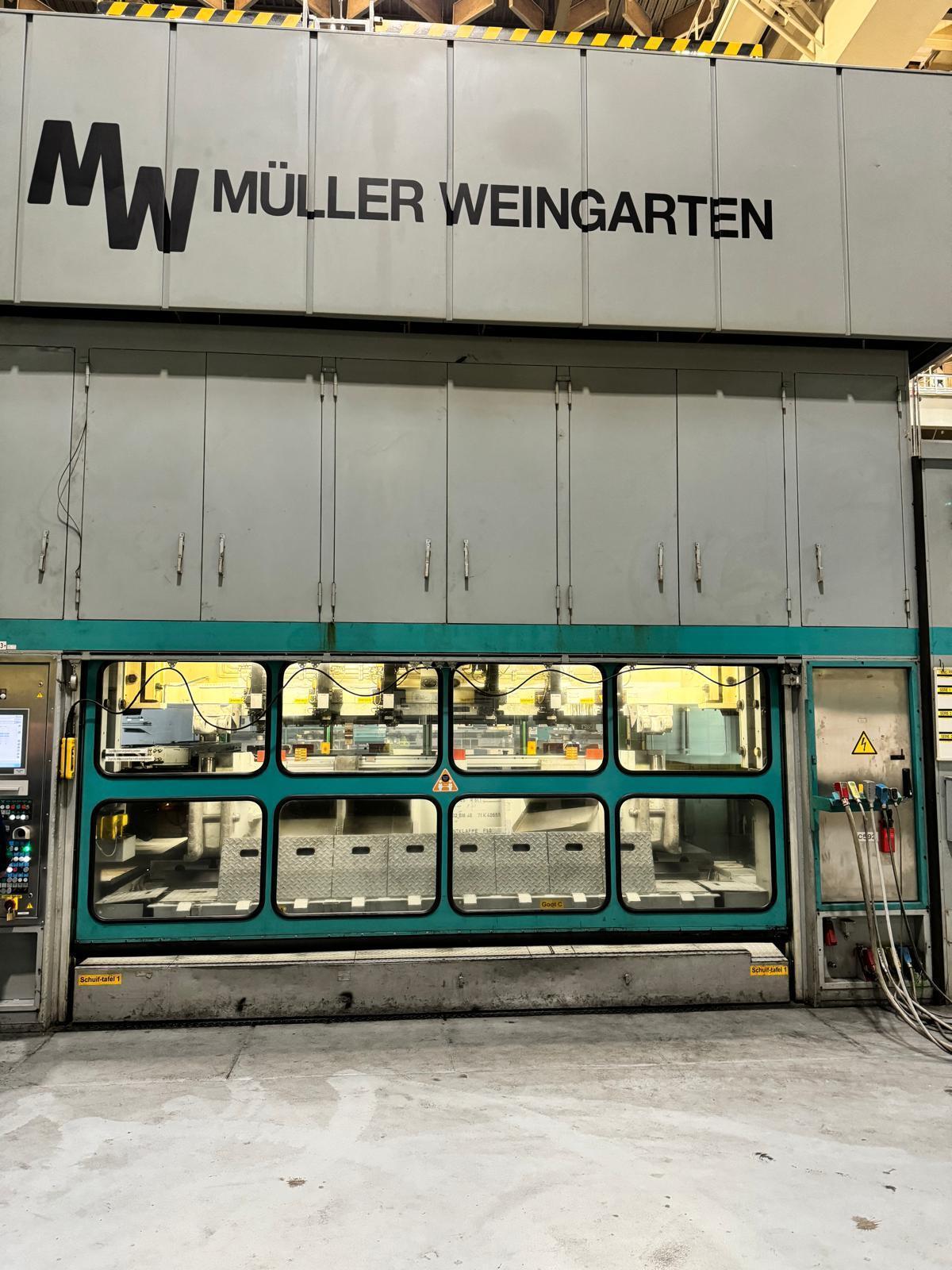

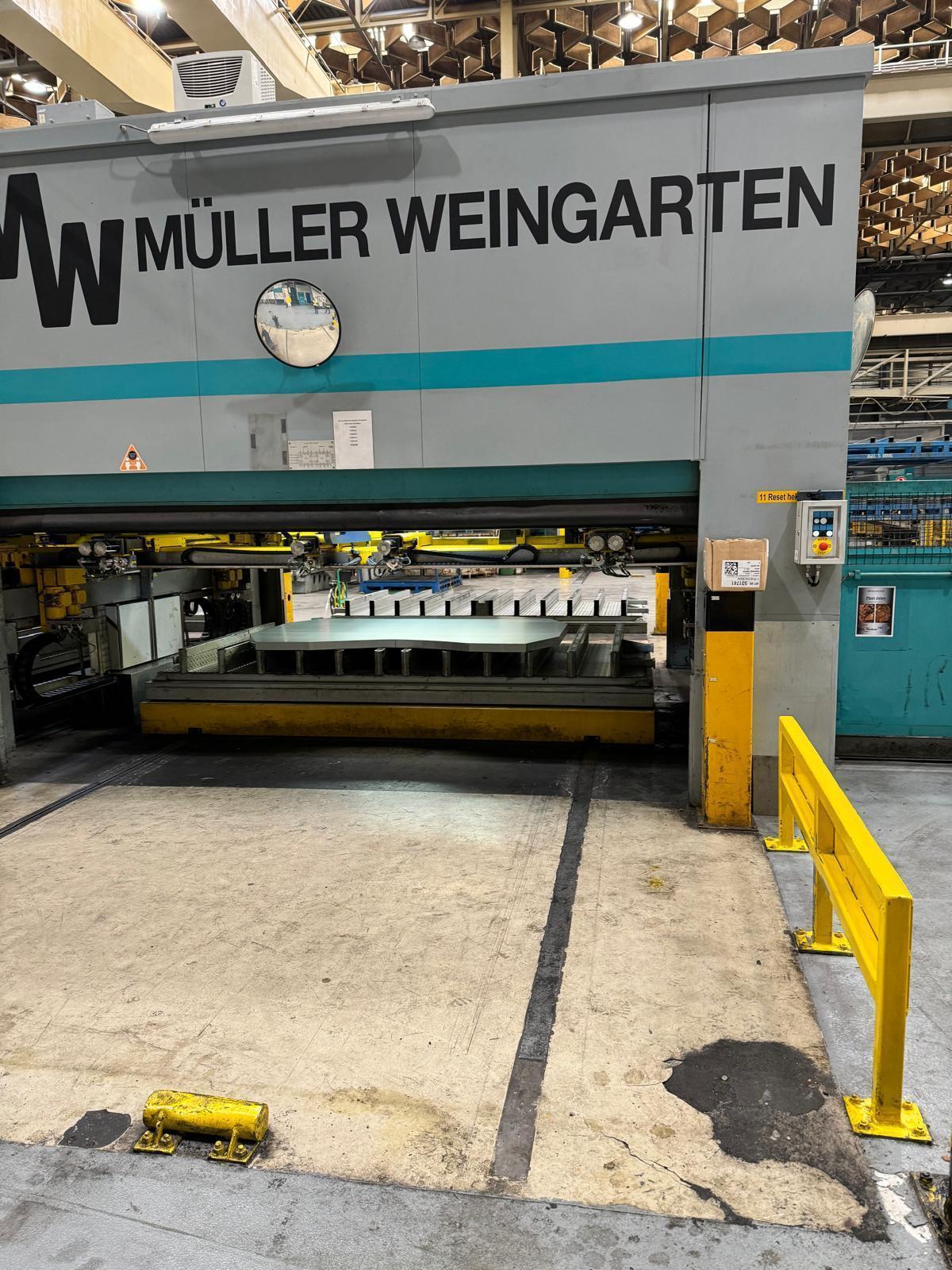

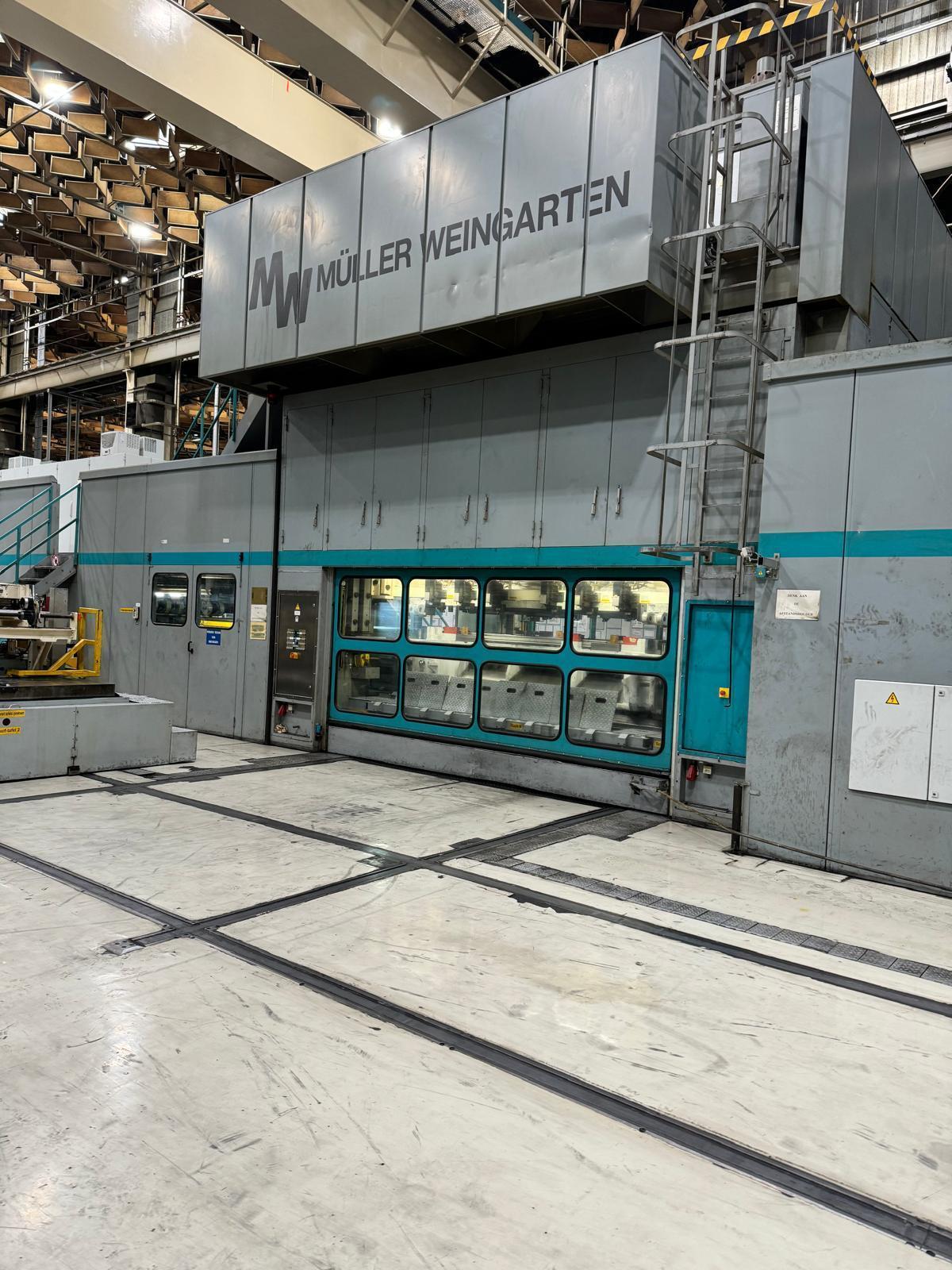

500 Ton Mueller Weingarten Blanking Line

Model
Not Specified

Stock #
605155

Condition
Used

Year
1994

Tonnage 500 tons
Dimensions 4000mm x 2500mm
Weight 30 tons

Equipped With

500 Ton Mueller Weingarten Blanking Line

Press Specifications:
Stroke Slide:  255mm
Adjustment:  140mm
SPM:  15 to 60
Die Height Max:  930mm
Die Height Min:  790mm
Die Height Standard:  800mm
Automatic Die Clamping
Bed Area:  4000mm x 2500mm

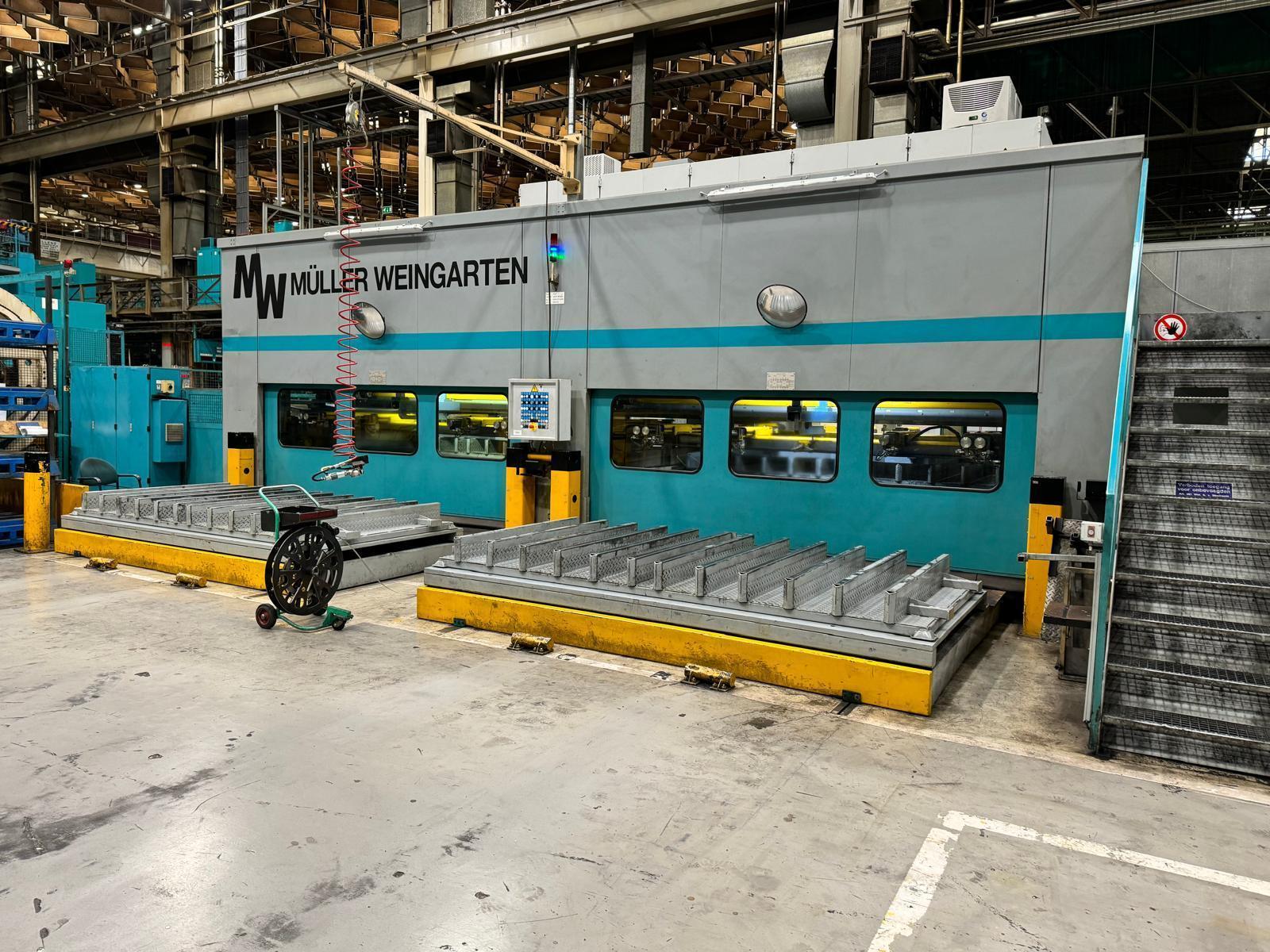

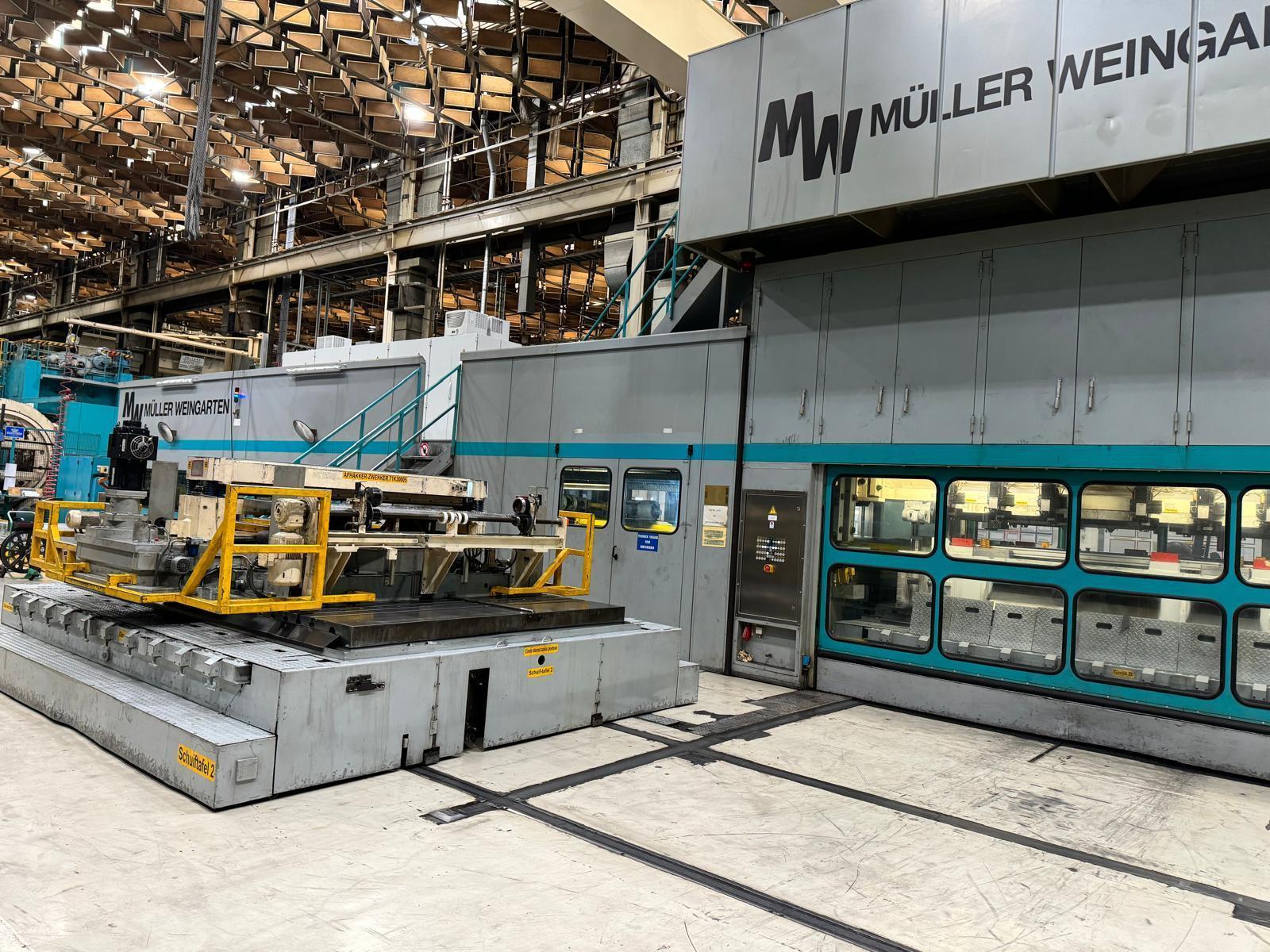

Dual Rolling Bolsters

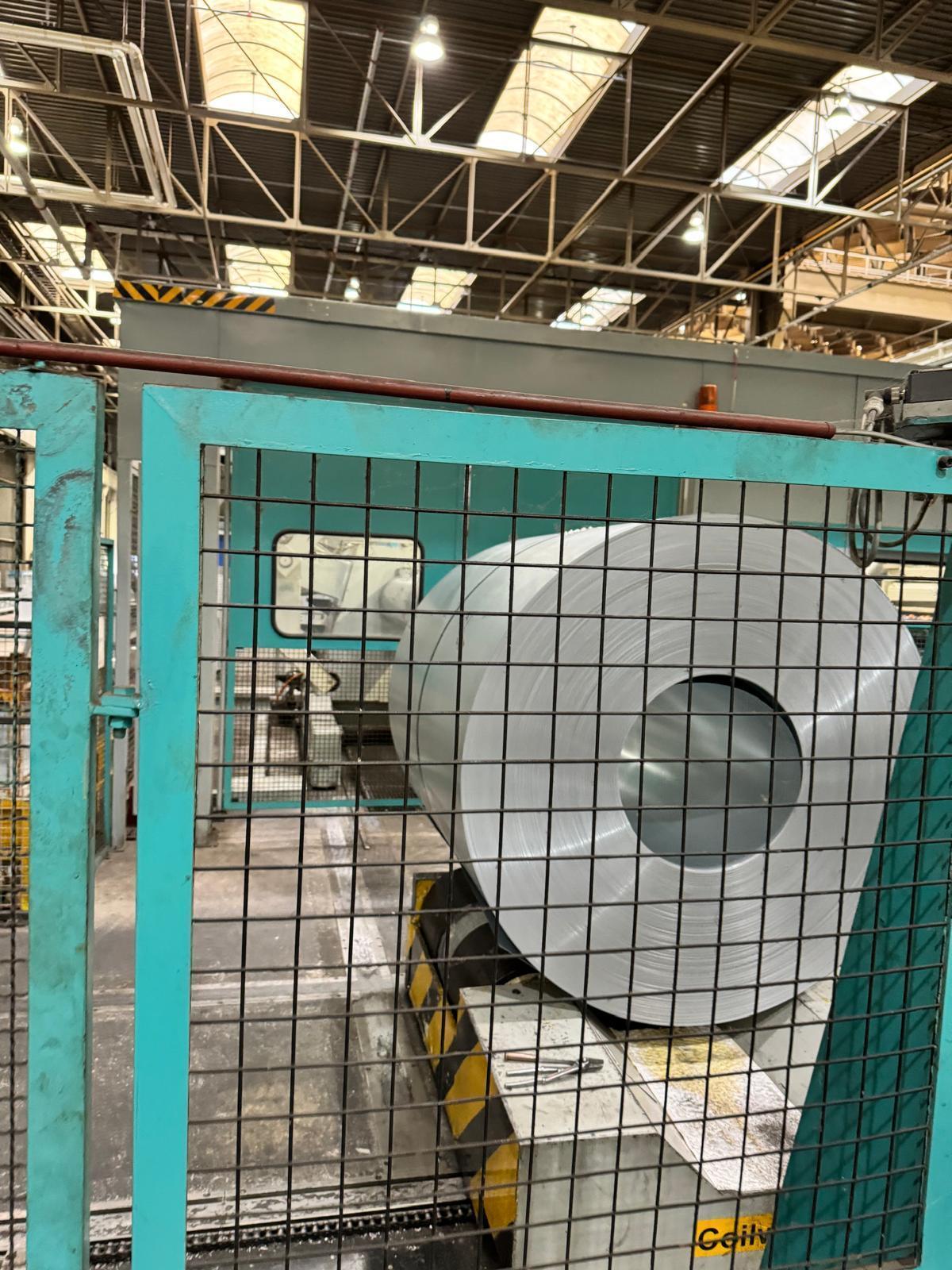

Feed Line:
Coil Width:  2000mm - 500mm
Coil Thickness:  .5mm - 2.5mm
Coil Capacity:  30 Ton
Max Feed Length:  4000mm
Min Feed Length:  350mm

Complete Line Featuring:
2 Coil Storage Stations
Coil Loading Car
Mandrel Uncoiler with Sliding Base
Peeler Pinch Roll Unit
Crop Shear

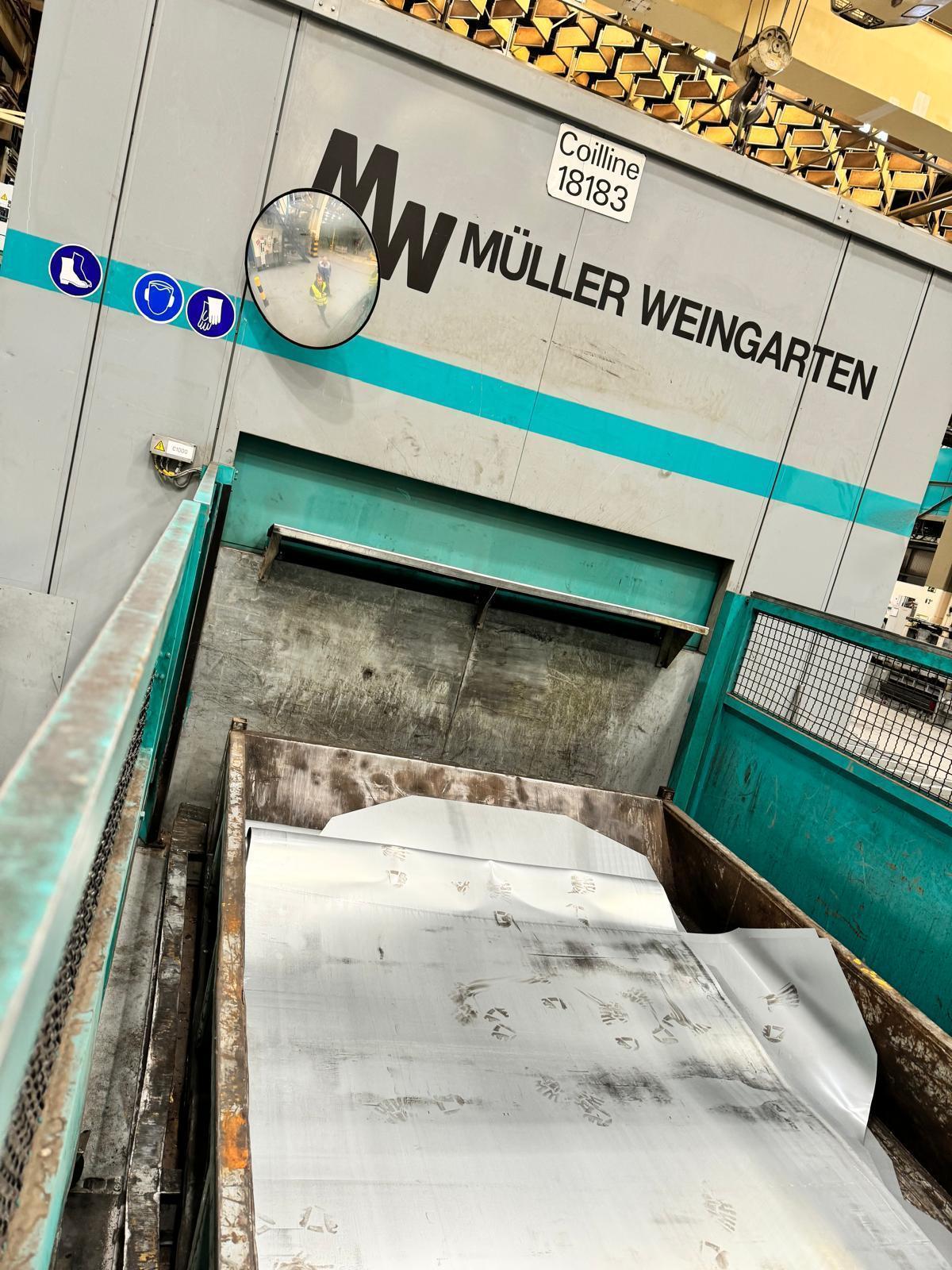

Scrap Conveyor
15 Roll Precision Leveler
Washer
Flying Shear
Swing Shear with 30 Degree Swing
Dual Stackers with Dual Blank Shuttle Carts
Reject Station

Digital Drives and Controls
