Coil Thickness: 5mm (3/16”) – 10mm (3/8”)
Coil Width: 700mm – 1250mm
Coil ID: 508mm – 760mm
Coil OD: 1200mm – 1600mm
Coil Weight: 25 Ton
Pipe OD: 406mm (16”) – 1220mm (48”)
Pipe Wall Thickness: 5mm (3/16”) – 10mm (3/8””
Pipe Weight: 3.5 Ton Maximum
Pipe Length: 8m – 12m
Coil Car
Uncoiler & Peeler

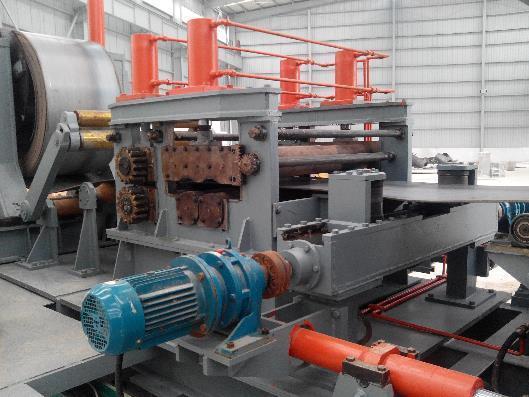

Leveling Machine
Pinch Rolls
Leveling Roll - Diameter: 140mm
Vertical Roller
Coil End Shear & Joint Welder -Hydraulic Shear
Edge Miller
Front Bridge
Guiding Beam
Forming Machine
Forming Size: 406mm – 1220mm
Forming Angle: 40° - 80°
Rear Bridge
Centering Support
Flying Pipe Cutter
Inner/Outer Weld Mechanism
- Lincoln Welder – DC-1500 (2)
- Submerged Arc Butt Welding Car
- Flux Recycling Device
- Flux Drying Oven
- Flux Magnetic Separator
- Plasma Cutting Device
- Air Compressor
