MANUFACTURER - FUKUI (PRESS) AND AUTOMATIC FEED (STACKER)
MATERIAL THICKNESS RANGE - 0.024 - 0.090" @ 72" AND 0.126" @ 51"
COIL WIDTH RANGE - 17.7" - 72"
COIL WEIGHT - 70,500 lbs.
ENTRY ID - 20" - 24"
ENTRY OD - 86"
SPM - 15-60
PRESS TONNAGE - 400 ton
DIE SPACE L-R x F-B - 157" X 98"
STROKE OF SLIDE - 9.84"
SHUT HEIGHT - 39.37" / 53.15"
PASS LINE ABOVE BOLSTER (MIN/MAX) - 31.5" (+1.5", - 2.5")
ROLLING BOLSTERS - yes
LINE SPEED - 196 fpm
STACKER #1 LENGTH (MIN/MAX) - 7.8" - 126"
STACKER #2 LENGTH (MIN/MAX) - 7.8" - 157.5"
STACK HEIGHT (max) - 23.6"
STACK WEIGHT - 25,000 lbs.
LINE DIRECTION - LEFT TO RIGHT
STACKER LOCATIONS - RIGHT END
LINE COMPONENTS:
ENTRY FEED LINE COIL CAR
UNCOILER
COILER
LOOPING PIT W/ TABLES

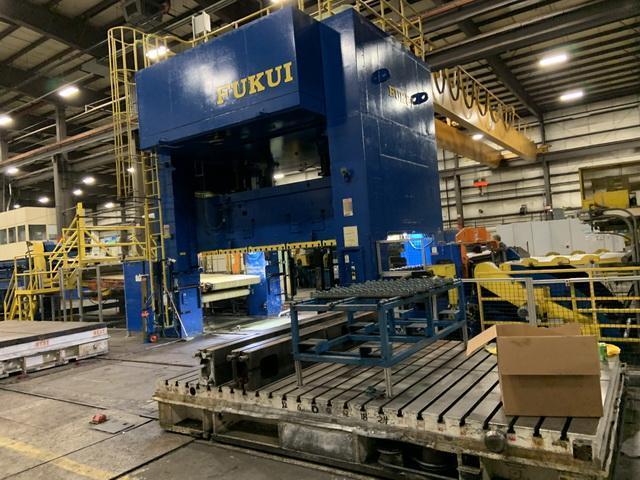

FUKUI PRESS
ROLLING BOLSTERS
SCRAP CONVEYOR SYSTEM
INSPECTION TABLE
REJECT STACKER
DUAL STACKERS
SIDE DISCHARGE TABLES
ALLEN BRADLEY CONTROLS UPGRADE 2014
"
