1880mm Aluminum Twin Roll Caster

Brand
Not Specified

Model
Not Specified

Stock #
605211

Condition
Used

Year

Equipped With

2 Casting Lines. One Line runs from Left to Right and the Other Right to Left.

General Specifications:
Rolling Material: Aluminum alloys series 1000, 3003, and 8011
Roll Diameter: 1020mm
Roll Barrel Length: 2100mm
Max Strip Width: 1880mm
Nominal Strip Thickness: 6mm
Thickness Range of Strip: 4mm-8mm
Max Coil Weight: 16,000kg
Screw Down Cylinder Diameter: 680mm
Max Rolling Force: 23,000 KN
Rolling Speed: 4 m/min
Max Recoiler Tension: 210 kn
Caster Drive Motor: 2 x 81 kw
Recoiler Driver Motor: 22kw
Max Coil OD: 2150mm
Coil ID: 610mm

With the Following Components:
Control Panels

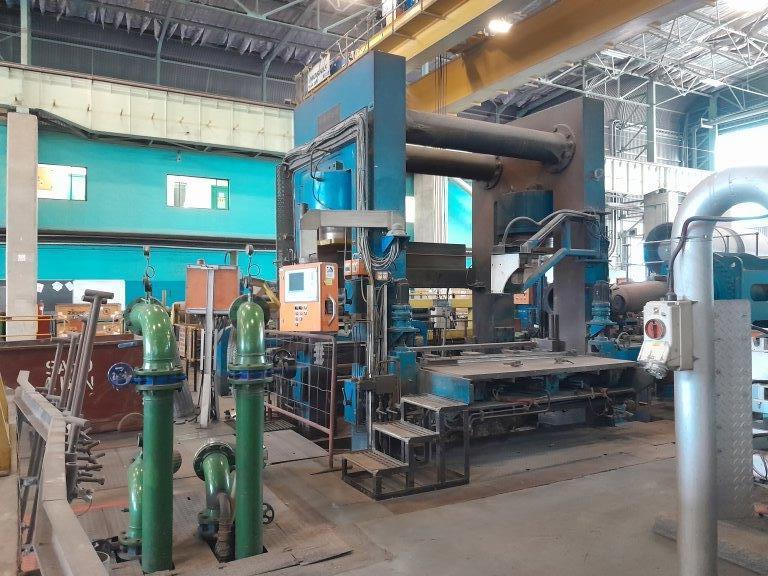

Mill Housing
Graphite Spray System
IRM Thickness Control System

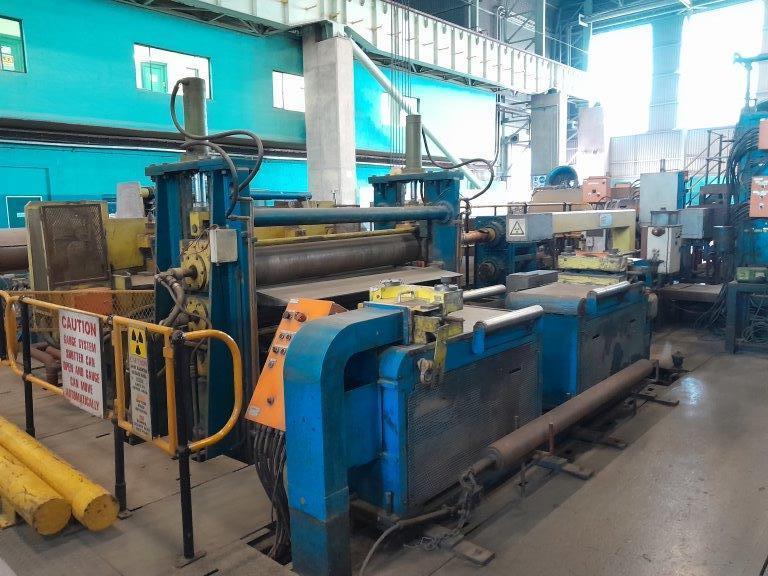

Pinch Roll and Shear
Recoiler
Coil Car
Edge Miller

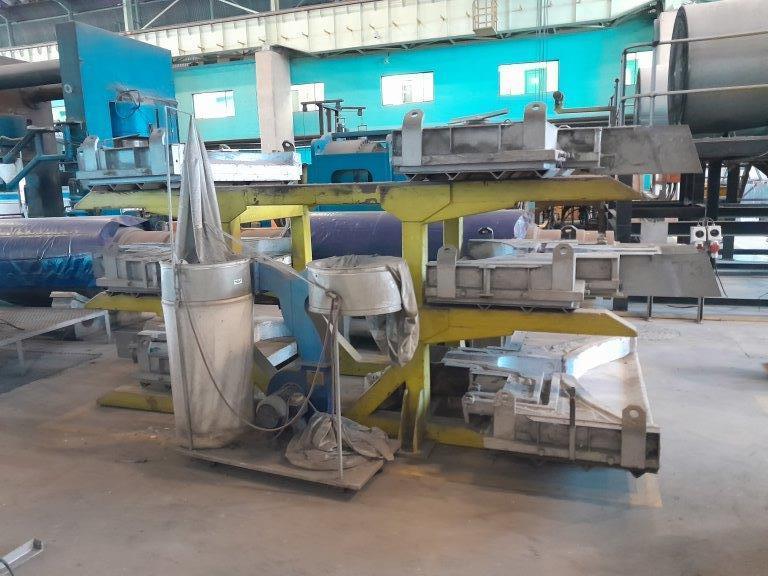

Spare Parts
