Manufacturer: Herr Voss
Year: 1997
Material: Stainless Steel
Thickness Range: 2mm to 10mm
Coil Width Range: 750mm Min to 2430mm Max
Sheet Length Range: From 1000mm to 7000mm (with option to 16,000mm)
Speed: 33 meter per minute
Line Direction: Left to Right

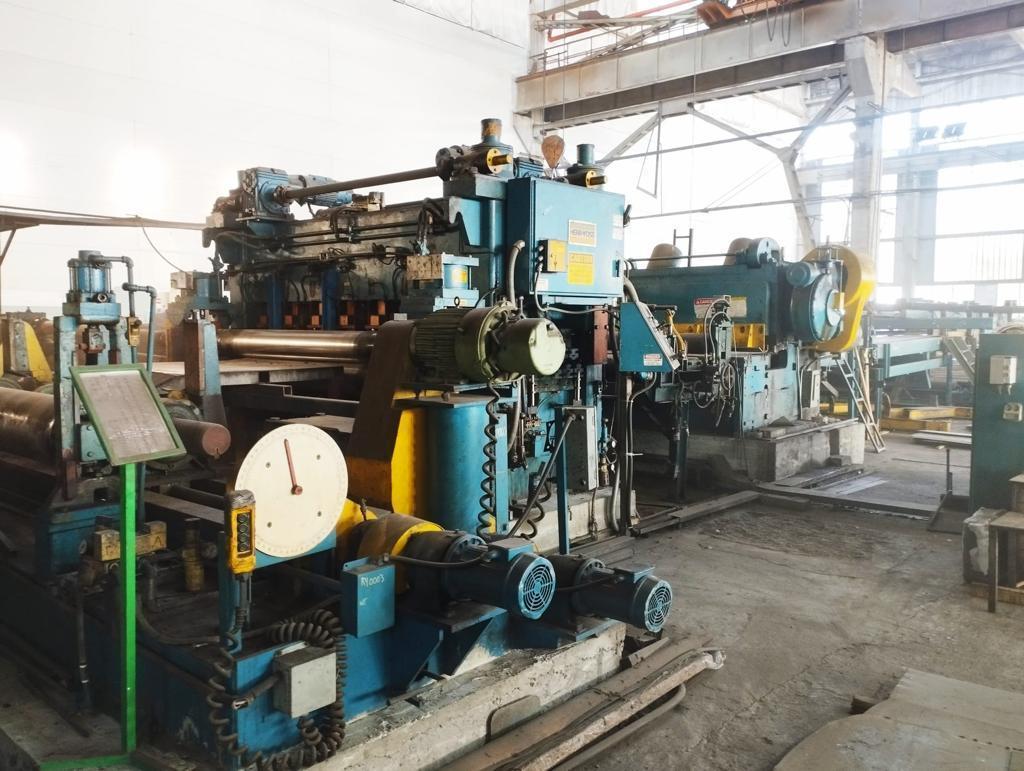

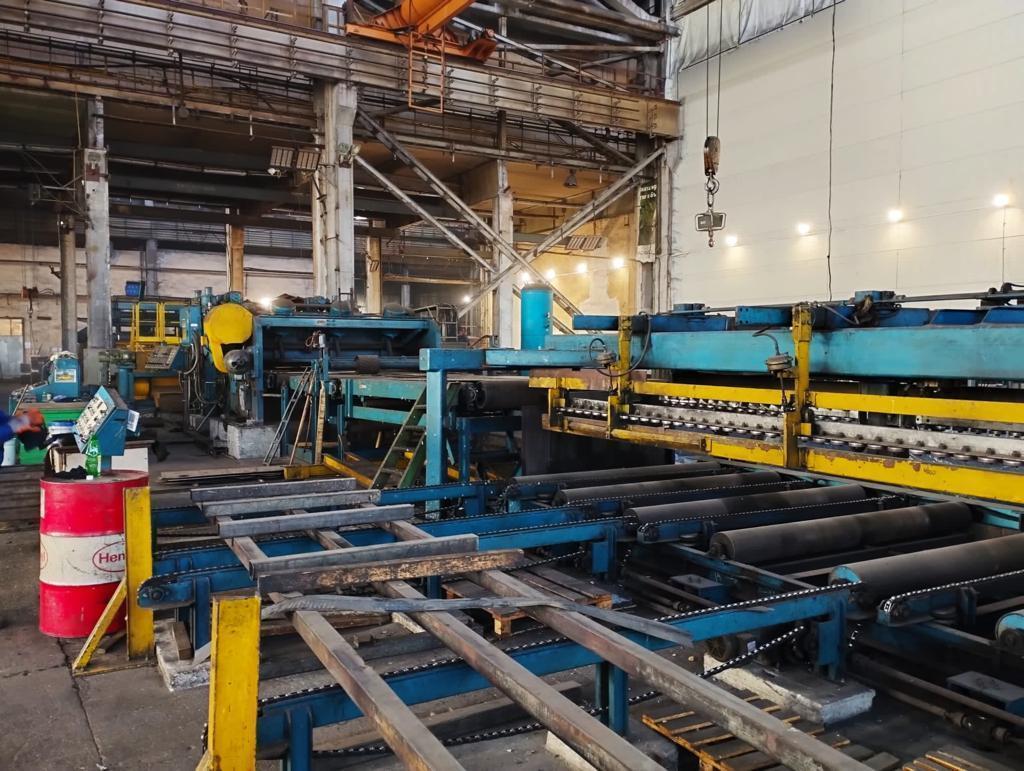

Complete Line with the Following Components:
Entry Coil Car
Double Expandable Mandrel Uncoiler
Coil Width Range: 750mm Min to 2430mm Max
Wichita Water Cooled Brake
Peeler Hold Down Roll
Entry Pinch Rolls
9 Roll Flatener
4 over 5 Roll Configuration
9" Work Roll
75HP DC Motor
Crop Shear
Powered Inspection Roller Conveyor
Pass Line Roll
Side Trimmer
Scrap Choppers
Scrap Conveyor
Feeder Rolls
4-HI Precision Leveler
11 Work Roll Design
Work Roll Diameter 4.5"
Top and Bottom Back ups
200HP Motor Drive
Cincinnati Mechanical Shear
Run Out Table
Scissor Lift Table
Stacker
Side Discharge Conveyor

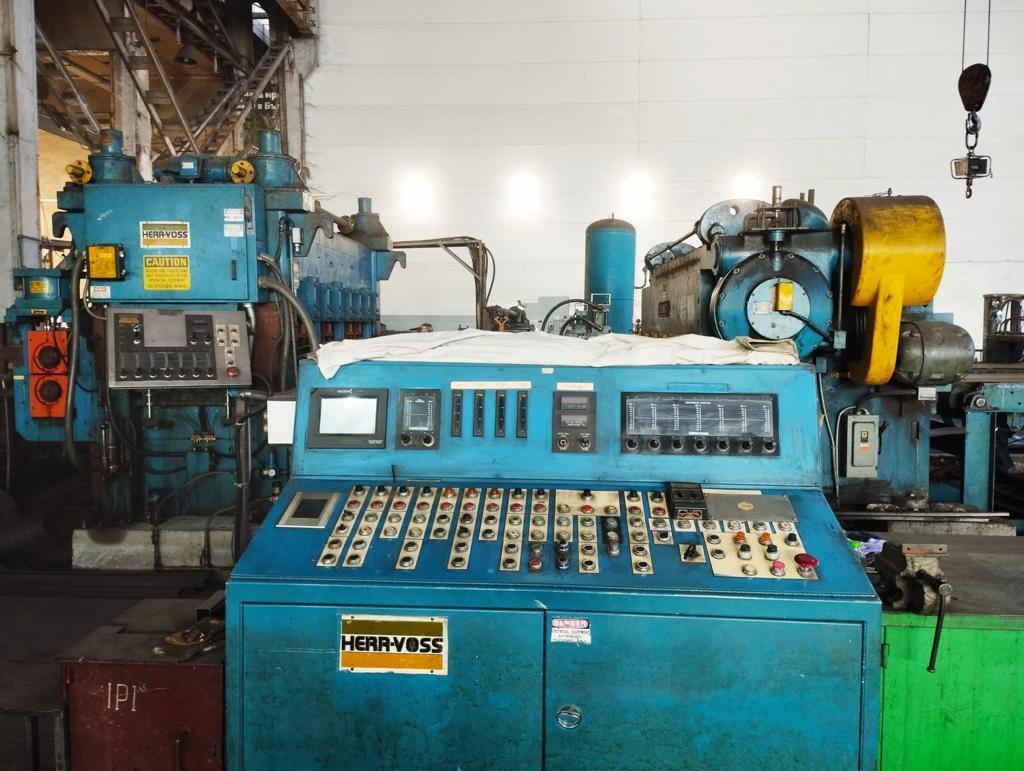

Complete line with Hydraulics, Electrics, Controls
Installed
