80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
  • 80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
  • 80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
  • 80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear
  • 80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear

80" (2000mm) x .315" (8mm) x 75,000# Fimi Cut-to-Length Line with Flying Shear

Brand
FIMI

Model
Not Specified

Type
Cut To Length Lines

Stock #
604761

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 75000 pounds
Width 80 inches
Thickness 0.315 inches
ID 24 inches
Max OD 86 inches

Equipped With

General Specifications:
Coil Width Range: 40"-80" (1000mm-2050mm)
Thickness Range: .078"-.315" (2mm-8mm)
Max Coil Weight: 75,000# (35,000kg)
Coil ID Range: 24"-34"
Coil OD Range: 32"-86" (800mm-2200mm)
Cut Length Range: 40"-472" (1000mm-12000mm)
Line Speed: 0-75'/min (23m/min)

Complete Line with the Following Components:
Pit Type Coil Car
Double Cone Uncoiler
Peeler Hold Down Roll
Coil Breaker
Pinch Rolls
Flattener

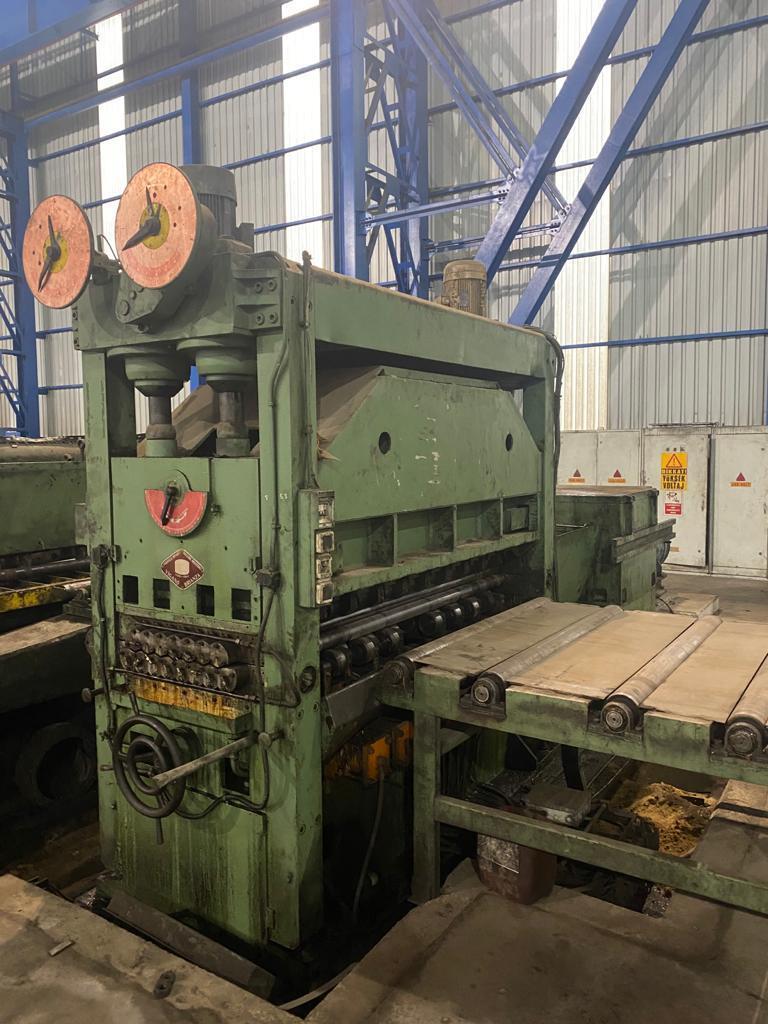

4 HI Leveler

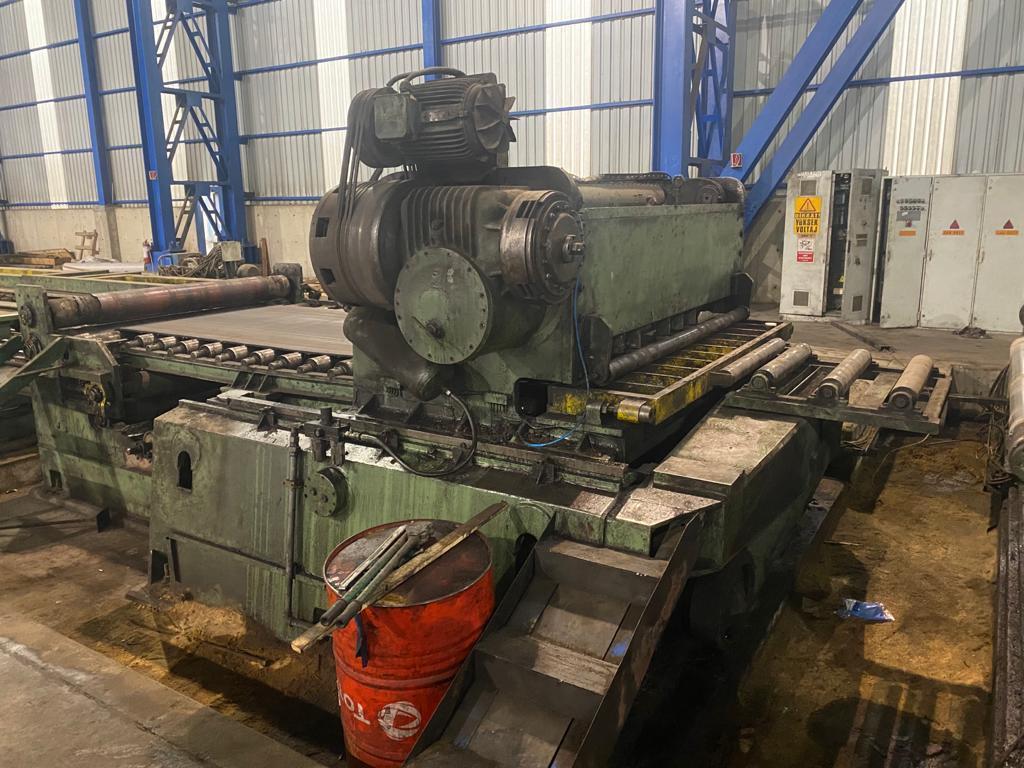

Flying Shear
Conveyor
Stacker
