General Specifications:
Material: CRS, HRS
Shear Strength: 450 Mpa
Max. Coil Weight: 60,000#
Strip Thickness: .012"-.100" (0.3–2.5mm)
Max. Coil Width: 78" (2000 mm)
Min. Coil Width: 19.68" (500 mm)
Max. Coil O.D: 78" (2000 mm)
Coil I.D: 20"-24" (508 mm–610mm)
Max. Line Speed: 180 m/min)
Electrical Supply: 400 / 3 / 50
Control Voltage: 24 V DC
Line Direction: Left to Right
Thickness /Number of Cuts Chart:
3.5mm / 6 Cuts
3mm / 8 Cuts
2.5mm / 11 Cuts
2mm / 14 Cuts
1.5mm / 18 Cuts
1mm / 26 Cuts
.4mm / 30 Cuts

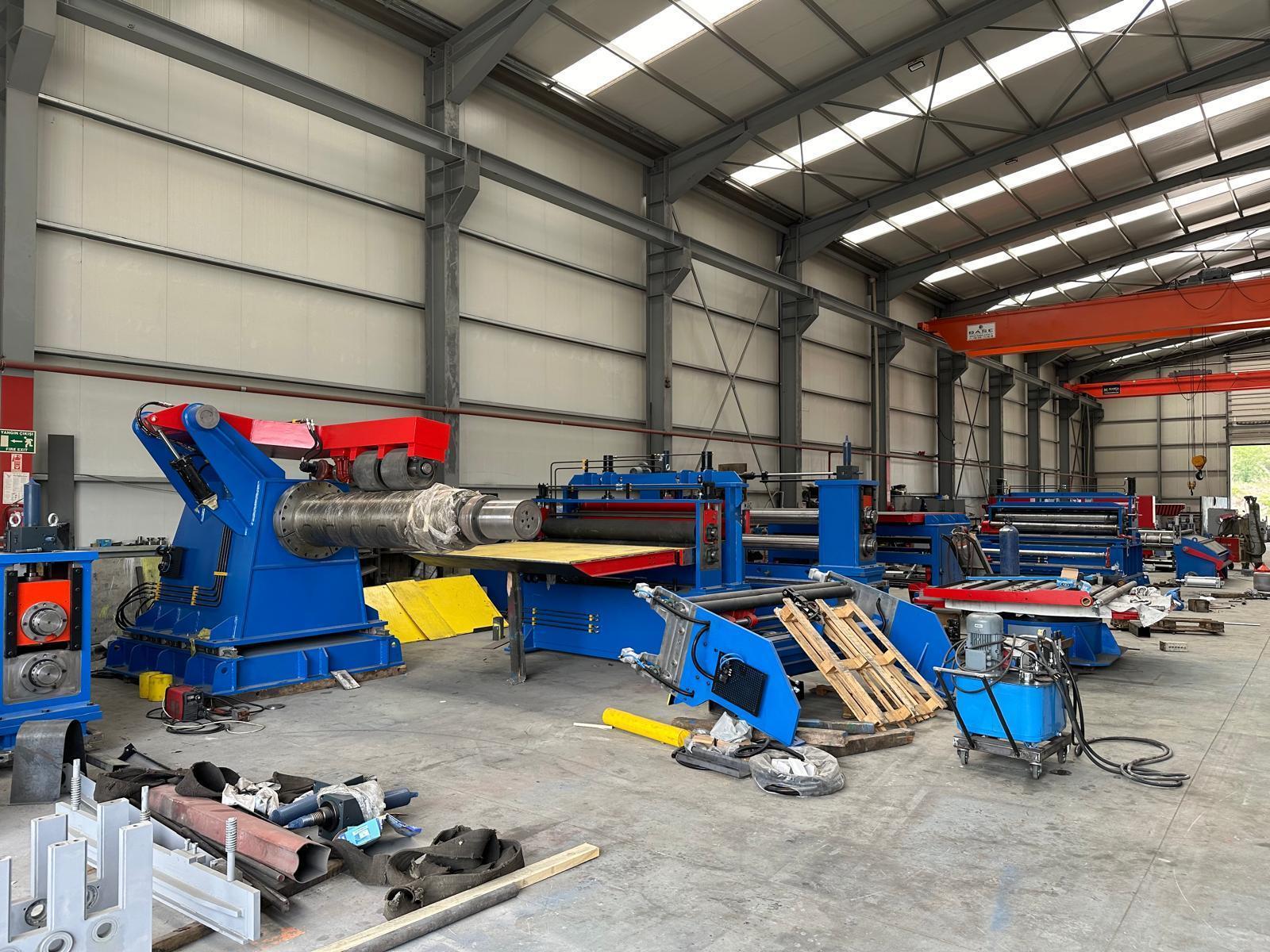

Complete with the Following Components:
Pit Type Entry Coil Car
Single Mandrel Uncoiler with Outboard Support Arm
Coil Peeler
Entry Pinch Roll
Entry Crop Shear
Scrap Diverting Table
Scrap Cart
Exit Basket Rolls
First Loop Threading Table

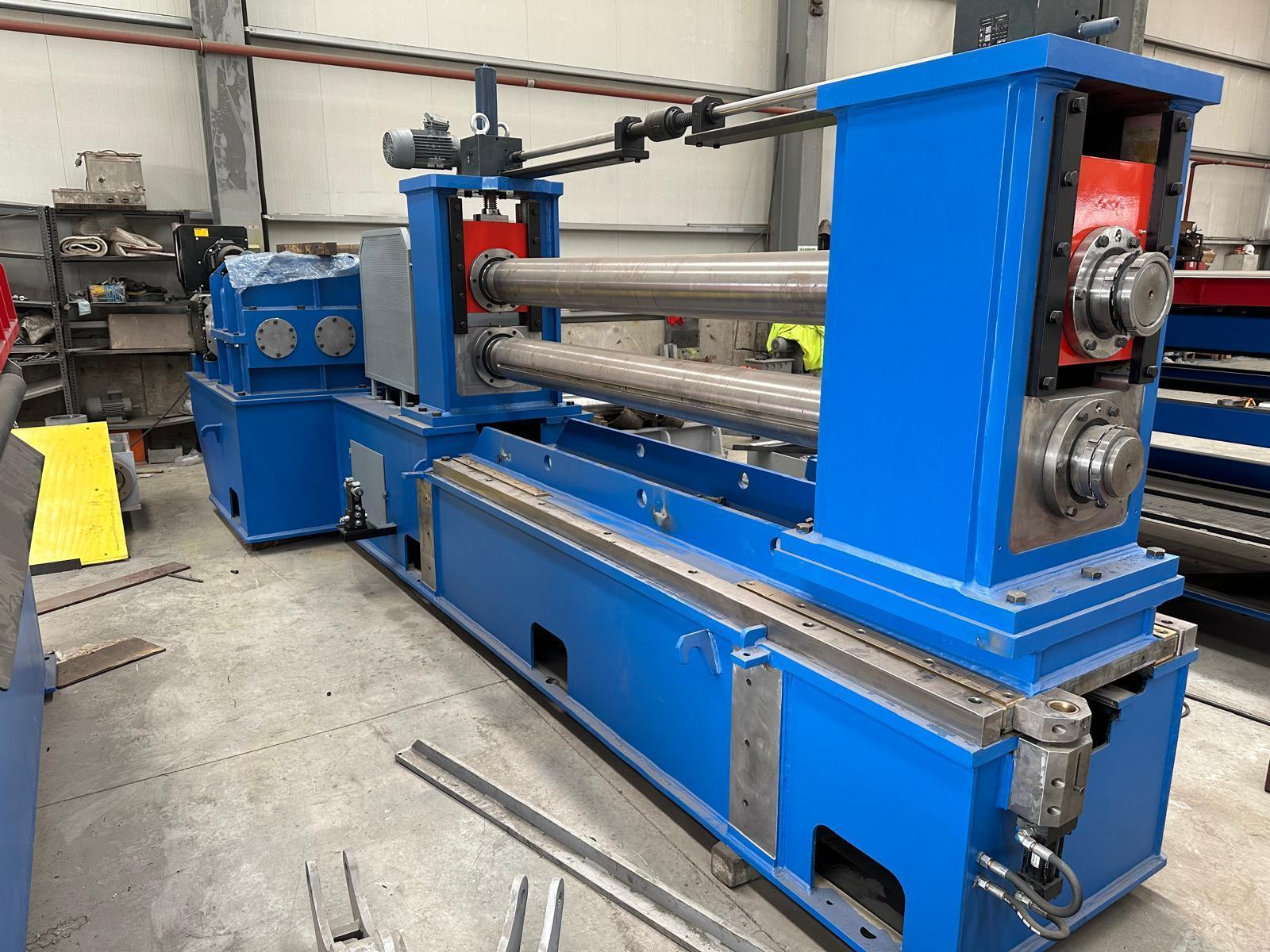

Slitter Entry Unit
Two Injector Slitter Heads
Arbor Diameter: 200mm
Slitter Drive: 150KW
Scrap Baller
Pit Carry Over table
Second Loop Threading Table
Separator Unit
Tension Stand
Exit Crop Shear
Recoiler Threading Table
Recoiler with Overarm Separator and Outboard Support Arm
REcoiler Drive: 200KW
Exit Floor Type Coil Car
Four Arm Exit Turnstile
Hydraulic Package
Electrical Package
