2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)
  • 2000mm x 16mm x 32 Ton Slitting Line (2025)

2000mm x 16mm x 32 Ton Slitting Line (2025)

Brand
Not Specified

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
605581

Condition
Used

Year

Request a Quote
Have one to sell?
Width 78.7 inches
Thickness .63 inches
Coil Weight 64000 pounds
Arbor Size 15.7 inches

Equipped With

Materials: Hot Rolled, Galvanized Steel
Thickness Range: 3mm to 16mm
Max Coil Weight: 32 Ton
Manufacturing Year: 2025
Line Direction: Right to Left

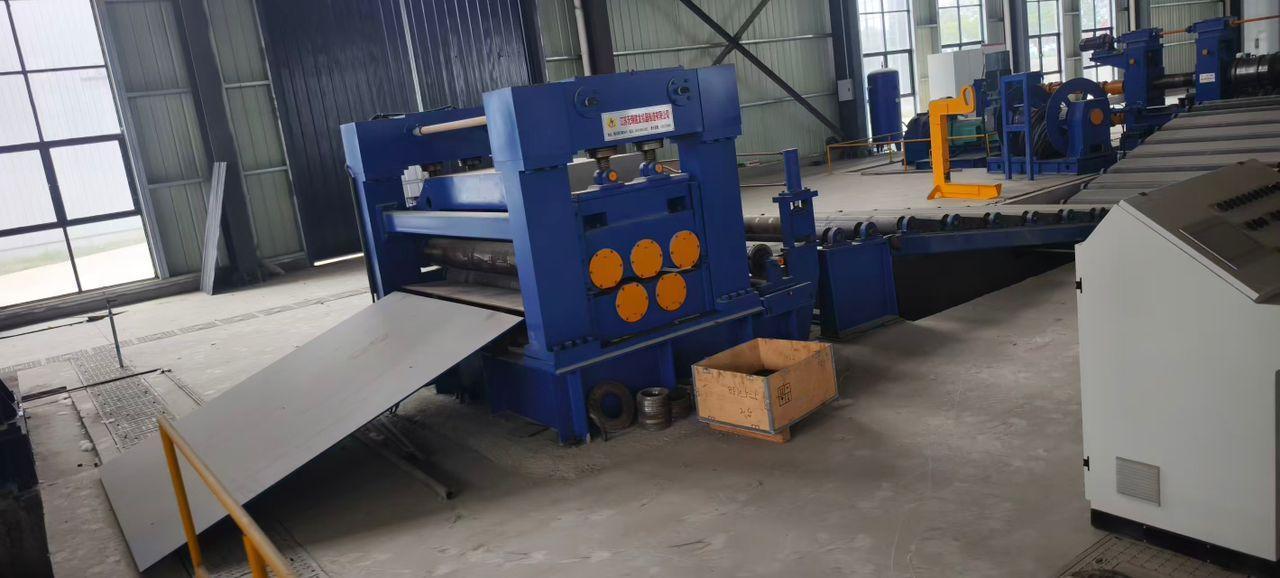

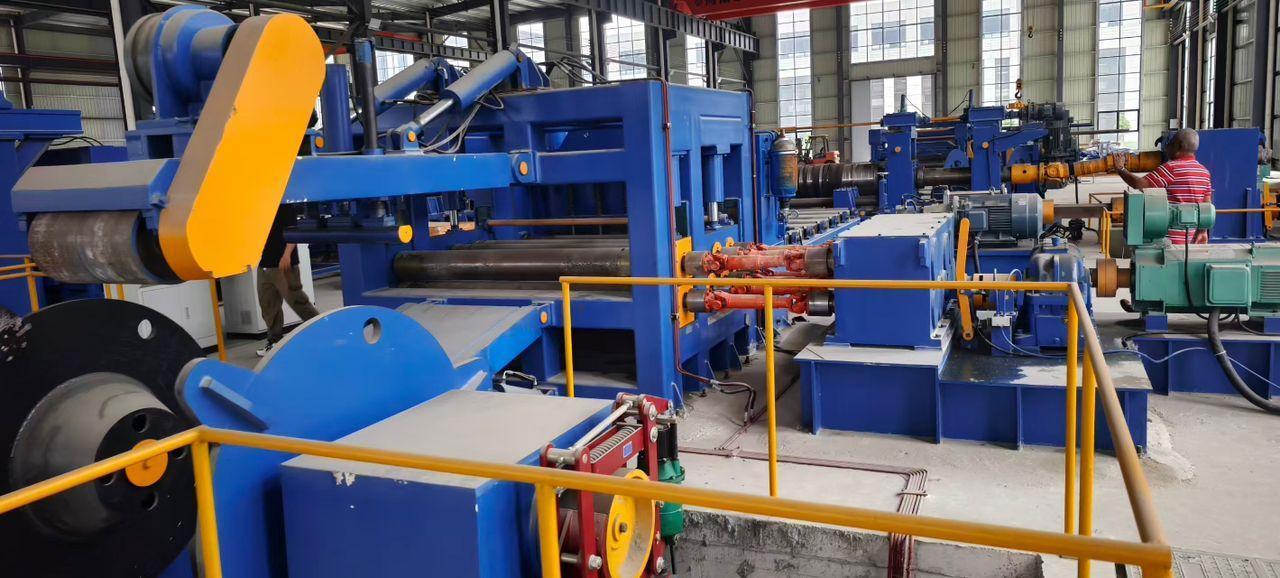

Complete Line with the Following Components:

Pit Type Coil Car

Double Con Uncoiler

Peeler Hold Down Roll

Entry Edge Guides

7 Roll Flattener

Crop Shear

Powered Roller Conveyor

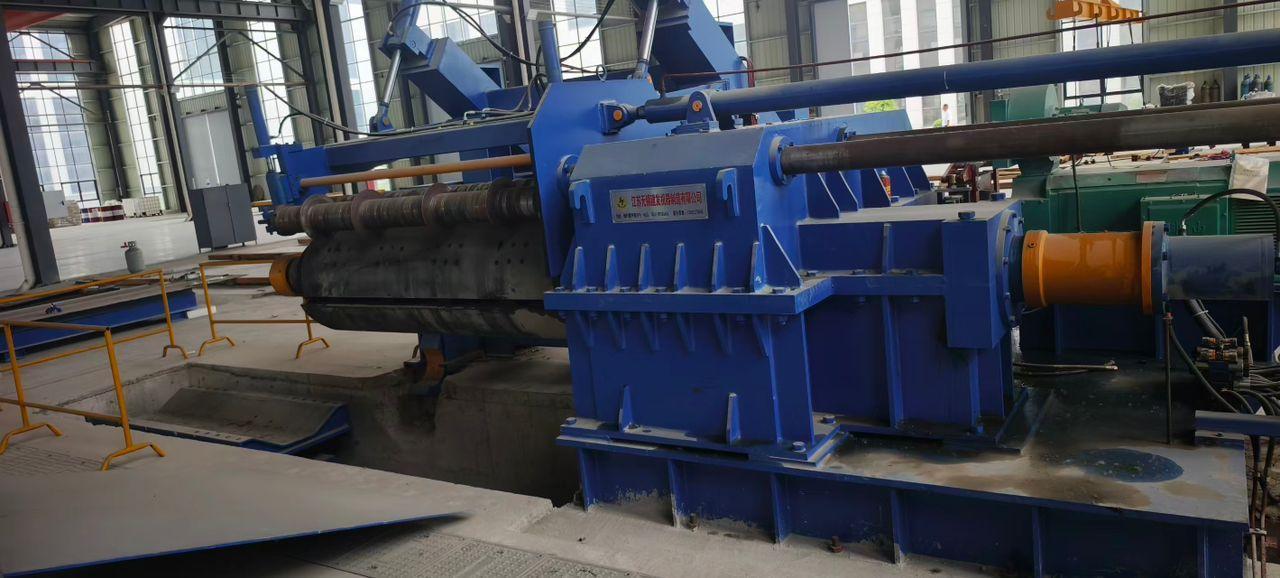

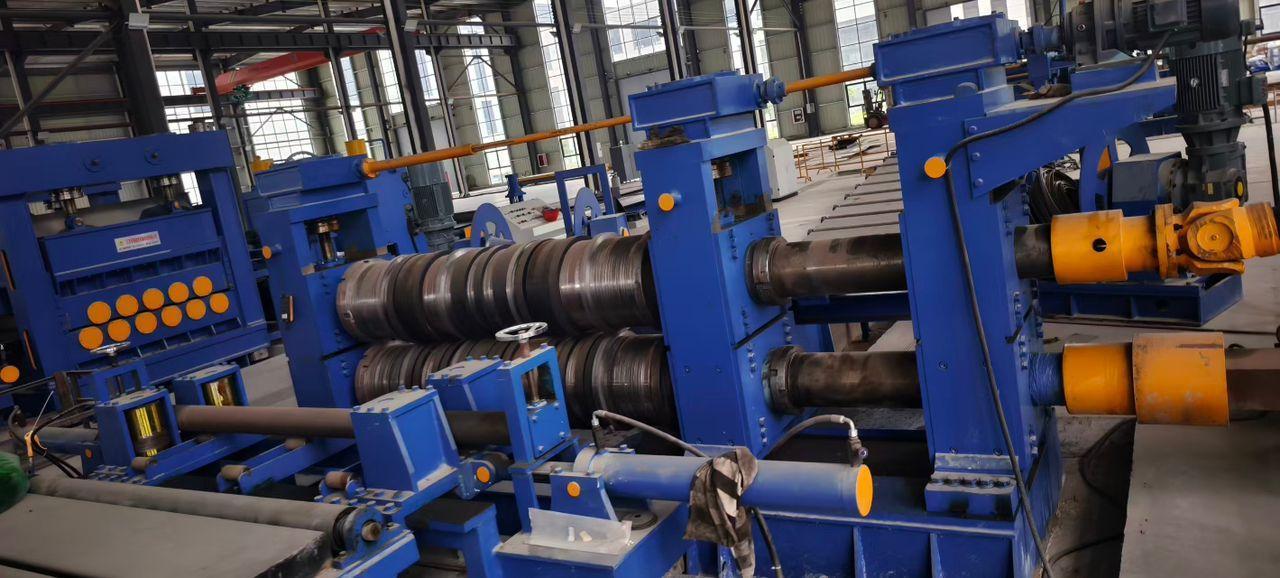

Slitting Head
400mm Arbor Diameter
250KW Motor Drive

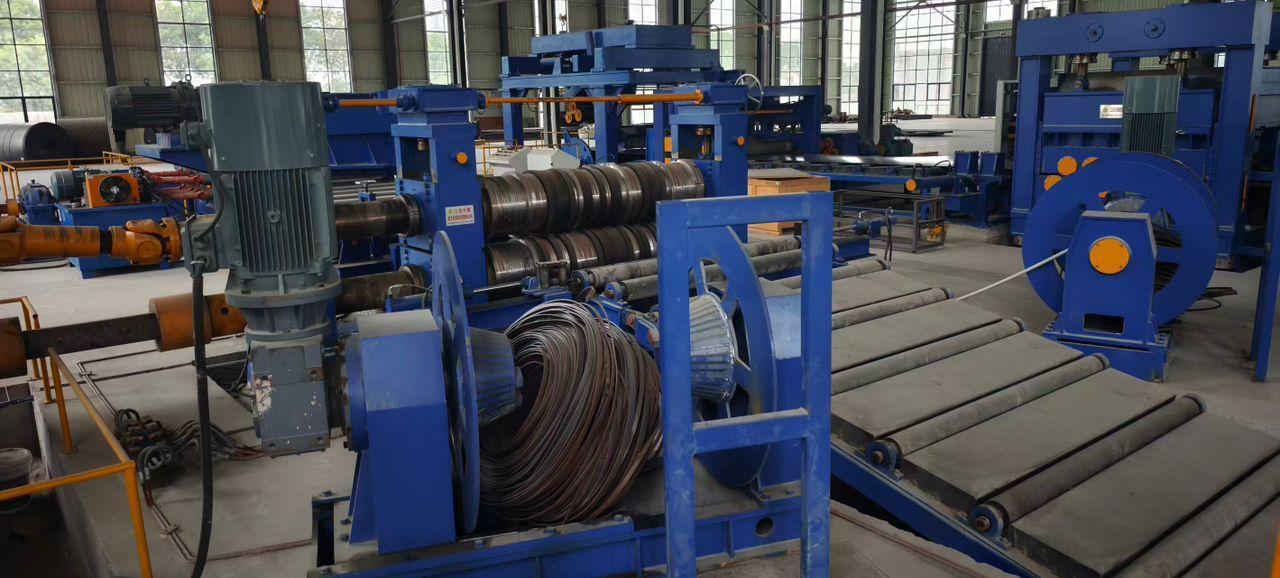

Dual Scrap Winders

Pit Cross Over Table

5 Roll Flattener

Recoiler
Overarm Separator
Full Hydraulic Drum
Push Off Plate
750mm Coil ID
250KW Motor Drive

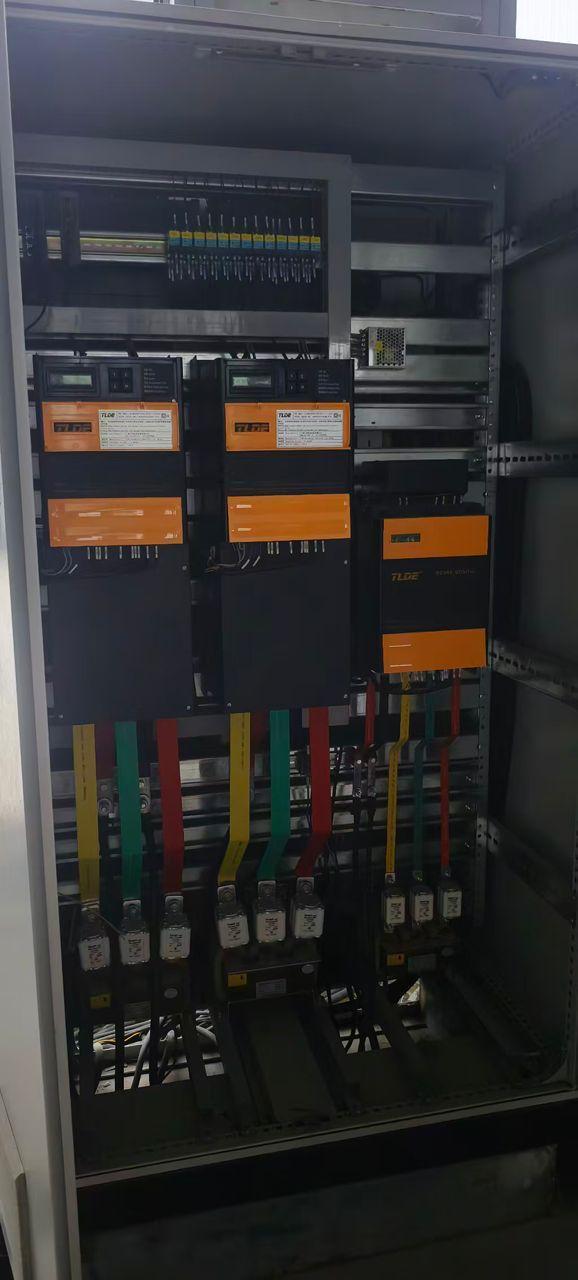

Digital Drives and PLC

Complete with Electrics, Controls, Hydraulics and Manuals

Installed
