72" x .500" x 60,000# Delta Brands Dual Injector Head Slitting Line

Brand
Not Specified

Model
Not Specified

Stock #
605065

Condition
Used

Year
1992

Width 72 inches
Thickness .500 inches
Coil Weight 60000 pounds
Arbor Size 11 inches

Equipped With

Thickness Range:  .500" - 060"
Coil Capacity:  60,000#
Yield Strength:  60,000 PSI
Tensile Strength:  75,000 PSI

Coil Width Range:  74" - 20"
Coil OD Max:  84"
Coil OD Min:  36"
Coil ID Entry:  20" - 30"
Coil ID Exit: 24" - 30"
Line Speed Bare Drum:  150 / 300 FPM

New ABB Digital Drives in 2014
Rebuilt Slitter Heads 2019

Complete Line With

Entry Coil Storage Conveyor
L-Type Coil Car
Floor Standing  / Self Contained Hydraulics

Double Cone Uncoiler
Hydraulic Sliding Base
Dual Wichita Water Cooled Brakes
Feed Up Drive
Double Roll Powered Hold Down Roll

Peeler Table

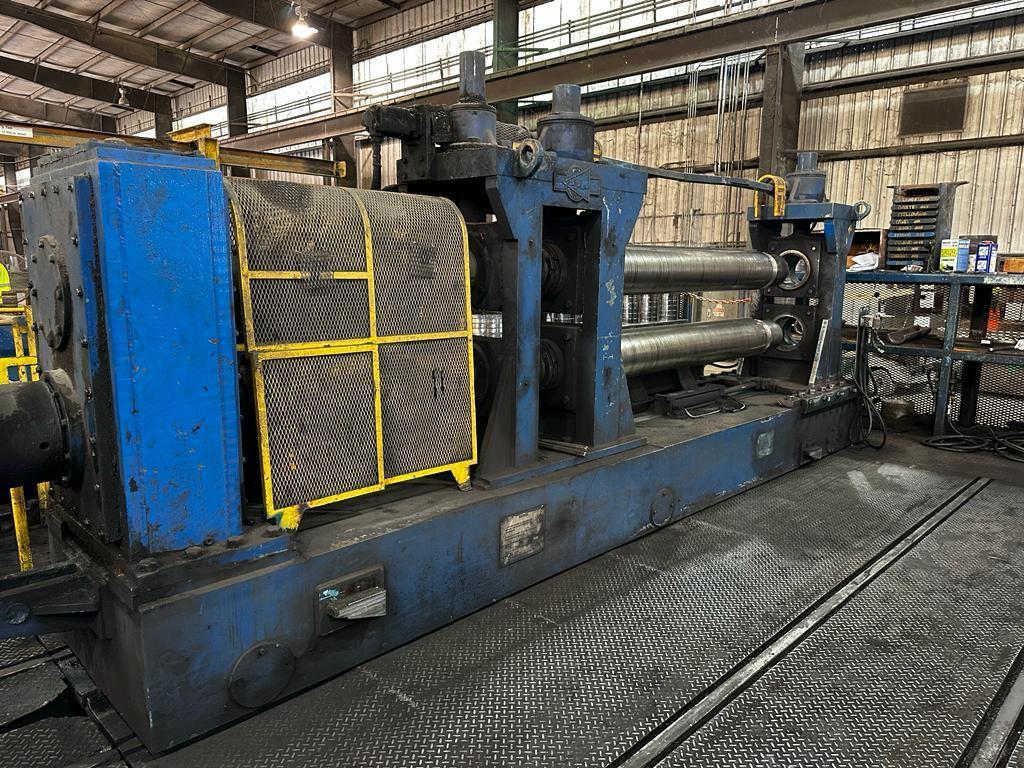

4 Roll Powered Flattener
Powered Pinch Rolls
Entry Crop Shear
Powered Pinch Rolls
Double Row Set of Edge Guides with Hydraulic Adjustment

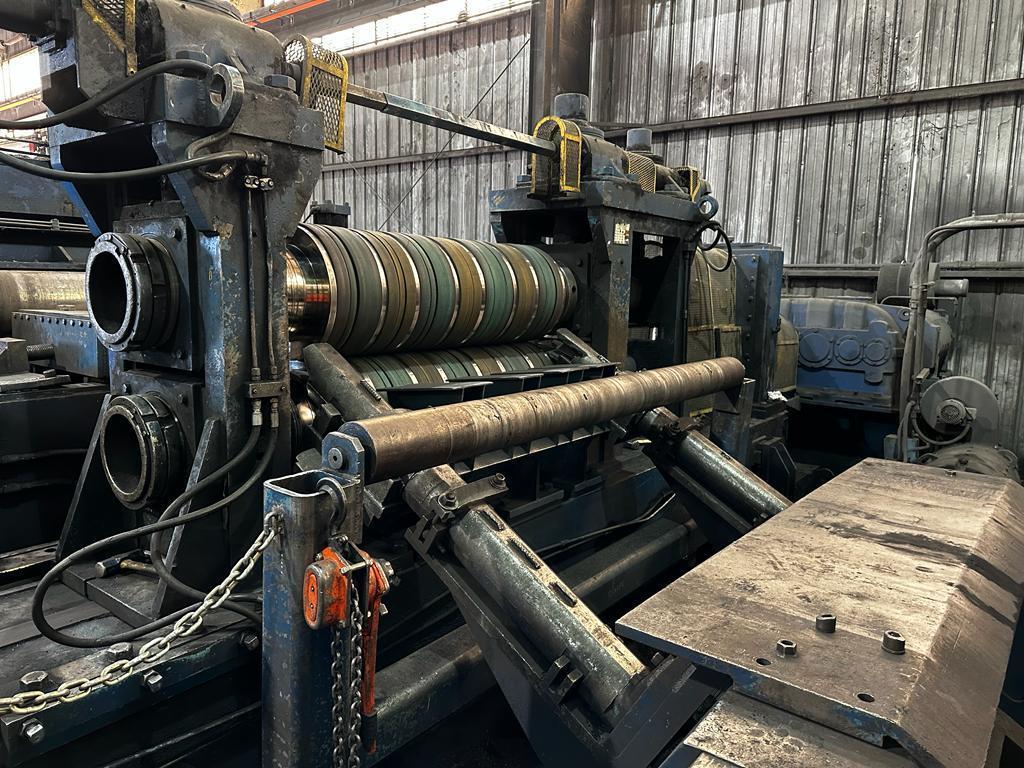

(2) Dual Injector Slitter Heads
11" Diameter Arbors
60" & 72" Heads
Hydraulic Arbor Adjustment
Hydraulic Sliding Outboard
Hydraulic Locking Slitter Heads
250 HP DC Drive

Cross Over Table

Butech Scrap Choppers
Year 1998
Model SC626-1
Line Speed:  500 FPM
Max Strip Width:  4"
Arbor Diameter:  16"
100 HP DC Drive
Motorized Exit Goose Neck Scrap Conveyor

Tension Device
Entry Tooling Separator Shaft with Sliding Cartridge
Dual Rotary Tension Rolls with Dual Water Cooled Brakes
Neutralizing Roll with 300 HP DC Drive for Back Tension
Exit Crop Shear
Pass Line Roll

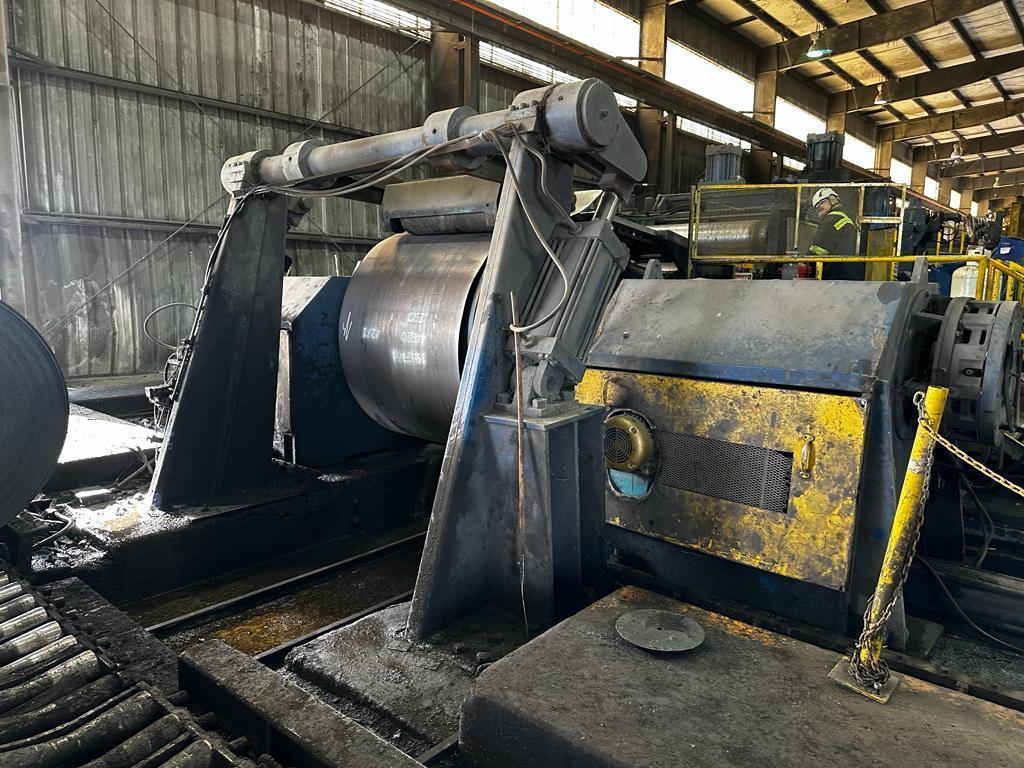

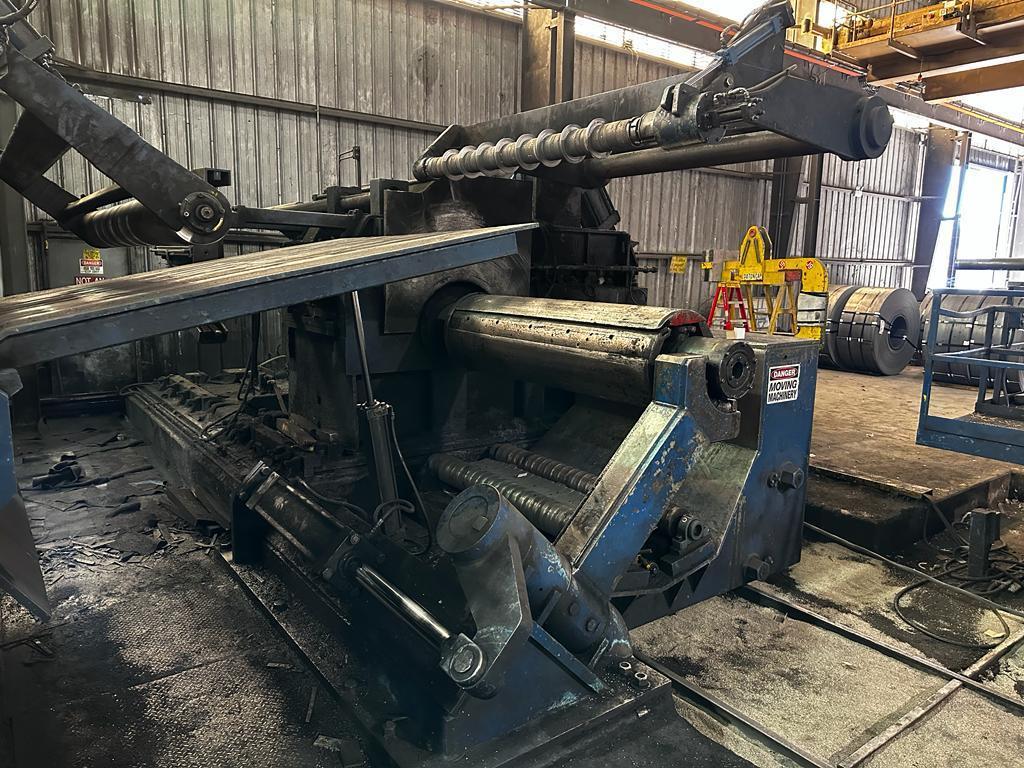

Recoiler
24" Diameter Drum
Full Hydraulic Drum
Hydraulic Push Off
Hydraulic Sliding Base
Double Overarm Separator
2 Speed Gear Box
720 HP DC Drive
Out Board Bearing Support
Overarm Separator Changing Cart

Exit L-Type Coil Car
Floor Standing Self Contained Hydraulics
Powered V-Deck Rolls

4 Arm Exit Turnstile
Exit Coil Car

Tooling Knives, Rubbers, Spacers
Spare Parts
Box New Micarta Separators
Some New Slitter Knives

100 Knives 1" Width
50   Knives  1.5" Width
(Some New and Some Used)

Touch Screen Controls with Digital Readouts
ABB DCS 800 Digital Drives
Dual Cycle Drives 50 / 60 Hertz
Allen Bradley PLS CompactLogix
Allen Bradley 1606-XLS Power Supply

Line Can Be Inspected Under Power and Operating
