72" x .075" x 60,000# Alcos Multi Strip Blanking Line

72" x .075" x 60,000# Alcos Multi Strip Blanking Line

Brand
ALCOS

Model
SU-72-075

Type
Slear Lines

Stock #
605620

Condition
Used

Year
1998

Request a Quote

Have one to sell?

Specifications
Files & Attachments

Width	72 inches
Thickness	.075 inches
Coil Weight	60000 pounds

Equipped With

Thickness Range: .018" - .075"
Coil Capacity: 60,000#
Blank Length: 12" - 144"
Minimum Cut Width: 12"
Coil Width: 20" - 72"
Coil ID: 20" - 24"
Coil OD: 72"

Complete Line With:

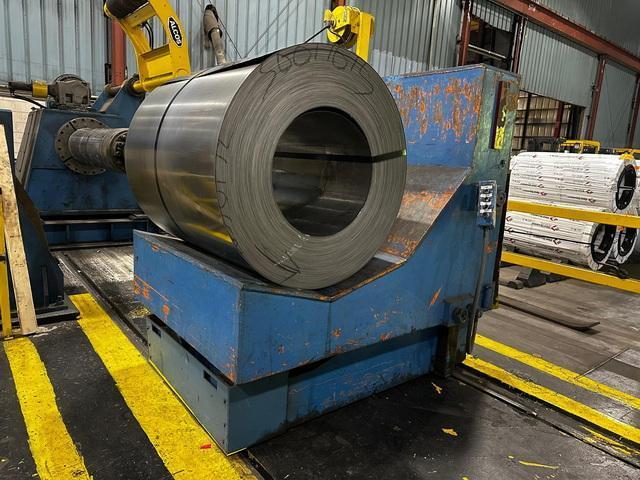

L-Type Coil Car
Floor Standing / Self Contained Hydraulics

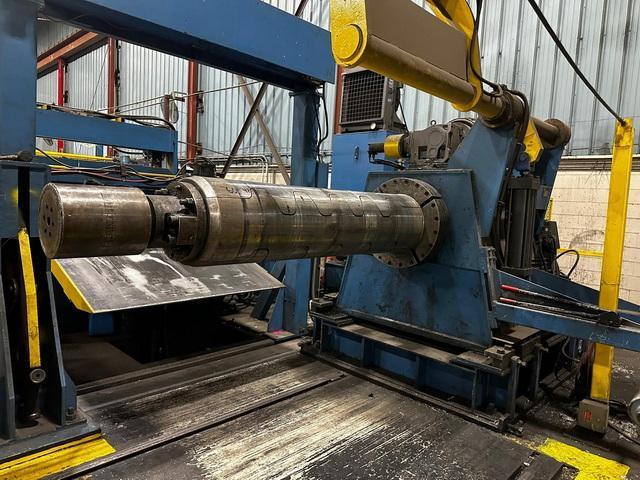

Mandrel Uncoiler
Sliding Base
Out Board Bearing Support
Hold Down Roll
Powered
Paper Winder
4 Leaf Hydraulic Expansion
Water Cooled Brake & Cooler
North American Edge Control

Peeler Tablle

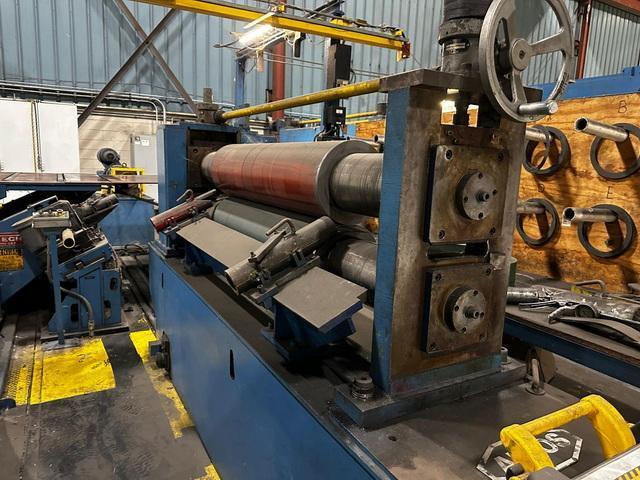

7 Roll Flattener
Model 7F-4.25-72
Entry Pinch Rolls
Top & Bottom Back-Up Rolls
100 HP DC Drive

Crop Shear with Scrap Cart

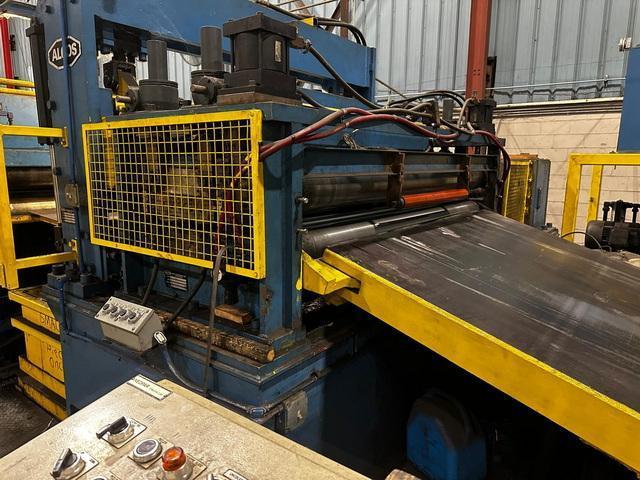

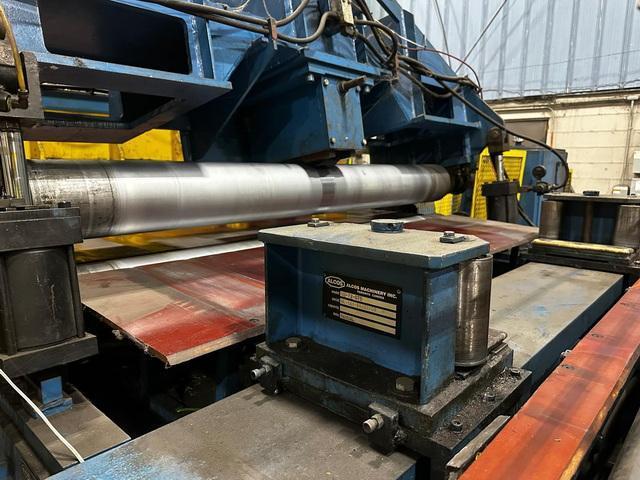

Alcos 5HI Precision Leveler
Model 150-5H-72
Entry PInch Rolls
17 Work Rolls
9 Flights Top & Bottom Back-Up Rolls
7 Flights Motorized Bottom Back Up Rolls
100 HP DC Drive

Edge Control Station
Feed Up Table

Injector Style Slitter Head
30 HP DC Drive

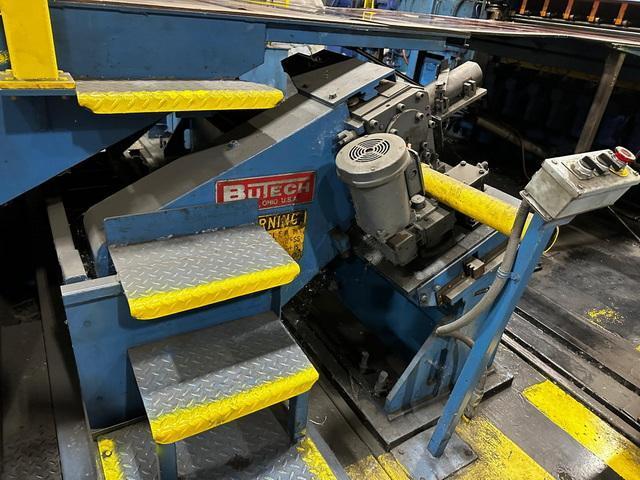

Butech Dual Rotary Scrap Choppers
Model: M303-SC
10 HP Drive
Goose Neck Scrap Conveyor

Looping Pit Cascade Rolls
Looping Pit Cross Over Table
Photo Eye Electric Loop Control

PVC Applicator
Simco Chargemaster
Double Set of Edge Guides

Servo Roll Feed
Top & Bottom Back-Up Rolls
Hydraulic Clam Shell Design

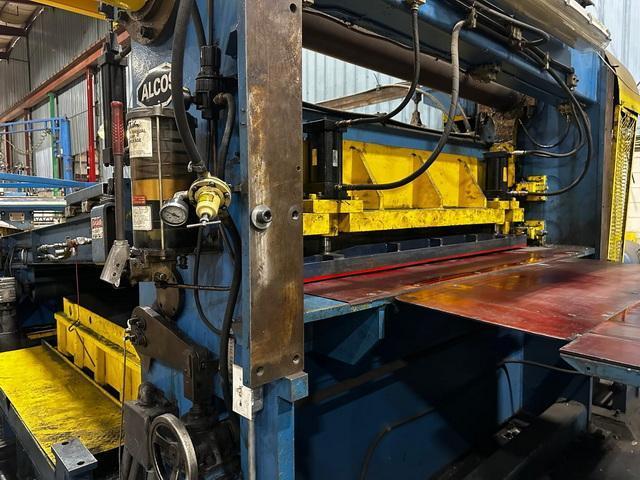

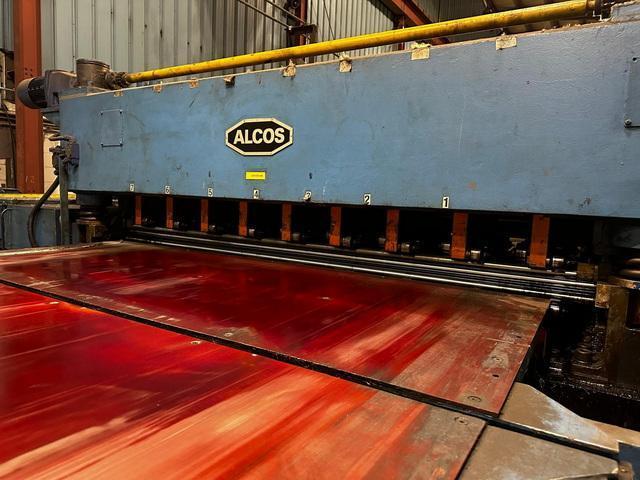

Alco High Speed Shear
Adjustable Rake Angle
Scrap Cart
Air Clutch & Brake
Hold Downs
Reject Conveyor

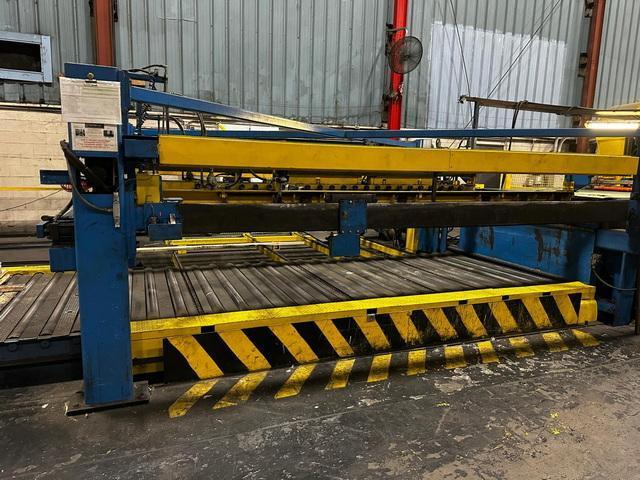

Braner Stacker
Drop Type with Skate Rolls
Lift Table
Blower
Side Pallet Feed
Motorized End Discharge Conveyor
Hydraulic Width Adjustment
Mertler Toledo Scale

Main Operator Push Button Station
Digital Readouts

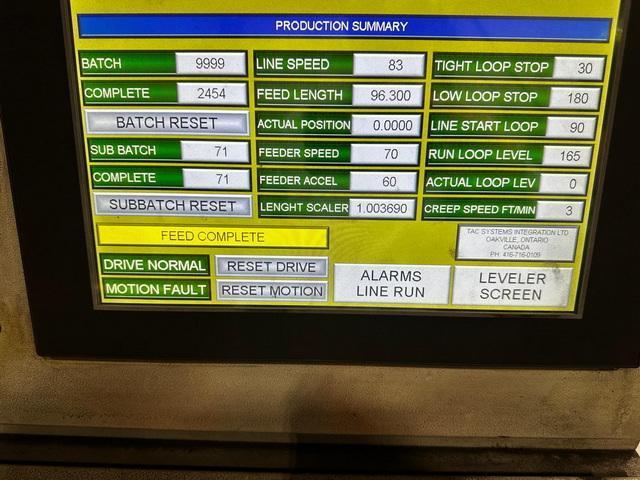

Touch Screen Controls

Complete Line Can Be Inspected Under Power & Operating
