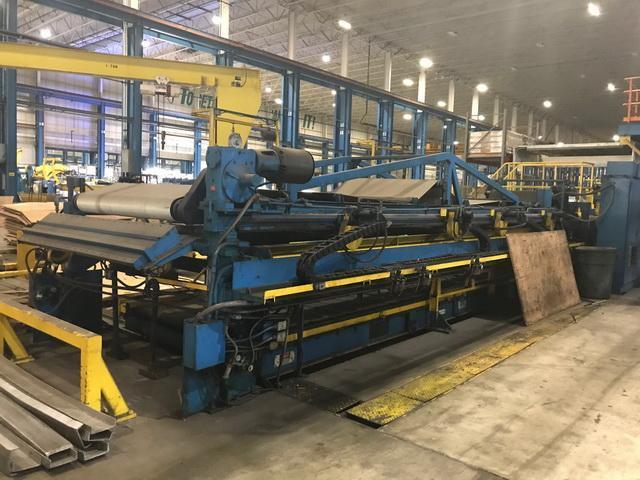

72" x .062" x 45,000# Paxson Cut-to-Length Line
72" x .062" x 45,000# Paxson Cut-to-Length Line
72" x .062" x 45,000# Paxson Cut-to-Length Line
72" x .062" x 45,000# Paxson Cut-to-Length Line
72" x .062" x 45,000# Paxson Cut-to-Length Line
72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line
  • 72" x .062" x 45,000# Paxson Cut-to-Length Line

72" x .062" x 45,000# Paxson Cut-to-Length Line

Brand
PAXSON

Model
Not Specified

Type
Cut To Length Lines

Stock #
604210

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 50000 pounds
Width 72 inches
Thickness .062 inches
ID 24 inches
Max OD 72 inches

Equipped With

Min Gauge: .018”
Max Gauge: .062”
Max Coil Weight: 50,000 Lbs.
Max Coil Width: 72”
Min Coil Width: 24”
Coil I.D. Min: 20”
Coil I.D. Max: 24”
Coil I.D. Min: 36”
Coil I.D. Max: 72”
Cut Length Min: 12” – 1/64”
Cut Length Max: 240” – 1/32”

Complete Line with the Following Components
3 Arm Turnstile
Coil Car

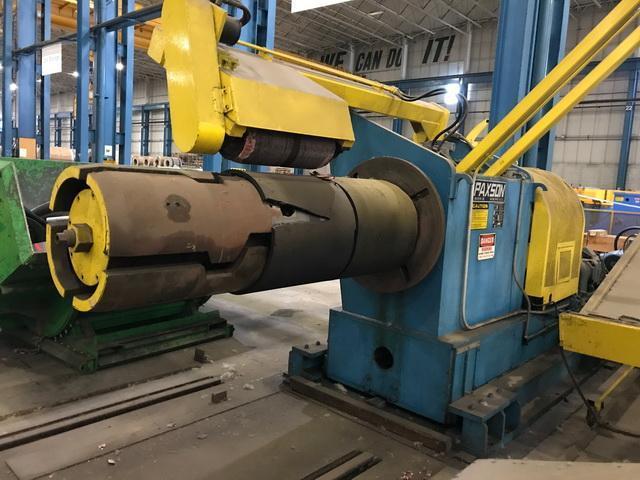

Water Cooled Payoff Reel
Crimp Table

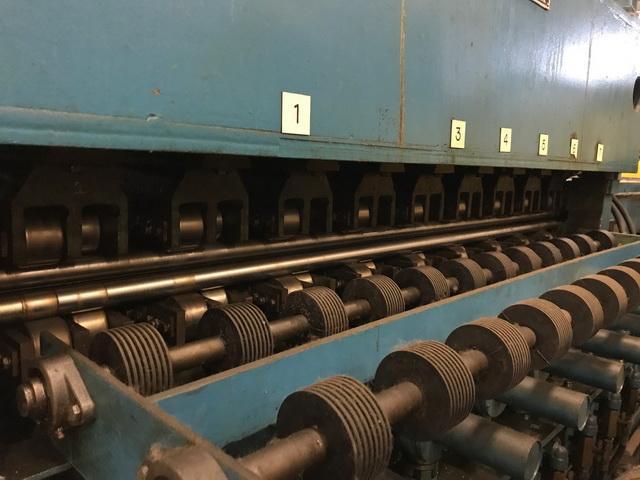

Leveler (4HI)
Looping Pit
Feeder (18” Face)
Shear
Run Out Conveyor

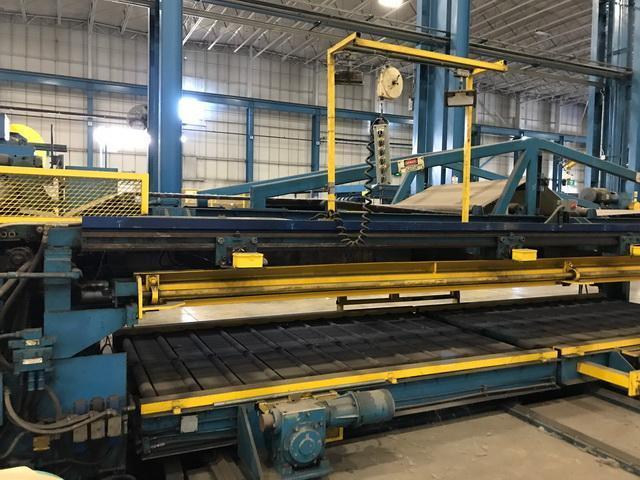

Stacker (Delta Brands) Double 120 Max or Single 240 Max
Exit Conveyor
Hydraulic Unit
