72" (1850mm) x .250" 6mm x 25 Ton Double Loop Slitting Line

Brand
Not Specified

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
605589

Condition
Used

Year
2013

Request a Quote
Have one to sell?
Width 72 inches
Thickness .250 inches
Coil Weight 50000 pounds
Arbor Size 11 inches

Equipped With

Manufacturing Year: 2013
Thickness Range: 1mm - to 3 mm
Material Characteristics: 450N/mm2
Material Width: 800 to 1850mm
Cutting Capabilities: 5 Cuts of 6mm Thickness
Speed: 80 m/ minute
Line Direction: Left to Right

Complete Line with the Following Components:


Coil Storage Ramp

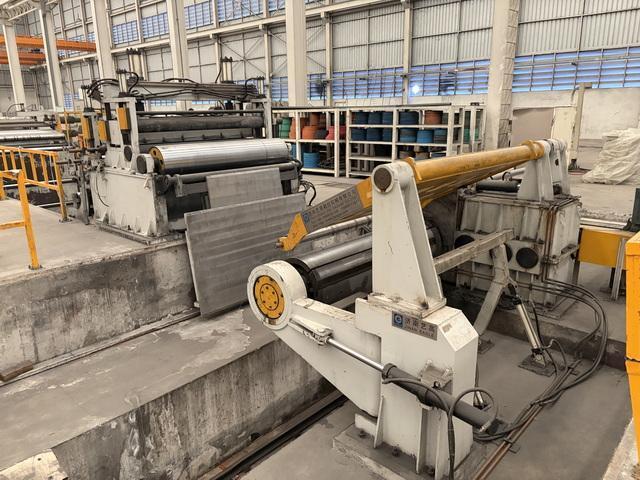

Double Expandable Mandrel Uncoiler
25 Ton Coil Weight

Free Standing Hold Down Roll

Peeler Table

Entry Pinch Rolls

5 Roll Flattener

Entry Crop Shear

Entry Powered Edge Guides

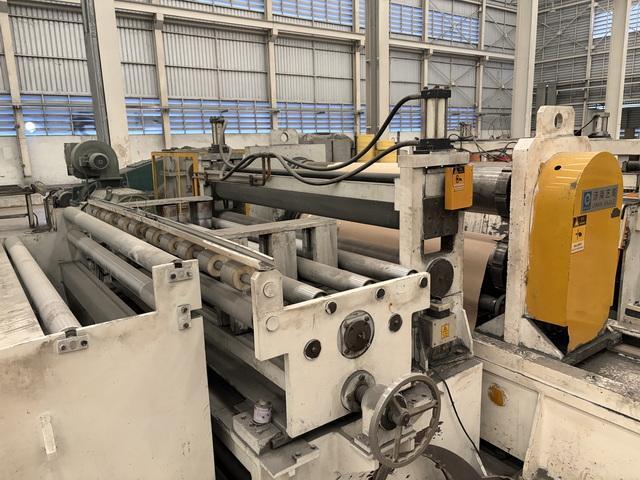

Slitting Head
78" Arbor Face
280mm Arbor Diameter

(2) Scrap Winders

Double Loop Pit with Entry and Exit Cascade Rolls

Pit Cross Over Table

Tension Stand

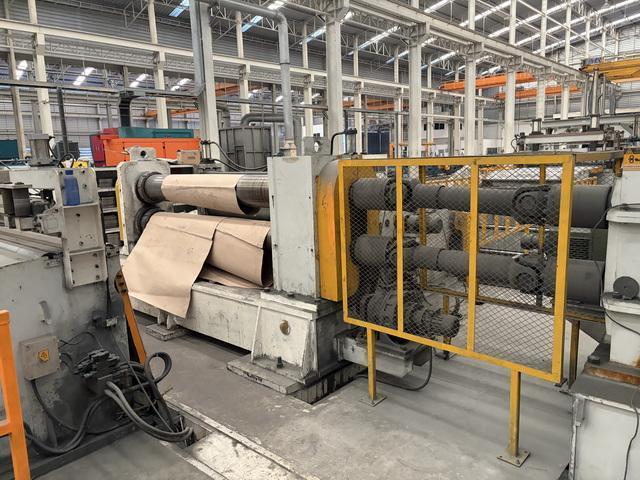

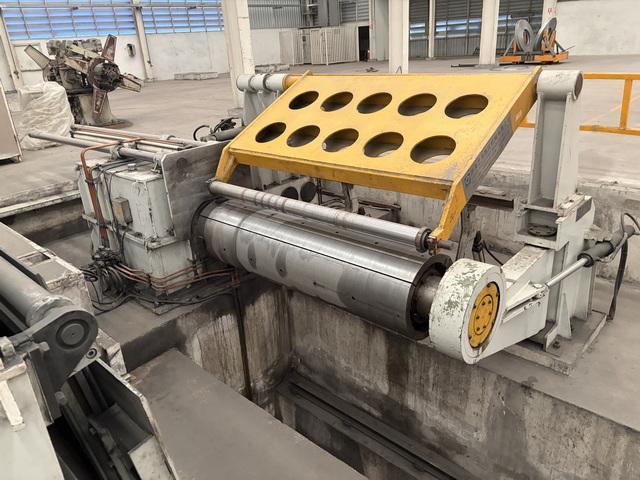

Recoiler
Overarm Separator
Full Hydraulic Drum
Push Off Plate
132KW DC Motor Drive

Pit Type Exit Coil Car
25 Ton Weight Capacity

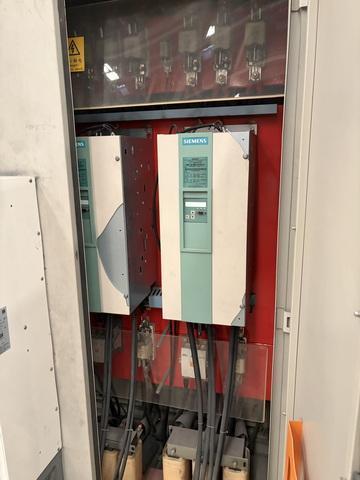

Siemens Drives and PLC

Complete Line with Hydraulics, Electrics, Controls

Installed and Under Power
