Manufacturer: Stamco USA
Max Coil Weight: 44,00lbs
Width Range: 12" to 60"
Line Speed: (2 Speeds) 400 and 800fpm
Coil OD Entry and Exit: 30" to 72"
Coil ID Entry and Exit: 20" to 24"
Thickness Range: .023" to .125"
Material: CRS, Galvanized Steel
Line Direction: Left to Right
Complete Line with the Following Components:
Entry L-Type Coil Car
Max Coil Weight: 44,000lbs

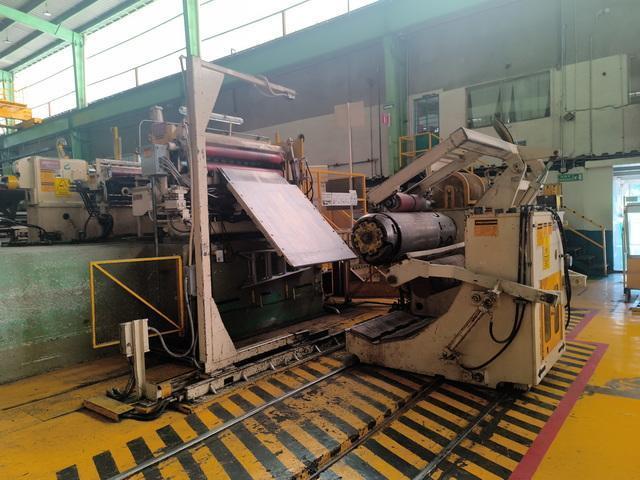

Mandrel Uncoiler
Max Coil Weight: 44,000lbs
Coil OD : 30" to 72"
Coil ID: 20" to 24"
Hydraulic Expansion
Sliding Base
Powered Hold Down Roll
Peeler Table
Entry Pinch Rolls

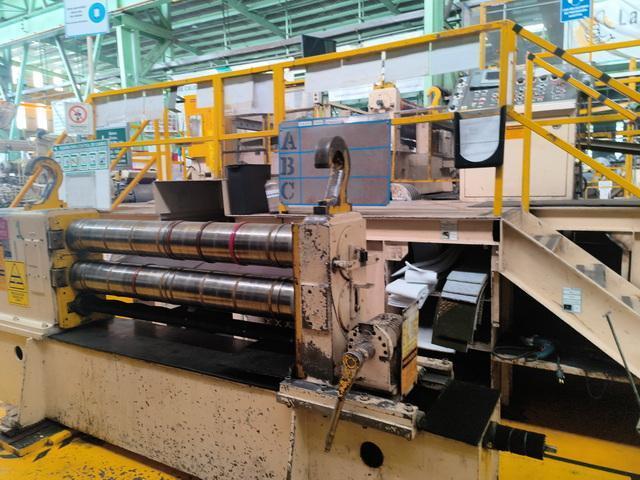

(2) Slitting Heads
75HP DC Drive
*Cutting Chart available Upon request:
(2) Scrap Winders
Entry and Exit Cascade Rolls
Pit Cross Over Table
Tension Stand

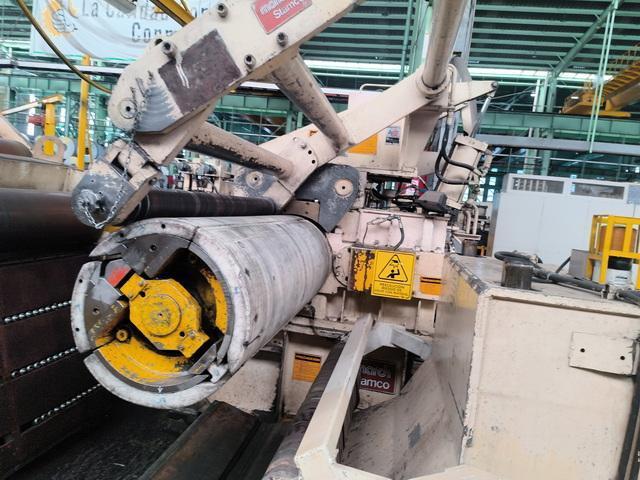

Recoiler
Full Hydraulic Drum
Coil OD : 30" to 72"
Coil ID: 20" to 24"
100HP DC Drive

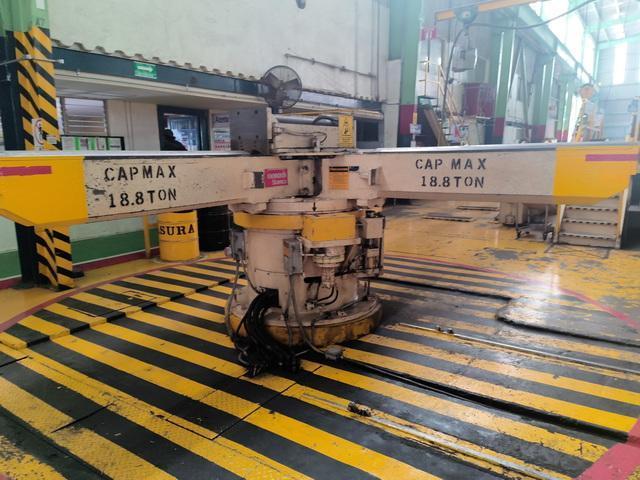

Exit 4 Arm Tursntile
Push Off Plate
Coil Downlayer
Powered Roller Conveyor
Banding Table with Conical Rolls
Powered Roller Conveyor Section
Stacker Table
Currently Installed and Under Power
