70" (1800mm) x .157" (4 mm) x 70,000# MINO-SAMO Slitting Line

Brand
MINO

Model
Not Specified

Stock #
605039

Condition
Used

Year

Width 70 inches
Thickness .157 inches
Coil Weight 35 tons

Equipped With

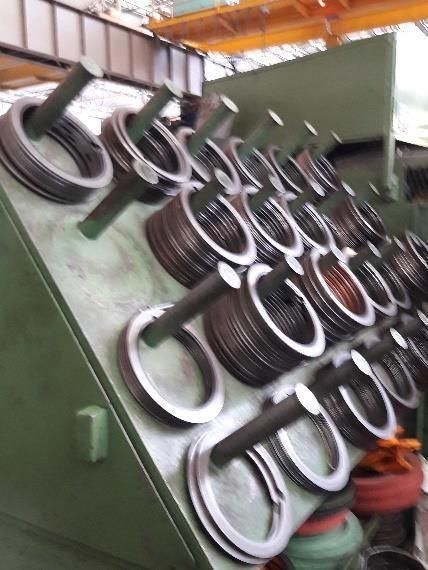

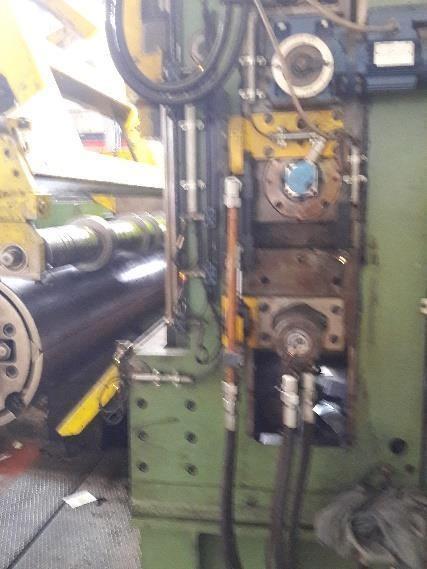

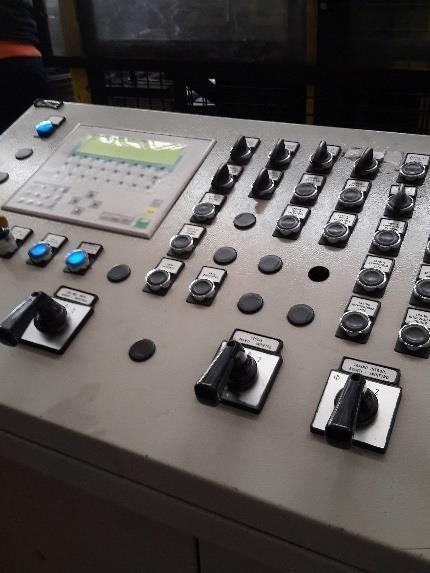

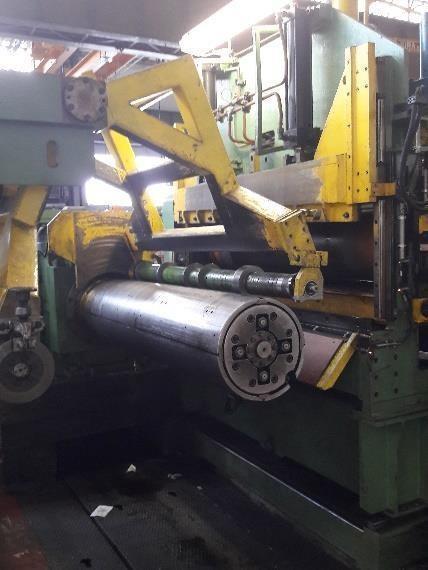

Manufacturer: Mino /Samo Composed by: HYDRAULICLY MOTORIZED LOADING CRADLE CAPACITY OF 35 TON. CONE REEL DIAM. INT. COILS 508-760. CAPACITY 30 TON. INTRODUCTION GROUP COMPOSED OF: SPIRE PRESS, HYDRAULIC TELESCOPIC SPIRE OPENER TABLE, STRAIGHTENING MACHINE WITH 5 ROLLERS, CUTTING SHEAR. CIRCULAR BLADE SHEAR COMPLETE WITH CENTERING GUIDES. OVERTAKING TABLE FOR TRIM SHEAR. MOBILE TABLE FOR SCRAP PIT. FLUSH CRUSHING ROLLER RAMP WITH ROLLERS AND ANSA PIT TABLE ANSA PIT ASCENT RAMP COMPLETE WITH ROLLERS AND SEPARATOR SHAFTS BRIDLE FOR TENSIONING THE STRIPES. DEFLECTOR ROLLER. 20 TON CANTILEVER REEL. SEPARATOR SHAFT STRUCTURE. N°1 HYDRAULIC POWER UNIT EQUIPMENT (RUBBER BLADES) FOR CIRCULAR SHEARS. EQUIPMENT FOR STRIP SEPARATOR COMB. PULPITS ELECTRICAL PANELS WITH DRIVES
