Min/Max thickness: 1 1-6 mm
Max Width: 1500 mm
Speed:40 m/min
Shear type: Rotary shear
Leveller:6 HI (8+7=15 Rolls)
Material: St 37
400V/50 Hz, 230V/ 50 Hz / 24 V DC
Hydraulic pressure 120 ba bar
Material: St37
Thickness: 1-6 mm
Width: 500-1500 mm
Coil Weight: 25 Tons
Min/Max Thickness: 1-6 mm
Min/Max Width: 500-1500 mm
Width Min/Max: 500x1500 mm
Length Min/Max: 500 x 12000 mm
Sheet Dimension: 500x500 mm (Min) 1500x600 mm (Max)
Package Size: 1500 x 6000 mm
Equipment List:
Coil Car
Uncoiler support arm
Uncoiler and overprint
Peleer table and top pressure
Pinch Roll
Pre-Straightening

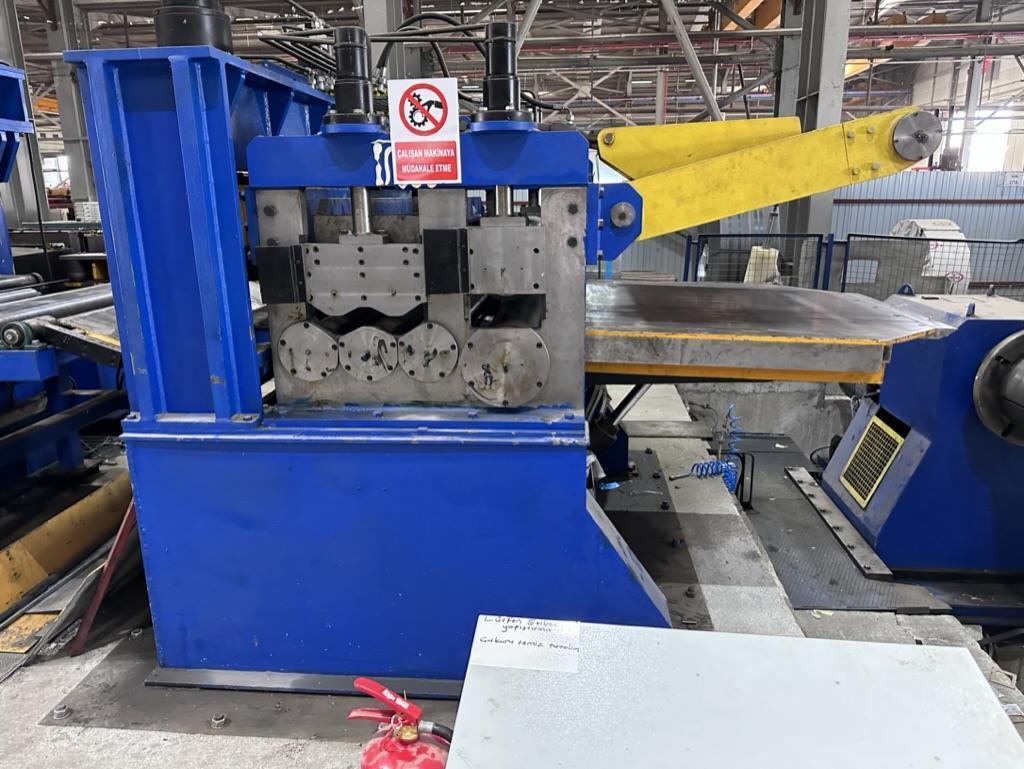

Scrap Shears
Transition Rollers
Side Guide

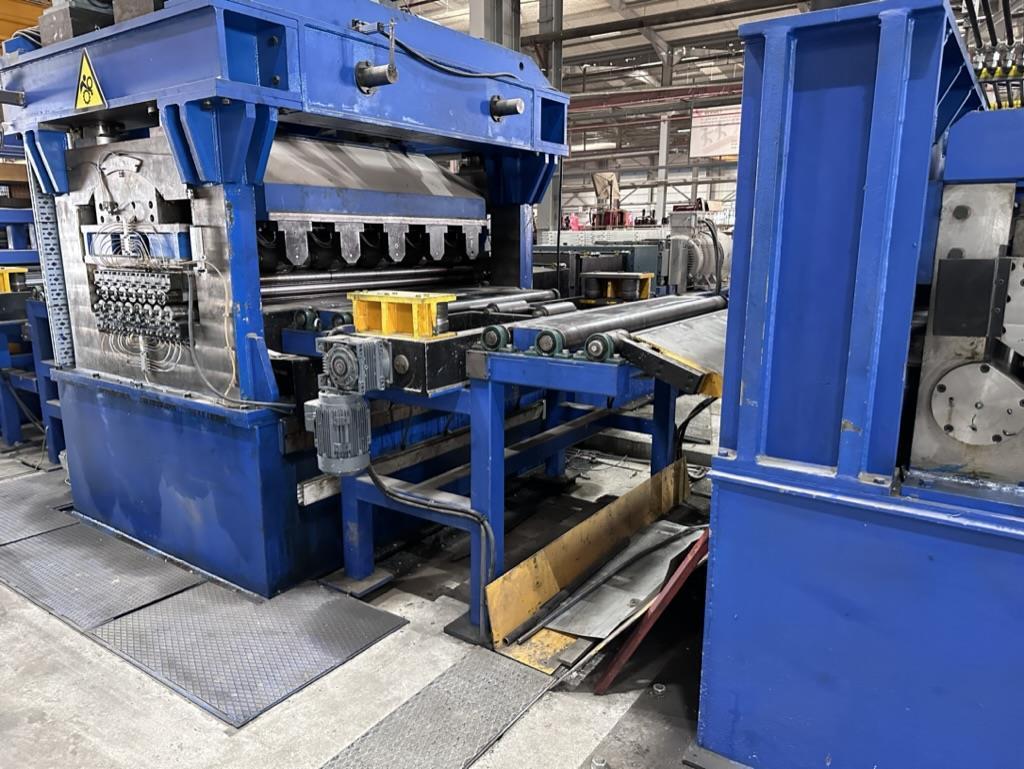

Leveler 6HI (8+7 rollers)
Roller transfer table
Side Guide
Measuring Roller
Rotary Shear

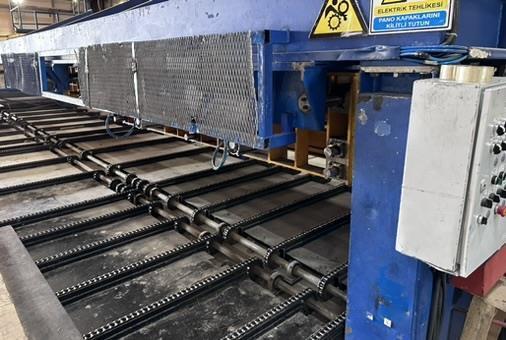

Belt conveyor
Stack 12 mt
Stack Conveyor
Exit Conveyor
