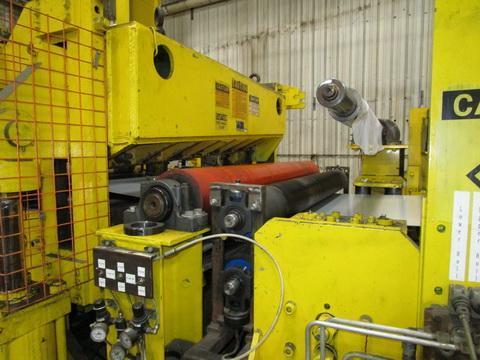

Thickness Range: .024” - .135” Stainless & .024” - .187” Aluminum Line Direction: Left to Right
Material: Stainless, Aluminum, Painted Carbon Coil Width: 24” - 56”
Coil OD: 72”
Coil ID: 20” Entry & Exit
Line Speed: 300 FPM
Minimum Slit Width: 2”
Minimum Side Trim: 1/4”
Complete Line With:

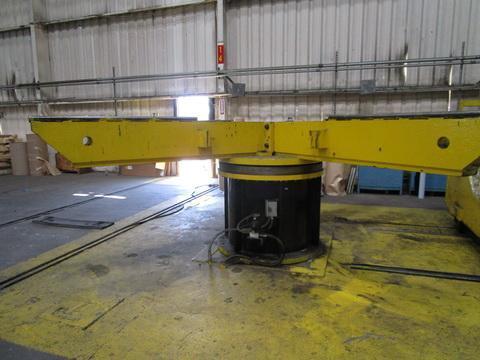

4 Arm Entry Turnstile

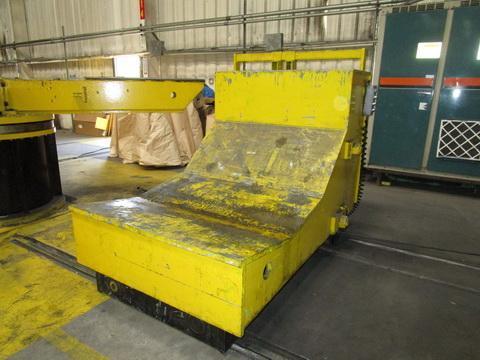

Entry L-Type Coil Car

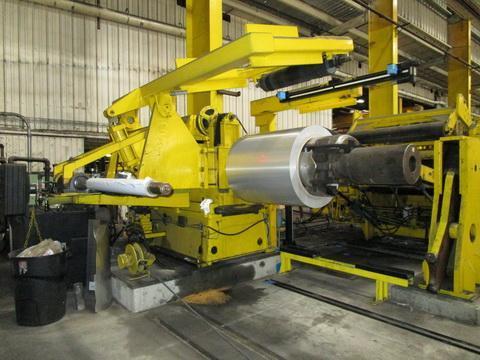

Mandrel Uncoiler
Out Board Bearing Support
Peeler Table

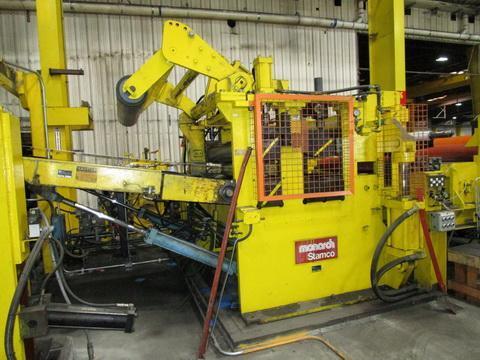

Stamco Entry Section

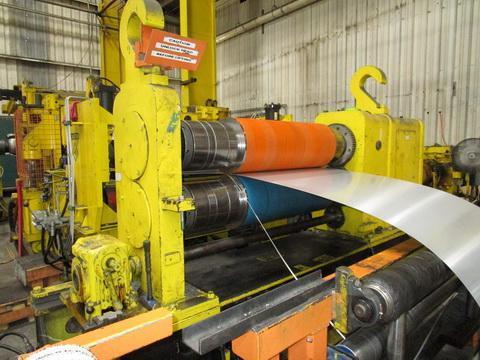

2 Stamco Slitter Heads
9” Diameter Arbors
56” Head and 60” Head
100 HP DC Drive
Scrap Winders
Looping Pit Cascade Rolls
Drag Board Tension

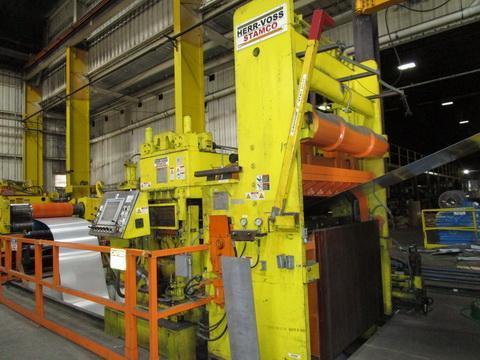

Herr Voss Strand Extensioner (Year 2006/2007)
Model VKSE 72-1.750-19-7-6HI
Shear Deflector Roll Unit with Pinch Rolls

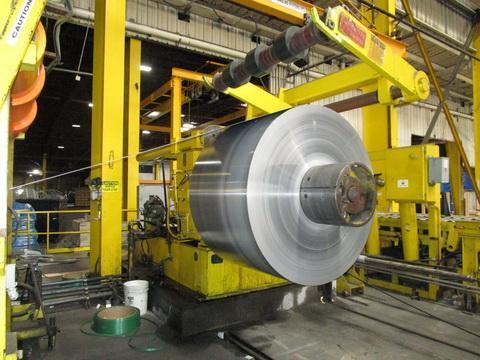

Recoiler
20” Hydraulic Drum
2 Speed Gear Box (34.22: 1 and 68.30: 1 Ratios)
100 HP DC Drive
Exit L-Type Coil Car
