Manufacturer Cincinnati/Herr-Voss
Description
General Specifications:
Manufacturer: Cincinnati/Herr-Voss
Width: 60”
Gauge Range: .011”-.135”
Weight Capacity: 50,000 Lb.
Line Direction: Left to Right
Improvements:
A Herr-Voss Strand Extensioner was added in 2003
A Sky-loop in 2010
The Entry-Table & Recoiler were replaced in 2015
Line Includes:
Entry Coil Ramp
Cone Uncoiler
Snubber Roll

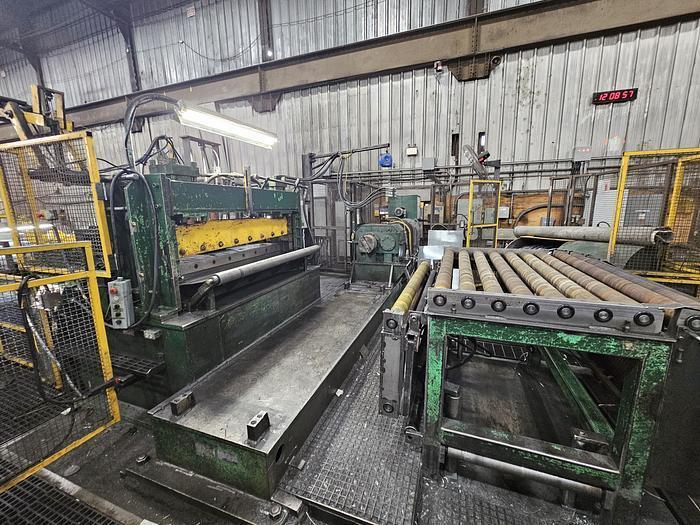

Peeler/Pinch/Side-Guide/Crop Shear Unit

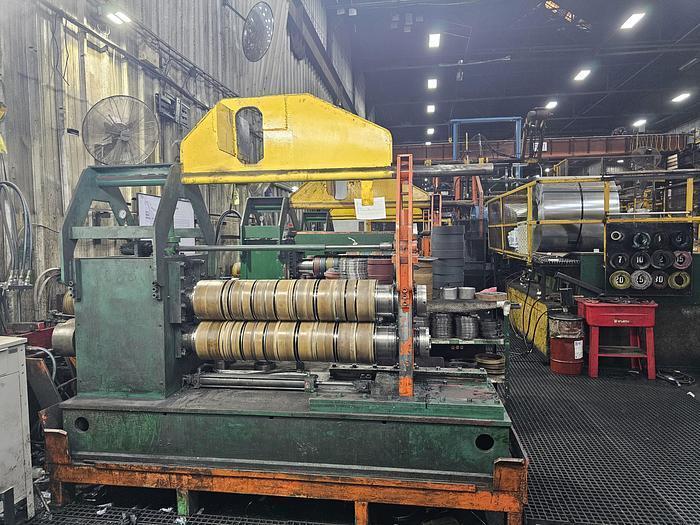

Slitter Head - (3) Heads
-(1) 48" wide x 6" diameter Arbors; (2) 60" wide x 6" diameter Arbor
-Crane-Remove Type
-200 HP DC Motor

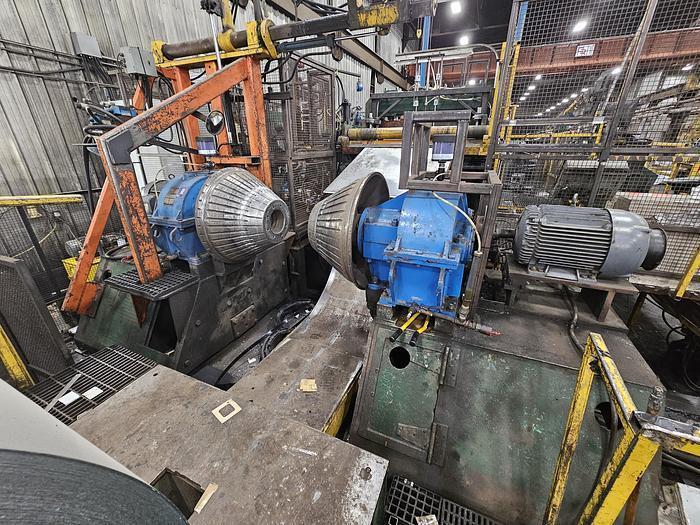

Dual Scrap Winders
-Oscillating Eye
-Self Dumping
Carry-over Table
Looping Pit
-Sky Loop System added in 2010
Pit Exit Table, Strand-Entry
Tension Stand
-Pad-Type

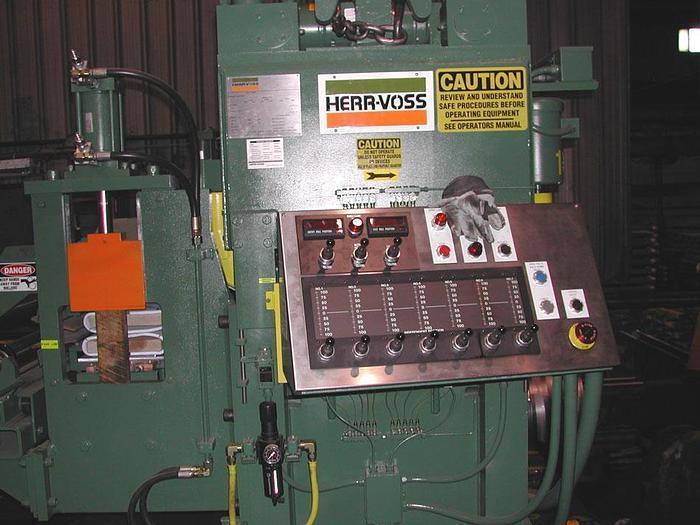

Herr-Voss Stand Extensioner
-VKSE 72/1.5-19/7 4HI LH
Exit Bridle and Recoiler Feed Table
Recoiler w/ Attached Separator & Push-off
-200 HP GE DC Motor
-Two-Speed Gearbox
