Delta 60" x .187" x 40,000Lbs Loop Slitting Line
Specifications
Make: DBI (Delta)
Material Width: 12" - 60"
Material Thickness: 020" - .187"
Coil ID: 20" / 24"
Coil OD: 72"
Coil Weight: 40,000Lbs
Direction: Left to Right
Components
Entry 2-Arm Turnstile
Powered Rotation
Entry L-Type Coil Car
Powered Lift and Traverse
Self Contained Hydraulics
Mandrel Uncoiler
Powered Hold - Down Head
Four Leaf Mandel Design
Water Cooled Brake
Feed Motor
Sliding Base Design
Hydraulic Peeling Table
Driven Entry Pinch Rolls
Adjustable Edge Guides
One (1) Slitting Head
8" Diameter Arbors
Adjustable Arbors
150HP DC Motor Drive
Lots of Knives and Tooling
Pit Entry and Exit Tables
Two (2) Scrap Winders
Hydraulic Drive
Manual Open / Close
Drag Board Tension Stand
Strip Separating Bar with Tooling
Pneumatic Drag Boards

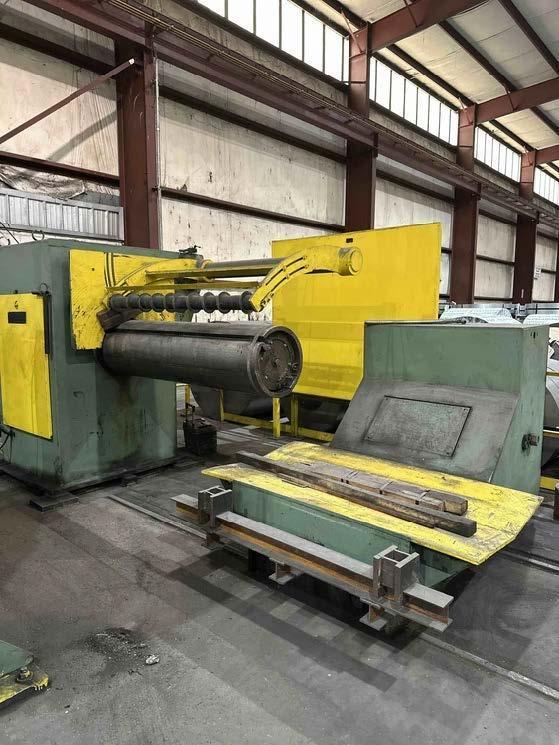

Recoiler
Manual Gripper
Hydraulic Push Off
Powered Over Arm Separator
Motor: 250HP DC
Exit L-Type Coil Car
Powered Lift and Traverse
Self Contained Hydraulics
Exit 4-Arm Turnstile
Powered Rotation
Hydraulic Push Off
Complete Line with Electrics, Hydraulics, Controls, Knives and Tooling
Can Be Inspected Under Power and Operating
