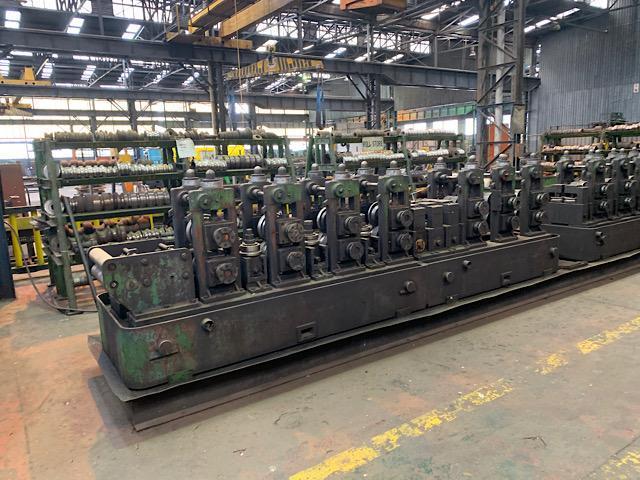

60.3mm x 4.0mm Kusakabe Rafted Tube Mill Line with Thermatool Solid State Welder

Brand
KUSAKABE

Model
Not Specified

Stock #
604796

Condition
Used

Year

Tube Diameter 2.4 inches
Max. Wall Thickness .157 inches

Equipped With

Complete Mil Featuring:

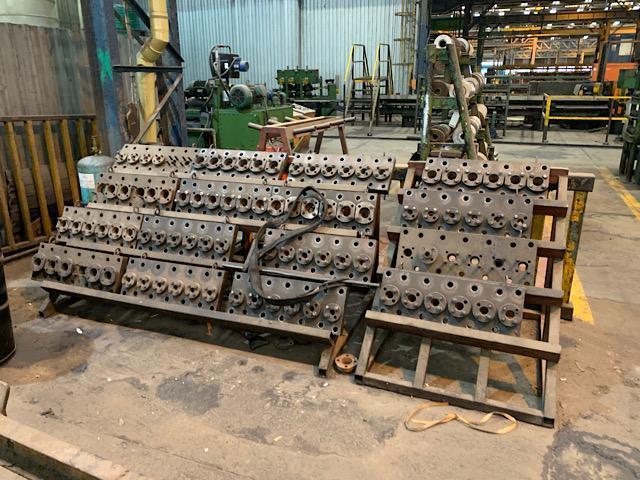

Rafted Mill with Spare Set of Rafts
350 KW Thermatool Solid State Welder

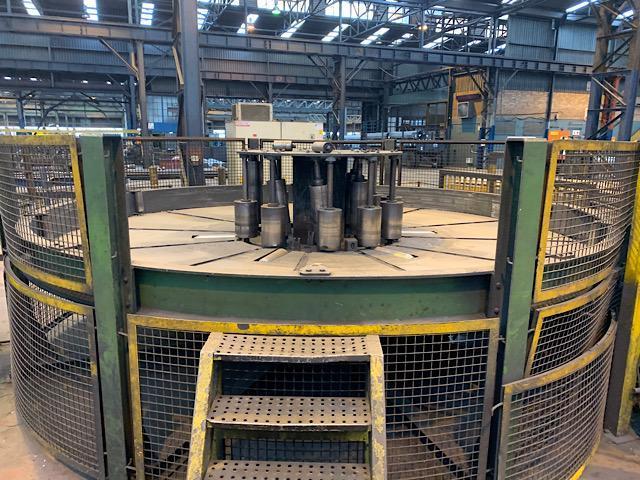

Horizontal Accumulator
6 Roll Bronx Straightener
End Face & Beveling
6 Tube Hydrostatic Tester

Tube Diameter:  15.8mm - 60.3mm
(Tooling for 15mm - 50mm)
Wall Thickness:  1.6mm - 4.0mm
Length Capacity:  4 Meter to 10 Meter
Max Line Speed:  80 Meters/Min
Strip Width:  50mm - 188mm
Material:  SAE1008, S325, S275, SANS657-1, SANS1182, SANS62

Complete Mill With:

Double End Uncoiler
Peeler Table
Shear & End Welder
Horizontal Accumulator with Entry Feed Roll

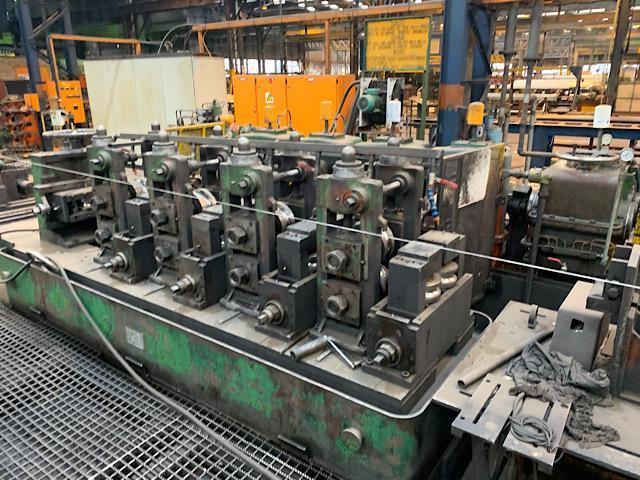

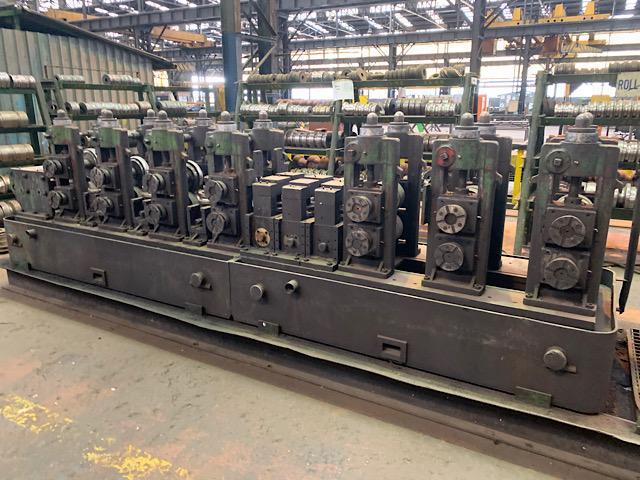

Rafted Forming Mill with Spare Raft
Universal Drive
75mm Diameter Shafts
75KW DC Motor
Entry Edge Guides
Entry Feed Roll
Entry Edge Prep Station
4 Forming Stands
3 Side Idler Rolls
3 Side Idler Roll Cluster
3 Finn Pass Stands

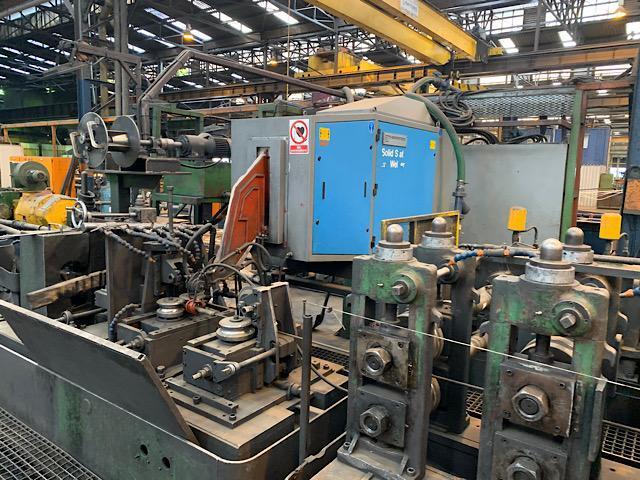

350 KW Thermatool Solid State Welder
Entry Seam Guide
2 Roll Weld Box
Seam Guide Stand
Scarfing
cooling Trough

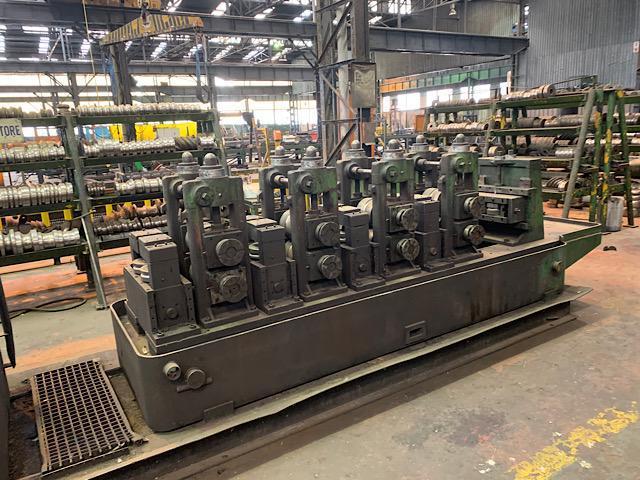

Sing Mill with Spare Raft
Universal Drive
75mm Diameter Shafts
75KW DC Motor
Entry Guide Stand
4 Sizing Stands
3 Side Idler Rolls
Turks Head
Eddy Current Tester

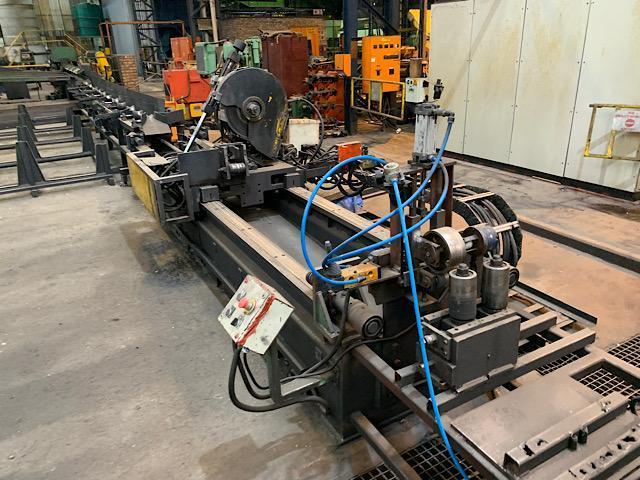

Flying Saw Cut-Off
Run Out Table
6 Roll Bronx Straightener
In Line End Face Beveling
In Line 6 Tube Hydrostatic Tester
Transfer Conveyor
Walking Beam Conveyors

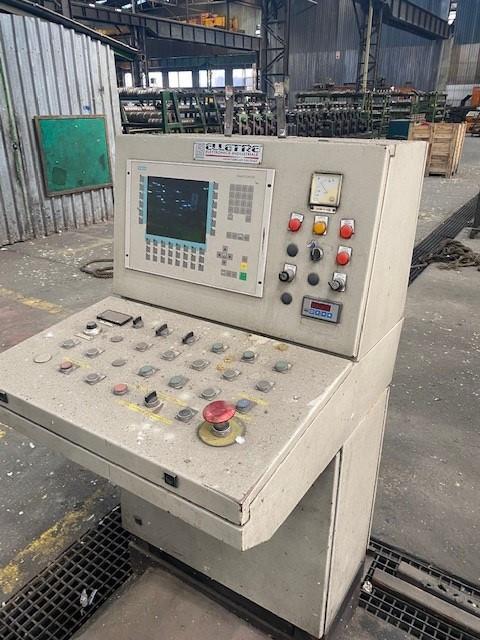

Elletre Digital Readouts and Controller

Large Amount of Tooling for Rounds, Squares & Rectangles
TOOLING LIST AVAILABLE UPON REQUEST
