General Specifications: Thickness Range: .012"-.125" (.3mm-3.2mm) Coil Width Range: 20"-60" (500mm-1600mm) Max Coil Weight: 55,000# (25,000kg) Coil ID: 20" (508mm) with rubber sleeve 24" (610mm) Coil OD Range: 32"-78" (800mm-2000mm) Line Speed: 32ft/min-262ft/min (10m/min-80m/min) Max Number of Cuts per Minute 115 cuts/min Line Direction: Right to Left

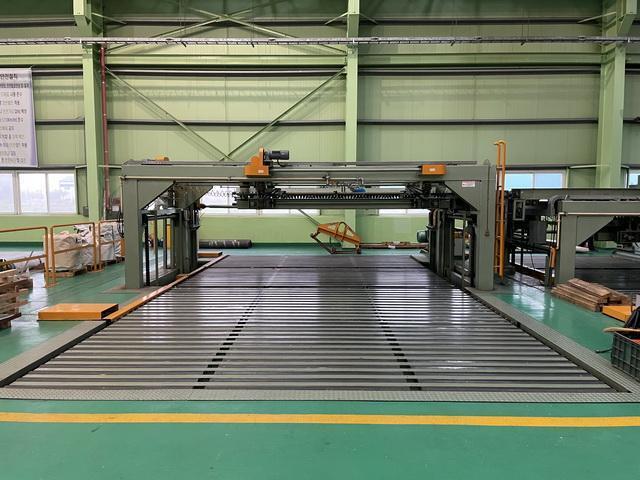

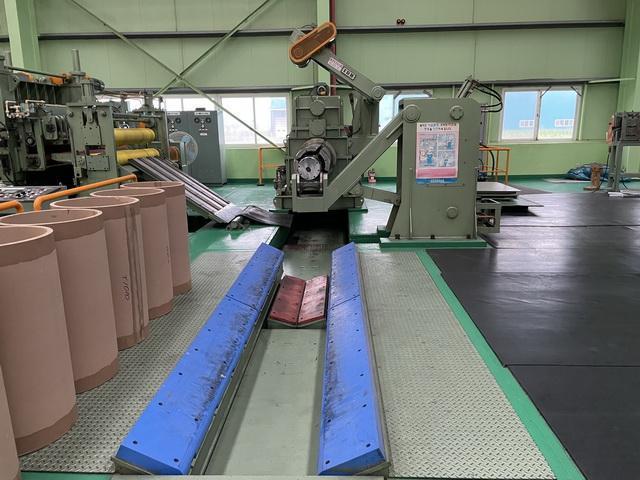

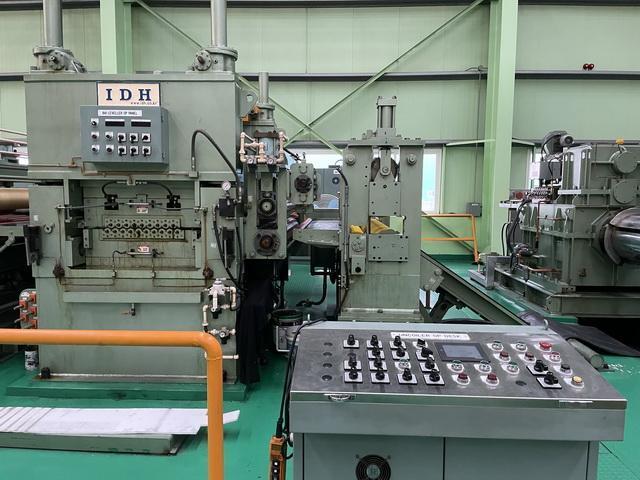

Complete with the Following Components: Coil Staging Area Pit Type Coil Car Uncoiler with Outboard Support Arm and Hold Down Roll Coil Peeler Table Pinch Rolls 6HI Leveler Feed Roll Measuring Roll Rotary Shear Run Out Conveyor Reject Bucket Stacker 1 Stacker 2
No Files or Attachments
