Equipped With
General Specifications:
Materials: GO, GNO, Copper, Alum., Silicon Steel
Min./Max. Coil Width: 2 - 41" (Trimmed)
Thickness Range: 0.006" - 0.018" (GO/GNO)
0.005" - 0.100" (Copper, Alum.)
Width Tolerance: +/- 0.001"
Max. Shear: 14,000 PSI (Alum.)
23,000 PSI (GO/GNO)
81,000 PSI (GO/GNO)
Max. Coil Weight (Entry): 15,000#
Max. Coil Weight (Exit): 6,000# @ 8" Dia. Drum
15,000# @ 24" Dia. Drum
Coil I.D. (Entry): 16" - 19" / 19" - 22" with Risers
22" - 24.5" with Risers
Coil I.D. (Exit): 8" & 24"
Max. Coil O.D.: 55"
Line Direction: Right to Left
Mode of Operation: Pull Thru / Driven
Line Speed: 0 - 660 FPM (GO/GNO)
0 - 260 FPM (Alum./Copper)
Complete with the Following Components:
Entry Coil Storage Saddle
Entry Coil Car

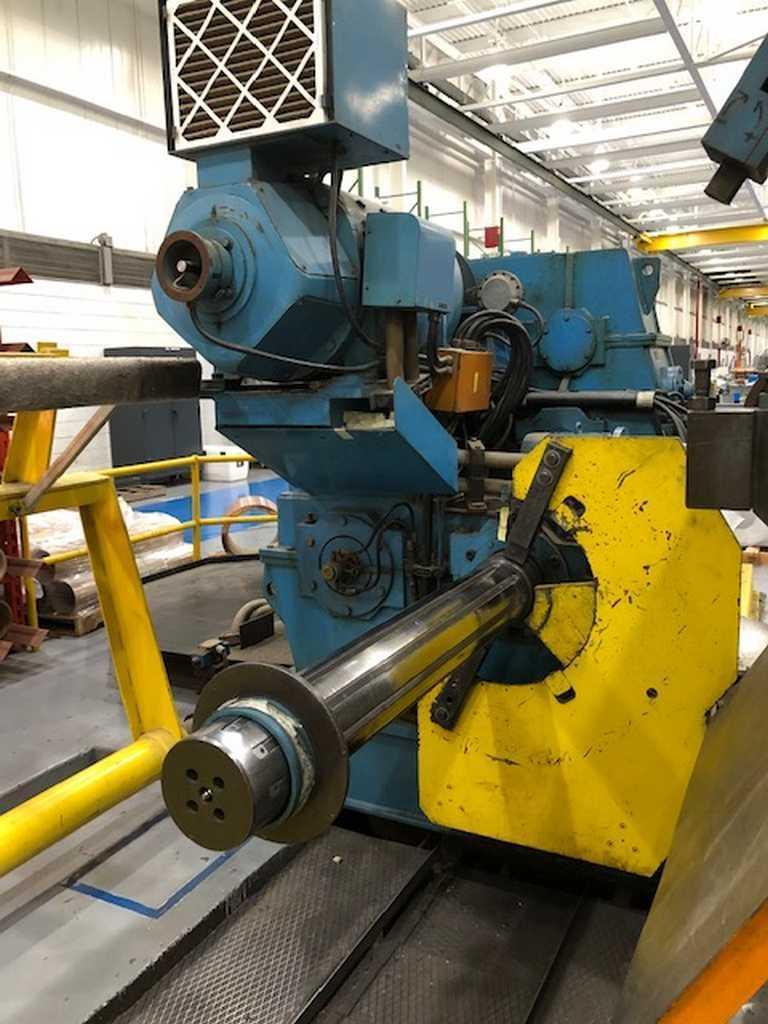

Uncoiler
Automatic Edge Guide:

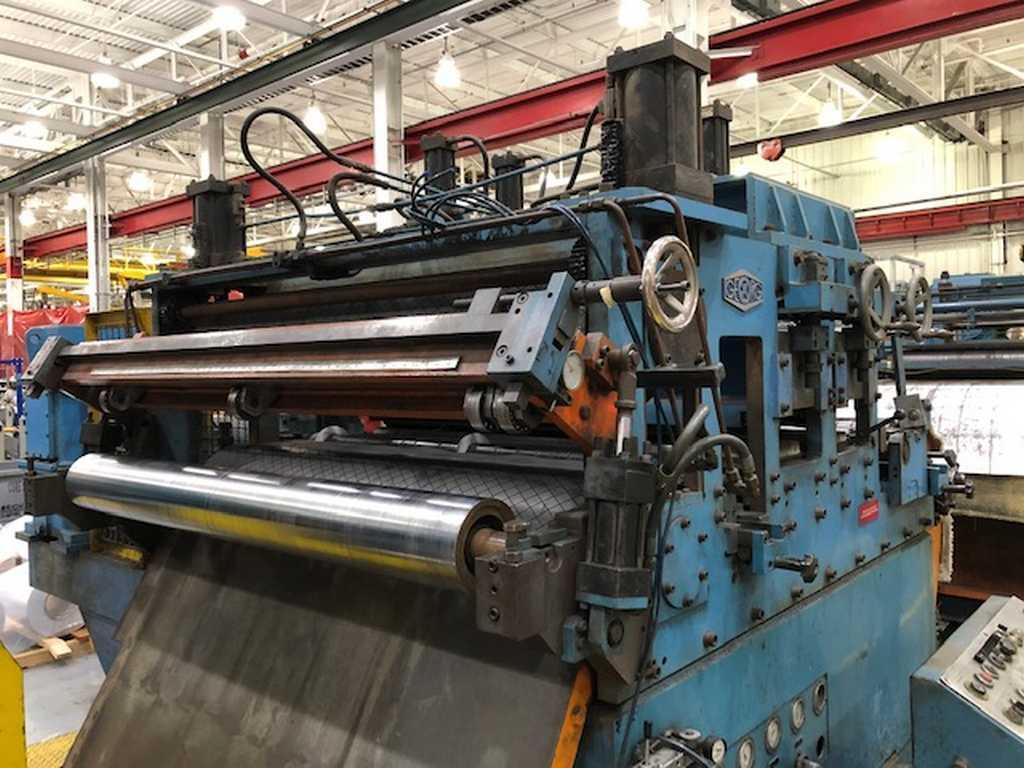

Slitter Head
Scrap Baller
Pit Section

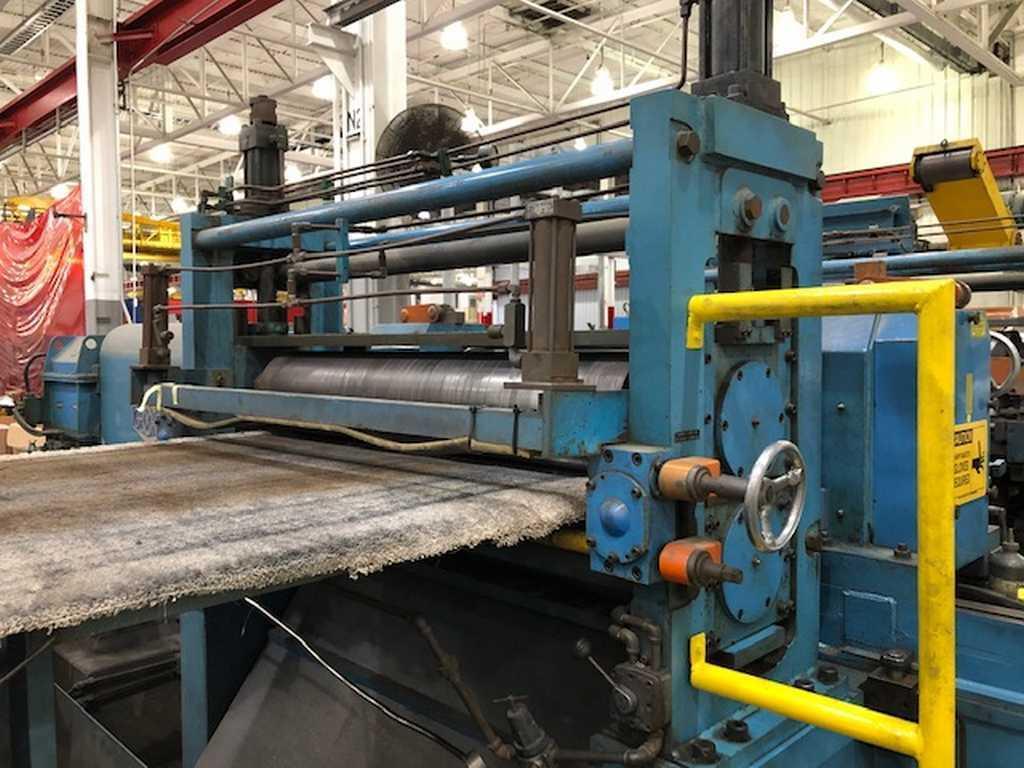

Combination Tension Stand

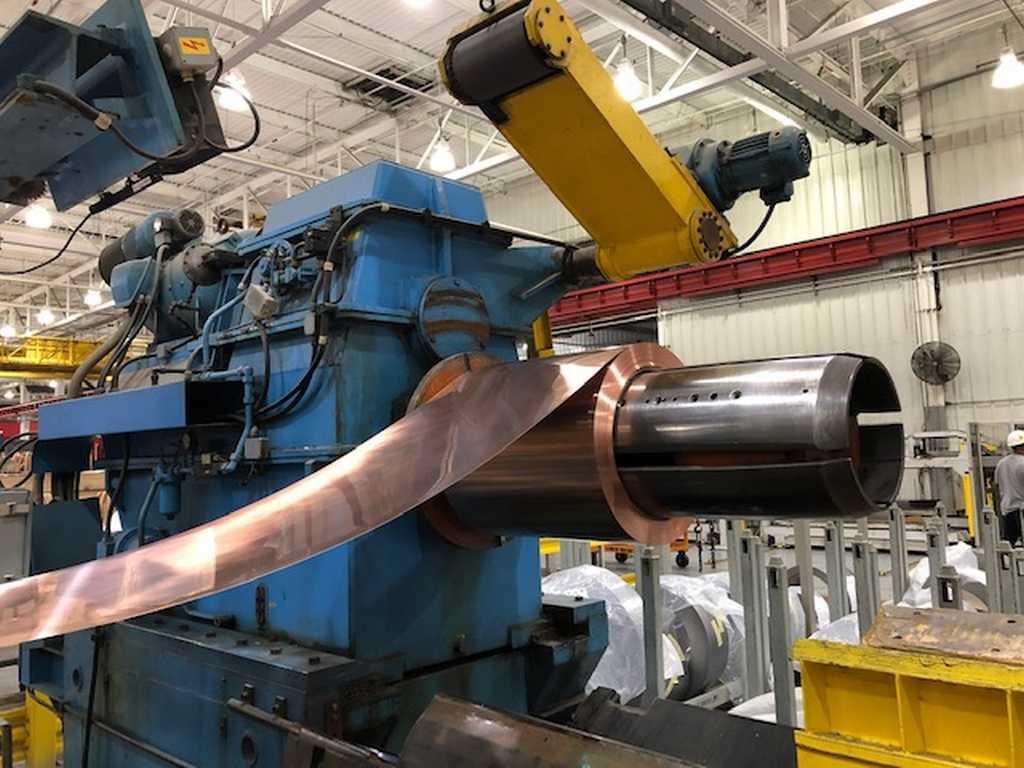

Turret Recoiler
Exit Coil Car
Exit Turnstile
Electrical Controls
Slitter Tooling
Hydraulic Systems
Spare Parts
