General Specifications:
Max Coil Weight: 5000#
Entry Coil ID: 16”
Entry Max Coil OD: 50”
Exit Coil ID: 20”
Exit Max Coil OD: 60”
Complete with the Following Components:

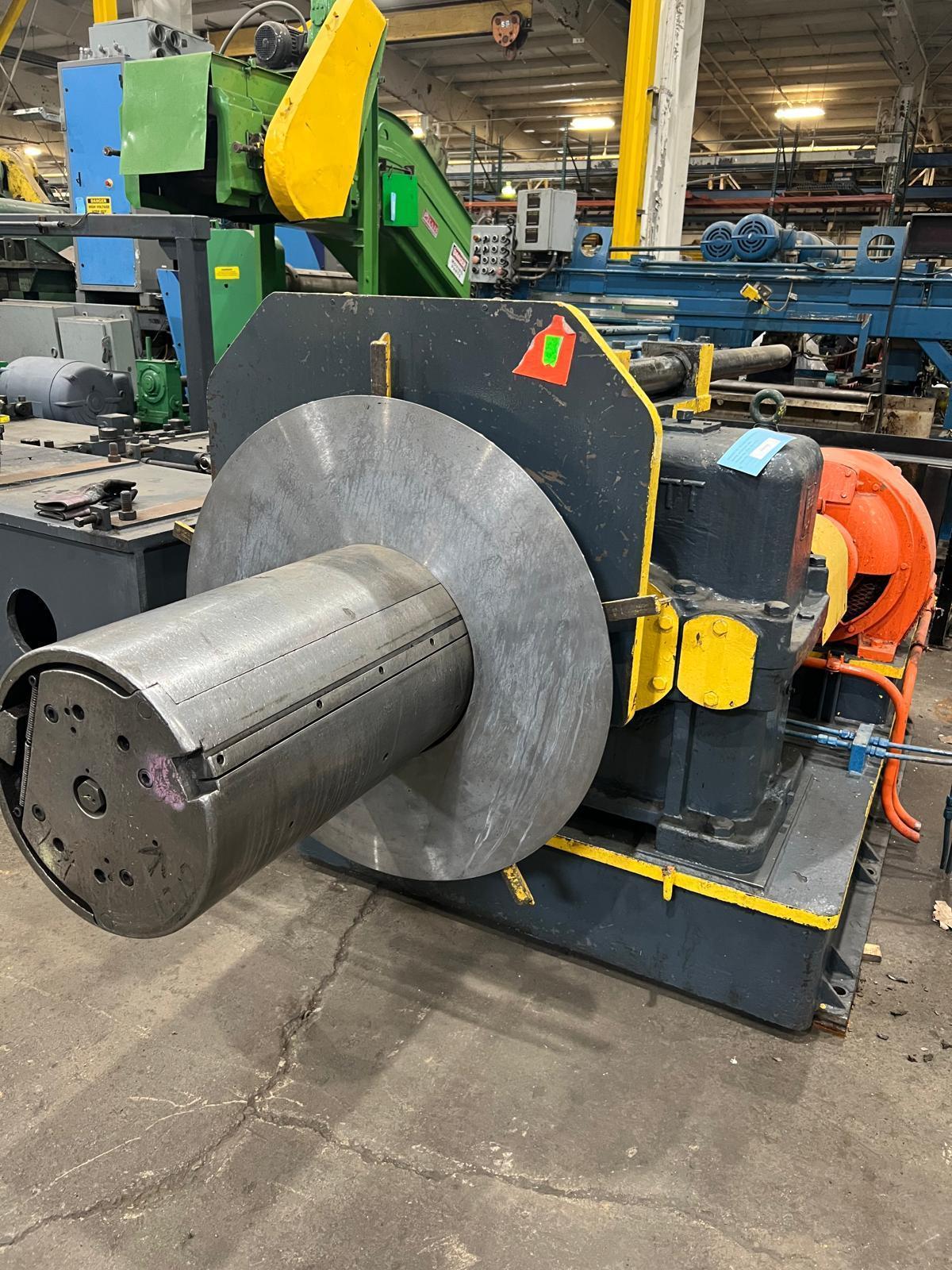

Mandrel Uncoiler
16" Coil ID
31” Mandrel Face
Bolted Leaves for Larger ID
Hydraulic Expansion
Sliding Base
Feed Up Drive
Wichita Water Cooled Brake

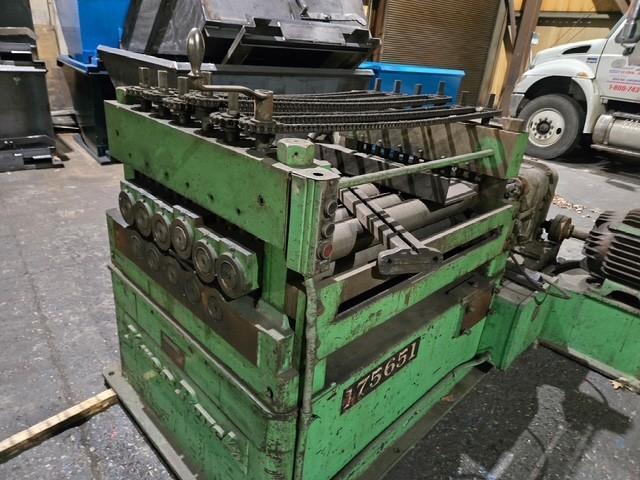

11 Roll Straightener
Manufacturer: Kane & Rouch
Model# 410000-508
11 Roll Design
4.5" Work Roll Diameter
38" Roll Face
Single Point Adjustment Open Close
15HP AC Motor Drive
Dual Voltage 220V/440V, 1160rpm

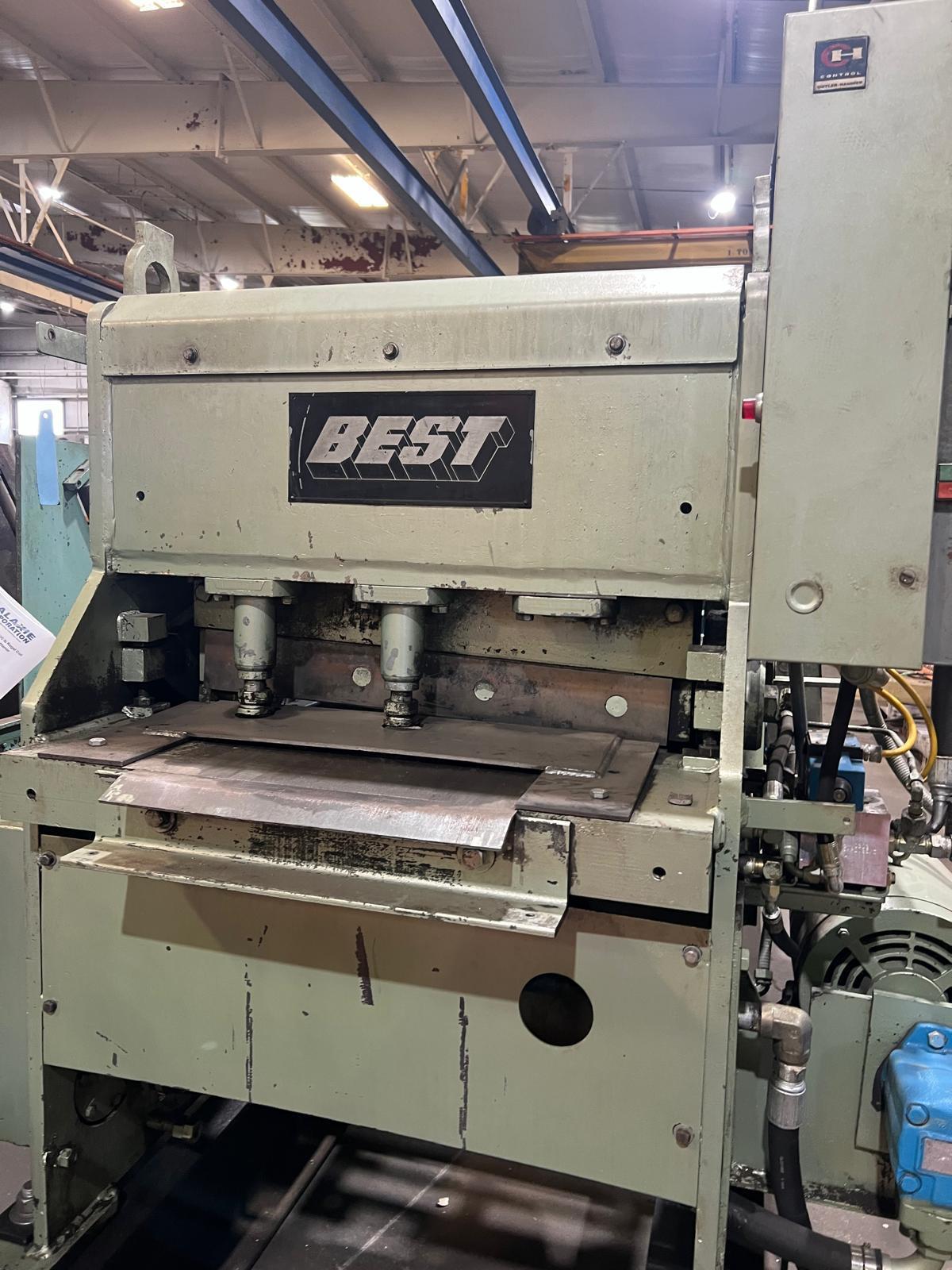

Hydraulic Shear
Manufacturer: BEST
Model: K500-2
Serial# 5-75-130
Max Shear Capacity: 1/2"
Max Width: 24"

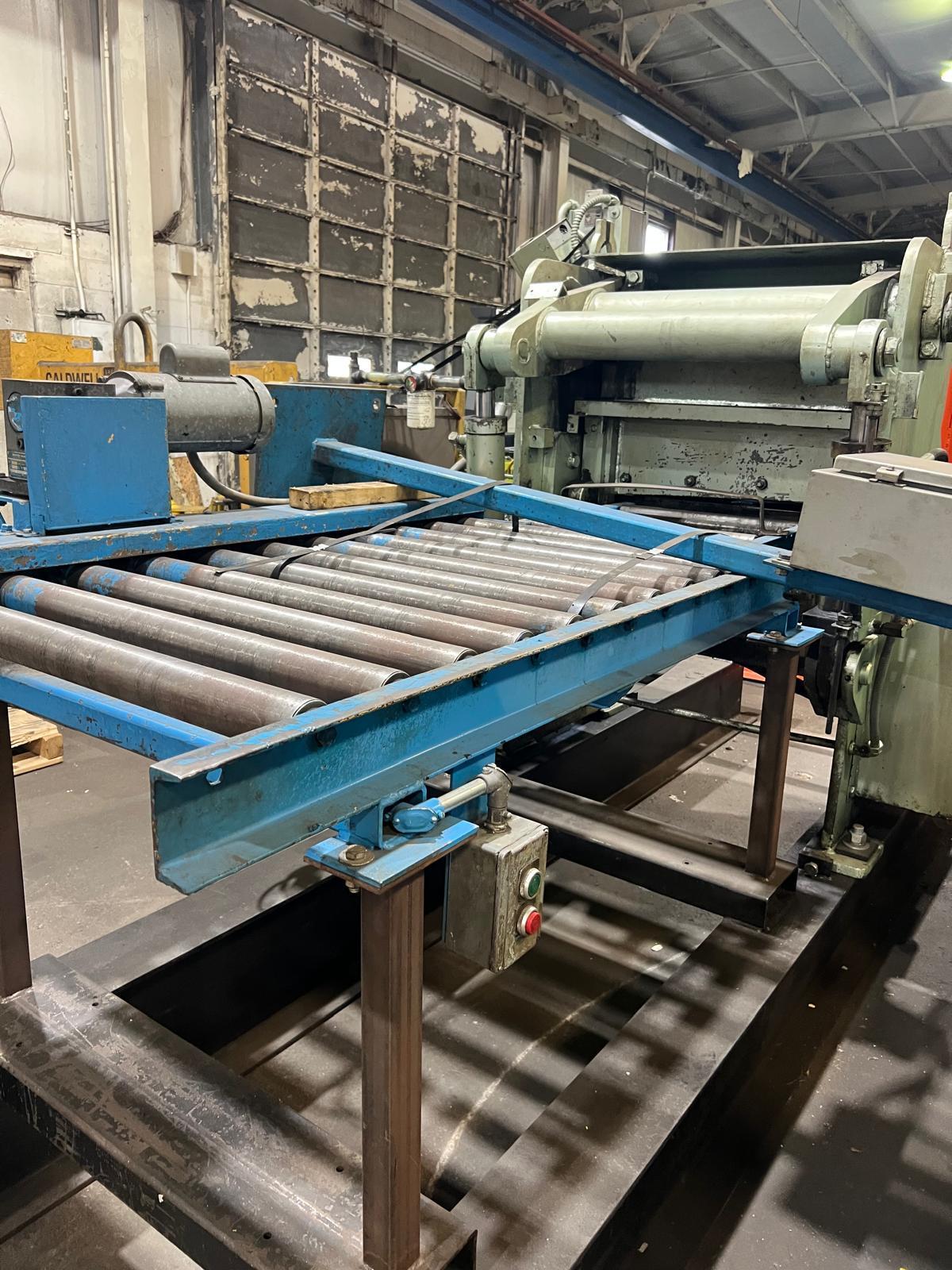

Powered Roller Inspection Conveyor

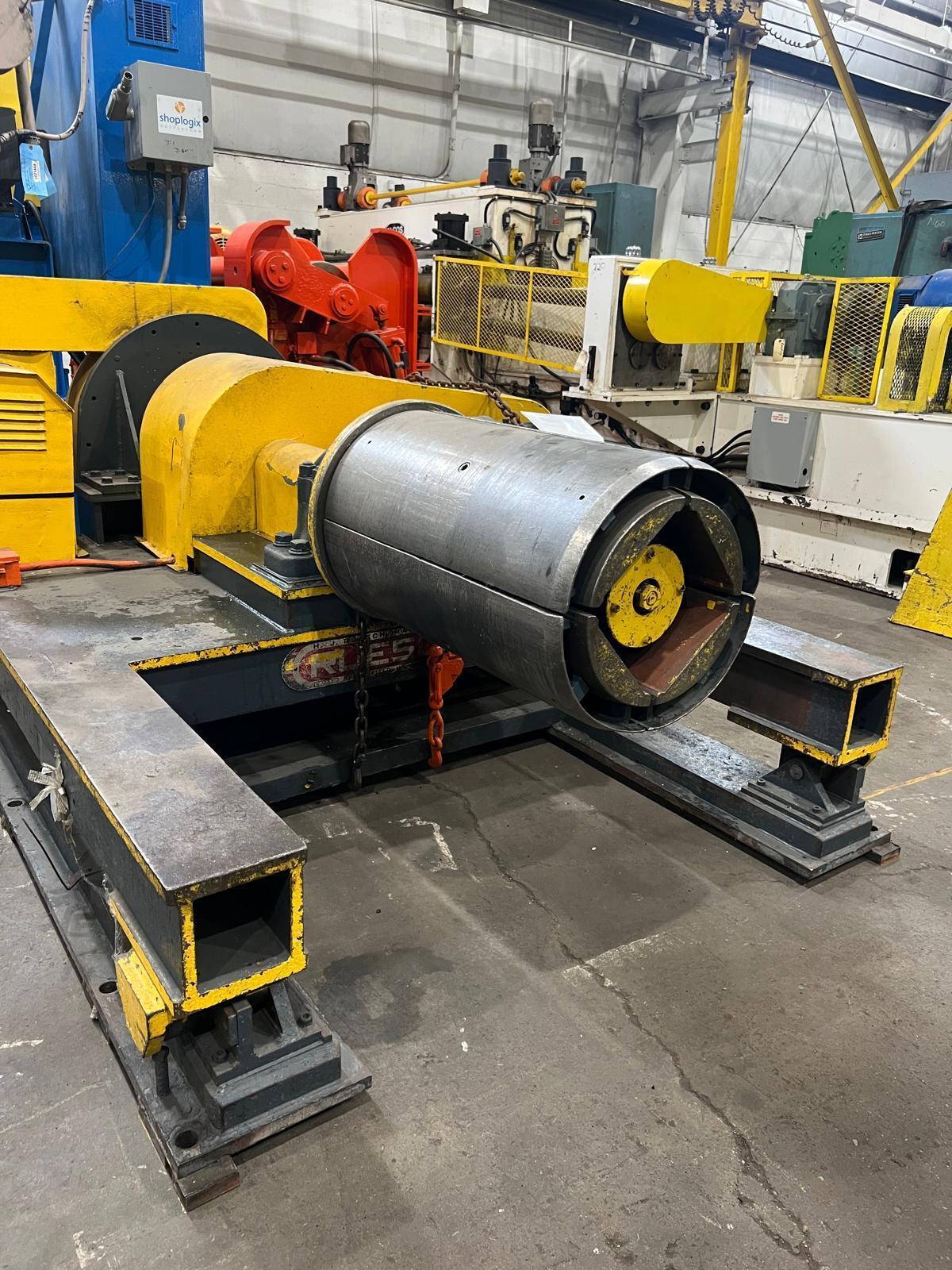

Recoiler
Hydraulic Push Off Plate
30” Mandrel Face
16” ID
Max Coil OD: 60”
Separator Rings
25HP Motor
Horsburgh & Scott Gear Box
Eaton Dynamic Electromagnetic Friction Brake

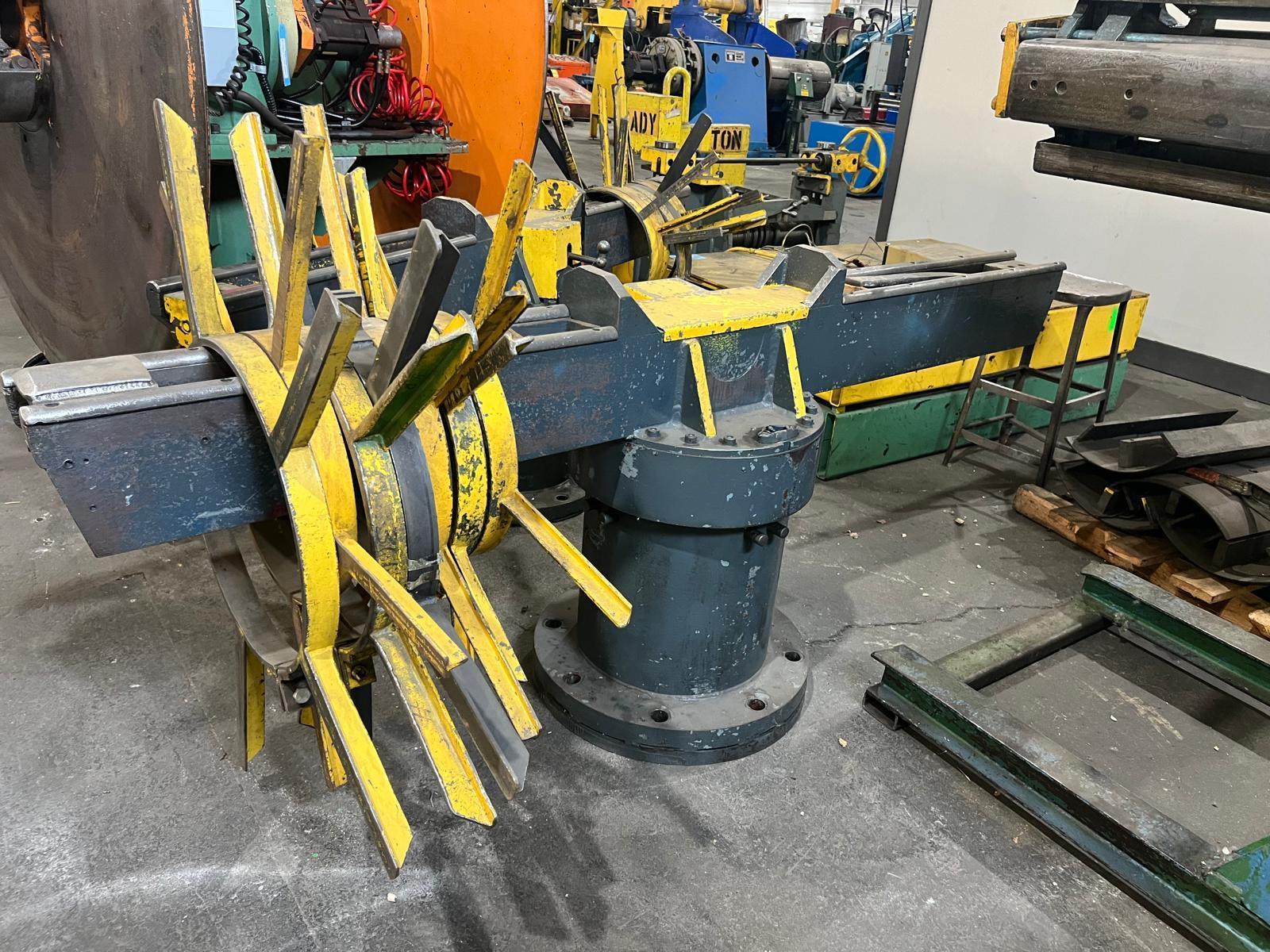

Exit Two Arm Turnstile
35” Arm Length
Manual Rotation

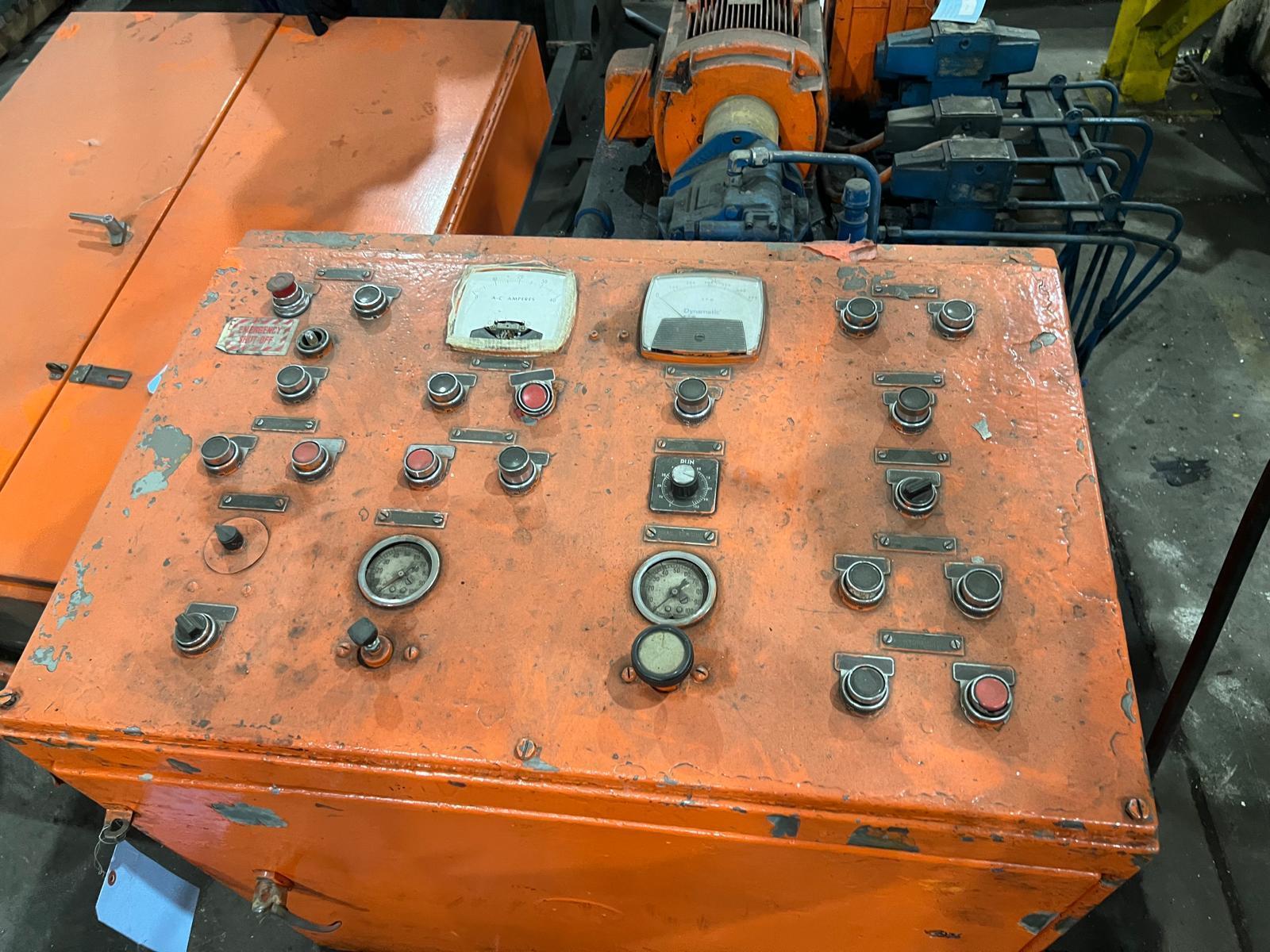

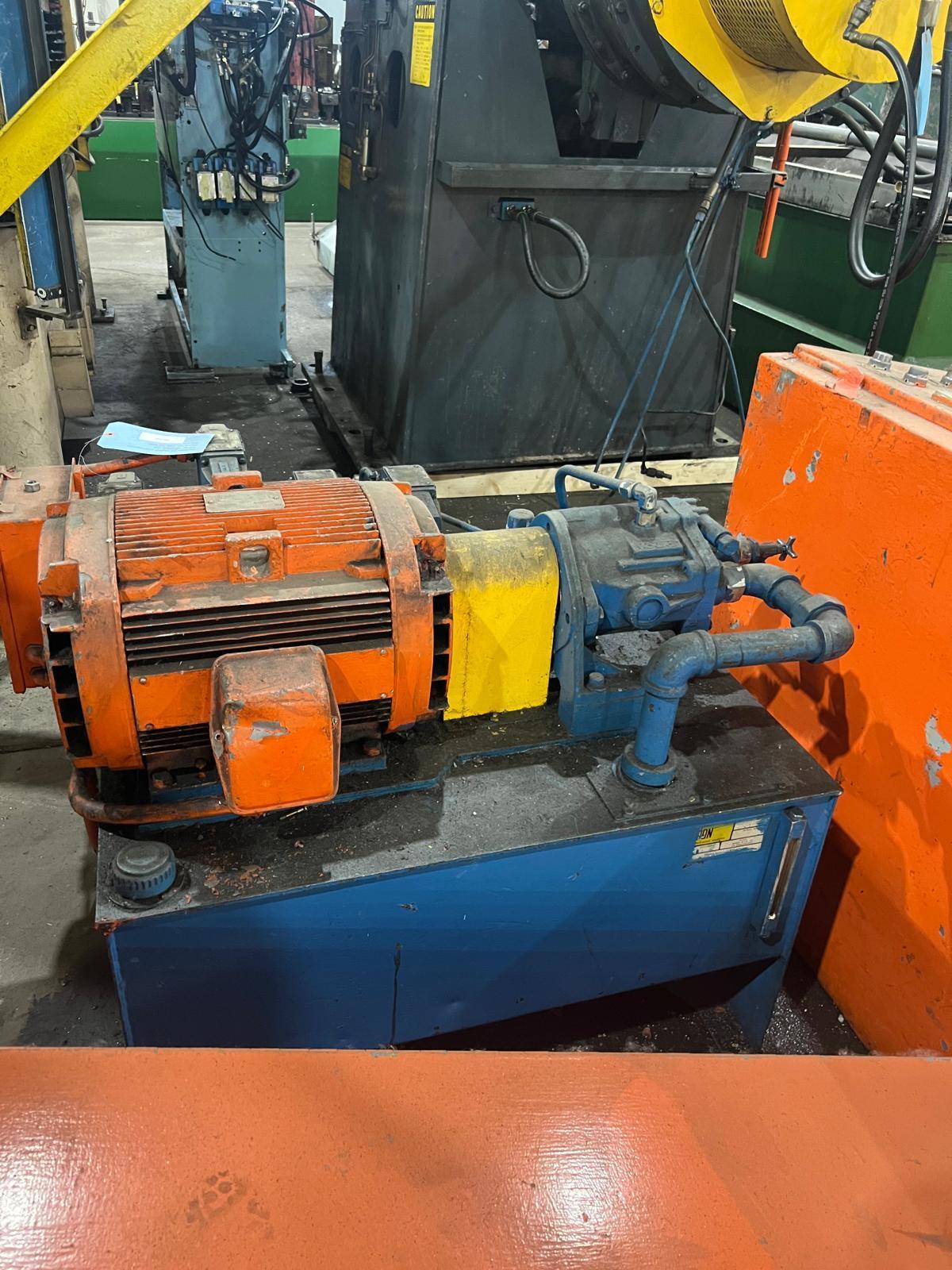

Complete with Hydraulic Unit, Electrical Panel and Control Pulpit
* Available Extra (3) Sections of 10' Gravity Roller Conveyor Upon Request
