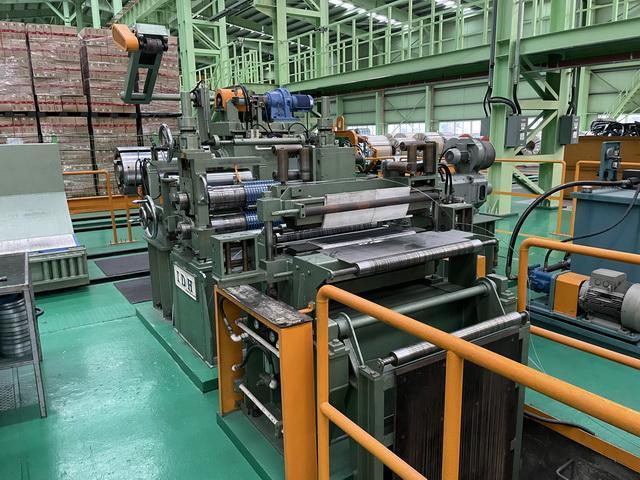

24" (650mm) x .091" (2.3mm) x 10,000# Slitting Line

24" (650mm) x .091" (2.3mm) x 10,000# Slitting Line

24" (650mm) x .091" (2.3mm) x 10,000# Slitting Line

24" (650mm) x .091" (2.3mm) x 10,000# Slitting Line

24" (650mm) x .091" (2.3mm) x 10,000# Slitting Line

Brand
Not Specified

Model
Not Specified

Type
Slitters & Slitting Lines

Stock #
604920D

Condition
Not specified

Year

Request a Quote

Have one to sell?

SPECIFICATIONS
FILES & ATTACHMENTS

Width	24 inches
Thickness	.091 inches
Coil Weight	10000 pounds

Equipped With

General Specifications:
Thickness Range: .012"-.091"
Width Range: 6"-24" (150mm-650mm)
Max Coil Weight: 10,000# (5000kg)
Entry Coil ID: 20" (508mm)
Exit Coil ID: 16" (406mm) 20" (508mm) with Attachment
Coil OD Range: 26"-60" (650mm-1500mm)
Line Speed: 32-480ft/min (10-150m/min)
Line Direction: Left to Right

Complete with the Following Components:

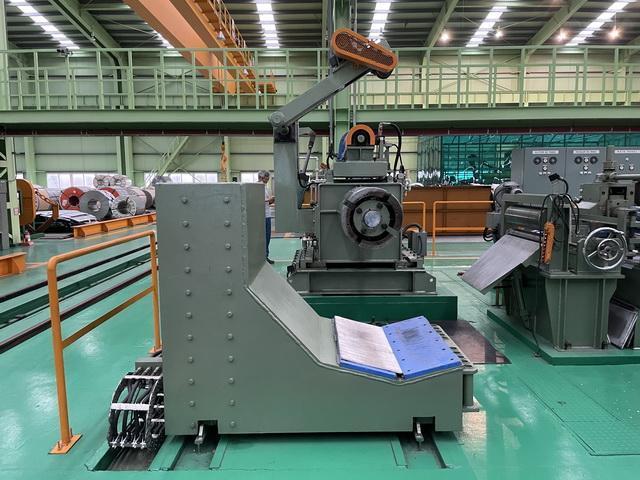

Entry L-Type Floor Standing Coil Car
Uncoiler with Hold Down Roll
Deflector Roll
Edge Guides

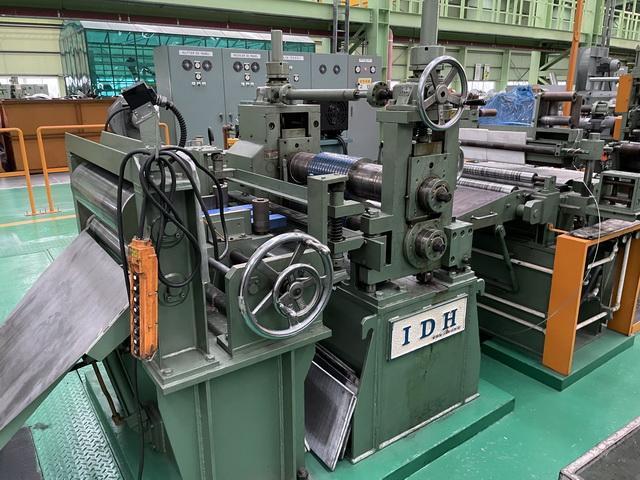

Slitter Head
Looping Pit
Scrap Winders
Tension Stand
Pinch Rolls
Crop Shear
Bridle Roll

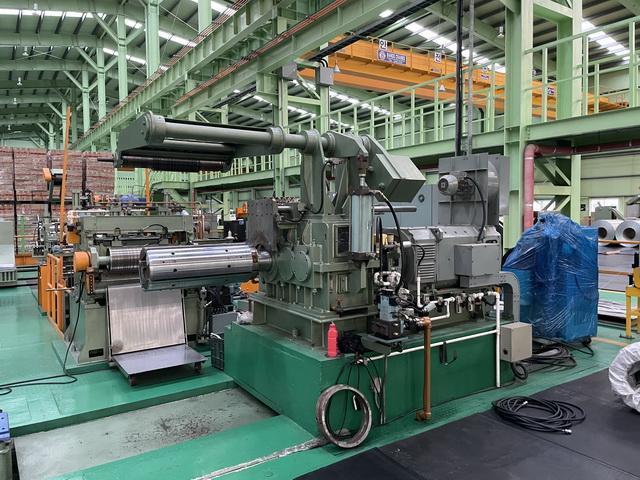

Recoiler with Overarm Separator
Exit Pit Type Coil Car
