Year: 2011
Manufacturer: JunPeng China
Technical Specifications:
Steel grade: Q235, Q345
Coil thickness: 4 – 16 mm
Coil width: 2200 mm
Coil I.D.: 760
Coil O.D.: 1200 – 2100mm
Max. coil weight: 40 T
Leveling speed: 0-20m/min
Leveling accuracy: ≤±1.5mm/m2
Cut length: 2000 – 12000mm
Length accuracy: ≤±1.5mm
Diagonal accuracy: ≤±2mm
Recoil weight: 20 T
Complete Line with the Following Components:
Pit Type Coil Car

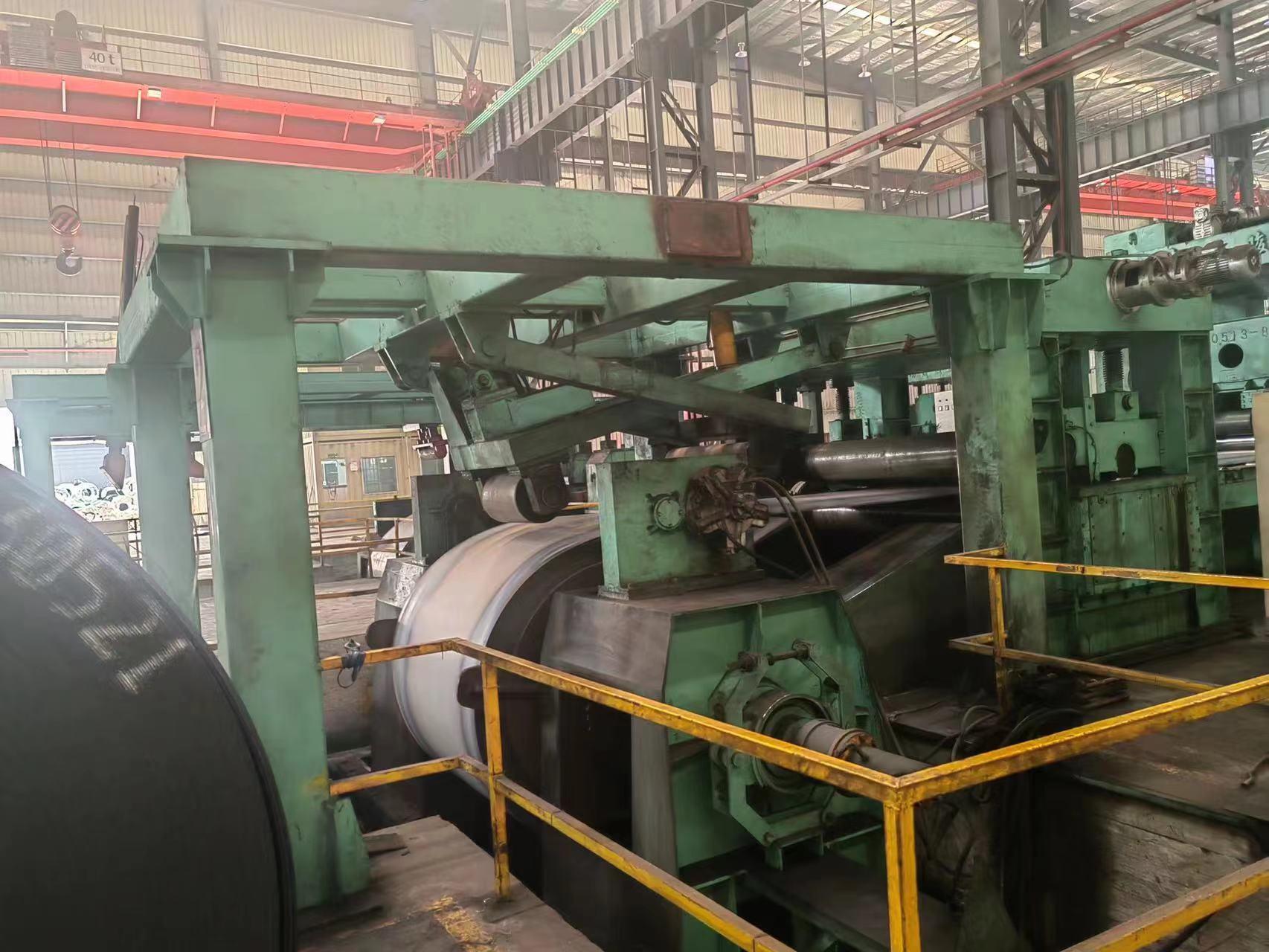

Double Cone Uncoiler
Free Standing Hold Down Roll /Peeler Unit
Entry Pinch Rolls
3 Roll (1 over 2) Flattener
320mm Diameter Rolls
110KW DC Drive
Roller Conveyor

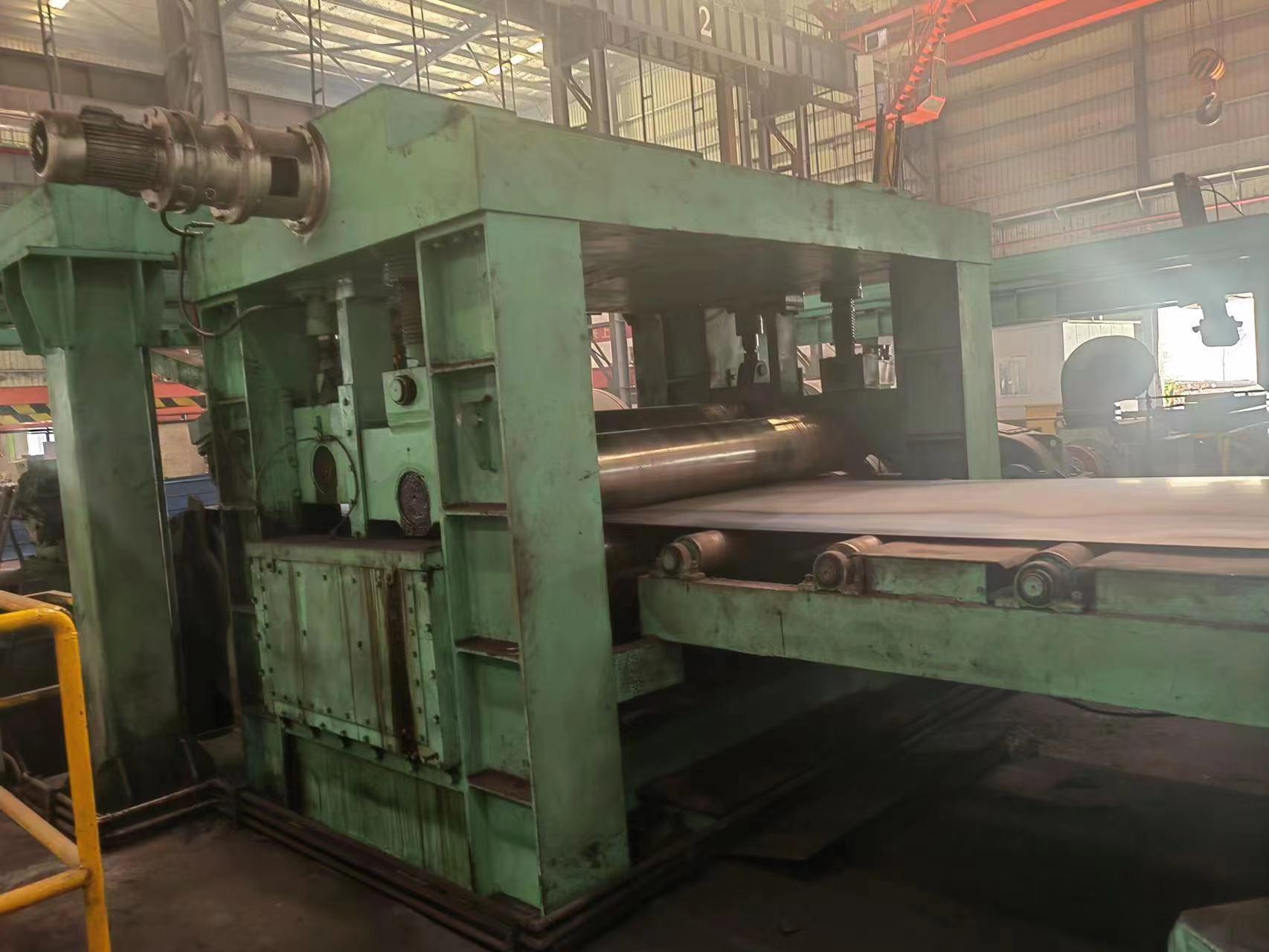

4-HI Leveler
11 Roll Configuration
Top and Bottom Flights of Back Ups
200KW DC Motor Drive
Exit Pinch Rolls

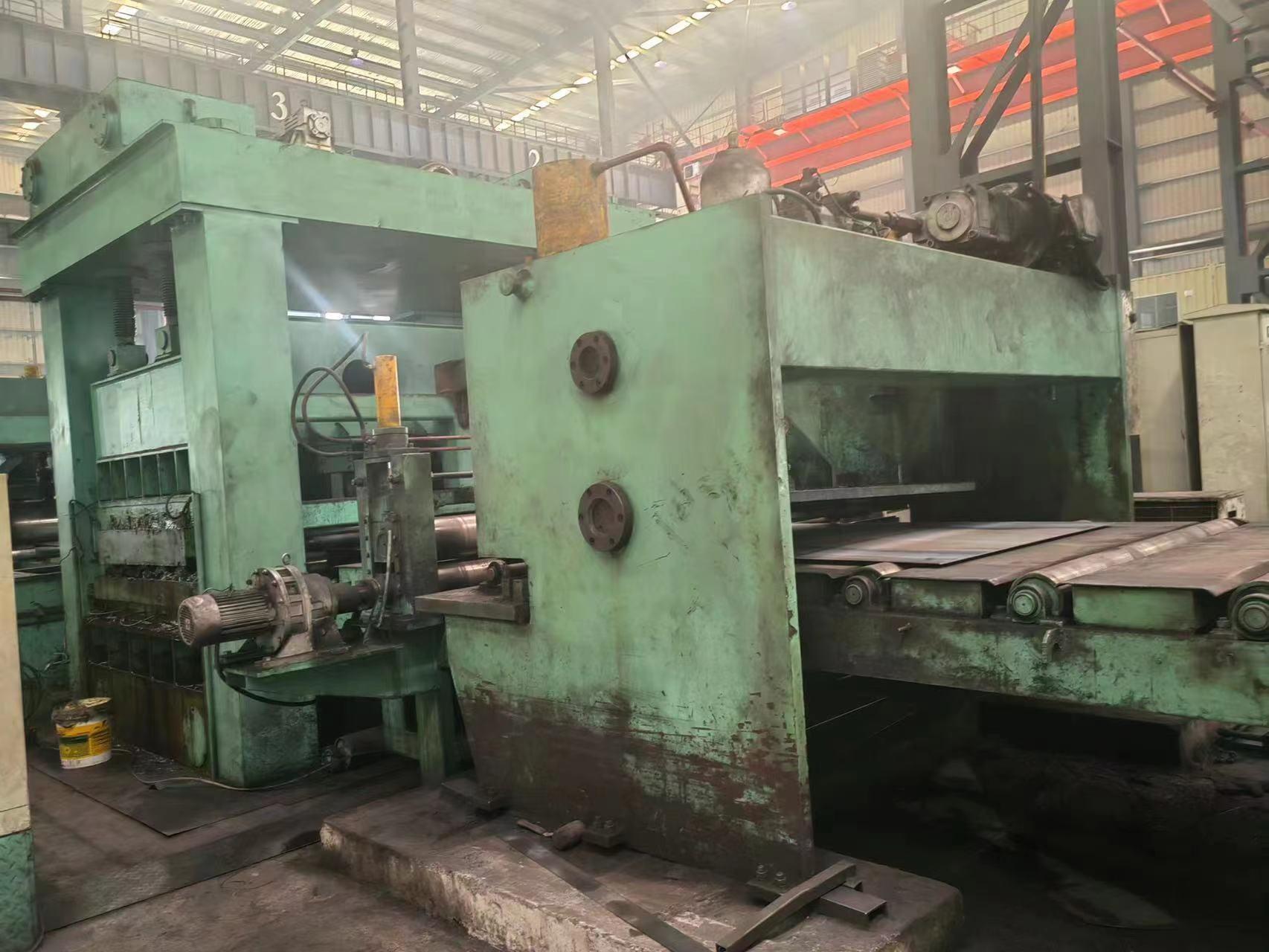

Mechanical Shear
Roller Conveyor
Stacker
Exit Conveyor
Complete Line with Hydraulics, Electrics, Controls, Drawings
Installed
