Equipped With

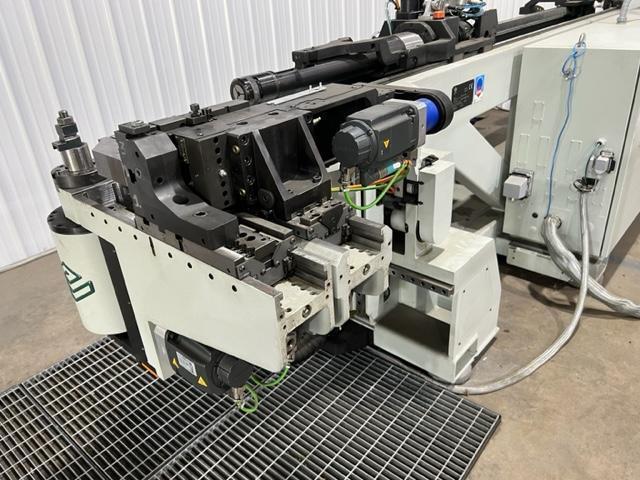

GENERAL SPECIFICATIONS
Round Tube Capacity:
- Aluminum, Copper, Brass: 1.653” X 0.156”
- Steel: 1.653” X 0.079”
- Stainless Steel: 1.653” X 0.059”
Bending Radius Maximum: 6.5”
Useful Length From Tool Post to Collet: 79.92”
Useful Length From Post to Mandrel Extractor: 143.3”
Feed Speed X - Axis: 55.2”/Sec
Bend Speed Y - Axis: 200°/Sec
Rotation Speed Z - Axis: 400°/Sec
Head Horizontal Speed Q - Axis: 13”/Sec
Head Vertical Speed Vertical Speed: 9.5”/Sec
Installed Power: 12.5kW
Machine Size: 167” X 58” X 63”
Machine Weight with CNC: 6,614 Lbs
INCLUDES:
Siemens Simotion 435 Control
9 - Axis Right or Left Hand Bending
Empowered Variable Radius Facility with 2000KG Push Boster
Right and Left Wiper DieHolder (3-Stacks)
All Electric Right and Left Pressure Die (3-Stacks) and Safety Fence
