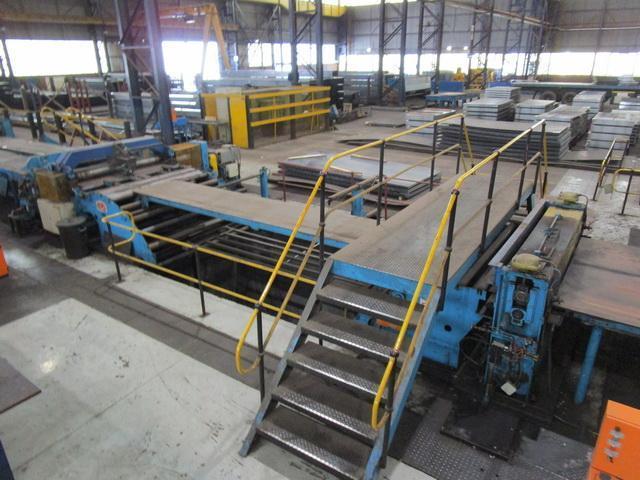

2000mm x 3.2mm x 60,000# Bronx High Speed Cut-To-Length Line

Brand
BRONX

Model
Not Specified

Stock #
604856B

Condition
Used

Year

Coil Weight 30000 tons
Width 79 inches
Thickness .125 inches
ID 30 inches
Max OD 79 inches

Equipped With

Thickness Range:  3.2mm - .5mm
Coil Width:  2000mm - 600mm
Coil OD:  2100mm
Coil ID:  508mm , 610mm , 760mm
Sheet Length:  4500m - 600mm   (6000mm Possible)
Pack Weight:  5 Tons
Line Speed:  90 Meters/Min
Cuts Per Minute:  60

Complete Line With:

2 Coil Storage
Coil Car

Double Stub Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Drag Brakes
Feed Up Drive
Sliding Base
North American Edge Control
Hold Down Roll

Peeler Table

4 Roll Coil Breaker  Feeder
Edge Trimmer / Scrap Baller

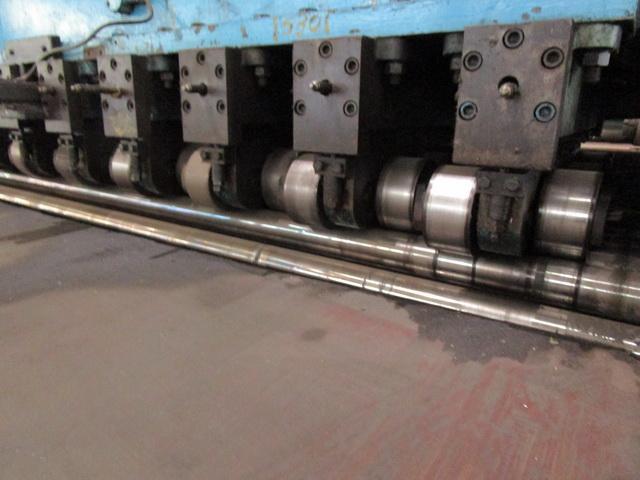

19 Roll Precision Leveler
9 Flights Top & Bottom Back-Ups
LVDT Roll Positions
Entry Pinch Rolls
Motorized Tilt
Motorized Open & Close

Pinch Roll Stand

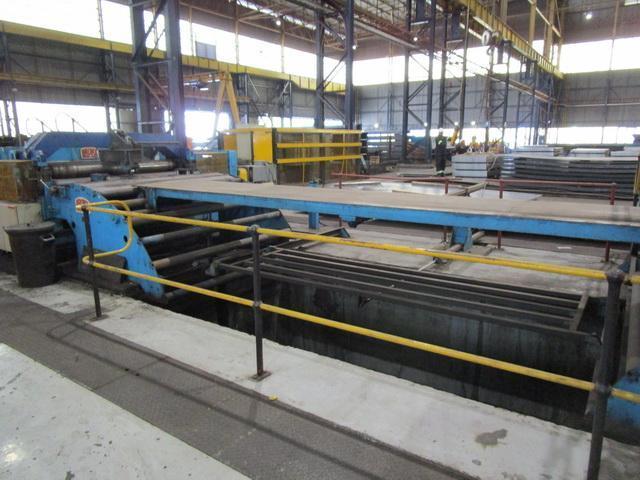

Looping Pit Cascade Rolls
Looping Pit Cross Over Table

Precision Measuring Roll
Backed Up
Entry Edge Guides
50 KW AC Motor
Air Clutch

High Speed Shear
Twin Belt Gauging Table

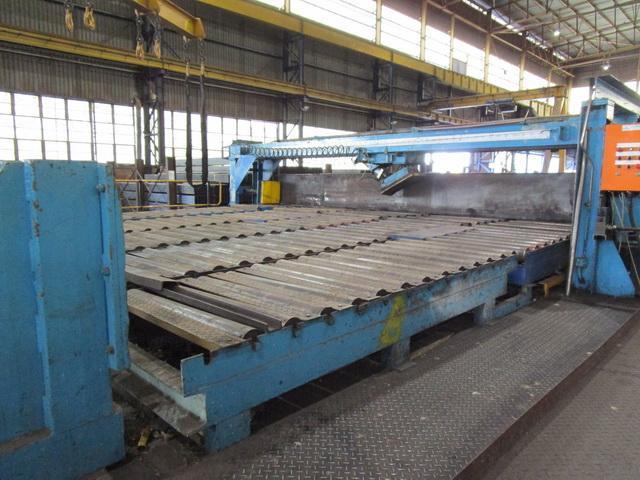

Double Stacker
Motorized End Stop
Side Discharge
Tilting Side Squaring
Motorized Conveyor Rolls

Emerson Control Techniques Digital Drives

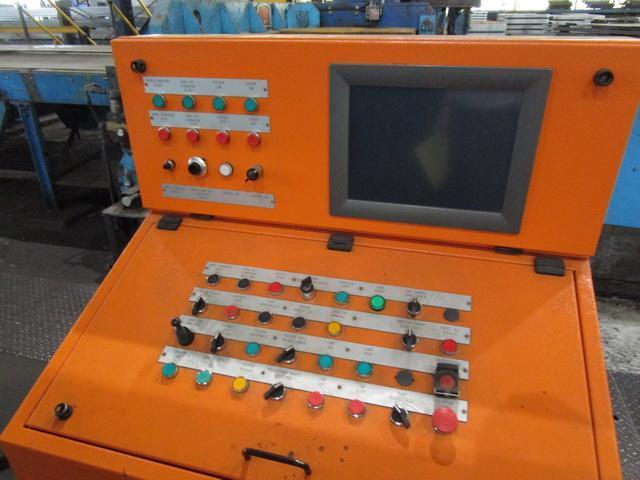

Touch Screen Readouts
