98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
  • 98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
  • 98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
  • 98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line
  • 98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line

98" (2500mm) x .600" (15mm) x 40 Ton Siemi Heavy Gauge Cut-To-Length Line

Brand
SIEMI

Model
Not Specified

Type
Cut To Length Lines

Stock #
605431

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 80000 pounds
Width 98 inches
Thickness .60 inches

Equipped With

Manufacturer: Siemi Italy
Roll diameter 300mm

Complete Line with the Following Components:


Coil Ramp
Loading Cradle
Double Cone Uncoiler
40 Ton capacity
Free Standing Hold Down Roll
Roll diameter 300mm
Peeler Section
Hydraulically driven
Entry Edge Guides
Entry Pinch Roll
Roll length: 2700mm
Photocell Coil Centering System
5 Roll Straightener
300mm Diameter Roll
Entry Crop Shear
Scrap Box
Cross Over Table
Edge Trimmer
Scrap Chopper with Helicoidal Blades
4-HI Leveler
15 Work Roll Design
Diameter of working rolls: 90mm
Flying Shear
Run Out Conveyor
Drop Stacker
Max. length of sheets 12 meters
Stacker Table

Installed and can be seen running.
Video Available Upon Request

Related Listings

View All Listings
2000mm x 12mm x 40 Ton Rizzato Cut to Length Line

Stock # 605596

2000mm x 12mm x 40 Ton Rizzato Cut to Length Line
2000mm x 16mm x 35 Ton Cut to Length Line (2025)

Stock # 605584

2000mm x 16mm x 35 Ton Cut to Length Line (2025)
2000mm x 5mm x 30 Ton FIMI Cut to Length Line with Rotary Shear

Stock # 605567

2000mm x 5mm x 30 Ton FIMI Cut to Length Line with Rotary Shear
2000mm x 10mm x 70,000# Rizzato Cut to Length Line (Refurbished in 2024)

Stock # 605521B

2000mm x 10mm x 70,000# Rizzato Cut to Length Line (Refurbished in 2024)
2000mm x 20mm SKET Heavy Gauge Cut to Length Line

Stock # 605556

2000mm x 20mm SKET Heavy Gauge Cut to Length Line
2000mm x 25mm Flying Shear Cut-To-Length Line (New in 2025)

Stock # 605549

2000mm x 25mm Flying Shear Cut-To-Length Line (New in 2025)

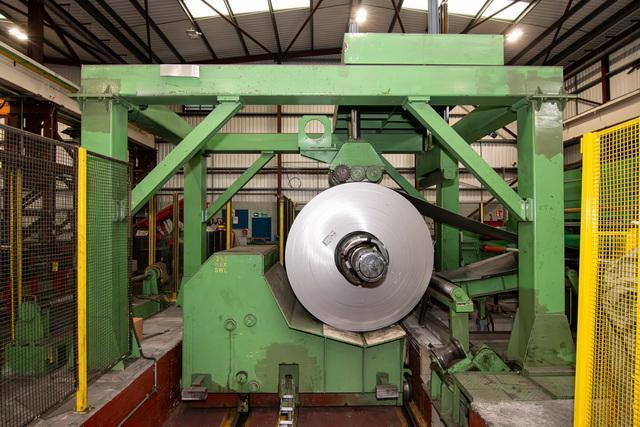

2000mm (78") x 6mm (.250") x 25 Tons Cut to Length Line Year 2012 with Two 6HI Levelers
