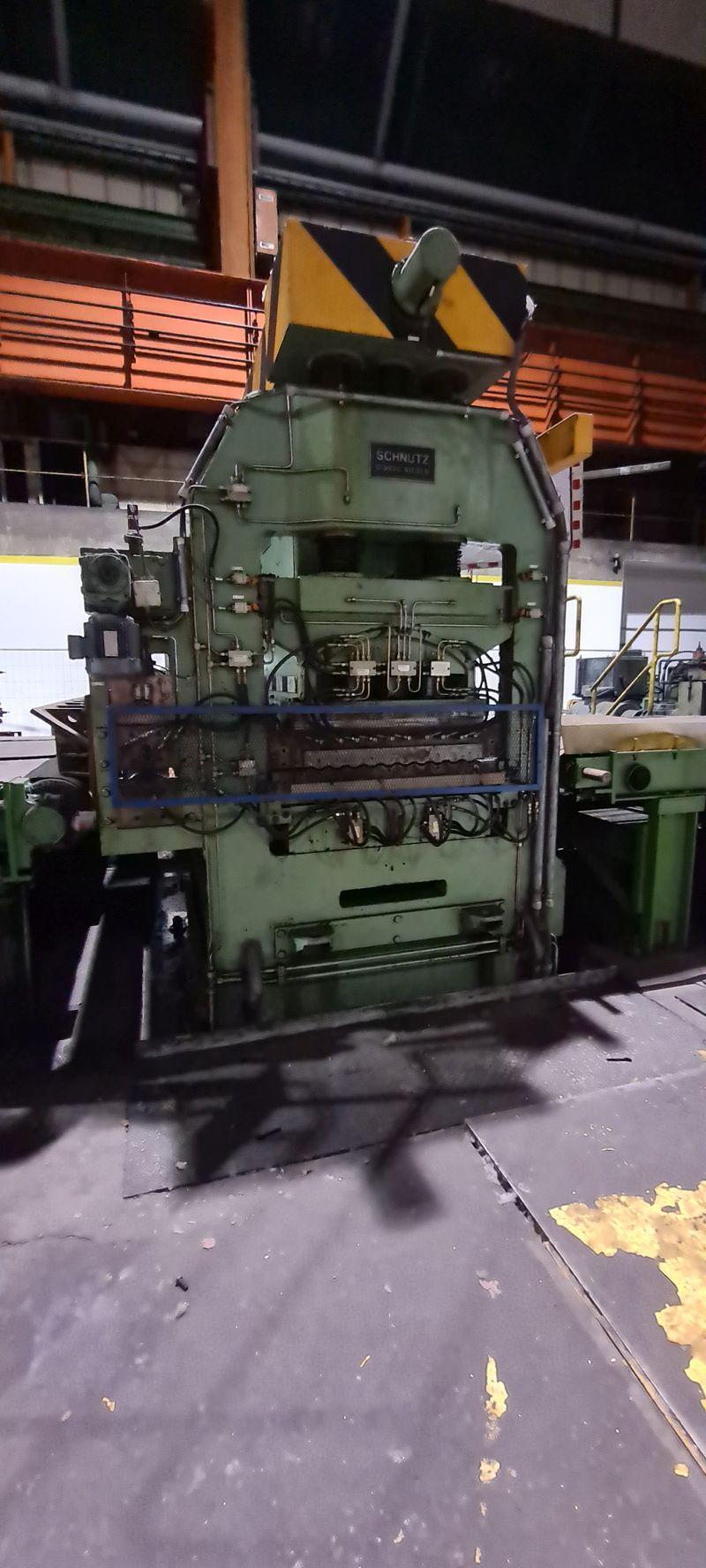

1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler
1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler
1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler
  • 1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler
  • 1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler
  • 1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler

1650 x 5mm Schnutz 4-HI Cassette Design Precision Leveler

Brand
SCHNUTZ

Model
Not Specified

Type
Levelers

Stock #
605554

Condition
Used

Year
1992

Request a Quote
Have one to sell?
Width 1800 millimeters
Thickness 5 millimeters
Work Roll Diameter 80 millimeters
Number of Work Rolls 21

Equipped With

Manufacturer:  SCHNUTZ (Germany)
Type 1800/4/21
Year : 1992
Strip Width: 500 - 1.650 mm
Strip Thickness: 1 - 5 mm
Material: (tensile strength) 520 N/mm²
Speed Max: 60 m/min
Working Direction: Any

Equipment:
Design Cassette/4 hi

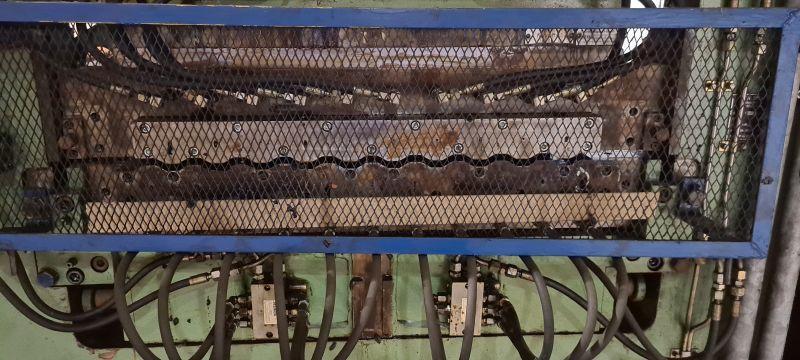

No. of Levelling Rolls: 21
WorkRoll Diameter:  80 mm
Number of Back Up Rolls:  Top/Bottom 5/5
Motorized Height Adjustment on the Top Levelling Rolls
Motorized Swiveling Adjustment on the  top Levelling Rolls
Motorized Tilting Adjustment on the  Top Levelling Rolls
Motorized Deflection on the  Bottom Levelling Rolls
Main Drive: 180 KW DC motor
