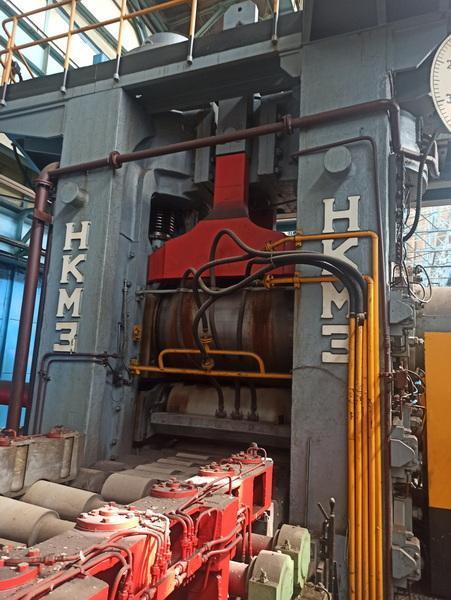

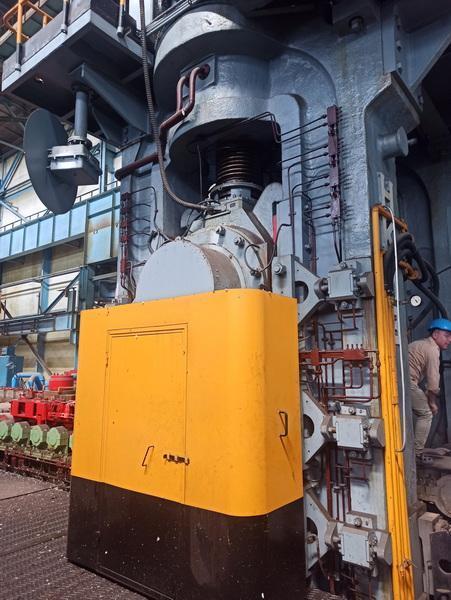

General Specifications:
Max Speed: 210m/min
Roll Face: 1800mm
Max Force: 2300 Ton
Ingot Specs:
Thickness: 277mm-304mm
Width: 800mm-1560mm
Length: 1500mm-2200mm
Hot Rolled Plate Specs:
Thickness Range: 6mm-20mm
Width: 750mm-1550mm
Length: 2000mm-8000mm
Hot Rolled Coil:
Thickness Range: 6mm-12mm
Width Range: 700mm-1550mm
Coil ID: 750mm
Coil OD: 1000mm-1400mm
Max Coil Weight: 3500 kg
Capacity: 60,000 Tons/Year
With the Following Components:
Main Drive Motor
Feed Rolls
Vertical Roll Working Stand
Mechanism for Changing Backup Rolls
Ingot Turner
Front Mill Table
Front Mill Table at Vertical Stand
Back Mill Table
Side Guards
Approach Table
Mill Run Out Table
Adjustable Guards
Shear
Movable Stop
Sheet Piller
Sheet Piller Carriage
Stacking Table
Rotary Shear
Scrap Cutter
Shear Delivery Roll Table
Adjustable Stop Ends
Side Guards
Pinch Roll
Recoiler with Coil Car
